Curved welded mesh fence supplier
TOPSFENCE supplies 3D curved welded wire mesh fence panels for security, perimeter and garden fencing projects. Each order can include panels, posts, clips, gates, coating, colour and export packing checked together before production.
Product definition

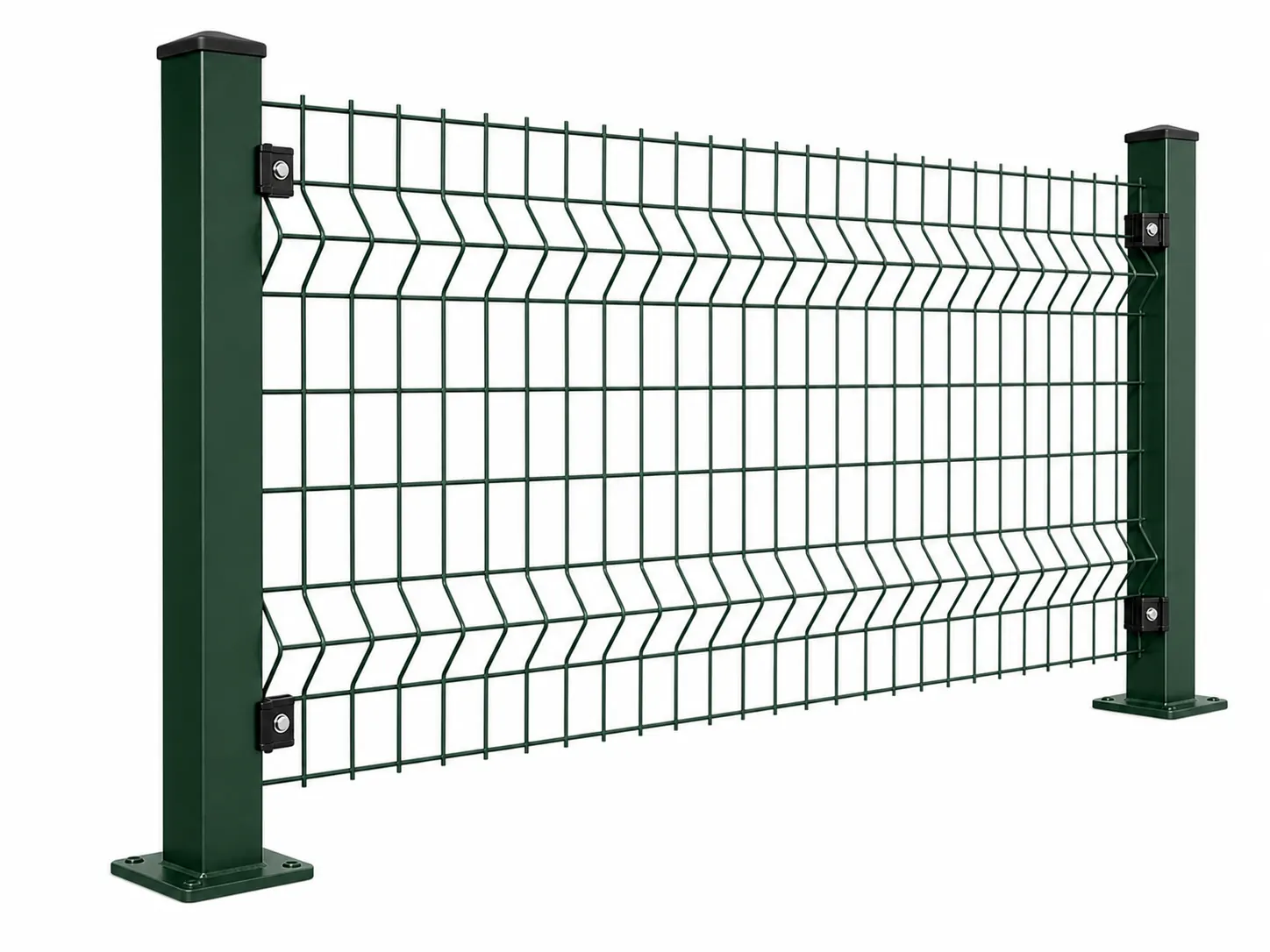

A 3D wire mesh fence is a welded mesh panel fence with pressed horizontal V-bends. The bends give a flat welded panel more depth and stiffness, so the finished fence works well for parks, housing areas, schools, factories and general perimeter control.
Choose the system
The same 3D welded mesh fence can be quoted differently when the post, fixing method, coating or gate requirement changes. These are common starting points for project discussion.
Common system
Standard perimeter
For parks, schools, housing, gardens and general commercial perimeter fencing.
Contractor supply
For importers and contractors who need compatible weldmesh fencing panels with hardware.
Access control
For perimeter projects that need pedestrian or vehicle access matching the fence line.
V-bend specification
The V-bend is not decoration. It adds depth to the welded sheet so the panel resists flexing between posts. Taller panels normally need more bends, and the bend position should remain consistent from one bay to the next.
Common panels use 2, 3 or 4 bends depending on height and local market preference.
Forming depth affects rigidity, appearance, packing height and compatibility with clips.
Repeating bend positions help the installed fence line look clean and consistent.
Wire diameter, mesh opening and bend geometry should be confirmed together.
Technical reference
Use these ranges as a starting point. Final steelmesh fencing panels should follow the approved drawing, required rigidity, coating system and packing method.
| Specification | Common options | Quotation note |
|---|---|---|
| Panel height | 1.0, 1.2, 1.5, 1.8, 2.0, 2.4 m custom heights available |
Height affects V-bend count, post length, fixing quantity and loading volume. |
| Panel width | 2.0, 2.5, 3.0 m custom widths |
Panel width must match post centres, gate openings and site layout. |
| Wire diameter | 3.5, 4.0, 4.5, 5.0 mm project-specific options |
Heavier wire improves stiffness and changes panel weight and price. |
| Mesh opening | 50 x 200 mm, 55 x 200 mm custom mesh available |
Mesh opening controls appearance, visibility, weight and local specification fit. |
| V-bend count | 2, 3 or 4 bends by panel height |
Keep bend count and bend position consistent across the same fence line. |
| Post system | Square post, round post, peach post base plate or embedded |
Post section follows fence height, fixing style, ground condition and gate position. |
| Fixing method | Clips, brackets, clamp strips, bolts post caps available |
Fixings should be quoted as a counted system, not left for site sourcing. |
| Surface treatment | Galvanized, PVC coated, powder coated galvanized + coated |
Specify environment, colour, expected service condition and packing protection. |
Accessory system
A 3D wire mesh fence panel is only one part of the order. The post profile, fixing method and gate hardware decide whether the system fits on site without extra sourcing.

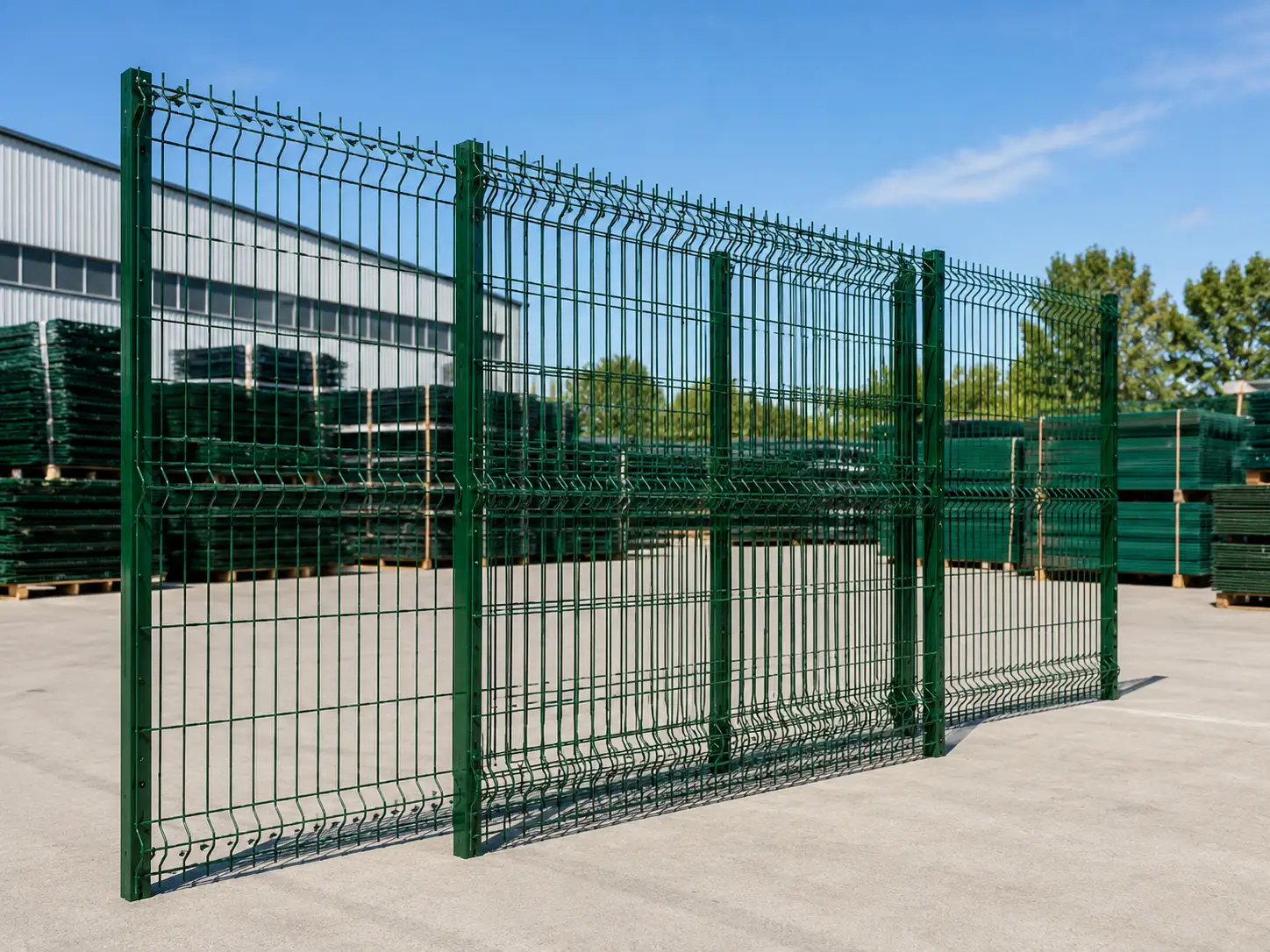

Welded panels with V-bends, clean edges and consistent post centres.

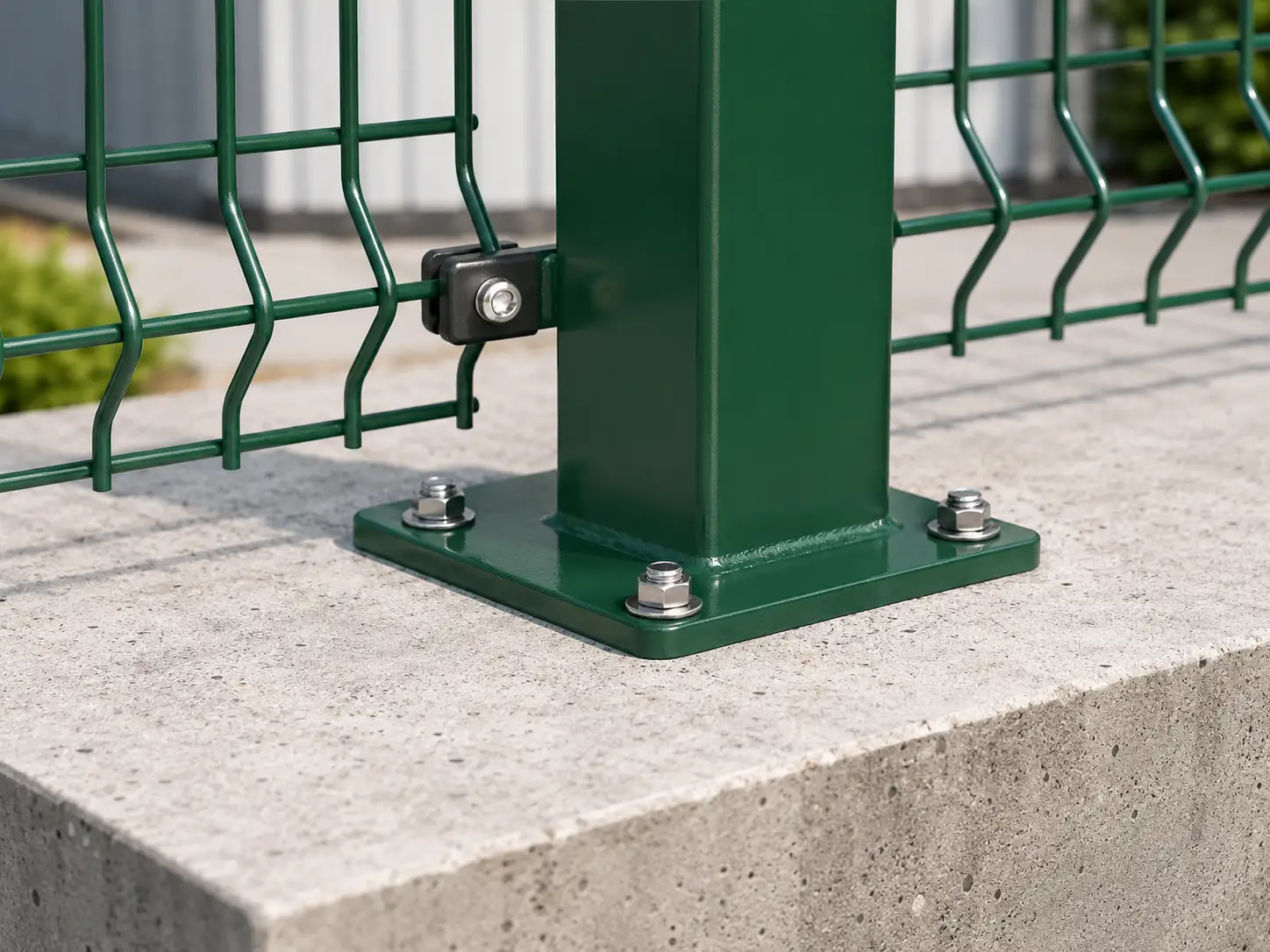

Square, round or peach posts with caps, base plates or embedded lengths.

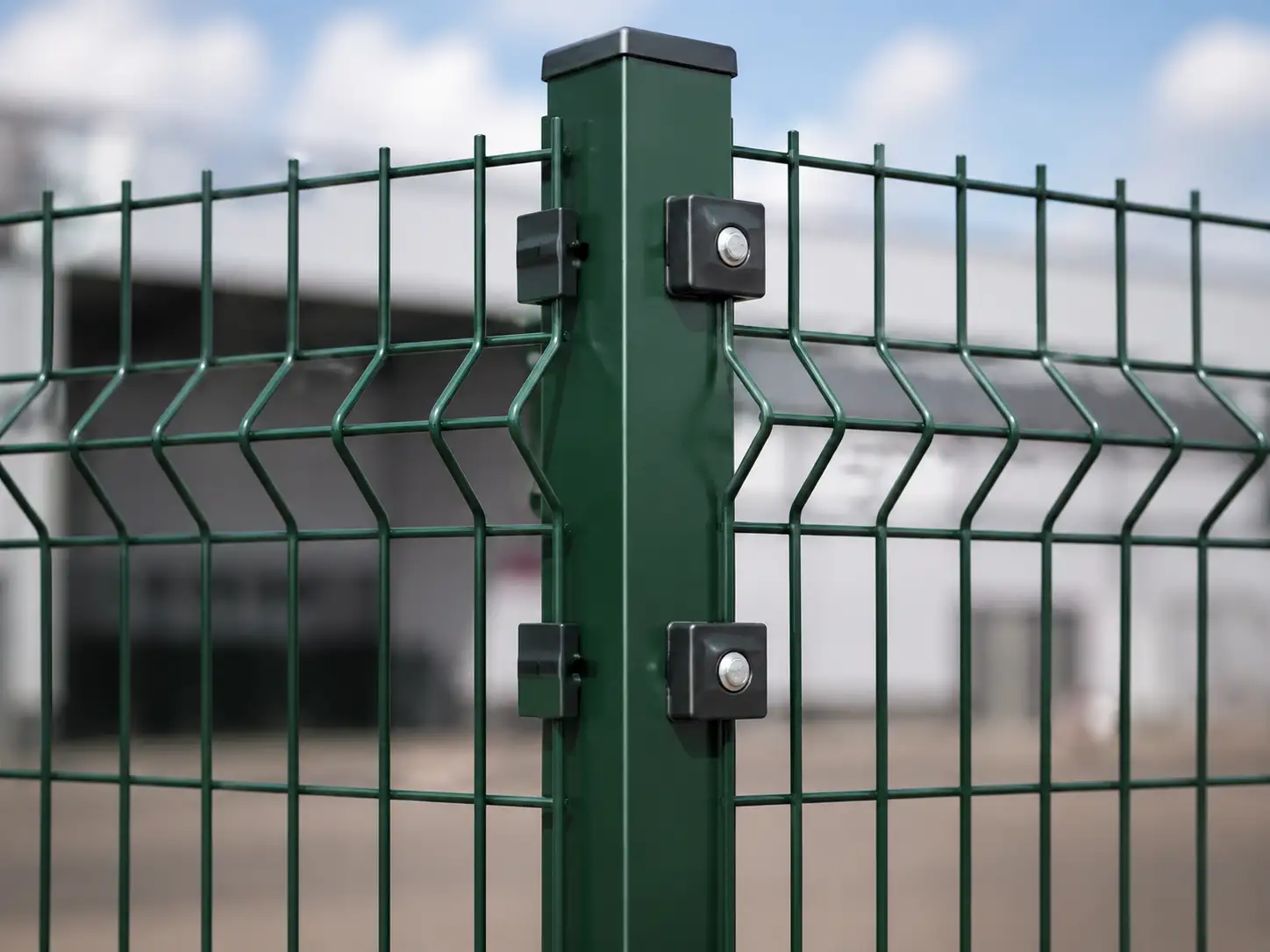

Matched to the post profile and counted against the panel height.
Hardware packed in labelled cartons for easy site receiving.

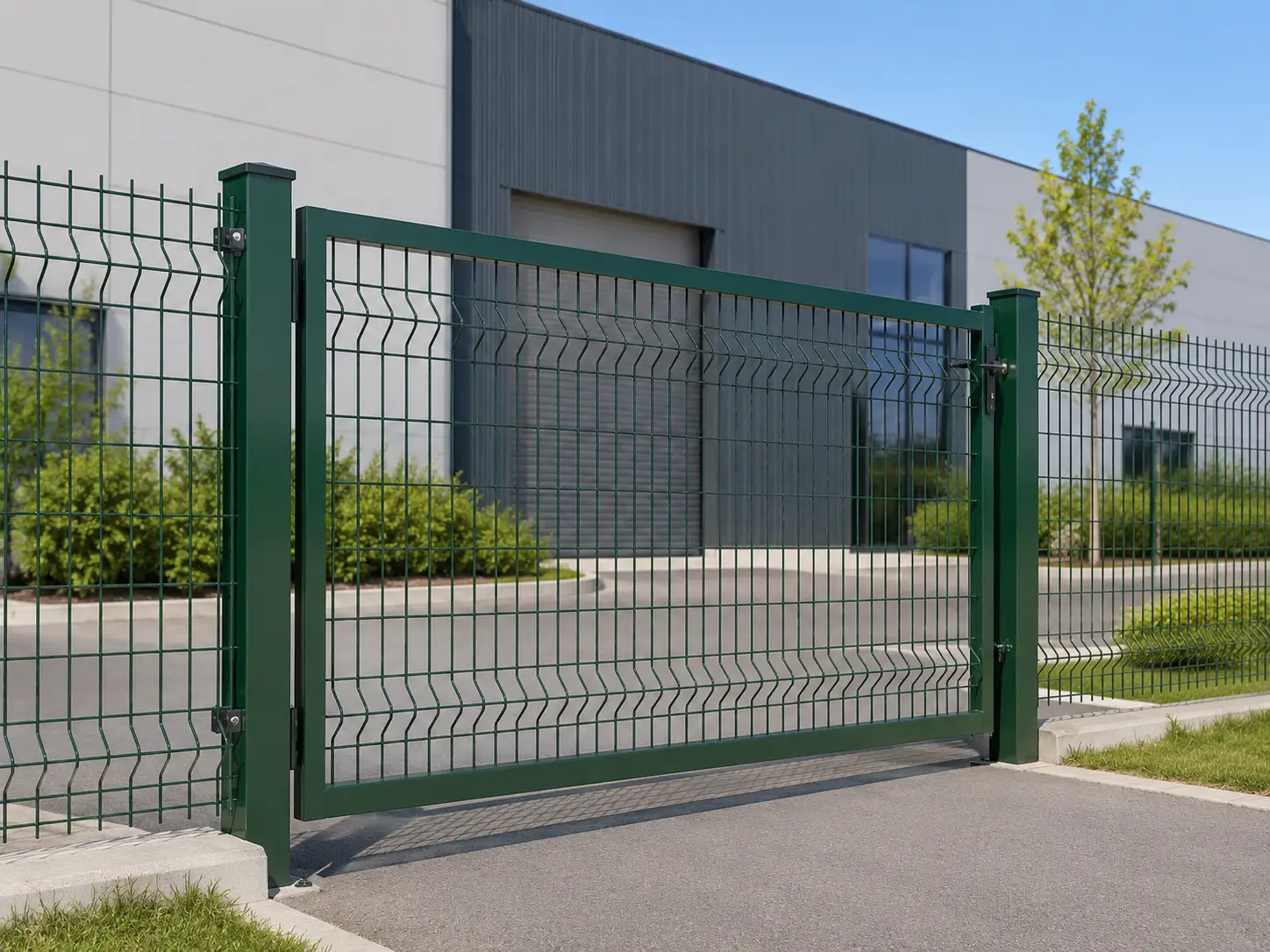

Matching mesh, frame, colour, hinges, latch and lock preparation.
Single or double swing gates coordinated with clear opening and posts.
Surface treatment
Colour should be discussed with coating build, substrate and packing. Panels, posts, clips and gates need the same approved colour system before production.
A zinc-protected finish for projects where a metallic surface is acceptable.
Common for green, black, grey and other RAL colours with a clean appearance.
Available for projects that specify a thicker polymer-coated finish.
Installation reference
This is a quoting and coordination reference. Final installation should follow the local project drawing, foundation design and site conditions.
Confirm panel width, post spacing, corners, slopes and gate openings before production.
Use embedded posts or base plates according to the ground and project requirement.
Align the 3D fence panels with clips, brackets or clamp strips matched to the post.
Install post caps, gate frames, hinges, latches and spare hardware for the complete system.
Project gallery

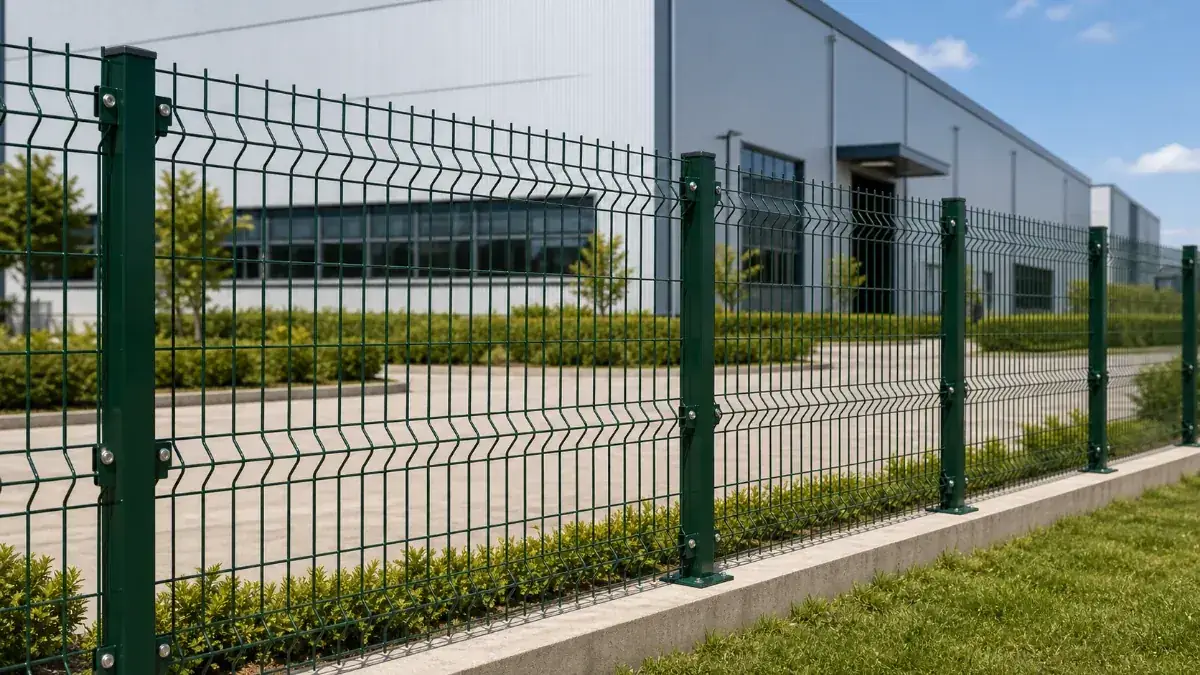

3D fence panels are a good fit for medium-duty visible perimeters such as housing, gardens, schools, public facilities and light industrial boundaries. Use 358 or double wire when anti-climb security or repeated impact resistance is the main requirement.
Clean V-bend welded panels for estates, gardens, community parks and low-risk public edges.
Visible boundary fencing for campuses, playgrounds and public sites where the fence mainly defines access and separation.
Panel, post and gate systems for warehouses, office parks, service yards and general perimeter control.
Repeatable panel sizes, colours and accessory sets for business parks, parking edges and contractor-managed fence runs.
Australia market notes
For Australia orders, tell us the name your team uses on the drawing or tender sheet. We will match it to the right 3D fence panels, posts, clips, gates and packing plan.
| Local wording | What buyers usually mean | Quote check |
|---|---|---|
| 3D mesh fencing panels | V-bend welded mesh fence panels for boundary and perimeter projects. | Confirm panel height, width, bend count and post centres. |
| Weldmesh fencing panels | Welded mesh panels supplied as a repeatable fence bay system. | Check whether the buyer needs 3D panels, double wire panels or another weldmesh style. |
| Steel mesh fencing panels | Powder-coated or galvanized steel mesh panels with matching posts and clips. | Confirm wire diameter, mesh opening, coating and colour. |
| Security mesh fence panels | Sometimes used for general perimeter mesh, but may also mean 358 anti-climb mesh. | Ask whether the project needs normal 3D mesh or higher-security 358 mesh. |
System comparison
Choose 3D, chain link, 358 or double wire by security level, rigidity, budget, visibility and installation style.
| Fence type | Best fit | Practical difference |
|---|---|---|
| 3D wire mesh fence | Garden, school, park, housing, commercial and general perimeter projects | V-bend welded mesh fence with good visibility, clean appearance and moderate rigidity. |
| Chain link fence | Large open land, sports fields, utility areas and flexible boundary runs | Roll fabric is flexible and economical for long runs, but it does not have the same panel appearance. |
| 358 anti-climb fence | Data centers, utilities, critical facilities and higher-security perimeters | Small mesh opening gives stronger anti-climb intent than standard 3D fence panels. |
| Double wire fence | Schools, sports areas and sites needing a flatter, more rigid welded panel | Twin horizontal wires create higher panel rigidity without the V-bend profile. |
If the buyer is comparing weldmesh fencing panels and steelmesh fencing panels, the first question should be use case: general perimeter, anti-climb security, stronger rigidity or flexible long-run fencing.
Packing and delivery
3D curved welded mesh fence panels are large painted parts. Packing must reduce coating rub, protect panel edges and keep clips, bolts and gate hardware easy to count when the container arrives.
Panel bundles separated at contact points and strapped for safe handling.
Posts and caps grouped by section, length and fence-line requirement.
Accessory cartons labelled for clips, brackets, bolts and gate hardware.
Loading record with finished-goods and container photos when required.
Get a useful first quote
A drawing, BOQ, sample photo or market specification helps us quote the real system instead of guessing from one panel photo.
Include standard bays, short panels, corners and gate openings where known.
State wire diameter, mesh opening and any required local market specification.
Confirm 2, 3 or 4 bends, or send a reference panel photo.
Choose square, round or peach posts and the matching clip or bracket system.
Send galvanized, powder-coated, PVC-coated and RAL colour requirements.
Provide total fence length, panel quantity, accessories, gates and destination port.
Before requesting a quote
Short answers to the details importers, contractors and project buyers usually confirm before ordering 3D fence panels.
They usually refer to the same product: welded mesh fence panels with pressed horizontal V-bends. "Curved" describes the bend profile, while "3D" describes the panel depth created by those bends.
50 x 200 mm is a common opening. 55 x 200 mm and custom openings can also be produced when the drawing, market requirement or tender specification calls for them.
It depends on panel height and market preference. Common panels use 2, 3 or 4 bends. Taller panels usually need more reinforcement bends to control flexing.
Yes. We can quote panels, square posts, round posts, peach posts, clips, brackets, clamp strips, bolts, post caps and matching pedestrian or vehicle gates as one system.
Common choices include galvanized, powder coated, PVC coated and galvanized plus coated systems. The final choice should follow exposure, colour, service condition and project specification.
Panel size, wire diameter, mesh opening, bend count, post type, fixing method, coating, gates, packing, order quantity and destination all affect the quotation.
Request a quote
Share panel height, width, wire diameter, mesh opening, V-bend count, post type, fixing method, coating, colour, gates, quantity and destination. We will reply with a practical factory quotation.
