Controlled, visible perimeters
We recommend 358 mesh when your project needs restricted handholds, limited tool access and clear sightlines for surveillance around a controlled boundary.
358 system details
High-security welded mesh system

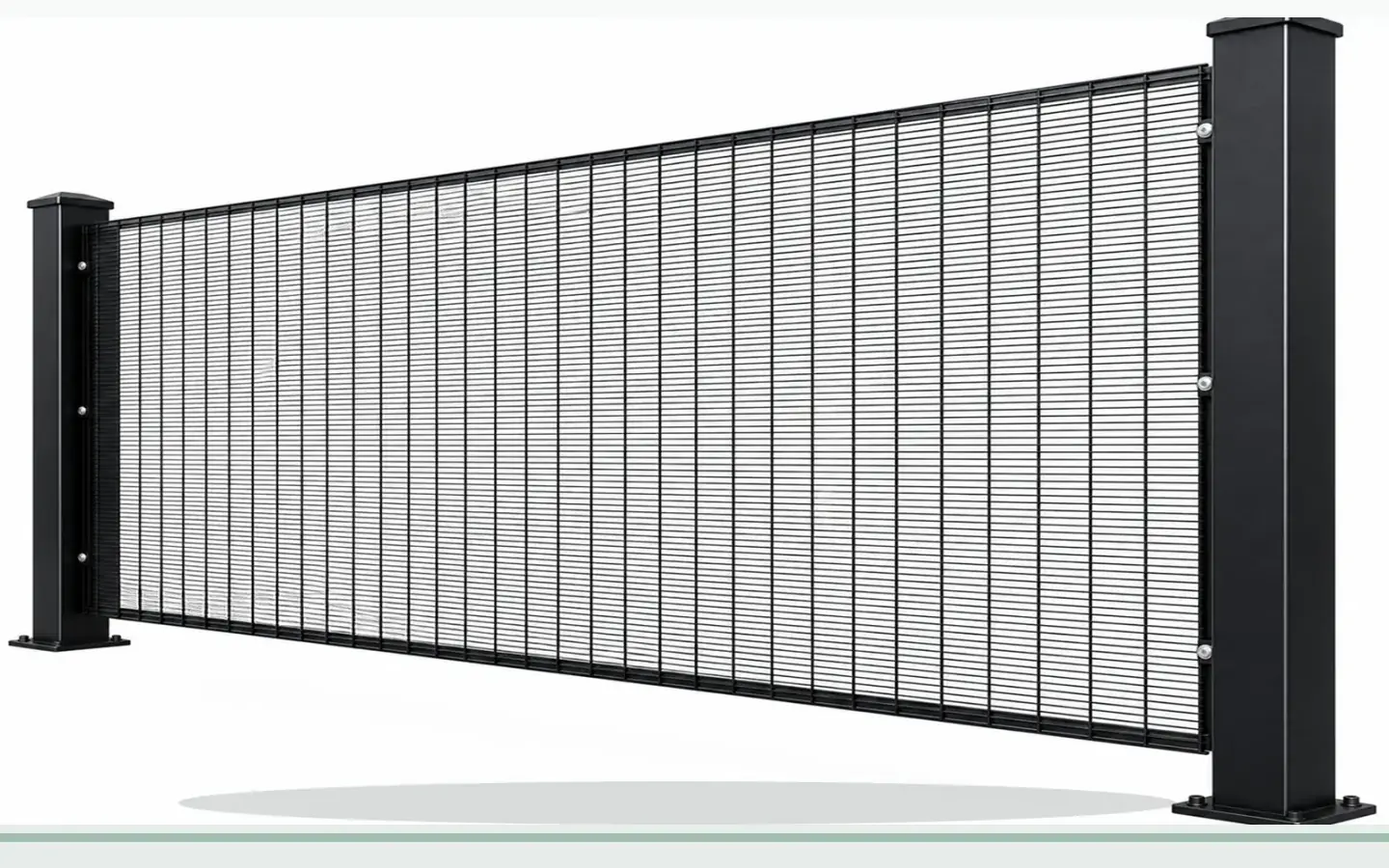

358 Anti-Climb Fence Panels, Posts and Gates
We manufacture 358 anti-climb fence systems with the defining 76.2 × 12.7 mm narrow mesh opening. We supply project-ready panels, posts, secure fixings and matching gates, and we confirm the final dimensions, finish and structural details against your approved drawings and site conditions.
- Complete factory-direct system: work with a 358 anti climb fence manufacturer for panels, posts, clamp bars, anti-tamper fixings and matching gates.
- Project-specific: custom heights, post systems, coatings and security toppings.
- Drawing-led supply: panel centres, corners, gates and hardware checked together.
- Export ready: labelled bundles, separated hardware and loading documentation.
System type
358 Anti Climb Fence System
Supply scope
Panels, Posts, Fittings and Gates
Include the total fence length and destination port for a more useful first quotation.
Mesh opening76.2 × 12.7 mm
Wire diameter4.0 / 4.5 mm
Panel height1.8–3.0 m+
Panel width2.0 / 2.2 / 2.5 m
FinishGalvanized + coated
Custom supplyAvailable
Before you specify the system
When a 358 Fence Is—and Is Not—the Right Fit
We use the product name as a starting point, then help you confirm the complete perimeter design against your security objective, site conditions and approved project requirements.
Height, wind, ground and access
We do not select the system by panel height alone. We confirm the post section, foundations, fixing rows, corners, slopes, gates and any approved security topping together.
Not a universal security specification
We review local rules, risk assessments and engineering requirements before recommending a configuration, and we do not present one generic setup as suitable for every site.
Verify before ordering:
Factory capability
Production, QC and packing process
Specification and inspection guide
Choose the security level
358 Fence Configurations for Different Projects
We configure each 358 anti-climb mesh fencing order around its height, fixing method, security topping and access requirements instead of treating every project as the same panel.
Most requested
Standard perimeter

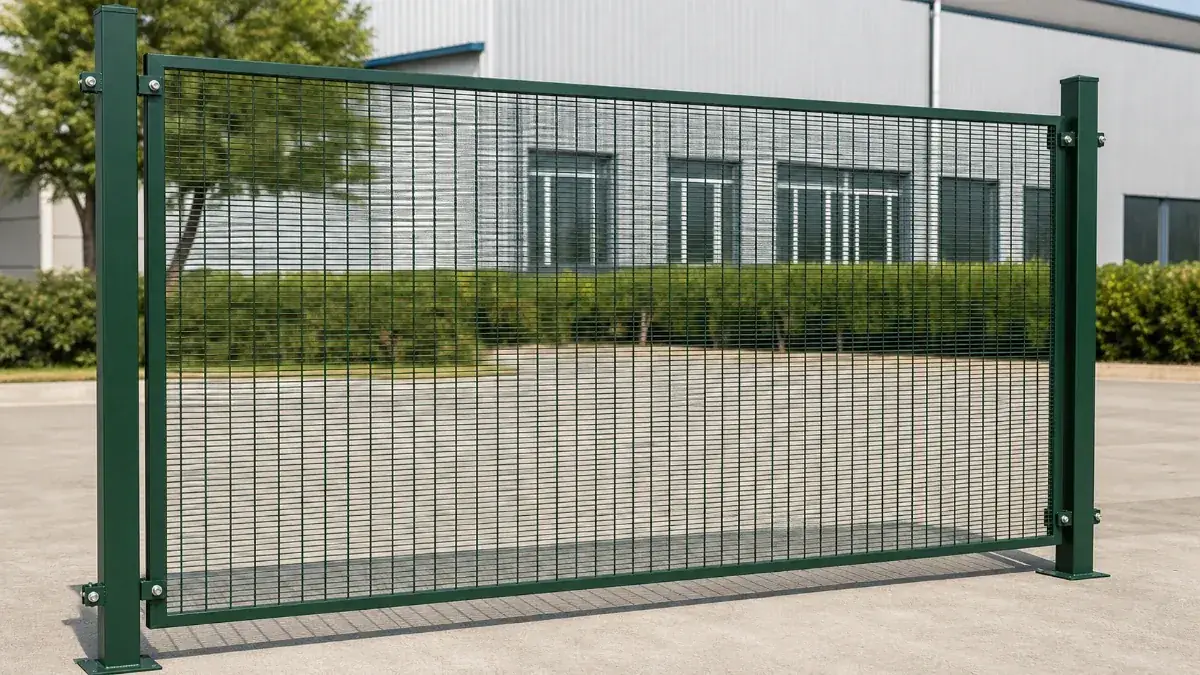

Standard 358 Panel System
We supply this configuration for data centers, utilities, logistics yards and other controlled perimeter projects.
- 1.8–3.0 m panel heights
- Square or rectangular posts
- Clamp bar or bracket fixing
Enhanced perimeter

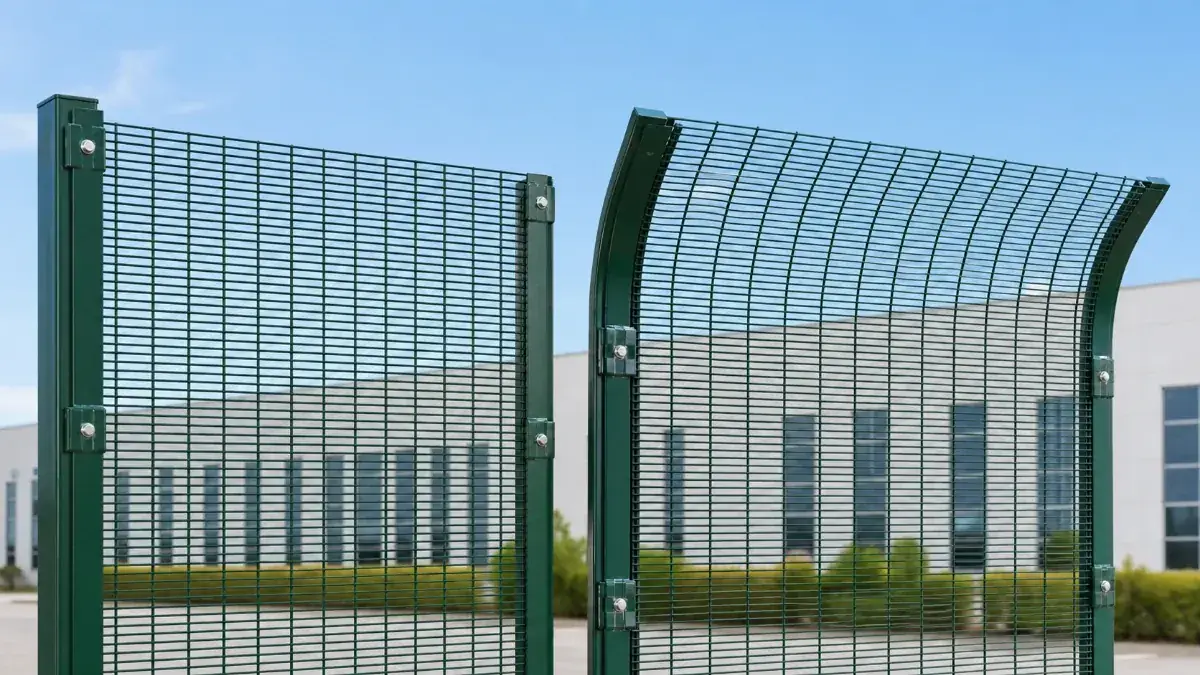

Extended or Cranked Top System
We manufacture this configuration for sites requiring added height or support for approved barbed or razor wire topping.
- Straight or crank extensions
- Project-specific topping supports
- Reinforced posts and fixing rows
Controlled access

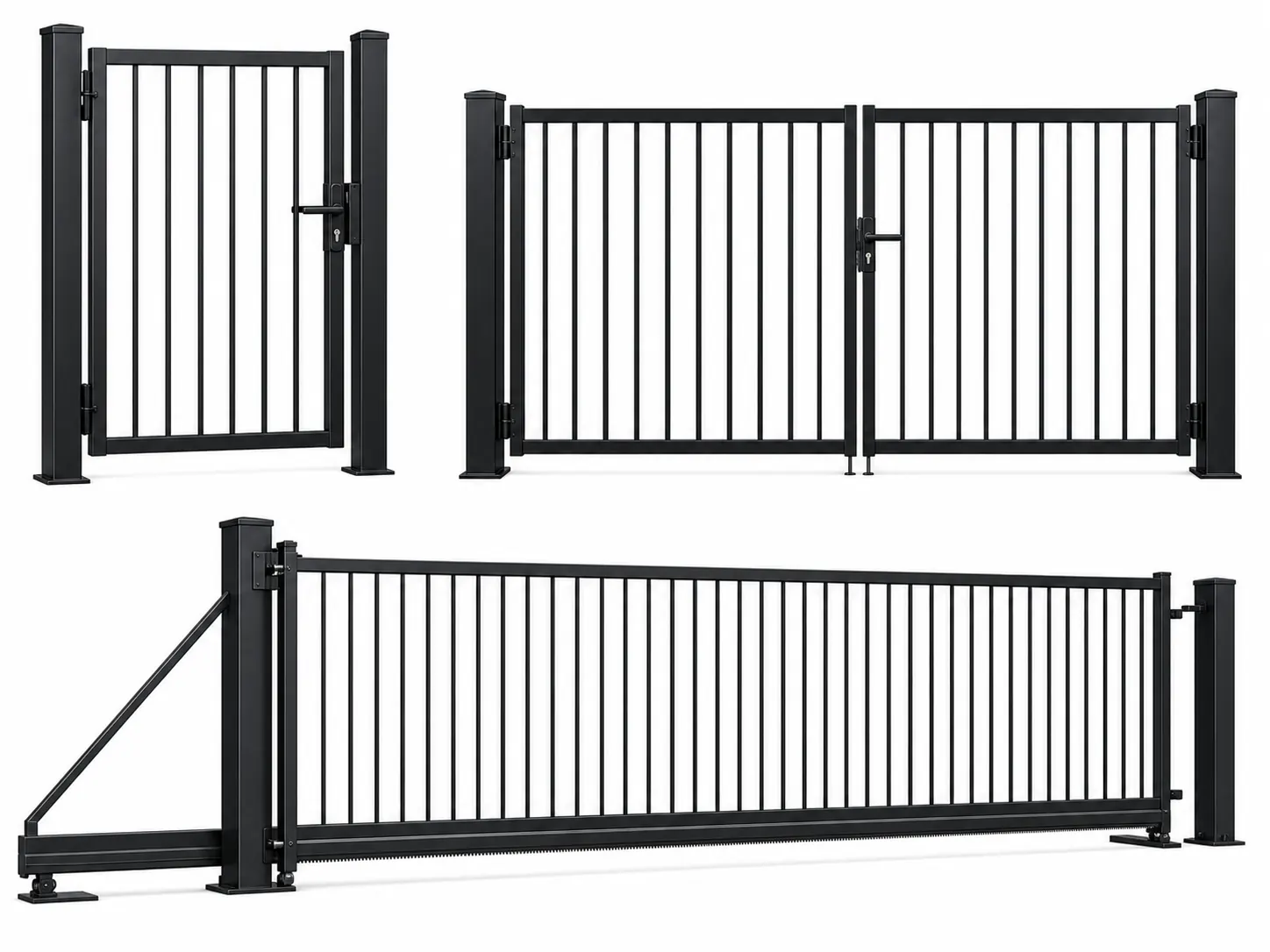

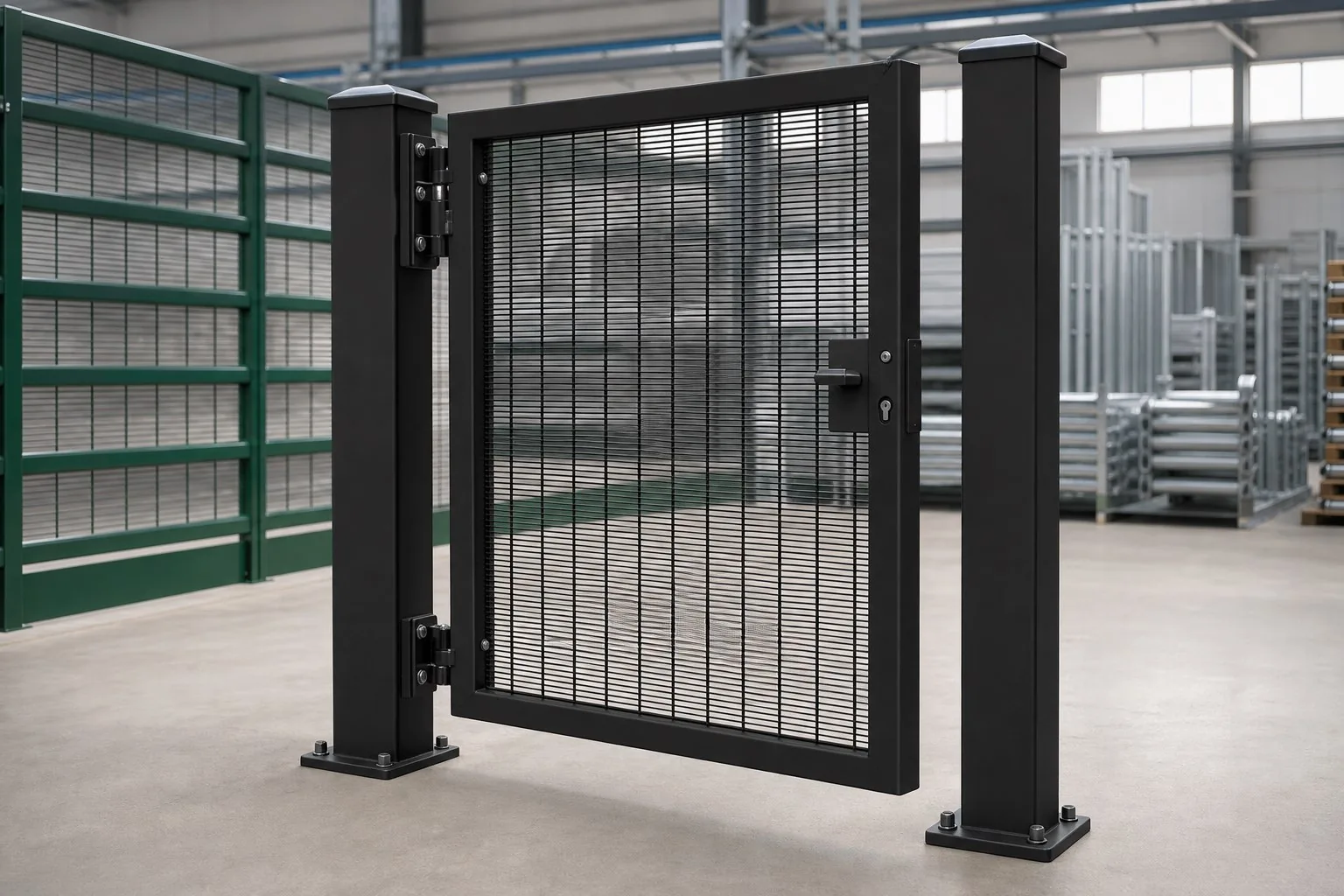

358 Pedestrian and Vehicle Gates
We manufacture matching mesh gates to suit the fence height, post system and access opening.
- Single- and double-leaf options
- Hinges, drop bolts and lock preparation
- Matching finish and infill mesh
Technical reference
358 Anti-Climb Fence Specifications
We use these common specifications as a starting point, then confirm the final panel, post and fixing details against your approved project drawings and site conditions.
| Specification | Common options | Quotation note |
|---|---|---|
| Mesh opening | 76.2 × 12.7 mm 3 × 0.5 in |
We manufacture the defining aperture of standard 358 security mesh. |
| Wire diameter | 4.0 mm, 4.5 mm project-specific options |
We confirm it together with the panel height and required rigidity. |
| Panel height | 1.8, 2.0, 2.4, 3.0 m stacked systems available |
We coordinate the post and fixing design for taller systems. |
| Panel width | 2.0, 2.2, 2.5 m custom widths |
We match panel width to the post centres and fence-line drawings. |
| Post system | Square, rectangular, I-post base plate or embedded |
We select the post section around height, wind, ground and foundation conditions. |
| Fixing system | Clamp bar, clips, brackets anti-tamper bolts |
We list the fixing quantity and spacing against each panel height. |
| Surface finish | Hot-dip galvanized galvanized + powder coating PVC coated |
Tell us the environment, colour and expected service condition. |
| Security topping | Straight or crank extension barbed / razor wire support |
We supply it to the approved perimeter design and applicable local project rules. |
System quotation
A Secure Perimeter Is More Than a Mesh Panel
For each 358 anti-climb fence project, we separate standard line sections, corners, gates, security topping and spare hardware in our quotation so you can review the complete system before we begin production.
01 Dense mesh panel
02 Security post
03 Fixing system

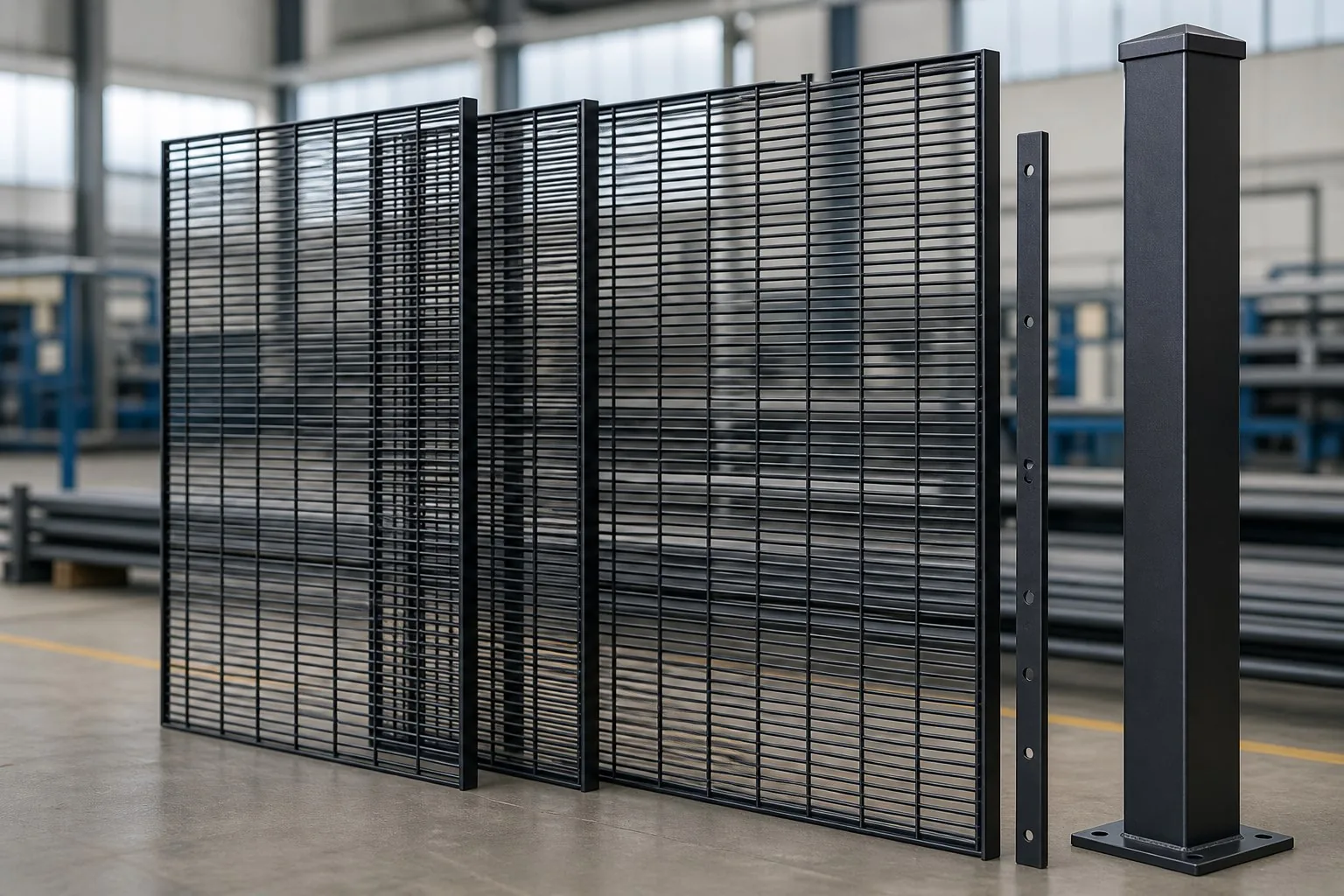

Fence panels
We coordinate standard, reinforced or stacked panels with the required post centres.
Line and corner posts

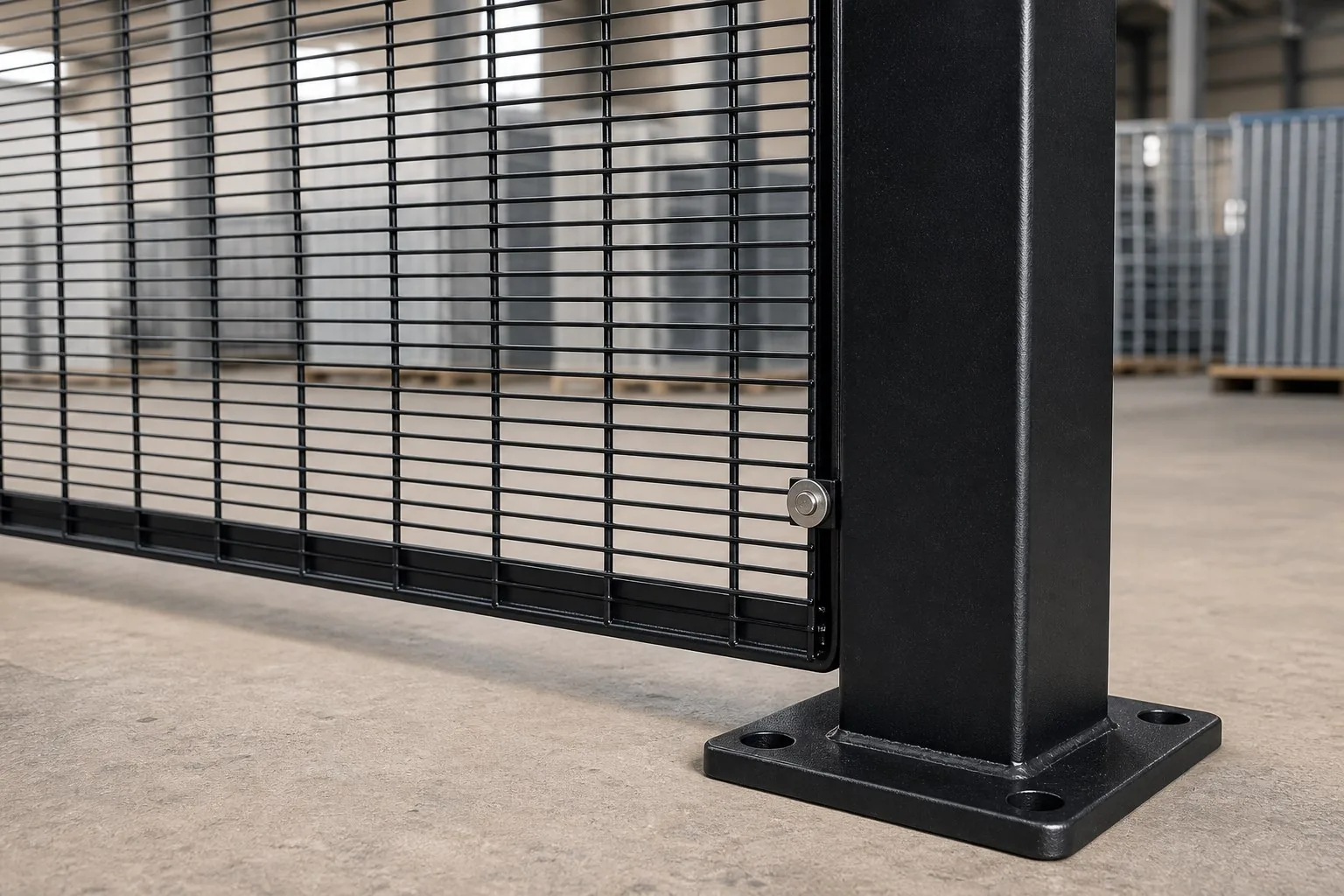

We manufacture embedded or base-plated posts with the required caps, corner details and end conditions.
Clamp bars and clips

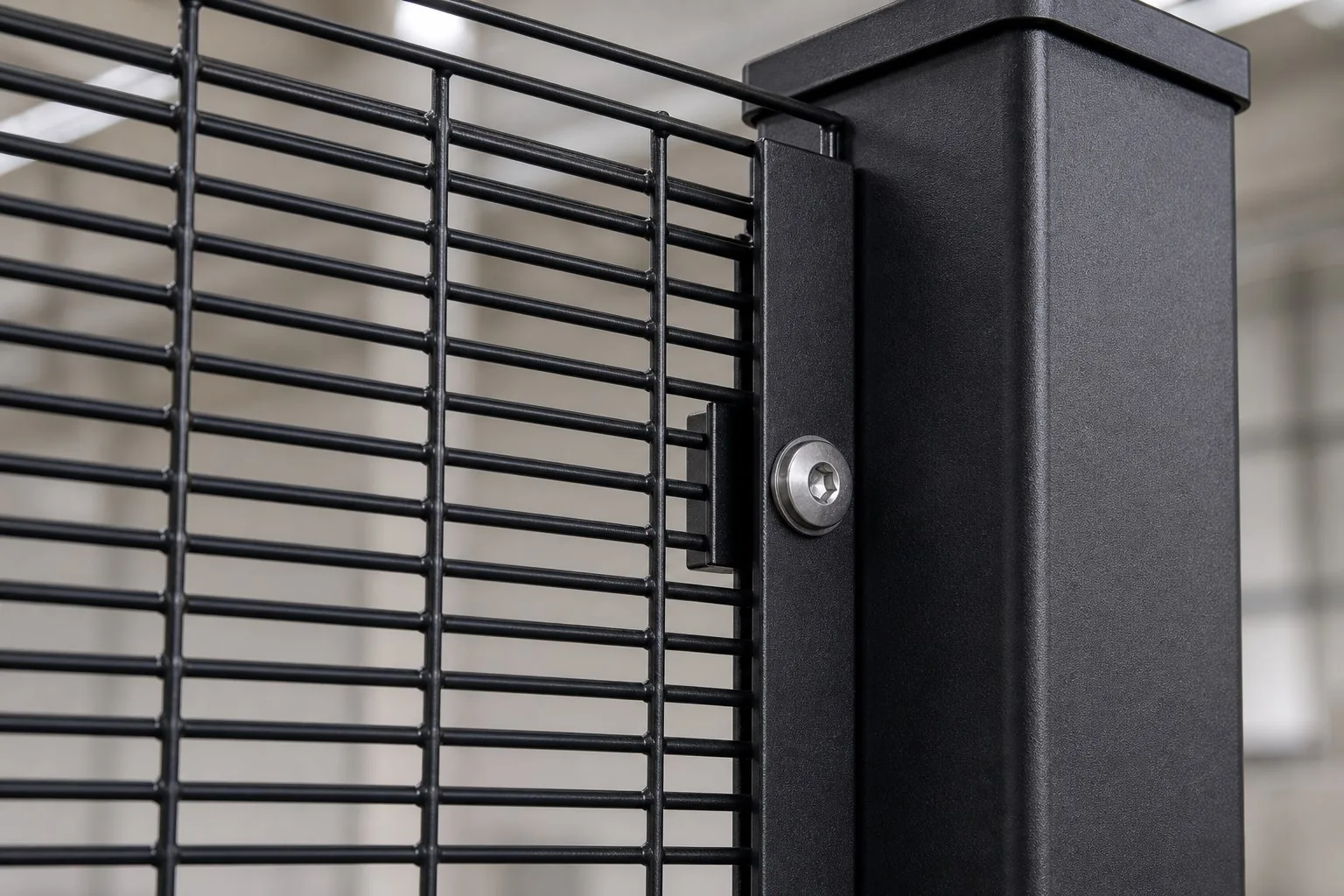

We select continuous bars or bracket systems for the required security level.
Anti-tamper fixings
We pack and label bolts, nuts and washers against the fixing schedule.
Security topping
We prepare straight or cranked extensions for the approved topping arrangement.
Matching gates
We coordinate pedestrian and vehicle access with the mesh, finish and fence height.
Surface protection
Choose the Finish Around the Project Environment
We do not specify a coating by colour alone. Tell us the exposure, target service condition and project standard so we can quote the correct finish.
01

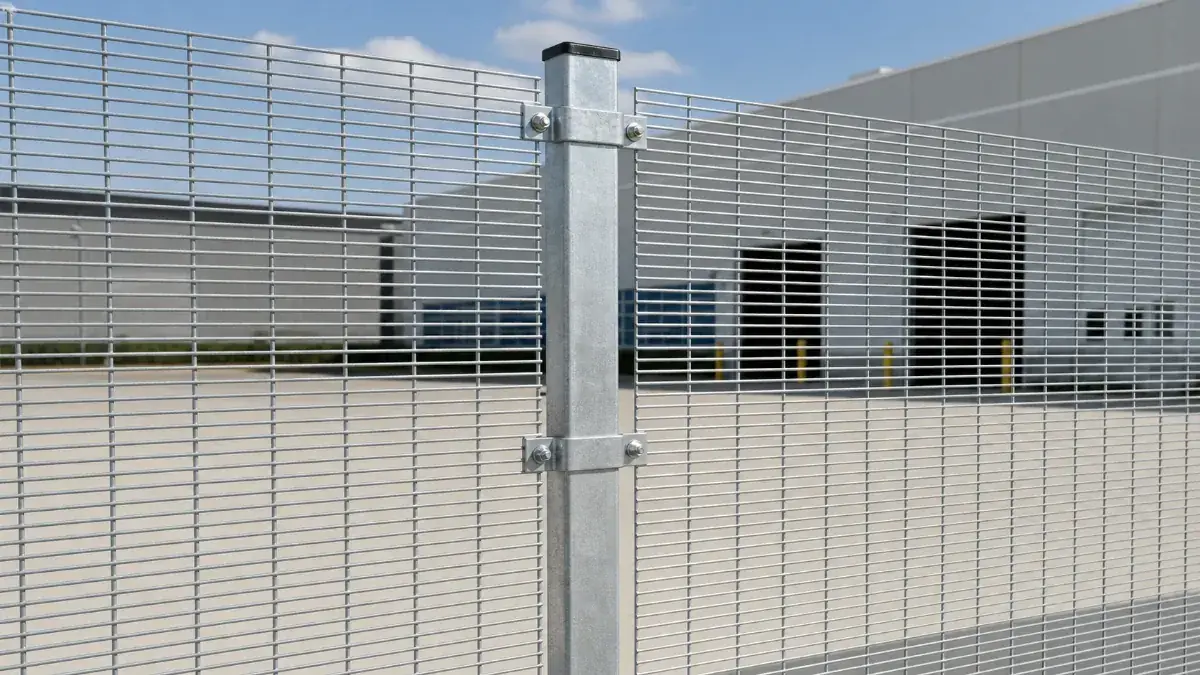

Galvanized
We offer this practical corrosion-resistant finish for projects that do not require a coloured final surface.
02

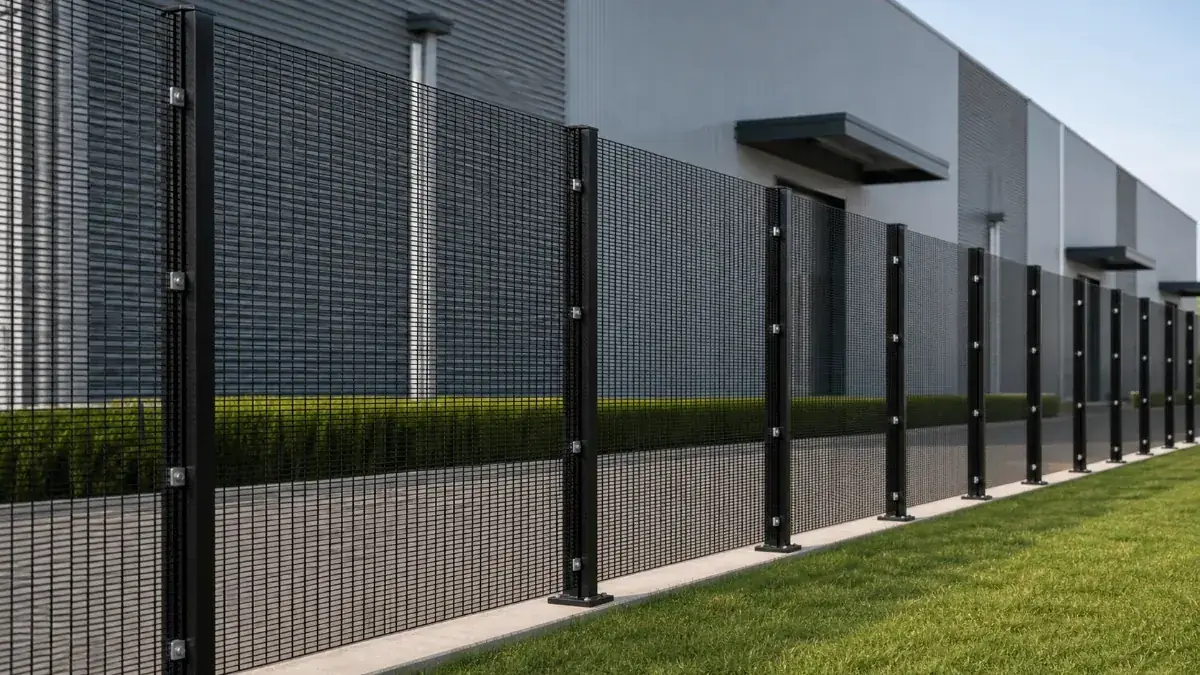

Galvanized + Powder Coated
We apply this layered system for colour, appearance and added surface protection in outdoor environments.
03

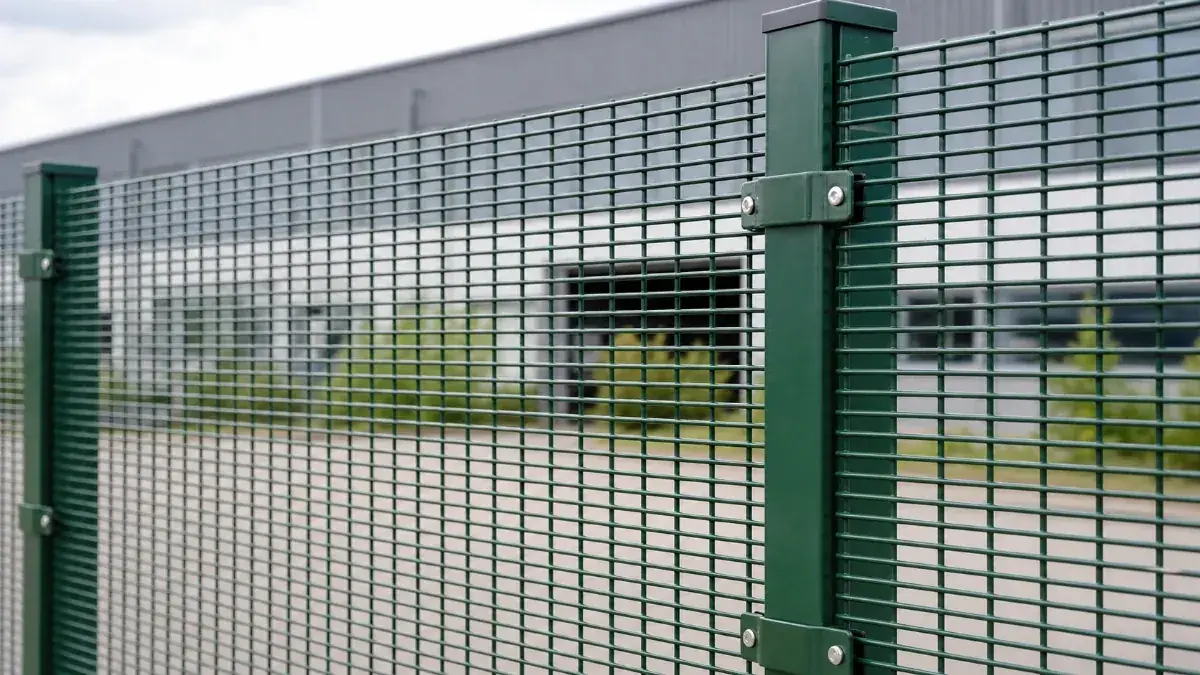

PVC Coated
We can supply this finish when your project specification calls for a thicker polymer-coated surface.
Production and inspection
Check the system—not only the finished colour.
Production control

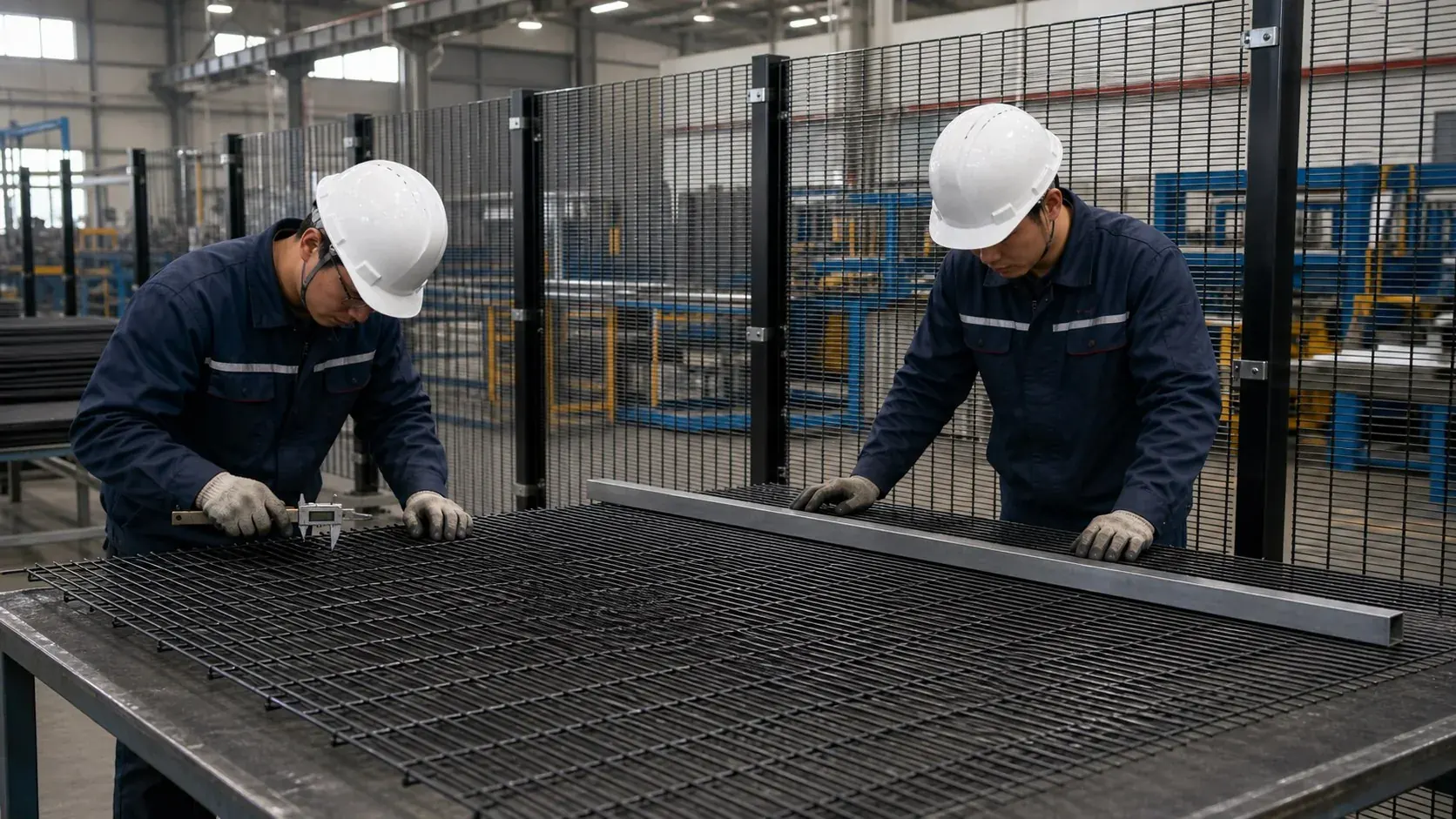

Six Checks Before the Fence Is Packed
Because dense mesh makes uneven welding, distortion and coating gaps easier to notice, we inspect the parts that directly affect installation and finished appearance.
- 01Wire and aperture check
We confirm the wire diameter and mesh opening against your order specification.
- 02Weld continuity
We review weld intersections and remove sharp projections or damaged edges.
- 03Panel flatness
We check finished panels for bowing before coating and bundling.
- 04Post and fixing fit
We sample posts, clamp bars, brackets and bolts as one installation system.
- 05Coating coverage
We inspect intersections, edges and fixing zones after surface treatment.
- 06Quantity and packing
We match bundle labels and hardware packages to the packing list.
Typical applications
Clear Visibility for Controlled Perimeters
We recommend 358 mesh where your perimeter needs physical delay, clear sightlines and controlled access without using a solid wall.
Critical infrastructure

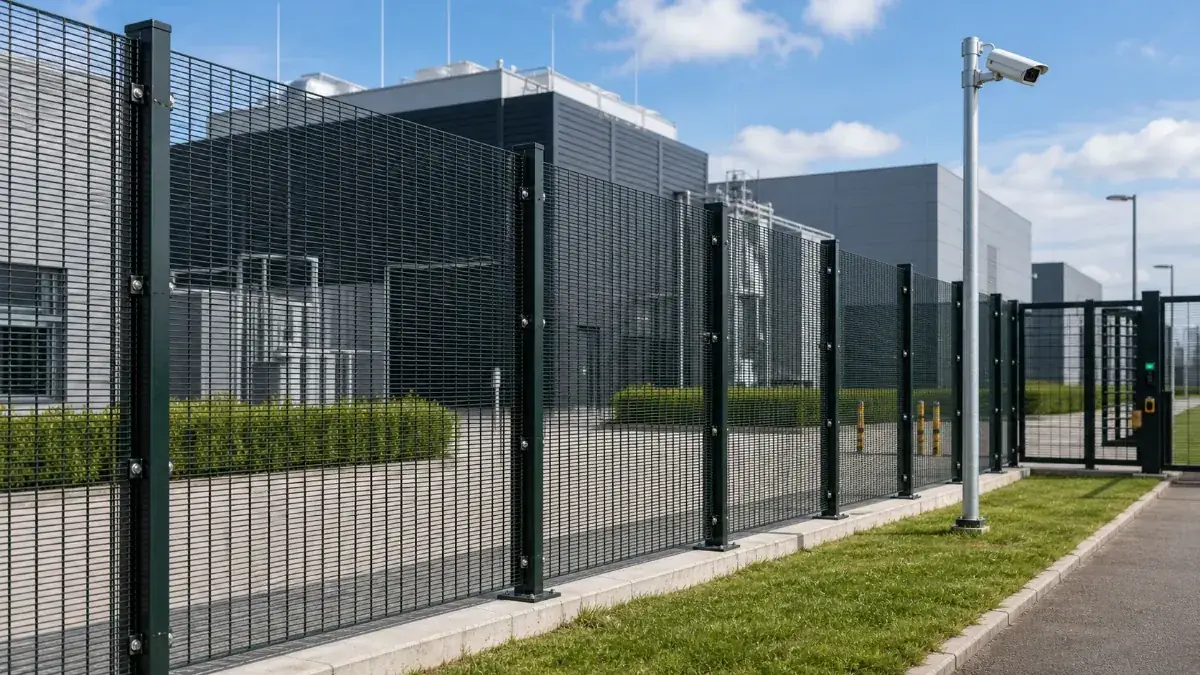

Data Centers and Utilities
We supply visible security boundaries for substations, equipment compounds and controlled technical sites.
High security

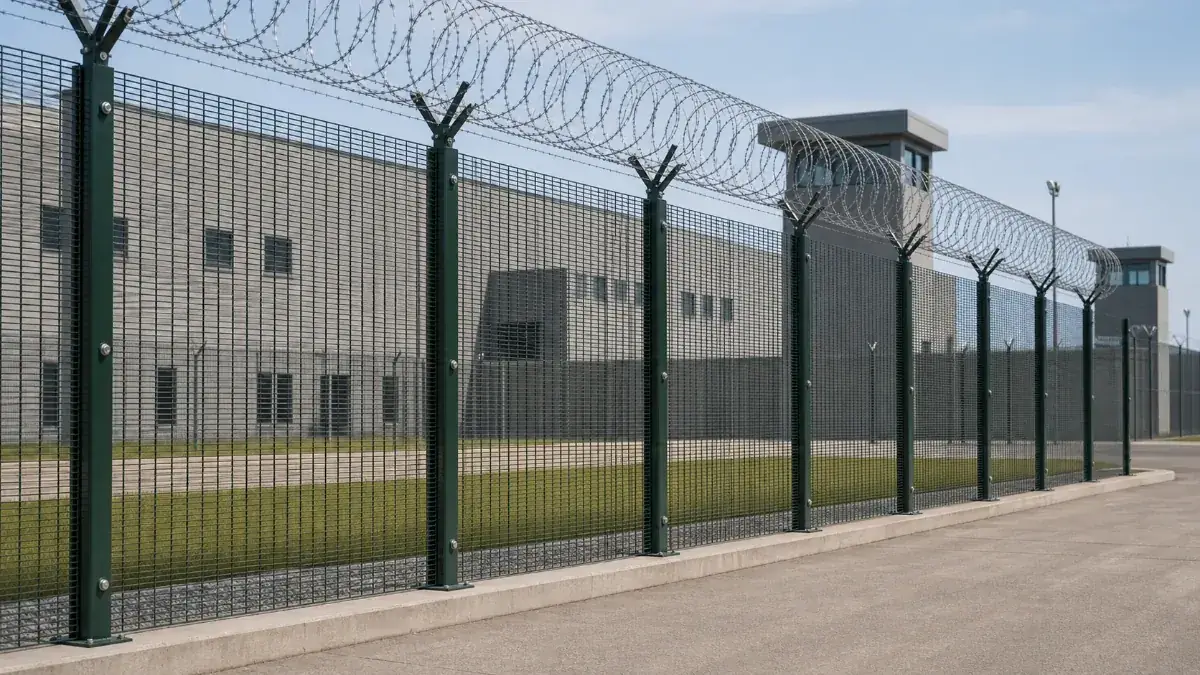

Correctional and Government Sites
We manufacture dense 358 anti-climb mesh systems for high-risk and restricted perimeter zones.
Commercial security

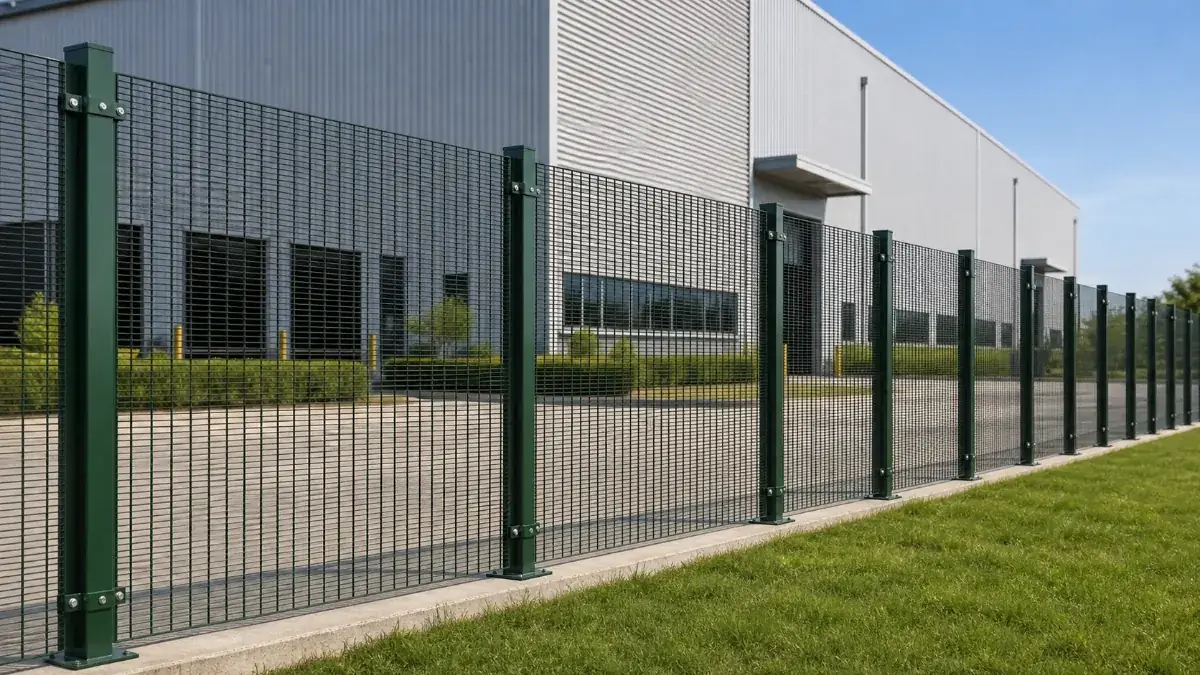

Warehouses and Logistics Yards
We supply perimeter systems for storage, loading and restricted operational areas.

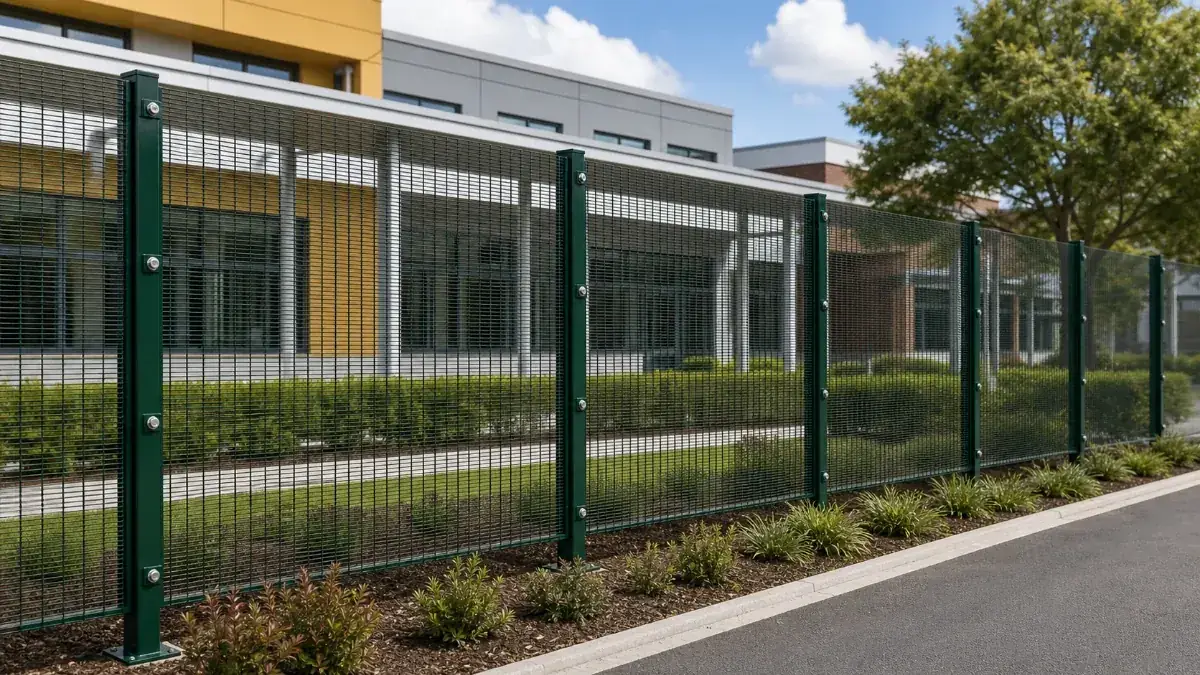

Public assets
Transport and Public Facilities
We supply anti-vandal boundaries where surveillance visibility remains important.
Packing and loading
Organized for Site Receipt, Not Just Container Space

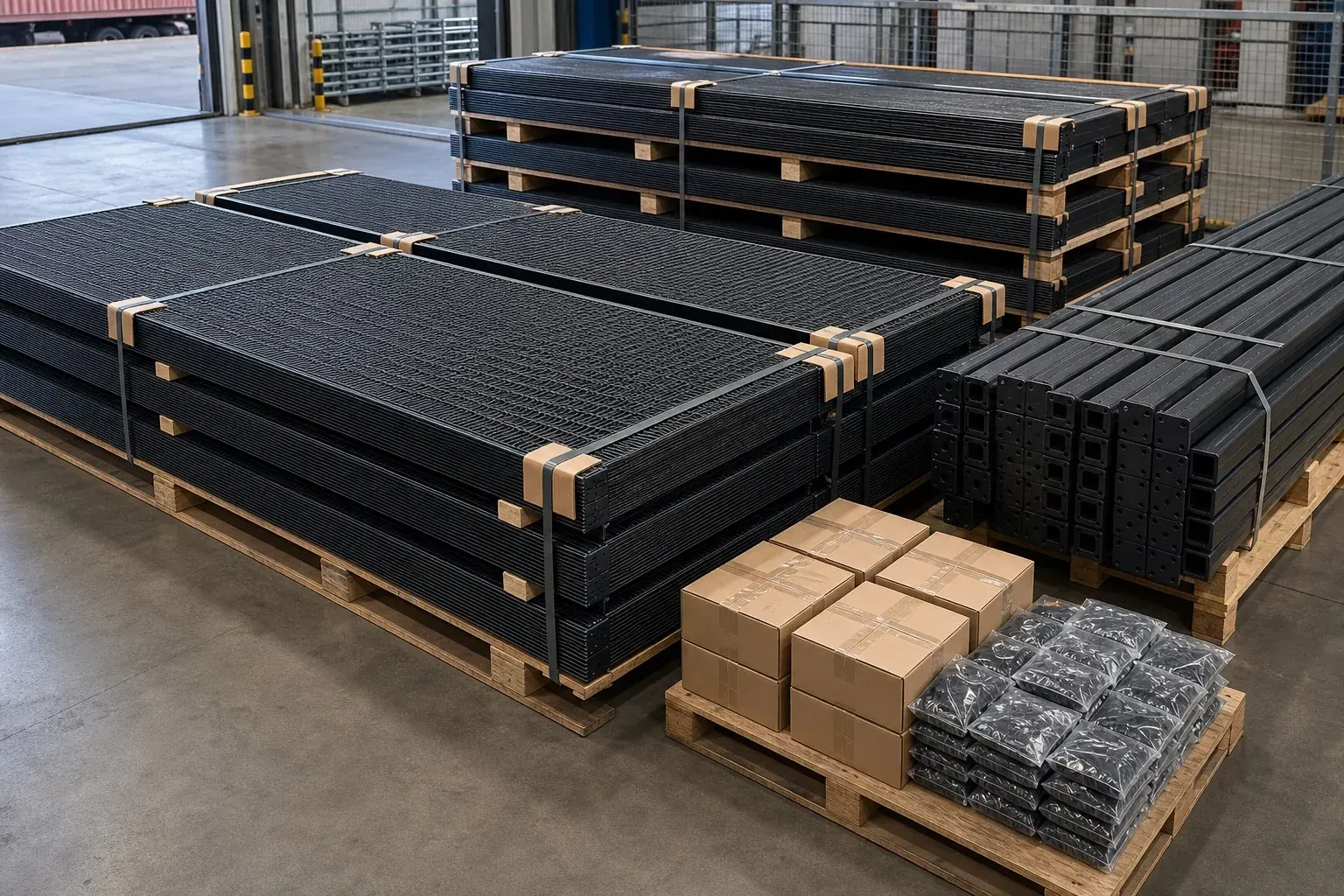

We pack panels, posts and small parts separately and prepare a clear packing schedule to reduce missing hardware and make unloading and installation easier to manage.
01
Panel bundles — we protect contact points and strap each bundle for handling.
02
Posts and clamp bars — we group them by size or fence-line requirement.
03
Fixings and gate hardware — we box, label and count them separately.
04
Loading record — we provide finished-goods and container-loading photos when required.
Quote input
Destination port + required packing method
Get a useful first quote
358 Anti Climb Security Fence Price and Quote Details
We can begin with partial information. Send us a drawing, bill of quantities or reference photo so we can reduce clarification time.
01Fence height and panel width
Tell us if the perimeter requires stacked sections above standard panel height.
02Wire diameter and coating
Send us the project standard or expected environmental exposure.
03Total length and layout
Show us straight runs, corners, slopes and changes in direction where known.
04Gate quantity and openings
Tell us the pedestrian, single-leaf and double-leaf access requirements.
05Security topping
Confirm the straight, cranked, barbed-wire or razor-wire support requirements with us.
06Destination port
We use it to prepare packing and loading assumptions for your quotation.
Before requesting a quote
358 Anti-Climb Fence Questions
We answer the details buyers most often discuss with us during project screening.
Why is the product called 358 mesh?+

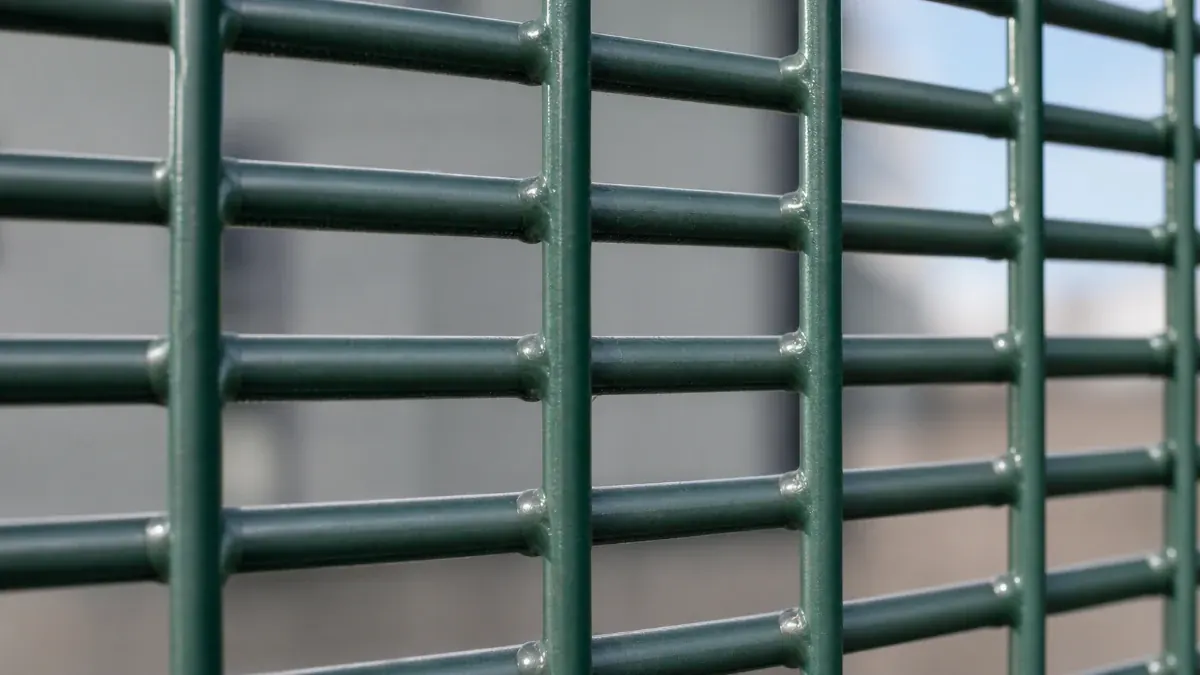

We use the name “358” for the traditional imperial specification: a 3 inch by 0.5 inch mesh opening with commonly used 8 gauge wire. We manufacture the corresponding metric opening at approximately 76.2 × 12.7 mm.
What is the best 358 anti climb fence configuration for a tall perimeter?+
We can manufacture stacked systems, but we select the configuration around total height, post section, fixing rows, foundations and wind-load assumptions. We review the complete elevation with you before production.
What does your 358 anti climb fence service include?+
We can quote panels, line and corner posts, clamp bars, anti-tamper bolts, security toppings, pedestrian gates and vehicle gates as one coordinated system.
Which coating is suitable for coastal or exposed sites?+
We commonly quote galvanizing plus powder coating for exposed sites, then confirm the final coating against your project standard, exposure category and required service condition.
What affects 358 anti climb security fence price?+
We calculate the quote around panel height, wire diameter, post section, coating, gates, security topping, quantity, packing and destination. Send us your drawings or BOQ when available, and we will list any missing details as quotation assumptions.
Request a quote
Send Your Fence Specs or Product Link
Send us the product type, size, quantity, coating and destination. We will reply with a practical factory quotation.
