6/5/6 cost-balanced twin wire mesh panels
We manufacture 656 double wire fence panels for buyers who need a rigid, neat and cost-balanced welded mesh fence. The 6/5/6 structure uses two 6 mm horizontal wires and one 5 mm vertical wire, making it a practical choice for schools, parks, commercial boundaries and light industrial sites.
Product definition
656 double wire fence is a welded twin wire mesh fence panel made with two 6 mm horizontal wires and one 5 mm vertical wire. In our factory quotation, 656 is the lighter and more cost-balanced choice inside the double wire fence family.
The 6/5/6 structure gives stronger support than light flat mesh without the extra material weight of 868.

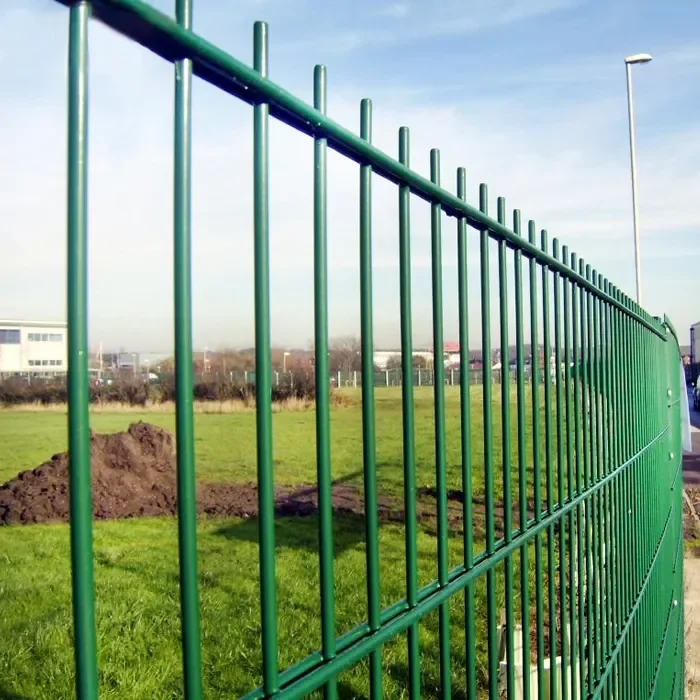

The open welded grid keeps visibility clear for schools, parks, commercial sites and sports areas.
We quote 656 panels together with posts, clips, bolts, caps, gates and export packing.
Wire structure
6 mmHorizontal wires

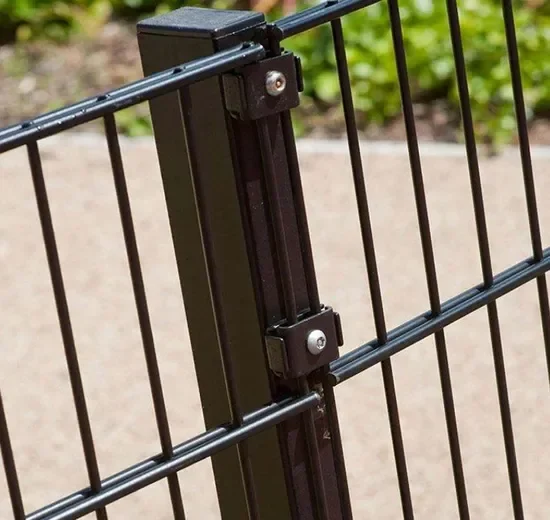

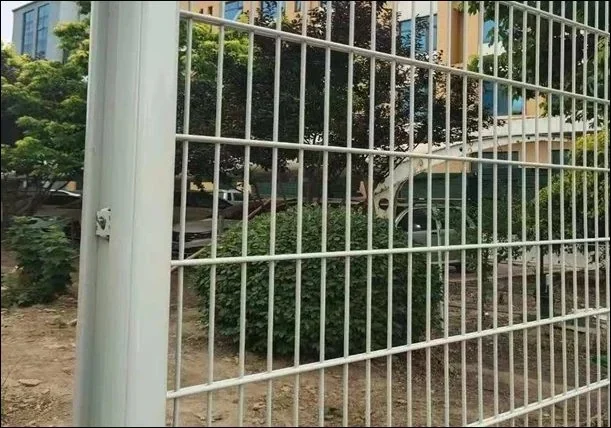

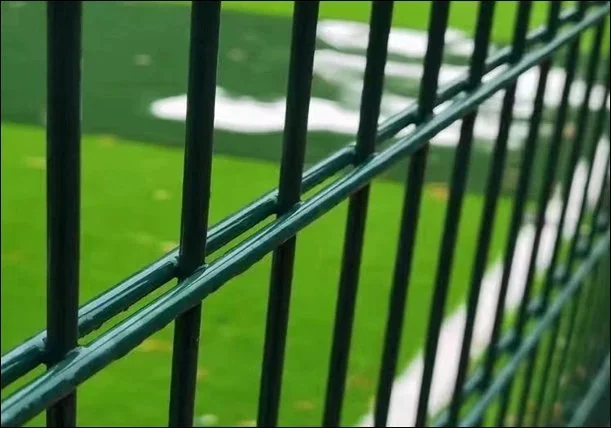

We weld the horizontal wire pair around the vertical wire to make a flat, rigid panel for everyday perimeter projects.
5 mmVertical wire
The vertical wire completes the welded grid while keeping the panel weight and cost under control.
SystemFull supply

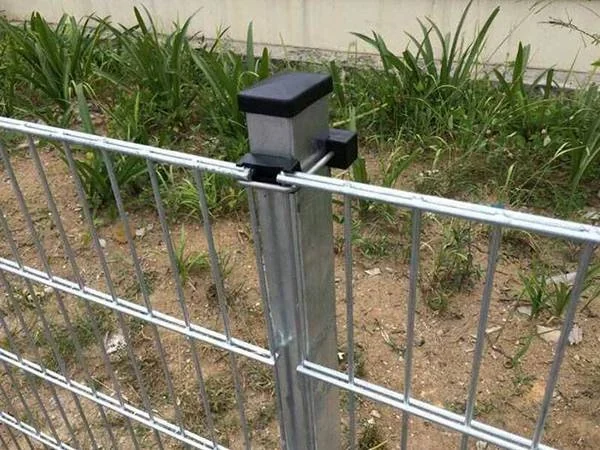

We still quote 656 as a complete fence system. Posts, clips, coating and gates decide whether the installation is practical.
Technical reference
| Specification | Common 656 option | Factory note | Quote check |
|---|---|---|---|
| Wire configuration | 6 / 5 / 6 mm | Two 6 mm horizontal wires and one 5 mm vertical wire. | Confirm if the buyer needs exact 6/5/6 or local equivalent. |
| Mesh opening | 50 x 200 mm, 55 x 200 mm or custom | Opening affects visibility, weight and material cost. | Tell us drawing, tender spec or local standard. |
| Panel height | 1.0, 1.2, 1.5, 1.8, 2.0 m or custom | 656 is common for public and commercial boundary heights. | Send finished height and installation method. |
| Panel width | 2.0 m, 2.5 m or custom | Width must match the approved post centres. | Confirm straight runs, corners and gate openings. |
| Post system | Square or rectangular posts | Clips, brackets or clamp strips can be quoted. | Post size follows height, site exposure and buyer spec. |

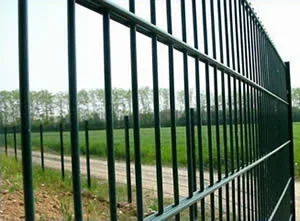

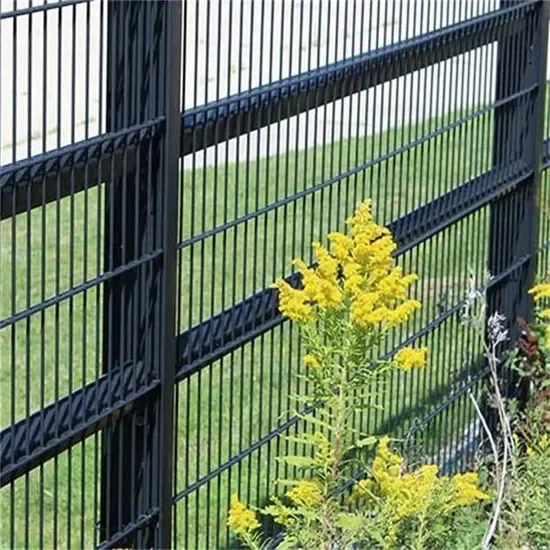

| Finish | Galvanized, powder coated or PVC coated | Green, black, grey and custom RAL colours are common. | State coating route, colour and environment. |

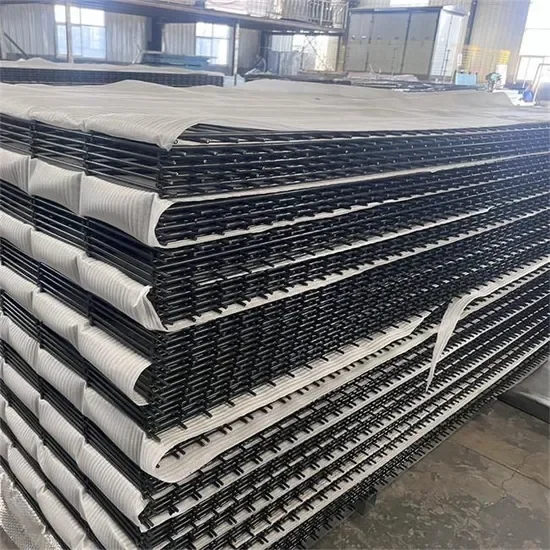

| Packing | Panel bundles, post bundles, hardware cartons | We separate panels, posts and small accessories for export loading. | Destination port and unloading method affect packing. |
Why buyers choose it
656 uses smaller wire diameters than 868, helping control material and freight cost.
The paired horizontal wires still make the panel feel stronger than many single-wire flat mesh options.
The open grid keeps visibility clear for schools, parks, sports areas and commercial boundaries.

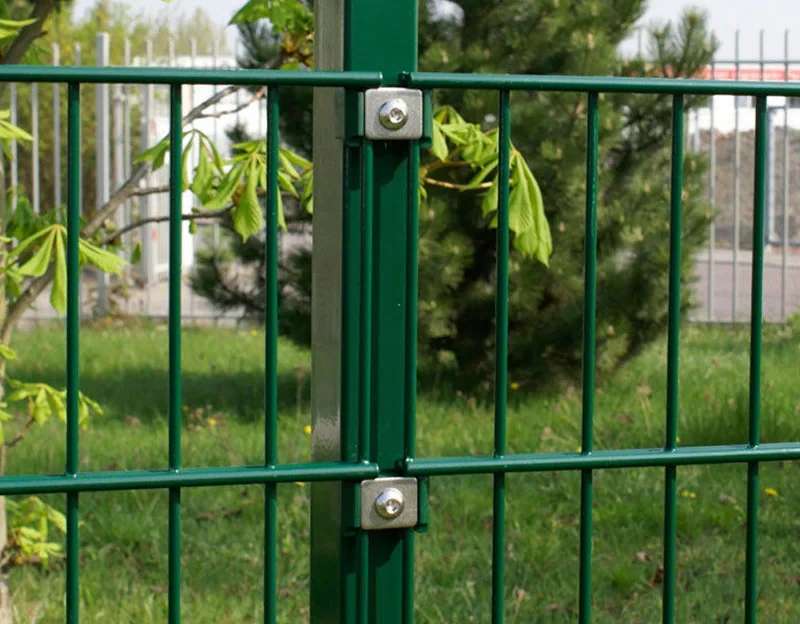

We can quote clips, brackets or clamp strips depending on the required appearance and security level.

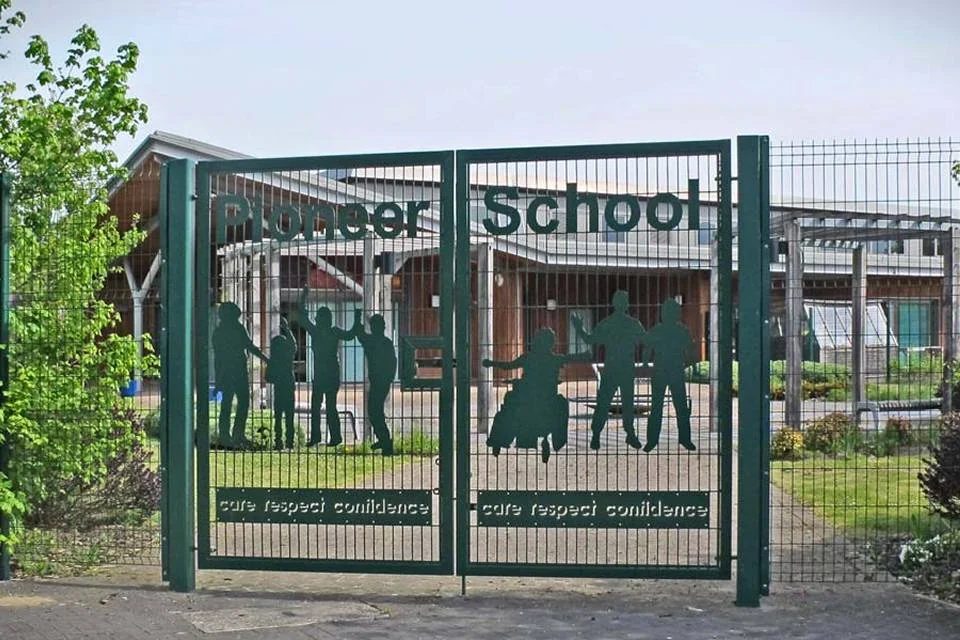

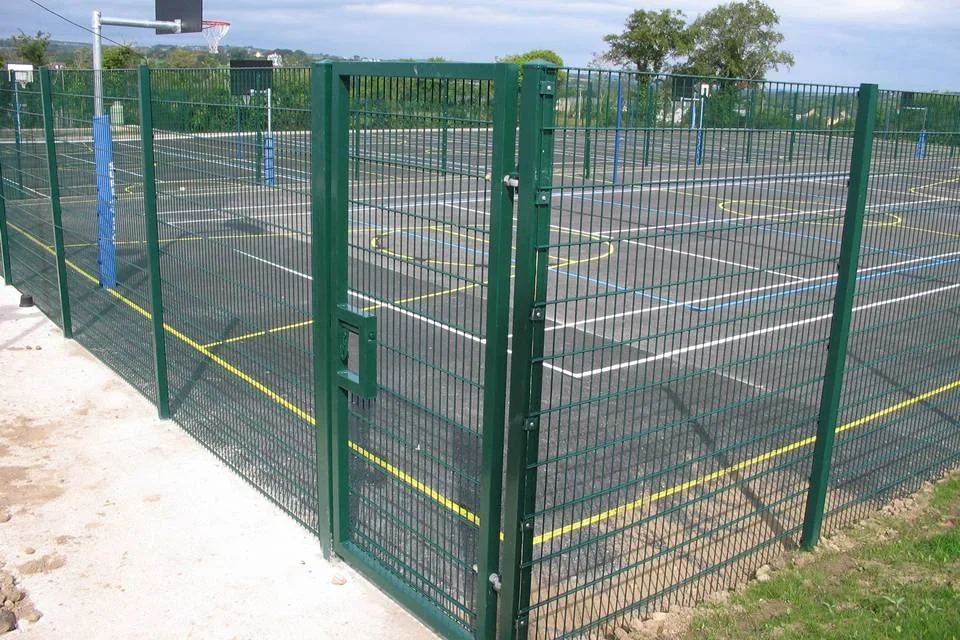

Pedestrian, swing and sliding gates can use matching mesh, posts, colour and hardware.
Panels, posts and accessories are bundled and labelled for easier receiving and installation.
Where to use it
We use 656 when visibility, clean appearance and controlled project cost are all important.

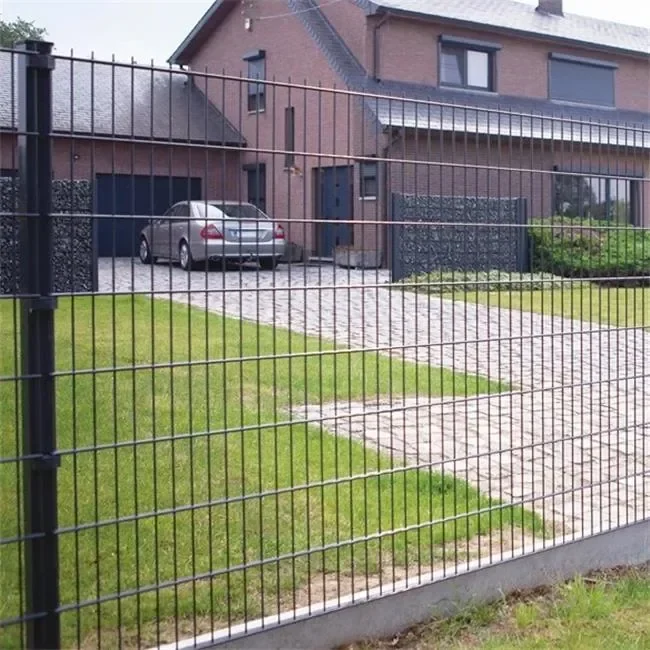

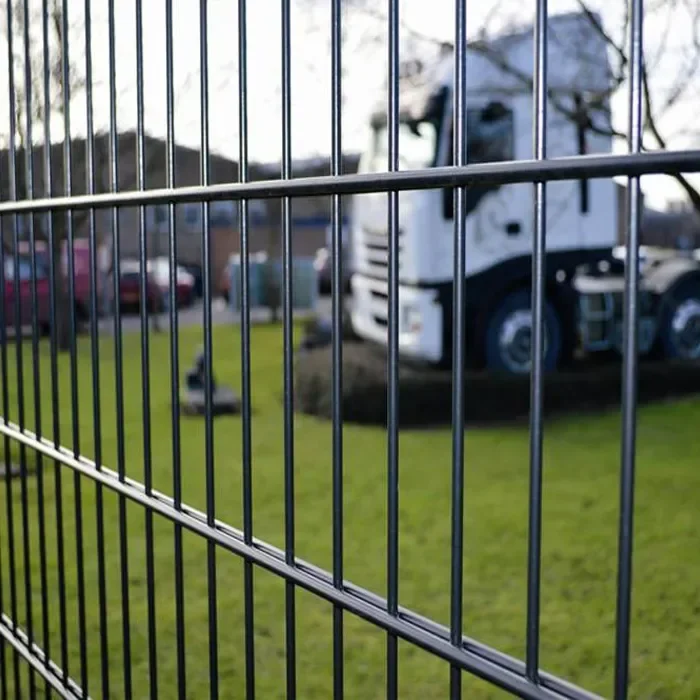

A practical fence line for offices, shops, warehouses and parking edges.
Green, black, grey and custom RAL colours can match site appearance requirements.

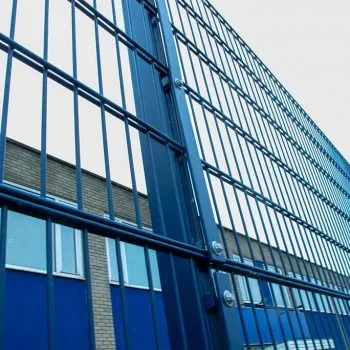

Use 656 for lower-risk industrial edges; upgrade to 868 when stronger panel rigidity is required.
Selection note
| Project signal | Stay with 656 | Upgrade to 868 | Our factory advice |
|---|---|---|---|
| Security level | General perimeter control | Higher rigidity required | Use 868 for heavier traffic or more exposed fence lines. |
| Budget | Cost and weight matter most | Strength is more important than cost | Ask us to quote both if the buyer is undecided. |
| Panel height | Common public boundary heights | Taller or heavier fence runs | Post size and fixing method should be checked together. |
| Application | Schools, parks, commercial edges | Industrial, utility, logistics | Match the wire set to site risk and service life expectations. |
Quote input
Panel height, width and fence line length decide material weight and post quantity.
Confirm 6/5/6 and any required mesh opening, drawing or tender specification.
Square post size, wall thickness, clips, brackets or clamp strips affect the quotation.
Galvanized, powder coated or PVC coated finish should include colour and exposure condition.
Gate openings, locks, hinges, bolts, caps and spare parts should be counted together.
Destination port, container loading and unloading method help us plan export packing.
Buyer questions
656 means two 6 mm horizontal wires and one 5 mm vertical wire. It is the cost-balanced common structure in the double wire fence family.
Yes. We quote 656 often for schools, parks, sports facilities and commercial boundaries because it keeps visibility open while offering better rigidity than many light welded mesh panels.
Choose 868 when the site needs a heavier, stiffer panel, such as industrial, utility, logistics or taller fence projects.
Yes. We manufacture and quote the fence as a system: panels, posts, clips or brackets, bolts, caps and matching gates.
Request a quote
Share the panel height, total length, wire configuration, coating, post type, gates, packing requirement and destination port. We will reply with a practical factory quotation.
