8/6/8 heavy-duty twin wire mesh panels
We manufacture 868 double wire fence panels for projects that need a heavier, flatter welded mesh fence line. The 8/6/8 structure uses two 8 mm horizontal wires and one 6 mm vertical wire, so we quote it for factories, logistics yards, utility compounds and commercial boundaries where rigidity matters.
Product definition

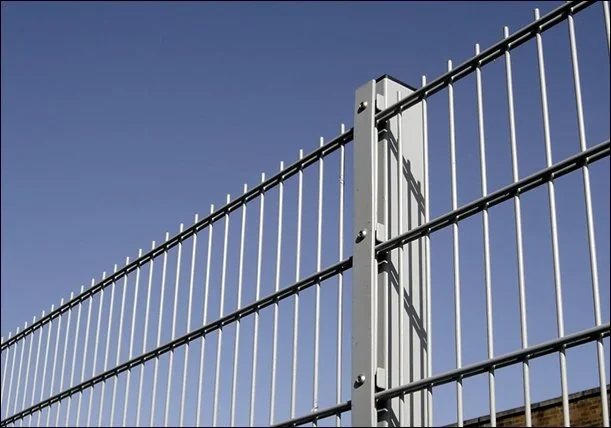

868 double wire fence is a welded twin wire mesh fence panel made with two 8 mm horizontal wires and one 6 mm vertical wire. In our factory quotation, 868 is the heavy-duty choice inside the double wire fence family.
The two 8 mm horizontal wires help the panel resist flexing across the fence line.
The panel stays open for surveillance and lighting while still feeling stronger than lighter welded mesh.
We quote 868 panels together with posts, clamp strips, clips, bolts, caps and gates.

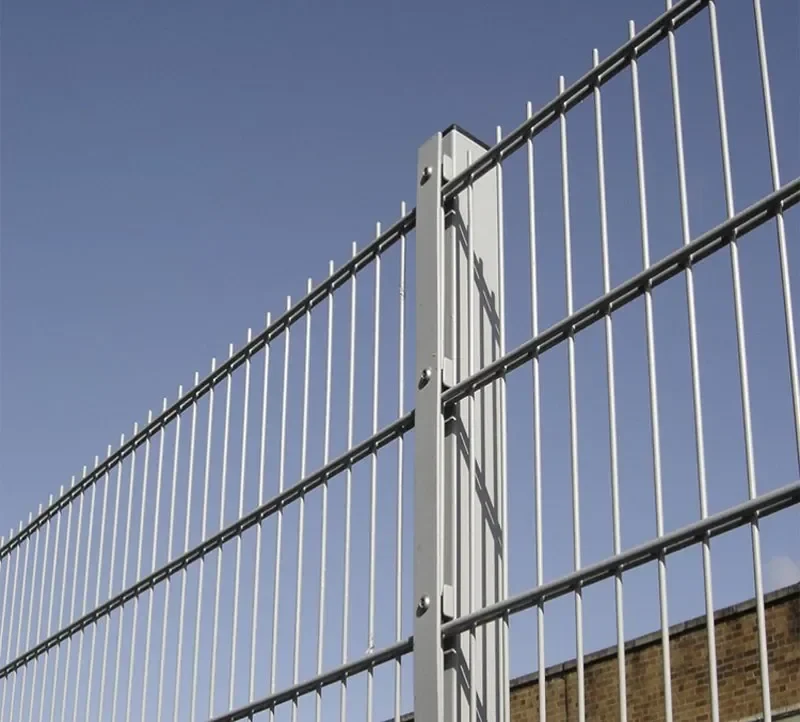

Wire structure
8 mmHorizontal wires

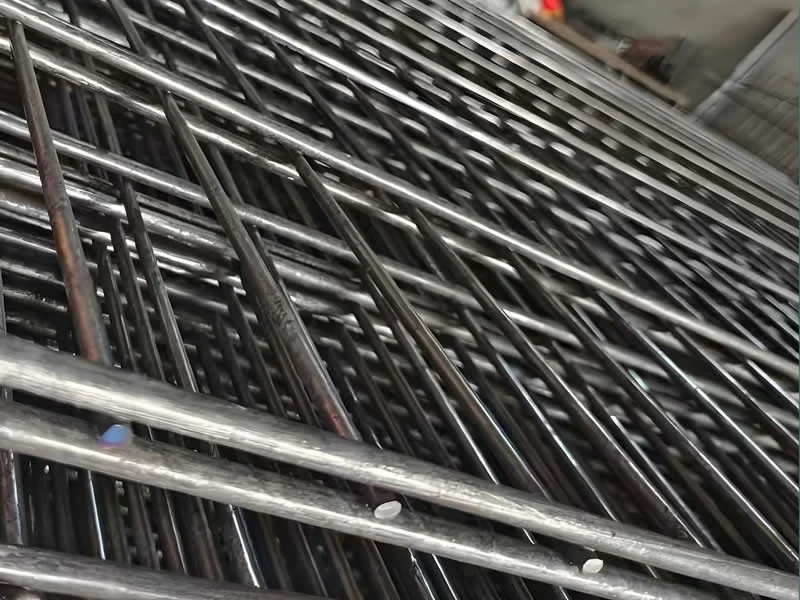

We weld the horizontal pair around the vertical wire so the finished panel has better bending resistance.
6 mmVertical wire

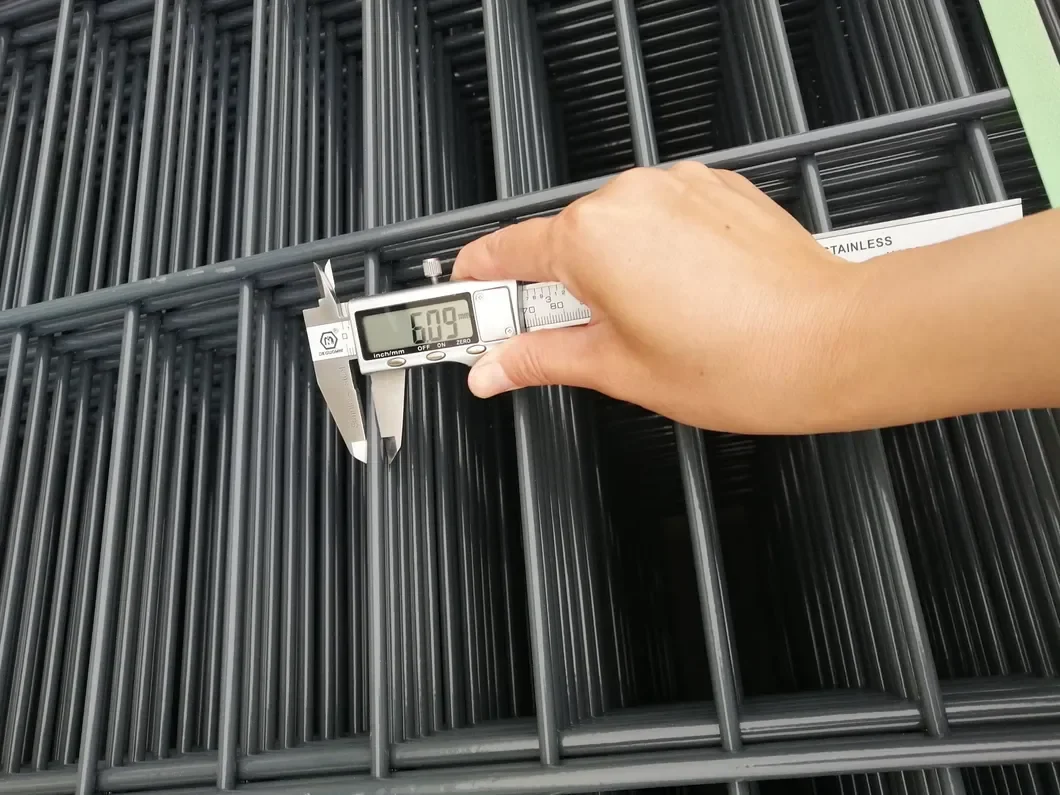

The vertical wire completes the welded grid and keeps the mesh opening clean for visibility and security checks.
SystemPanel load
Because 868 is heavier than 656, we check post section, clamp method, base plate or embedded length before final pricing.
Technical reference
| Specification | Common 868 option | Factory note | Quote check |
|---|---|---|---|
| Wire configuration | 8 / 6 / 8 mm | Two 8 mm horizontal wires and one 6 mm vertical wire. | Confirm if the buyer needs exact 8/6/8 or local equivalent. |
| Mesh opening | 50 x 200 mm, 55 x 200 mm or custom | Opening affects visibility, weight and panel stiffness. | Tell us drawing, tender spec or local standard. |
| Panel height | 1.2, 1.5, 1.8, 2.0, 2.4 m or custom | Taller panels need stronger posts and more careful packing. | Send finished height and post installation method. |
| Panel width | 2.0 m, 2.5 m or custom | Width must match the approved post centres. | Confirm straight runs, corners and gate openings. |
| Post system | Square or rectangular posts | Clamp strip, clips or bracket systems can be quoted. | Post size follows height, wind/site load and buyer spec. |

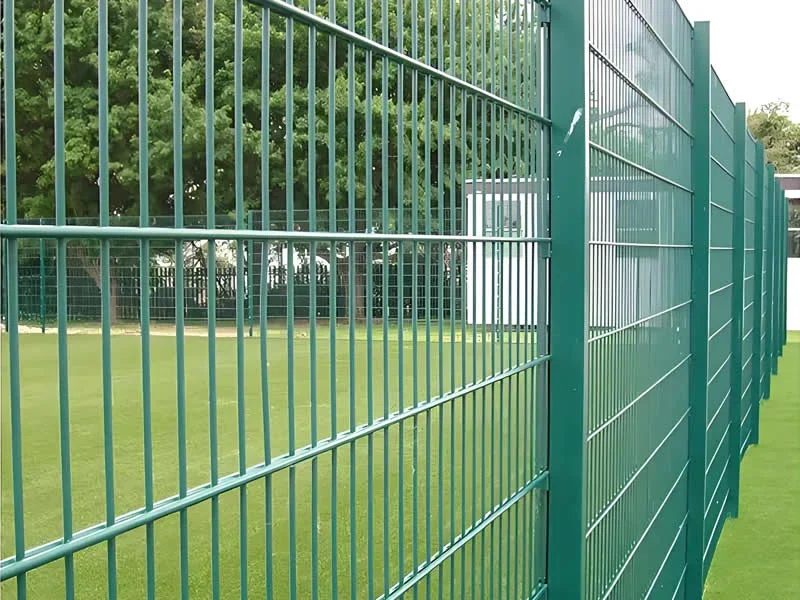

| Finish | Galvanized, powder coated or PVC coated | Green, black, grey and custom RAL colours are common. | State coating route, colour and environment. |

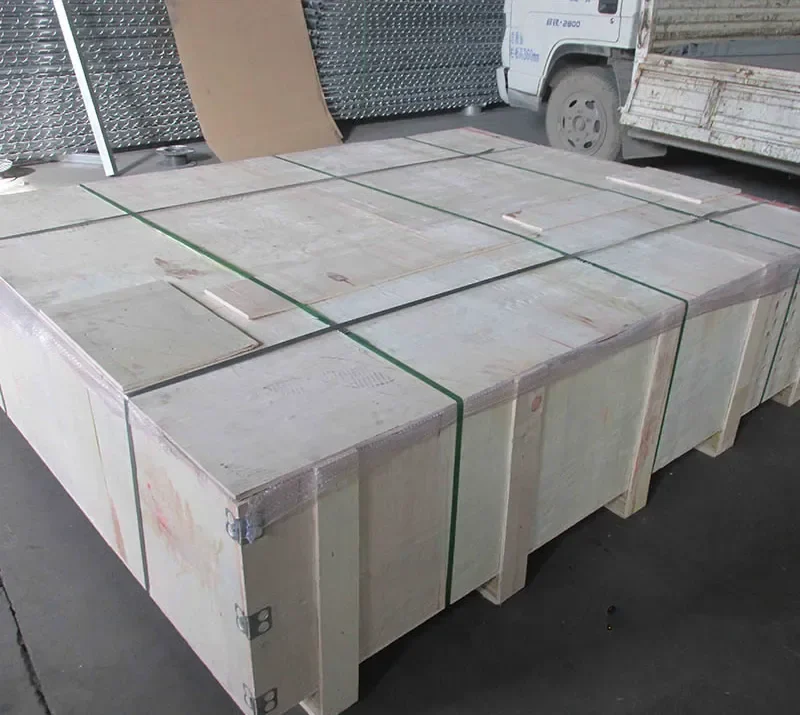

| Packing | Panel bundles, post bundles, hardware cartons | We separate accessories and label cartons for installation. | Destination port and unloading method affect packing. |
System supply
We confirm panel height, width, mesh opening and wire set before production.

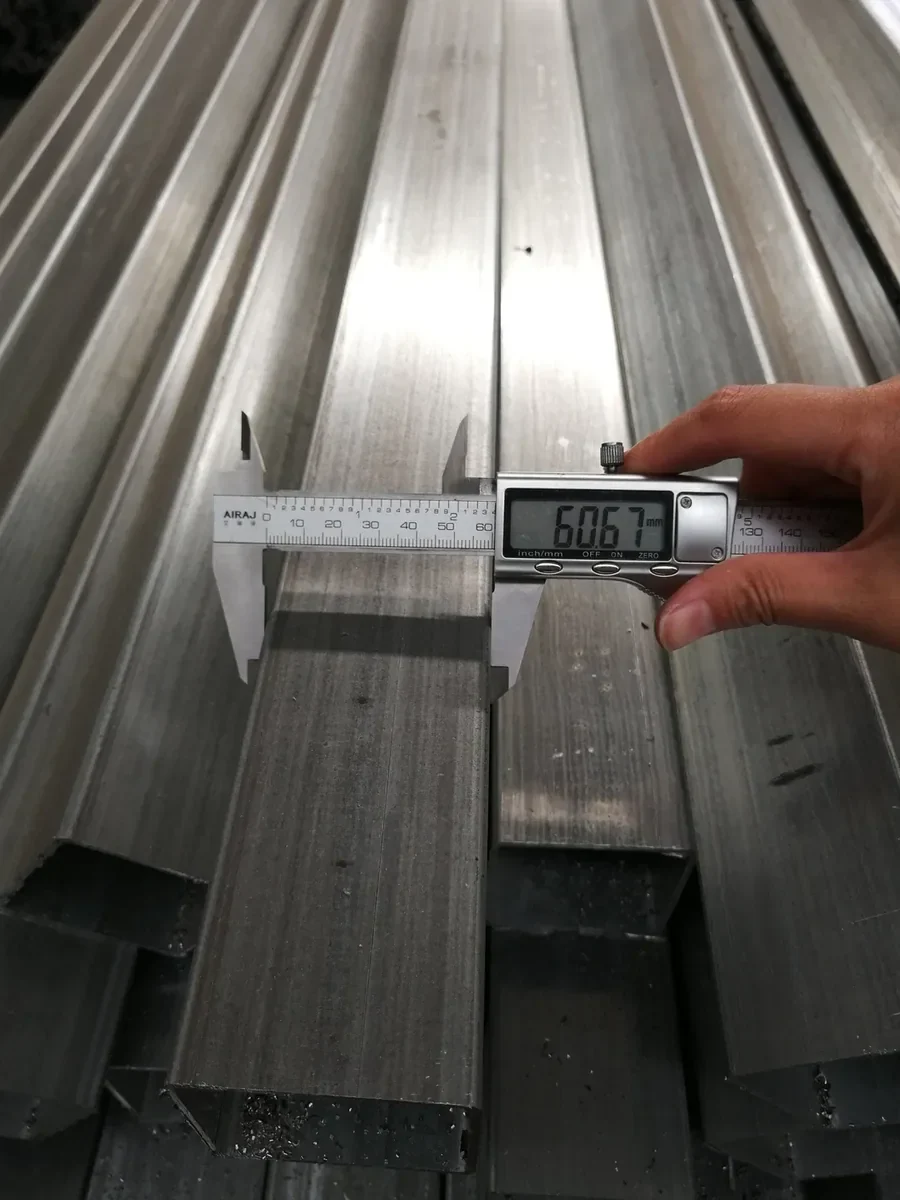

Post section and wall thickness are matched to the panel height and site load.

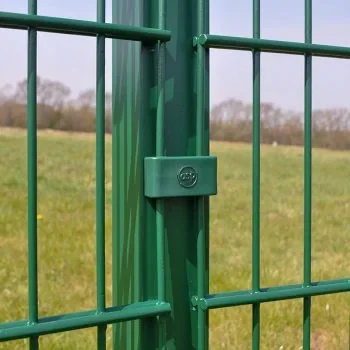

For 868, continuous clamp strips are common when the project needs a stronger fixing line.

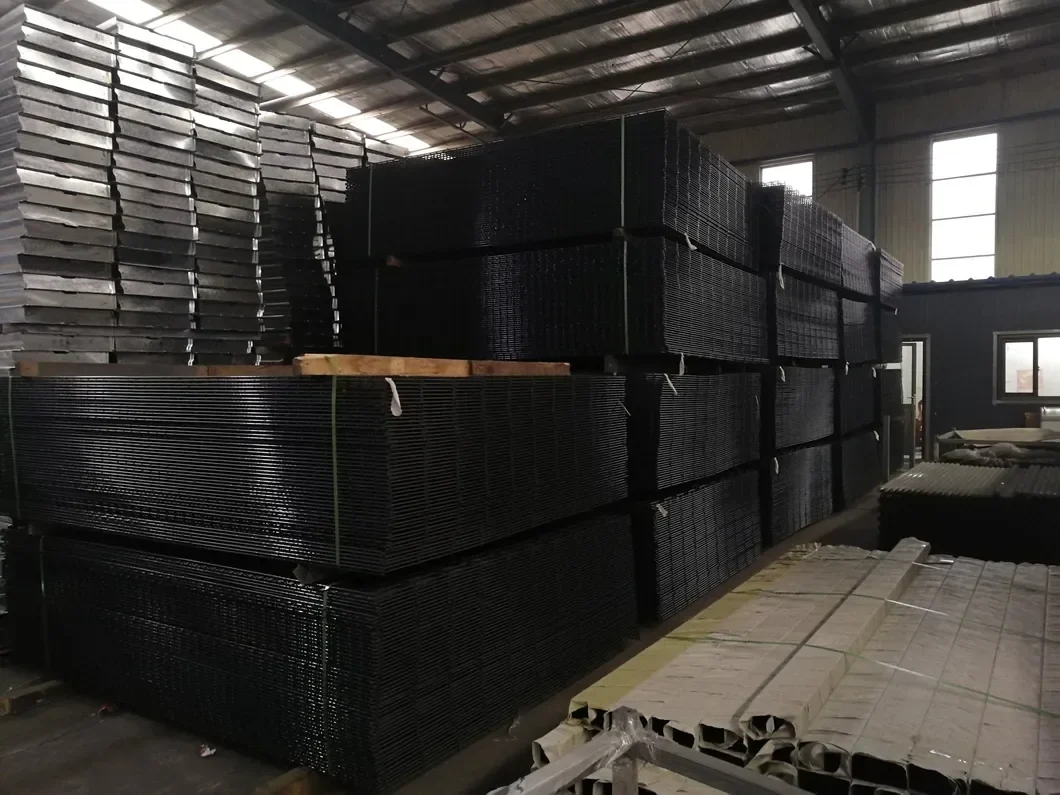

We count small parts by bay and pack hardware in labelled cartons.
Pedestrian, swing and sliding gates can use matching mesh, posts and colour.
Extra clamps, bolts and caps can be added for maintenance or distributor stock.

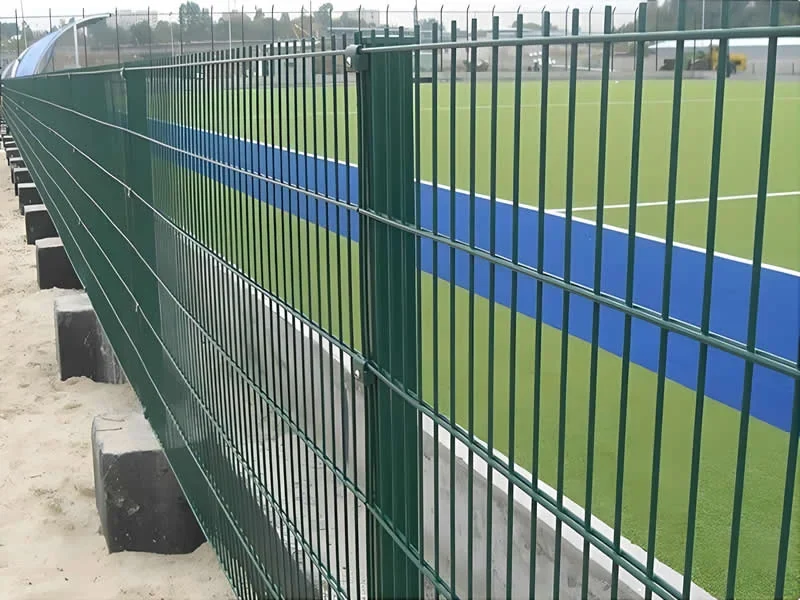

Where to use it
We quote 868 for production, loading, storage and vehicle access areas that need a stronger panel line.

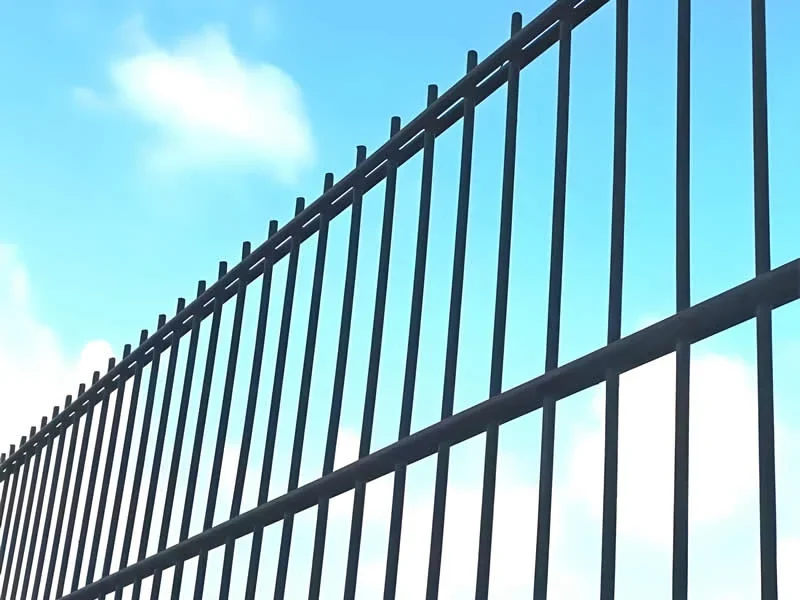

Visible perimeter control for equipment yards, maintenance areas and restricted service zones.

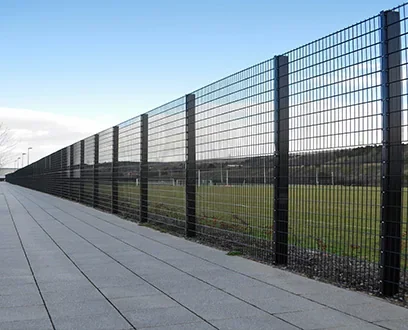

A rigid fence line with matching gates for offices, warehouses, business parks and vehicle areas.
Use 868 when the project needs extra rigidity beyond a typical 656 school or park fence.
Selection note
| Question | Choose 868 | Choose 656 | Our factory advice |
|---|---|---|---|
| Rigidity | Higher panel stiffness | Good general rigidity | Use 868 for heavier or taller fence runs. |
| Weight | Heavier panel | Lighter panel | Check loading, packing and unloading before final price. |
| Cost | Higher material cost | More cost-balanced | Ask us to quote both if budget is not fixed. |
| Application | Industrial, utility, logistics | Schools, parks, commercial boundary | Match the wire set to site risk and buyer budget. |
Quote and cost
Height, panel width and fence line length decide material weight and post quantity.
Square post size, wall thickness, clamp strips and bolts change the system cost.
Galvanized, powder coated or PVC coated finish should be confirmed with colour and exposure condition.
Gate type, opening width, hinge posts and lock hardware need to be counted.
868 panels are heavier, so bundle method and container loading affect cost and delivery.
We need destination and order quantity to quote export packing and shipment assumptions.
Buyer questions
868 means two 8 mm horizontal wires and one 6 mm vertical wire. It is the heavier common structure in the double wire fence family.
Yes. 868 uses heavier horizontal and vertical wires, so it normally gives better panel stiffness than 656. We still check height, post system and site conditions before recommending it.
Yes. We manufacture and quote the fence as a system: panels, line posts, corner posts, clamp strips or clips, bolts, caps and matching gates.
Send height, total length, panel width, mesh opening, coating, colour, post type, gates, order quantity and destination port.
Request a quote
Share the panel height, total length, wire configuration, coating, post type, gates, packing requirement and destination port. We will reply with a practical factory quotation.
