868 and 656 welded panel system
TOPSFENCE supplies double wire fence panels as a complete welded twin wire system. Use this page to compare 868 and 656 double wire mesh fence panels by rigidity, cost, post system, coating and project use before requesting a factory quote.
Product definition

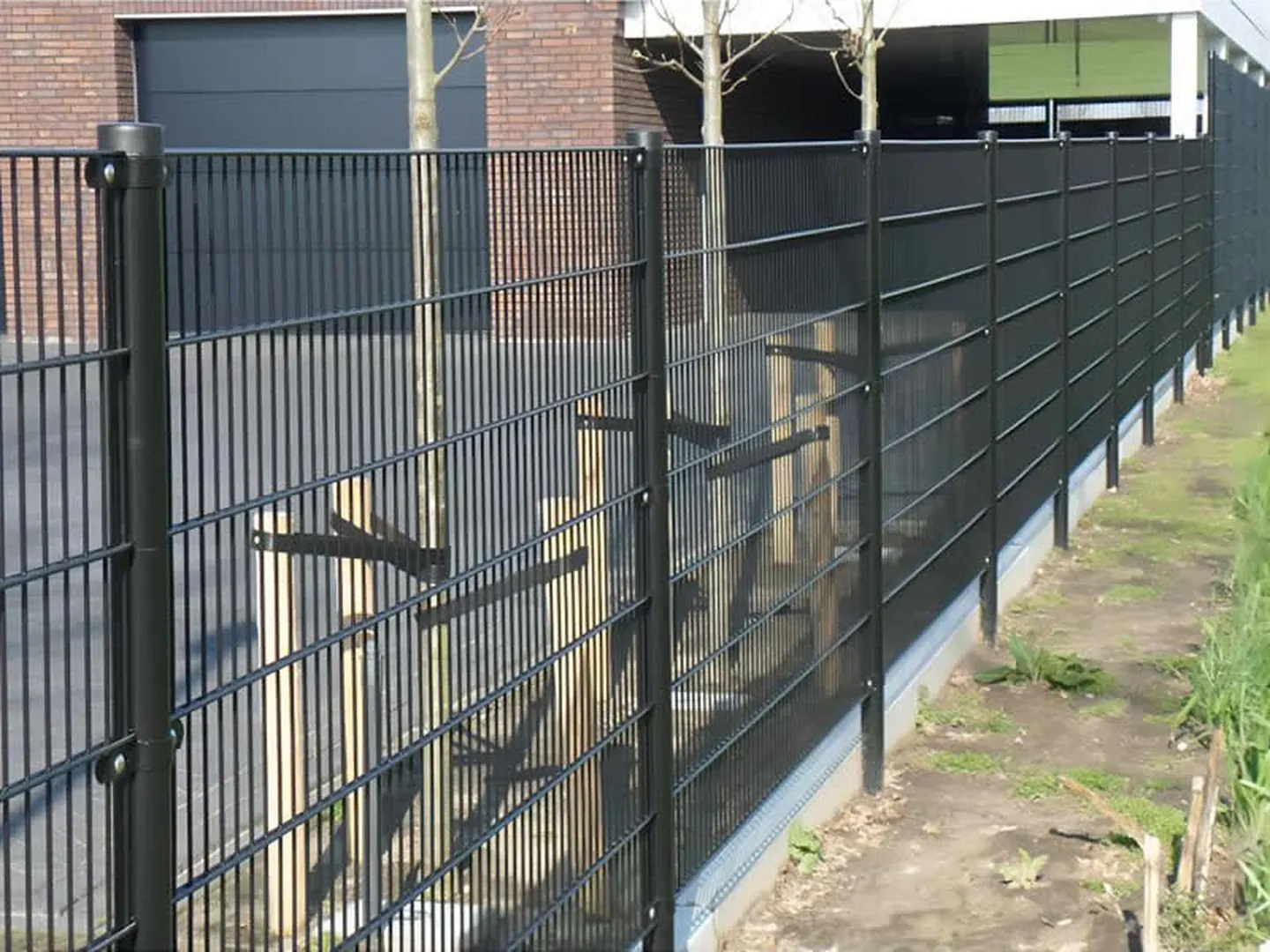

A double wire fence is a flat welded mesh fence made with two horizontal wires welded around each vertical wire. This paired horizontal structure improves panel rigidity while keeping visibility open, making it useful for schools, factories, utilities, parks, warehouses and commercial boundaries.
The top and bottom wire pairs share impact and bending load across the panel width.
The mesh remains open for surveillance, lighting and public-facing perimeter design.
Panels, posts, clamp strips, clips, bolts, caps and gates should be counted together.
Choose the right panel
8/6/8
Higher rigidity
Use 868 double wire fence when the project needs a heavier welded mesh panel for industrial, logistics, utility or higher-traffic boundaries.
6/5/6
Balanced cost
Use 656 double wire fence when the buyer wants a flat, neat twin wire mesh fence with lower weight and practical project cost.
System
Not sure yet?
If the buyer only knows the total length, height, site type and budget range, TOPSFENCE can quote both 868 and 656 as a complete fence system.
Technical reference
| Specification | 868 double wire fence | 656 double wire fence | Quotation note |
|---|---|---|---|
| Wire configuration | 8 / 6 / 8 mm | 6 / 5 / 6 mm | The numbers refer to horizontal, vertical and horizontal wire diameters. |
| Mesh opening | 50 x 200 mm, 55 x 200 mm or custom | 50 x 200 mm, 55 x 200 mm or custom | Mesh opening changes visibility, weight and panel stiffness. |
| Panel height | 1.2, 1.5, 1.8, 2.0, 2.4 m or custom | 1.0, 1.2, 1.5, 1.8, 2.0 m or custom | Height affects post section, post length and fixing quantity. |
| Panel width | 2.0 m, 2.5 m or custom | 2.0 m, 2.5 m or custom | Panel width must match the approved post centres. |
| Post system | Square or rectangular post with clamp strip, clip or bracket | Square or rectangular post with clip or bracket | Post wall thickness follows fence height and site load. |
| Surface finish | Galvanized, powder coated or PVC coated | Galvanized, powder coated or PVC coated | State colour, coating standard and exposure condition. |
| Packing | Panel bundles, post bundles and labelled hardware cartons | Panel bundles, post bundles and labelled hardware cartons | Export packing should separate panels, posts and small parts. |
System supply
868 or 656 welded mesh panels with confirmed height, width, wire set and mesh opening.
Post section, wall thickness, base plate or embedded length are matched to the fence height.

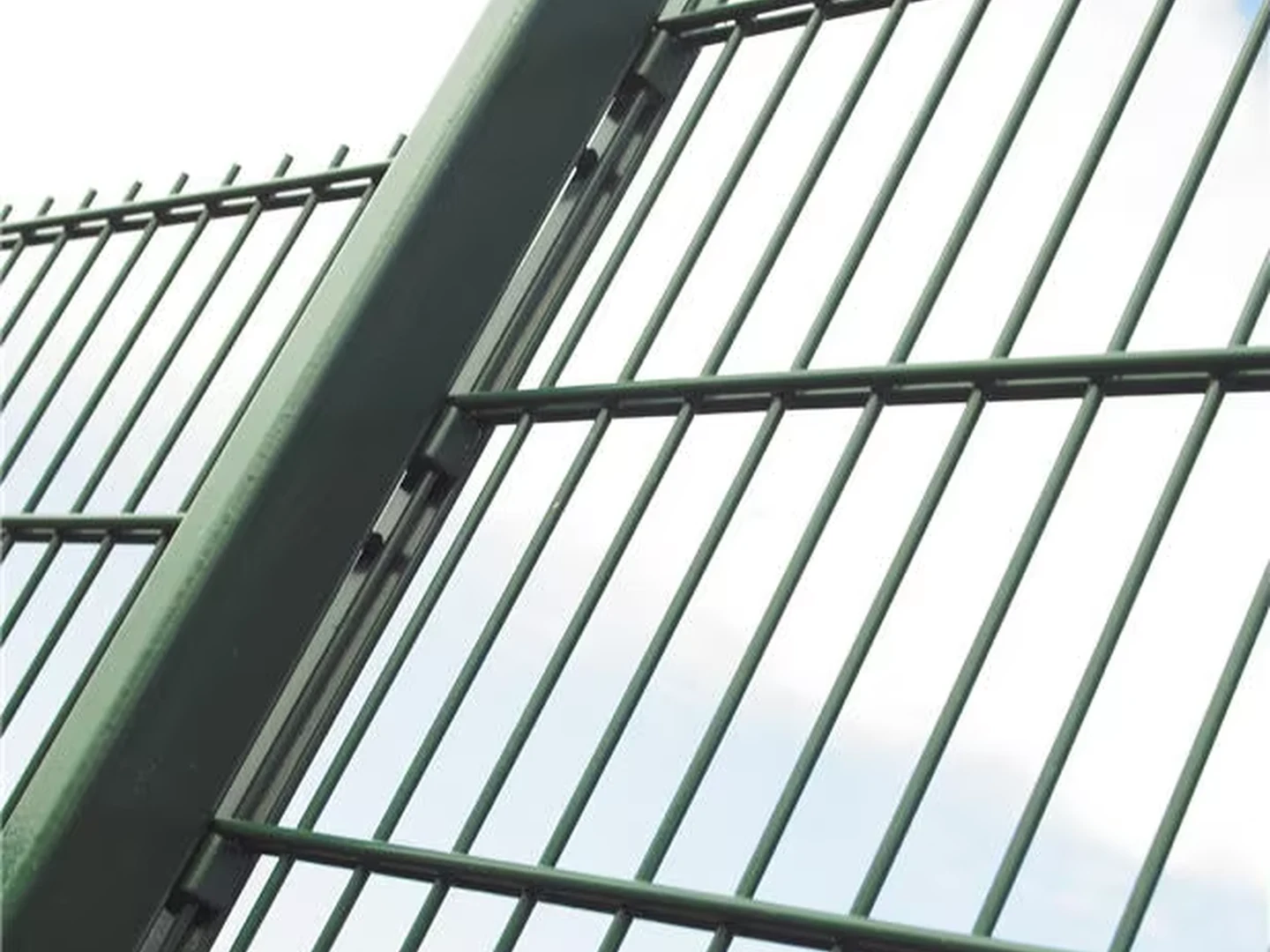

Choose single clips, bracket sets or continuous clamp strips based on appearance and security level.
Hardware quantities are counted against each panel bay and packed in labelled cartons.
Pedestrian and vehicle gates can use matching mesh, colour, posts and hardware.
Extra clips, caps and bolts can be added for maintenance teams or distributor stock.
Surface protection

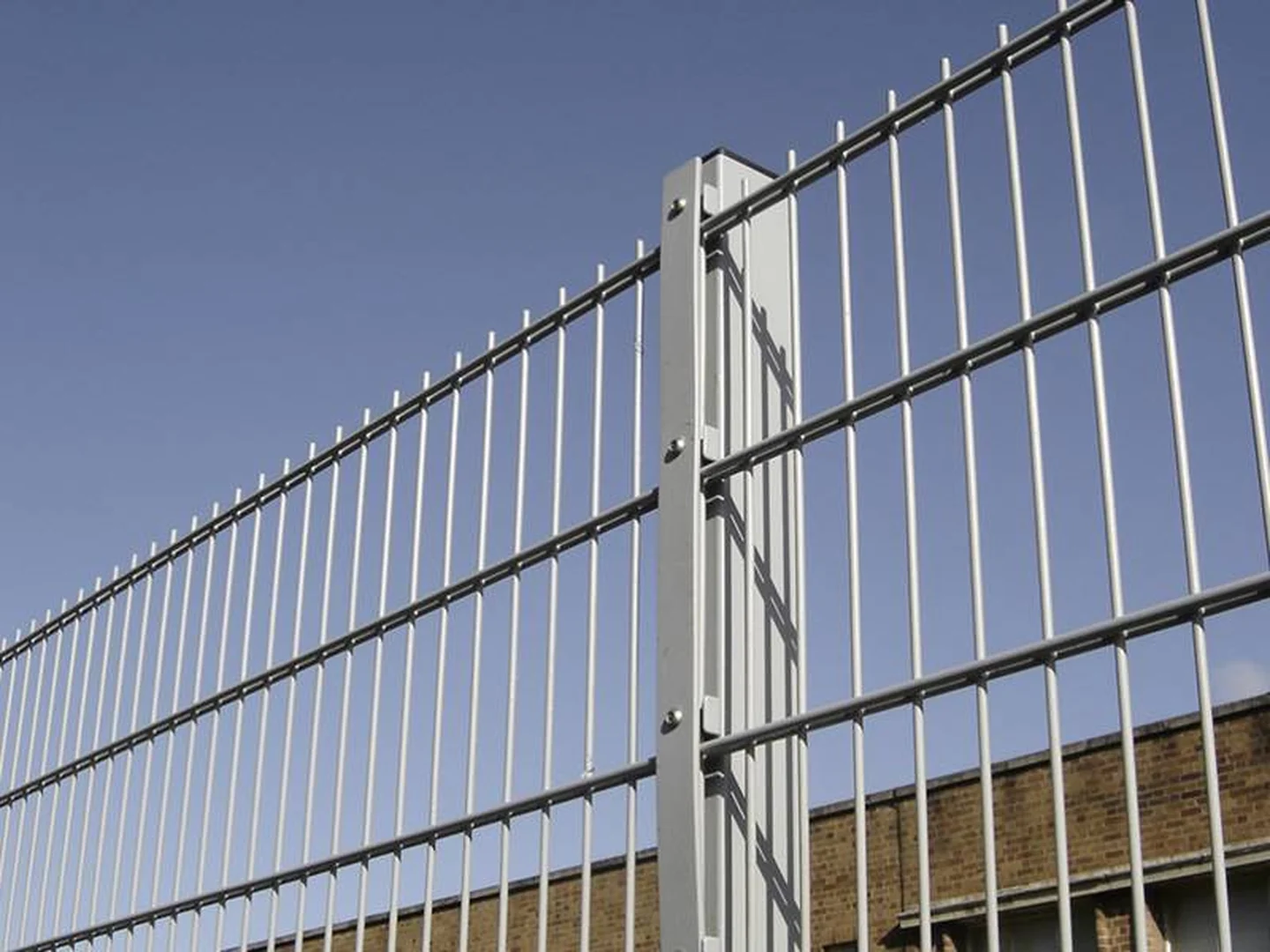

Used when the project needs corrosion resistance without a coloured surface. Confirm pre-galvanized wire or hot-dip galvanized after fabrication.

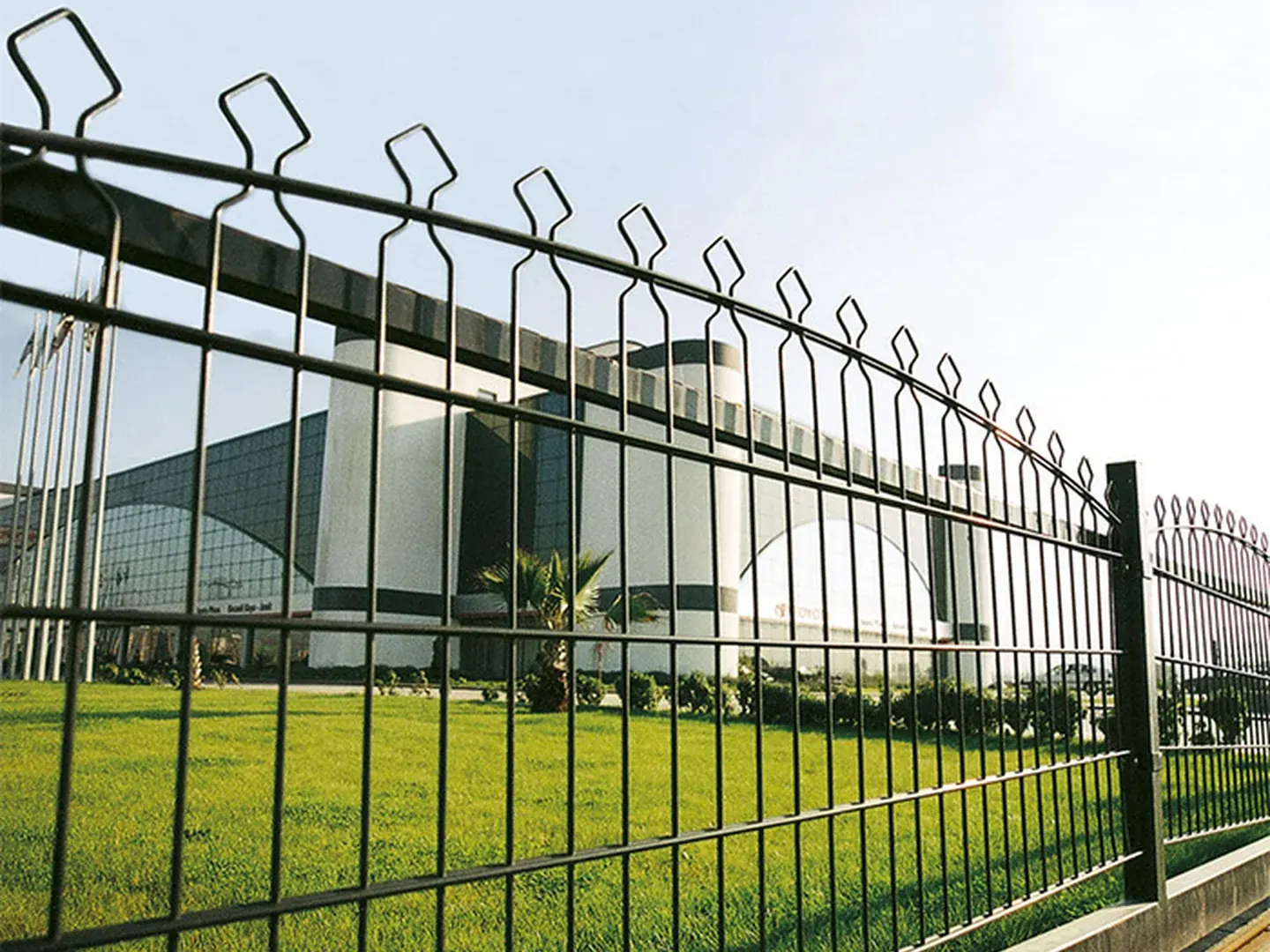

A common route for green, black, grey and custom RAL colours where appearance and outdoor durability both matter.
Available when the buyer asks for a thicker polymer-coated surface or a specific local market finish.
Where it fits
Open visibility with a stronger panel for campuses, courts, playground boundaries and public facilities.

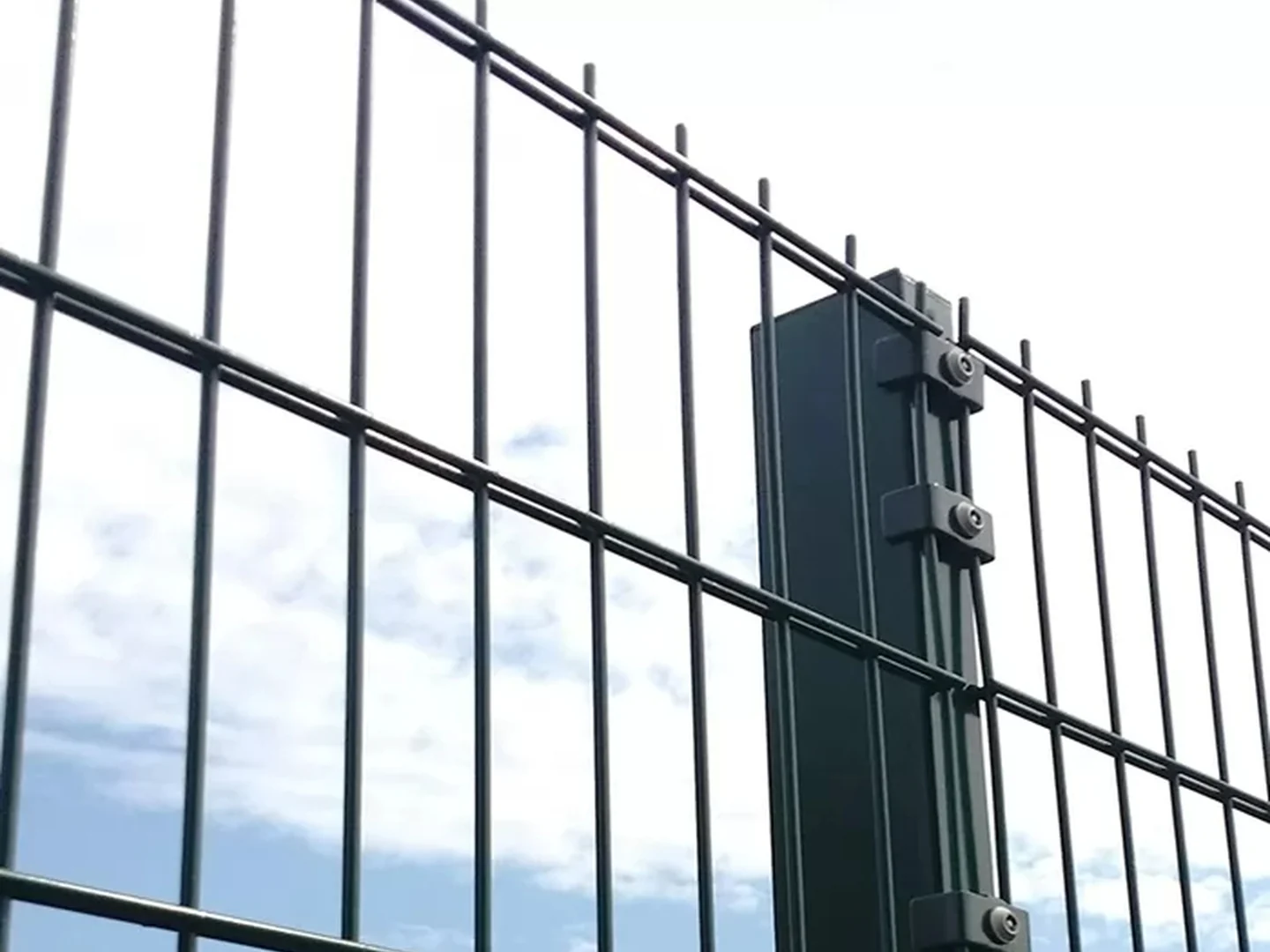

Rigid fence lines with matching vehicle gates for production, loading and storage areas.

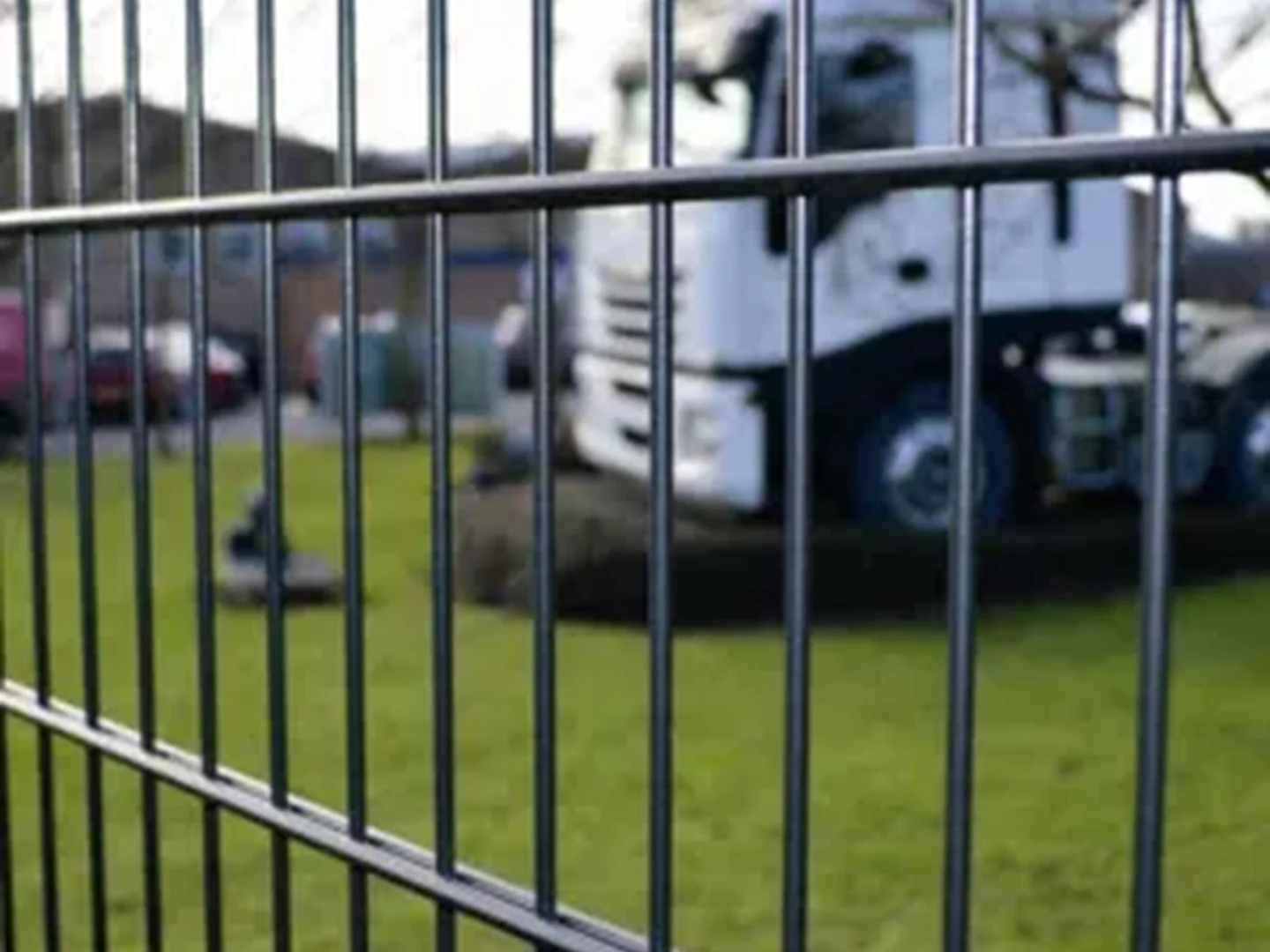

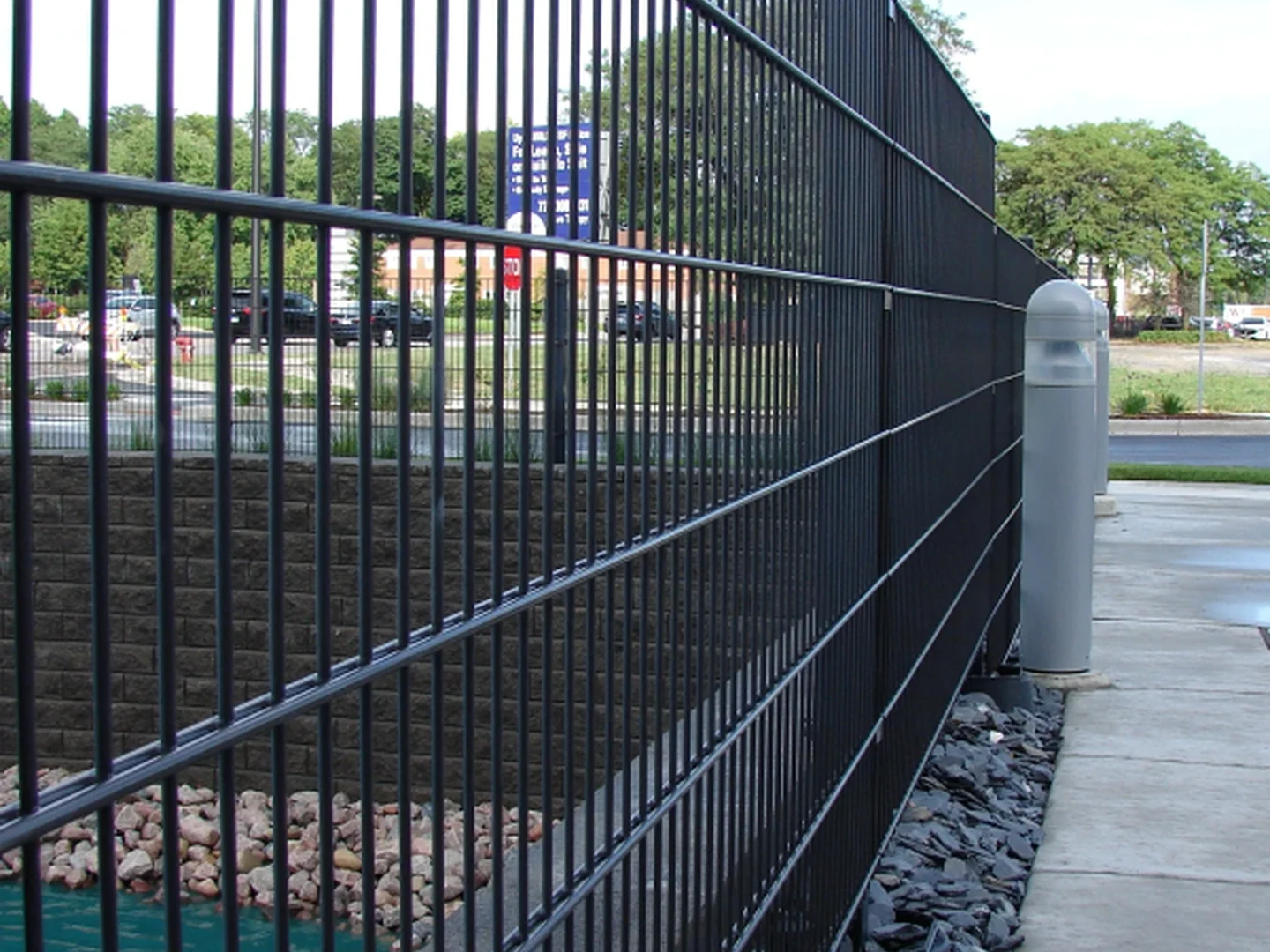

A neat, durable boundary for offices, business parks, warehouses and car park edges.

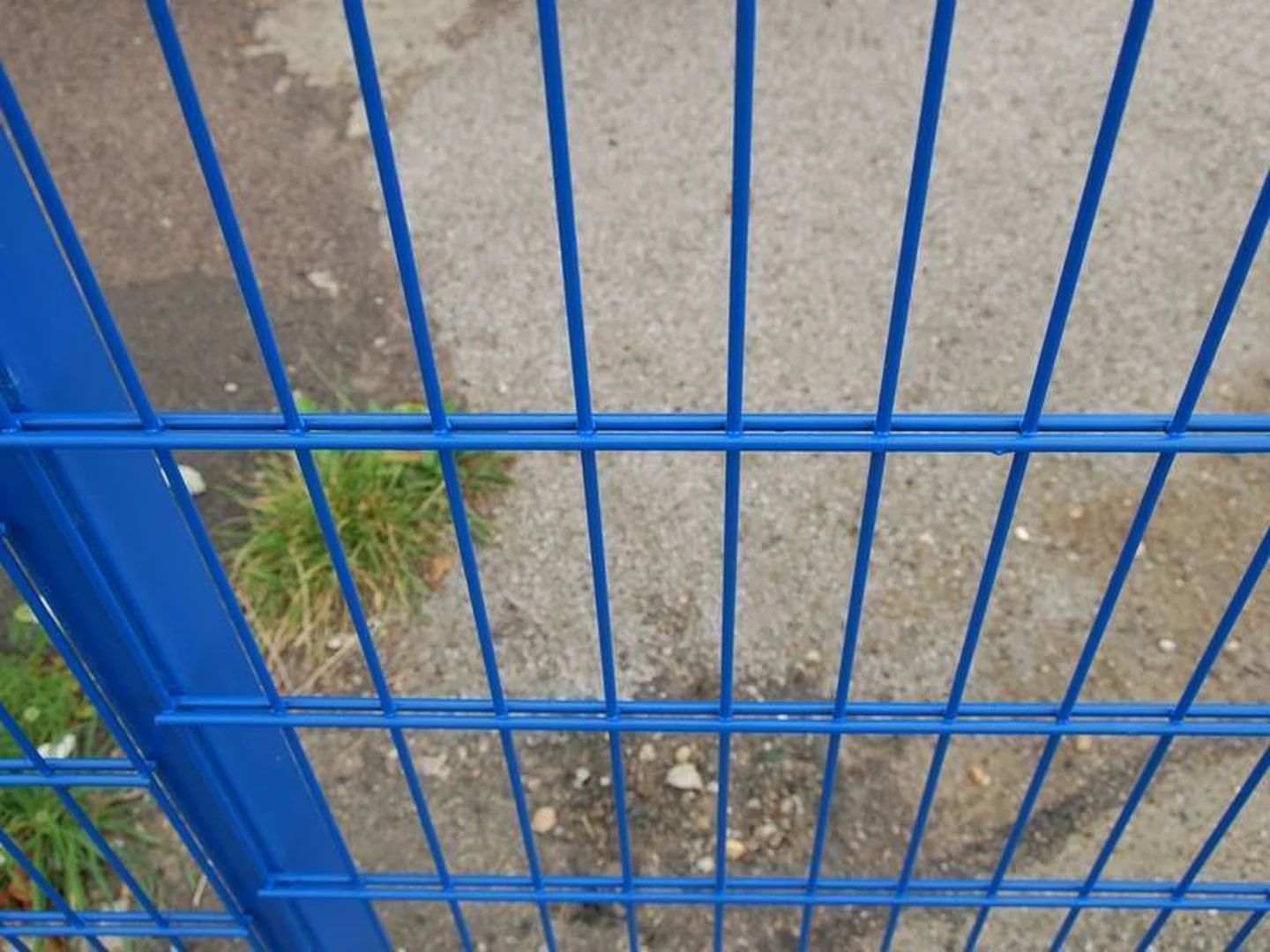

Visible perimeter control for maintenance yards and restricted equipment areas where a flat rigid panel is enough.
Site and shipment checks
Post centres must match the approved panel width and corner layout.

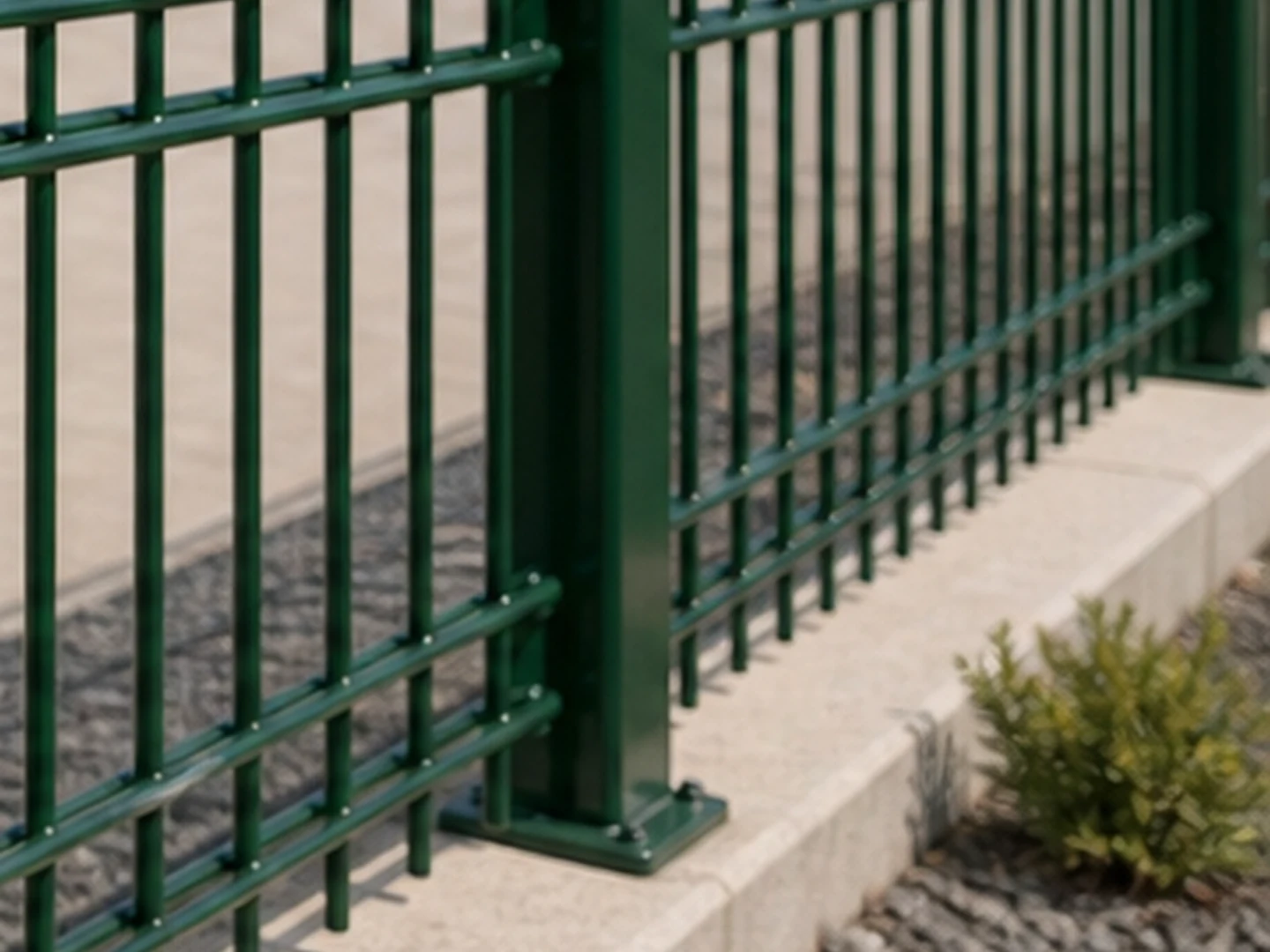

Base plate or embedded posts should follow site foundation and height requirements.
Hardware cartons need labels for clips, bolts, caps, hinges and gate parts.
Receiving photos are easier when panels, posts and accessories are grouped separately.
Use real panel, mesh, post, clamp and base plate photos instead of isolated catalogue-only images.
Show welding, coating, inspection, stock or packing scenes to prove supply capability.
Prepare inspection report, coating checks and available third-party documents for buyers.
Keep installation photos by application: school, factory, utility, warehouse and commercial perimeter.
Get a useful first quote
Confirm whether the project needs the heavier 8/6/8 panel or the lighter 6/5/6 panel.
Include any custom panel width, slopes, corners or stepped sections.
State post section, embedded or base-plated installation, clips or clamp strips.
Give galvanized, powder-coated or PVC-coated requirement with RAL colour when needed.
List pedestrian, swing or sliding gate openings with hardware expectations.
Destination port and unloading method help us plan bundles and loading assumptions.
Before requesting a quote
868 uses two 8 mm horizontal wires and one 6 mm vertical wire. 656 uses two 6 mm horizontal wires and one 5 mm vertical wire. 868 is heavier and more rigid; 656 is lighter and often more cost-balanced.
In many buyer specifications, twin wire fence and double wire fence describe the same welded mesh idea: two horizontal wires paired with each vertical wire. The project still needs to confirm whether the structure is 868, 656 or a custom wire size.
Yes. The open welded grid keeps visibility clear, while the paired horizontal wires make the panel feel more rigid than lighter flat welded mesh panels.
Yes. We can quote double wire fence panel, line posts, corner posts, gate posts, clips, clamp strips, bolts, caps and matching gates as one system.
Galvanized plus powder coating is common for outdoor perimeter projects. Galvanized-only and PVC-coated finishes are also available when the project specification requires them.
Wire configuration, panel height, panel width, post section, fixing method, coating, gate quantity, order volume, packing method and destination port all affect the final quotation.
Request a quote
Share the structure, size, quantity, coating, gates, packing requirement and destination. We will reply with a practical factory quotation.
