Commercial Access
Pedestrian and vehicle gates for offices, warehouses and business parks.
Fence gate manufacturer
Fence Gates Designed to Match the Panel and the Opening
A gate carries more load and sees more movement than a standard fence bay. We match the visible infill to the fence, then size the frame, posts, hinges, latch and lock for the actual opening.
Often supplied as
- fence gates
- pedestrian fence gate
- double swing gate
- sliding security gate
- chain link gate
Matching gate frame, infill, posts and hardware
Pedestrian, swing and sliding options for project systems.

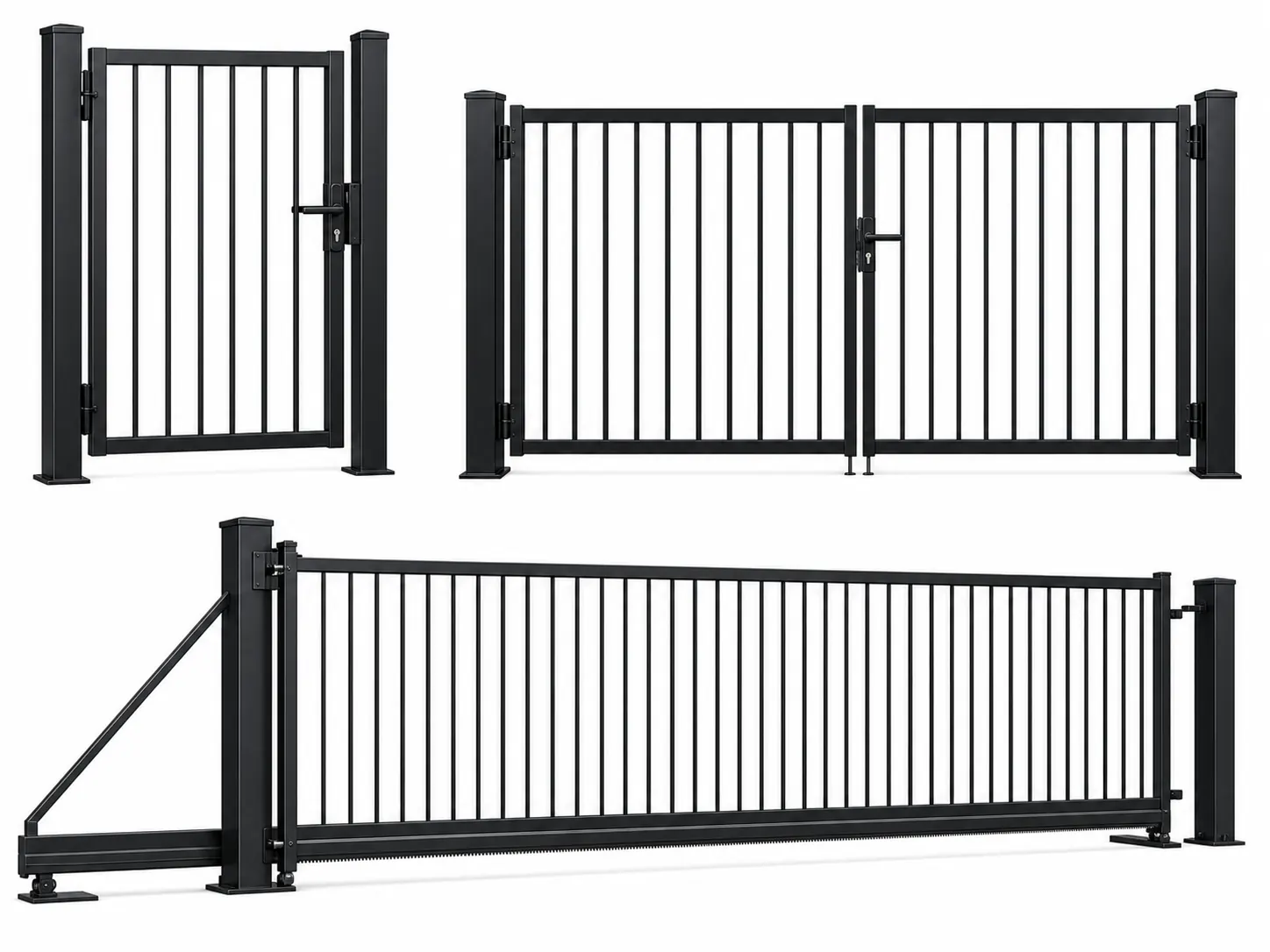

Entrance system
Pedestrian Gates
Single-leaf entrances with hinges, latch, lock and matching infill.
Swing Gates
Single or double leaves for vehicles, yards and commercial access.
Sliding Gates
Wider openings where swing space is limited or controlled access is needed.
Matched Infill

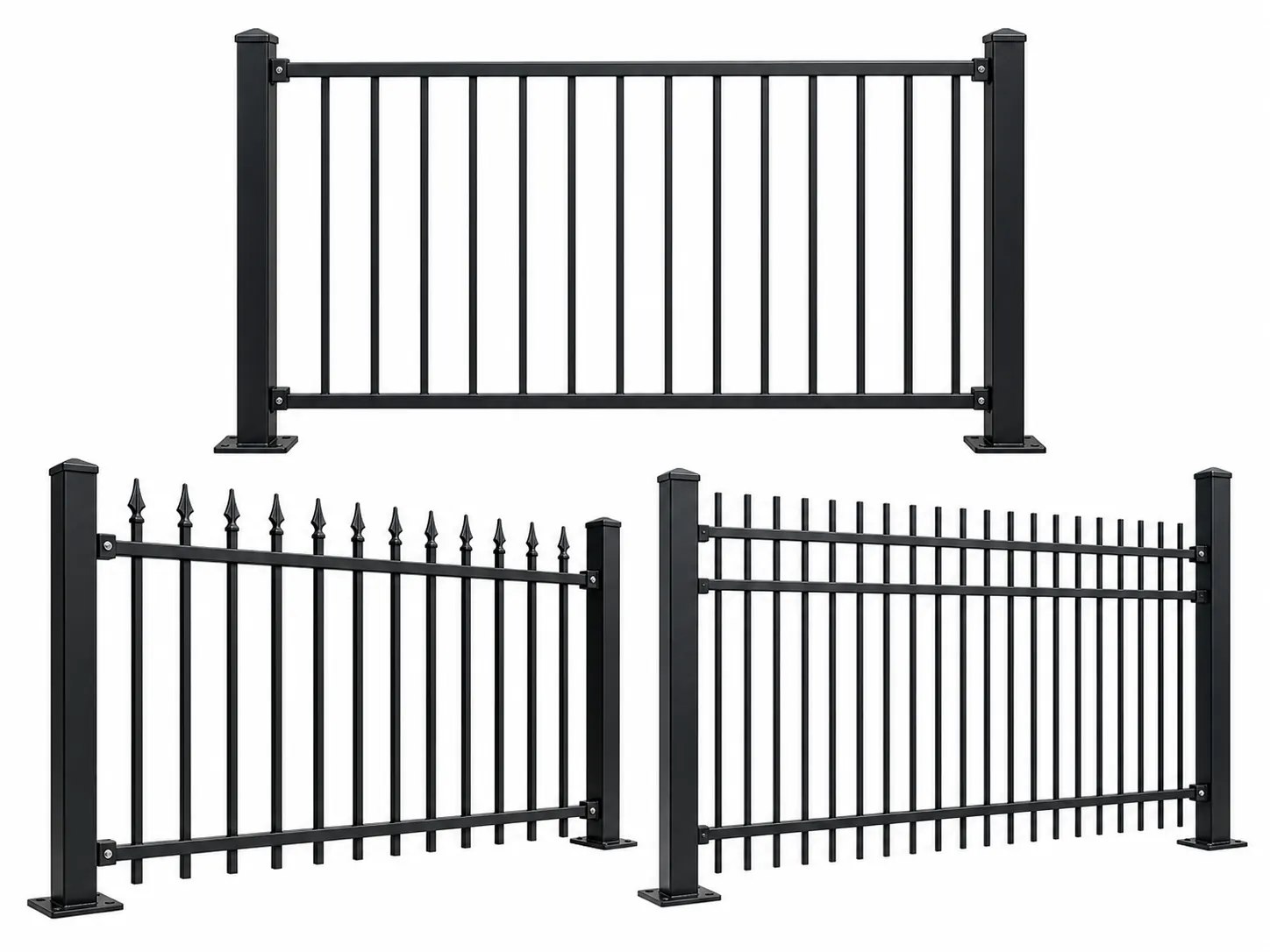

Wire mesh, chain link, steel picket and aluminum styles can match the fence.
Opening first
The Clear Opening Decides the Frame, Post and Hardware
Gate quotations should start with the usable opening, leaf arrangement and operating method. A standard-looking gate can need very different posts and hinges when the width or daily use changes.
Pedestrian access
Single leaves can use latch, lock, closer or project-specific safety hardware.
Vehicle swing access
Leaf width, ground clearance and wind exposure affect frame and post strength.
Sliding access
Track, cantilever and automation preparation follow the site layout and duty cycle.
Fence Gate Specification Options
Final dimensions and hardware should follow the approved opening, fence type and operating requirement.
| Item | Common Options | Production Note |
|---|---|---|
| Gate type | Pedestrian, single swing, double swing, sliding or custom | Choose from opening width, available swing space and traffic. |
| Clear opening | Project-specific width and height | Quote the usable opening rather than only the leaf size. |
| Frame section | Square or rectangular steel or aluminum tube | Frame section increases with leaf size, infill and daily use. |
| Infill | 3D mesh, double wire, 358, chain link, steel or aluminum picket | Infill can match the adjoining fence system. |
| Gate posts | Embedded or base-plated posts sized to the opening | Gate posts are stronger than standard line posts. |
| Hardware | Hinges, latch, lock, drop bolt, wheels, track or cantilever parts | Hardware follows gate type, weight and operating method. |
| Surface finish | Galvanized, powder coated or PVC-compatible finish | Colour and coating can match the fence panels. |
Gate fabrication
A Gate Is Checked for Movement, Not Only for Appearance
We check frame dimensions and diagonals before coating, then confirm hinge, latch and post relationships. For larger gates, the support and opening arrangement are reviewed before packing.
Frame squareness
Diagonals and overall dimensions are checked before surface treatment.
Hinge position
Hinges are aligned with the gate post and required opening direction.
Latch and lock
Closing hardware is positioned for the site use and handedness.
Moving parts
Wheels, tracks, drop bolts or cantilever parts are checked by gate type.
Fence Gate Applications
The entrance should carry the same security and appearance as the surrounding fence.

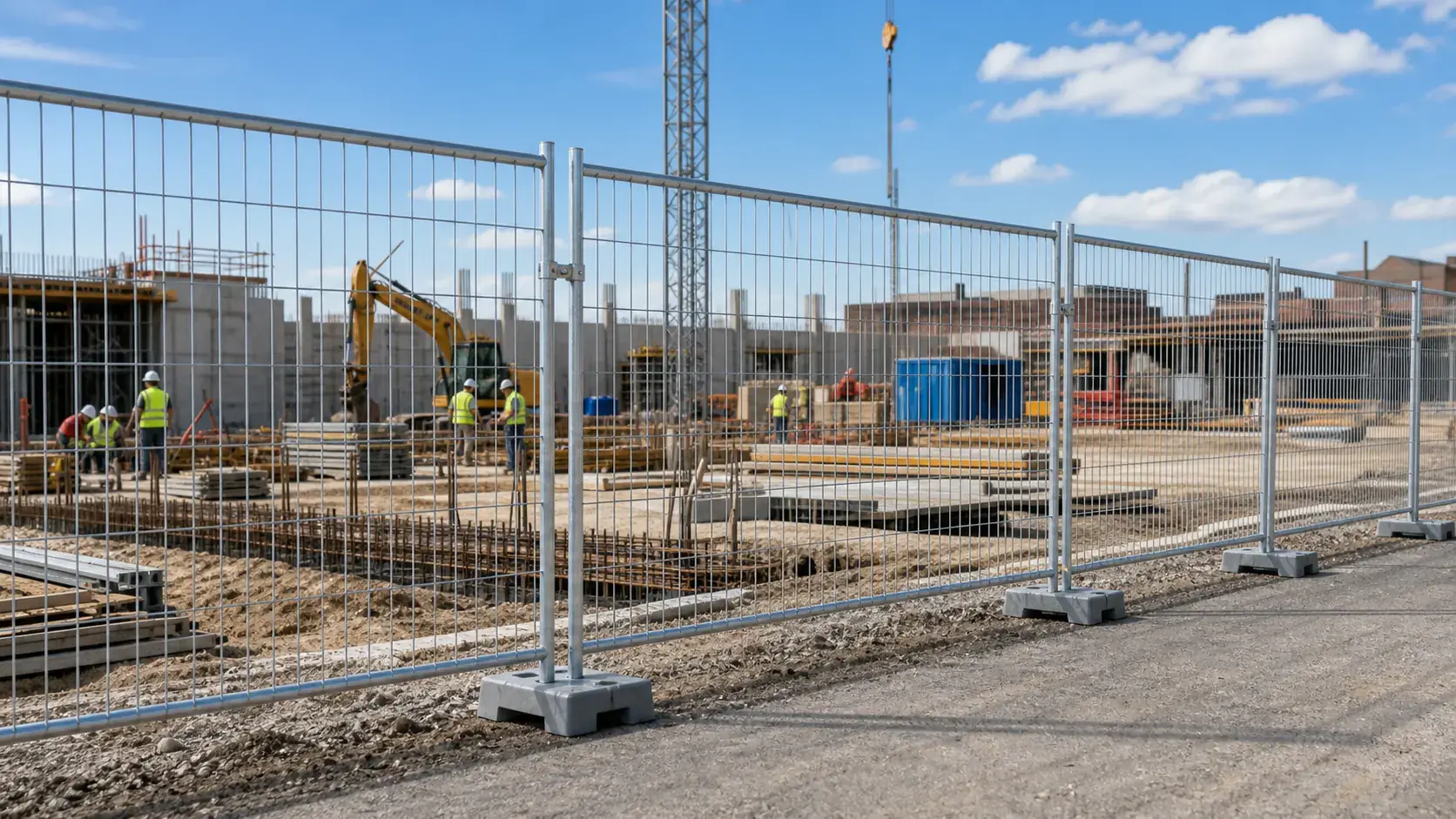

Construction Access
Temporary pedestrian and vehicle openings that connect to site fence panels.
Pool and Residential
Matching aluminum or steel gates with suitable latch and closing hardware.
Hardware packing
Gate-Specific Parts Are Kept With the Correct Opening
Hinges, latches, locks and special posts are easy to mix with ordinary fence hardware. We label gate sets and can photograph the main components before loading.
Gate set labels
Leaf, posts and hardware can be marked by opening reference.
Protected hardware
Hinges, latches, locks and moving parts are packed separately.
Loading record
Large frames and long posts can be photographed in the container.
Fence Gate Questions
Information that turns an opening size into a workable gate quotation.
What dimensions do you need for a fence gate quote?
Send clear opening width and height, gate type, fence infill, post installation, opening direction, hardware and quantity.
Can the gate match our wire mesh or chain link fence?
Yes. The frame can be filled with matching 3D mesh, double wire, 358 mesh, chain link, steel picket or aluminum picket.
Do you make sliding gates?
Yes. Sliding and cantilever-style gates can be discussed from the opening, available run-back space, operation and automation requirement.
Can locks and closers be supplied?
Yes. Latches, locks, closers, drop bolts and project-specific hardware can be included when the required function is clear.
Match a Gate to the Fence System
Open the fence page that supplies the adjoining panels and posts.
Request a quote
Send Your Fence Specs or Product Link
Share the product type, size, quantity, coating and destination. We will reply with a practical factory quotation.
