Security and ornamental steel fence
TOPSFENCE supplies spear top steel fence panels for commercial frontage, property boundary, factory perimeter and decorative security projects. Panels can be quoted with steel tubes, pickets, spear tops, posts, gate hardware, galvanized protection and black powder coating.
Material and strength
A spear top fence should not be quoted only by appearance. Steel grade, tube wall thickness, picket profile, rail size and post section decide the panel rigidity and service expectation.
Core style
Security appearance
Pointed spear tops create a stronger visual deterrent while keeping the open ornamental appearance required for many frontage projects.
Steel structure
Tubular rails and posts help keep the fence line straight, reduce unnecessary weight and provide clean fixing points.
Complete access
For project pricing, quote panels, line posts, gate posts, hinges, latches, locks, brackets and caps as one system.
Steel specifications
Use this table as a quotation base. Final dimensions should follow the project drawing, installation method and required security level.
| Parameter | Common options | Custom options | Quotation note |
|---|---|---|---|
| Product name | Steel spear top fence, spear top metal fence | Wrought iron spear top fence, steel spear top fencing | Share a photo or drawing if your market uses another product name. |
| Panel height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.4 m | Custom height by drawing | Height affects post section, gate frame and shipment packing. |
| Panel width | 2.0 m, 2.4 m, 2.5 m, 3.0 m | Custom width for post centres | Panel width should match the approved layout and loading plan. |

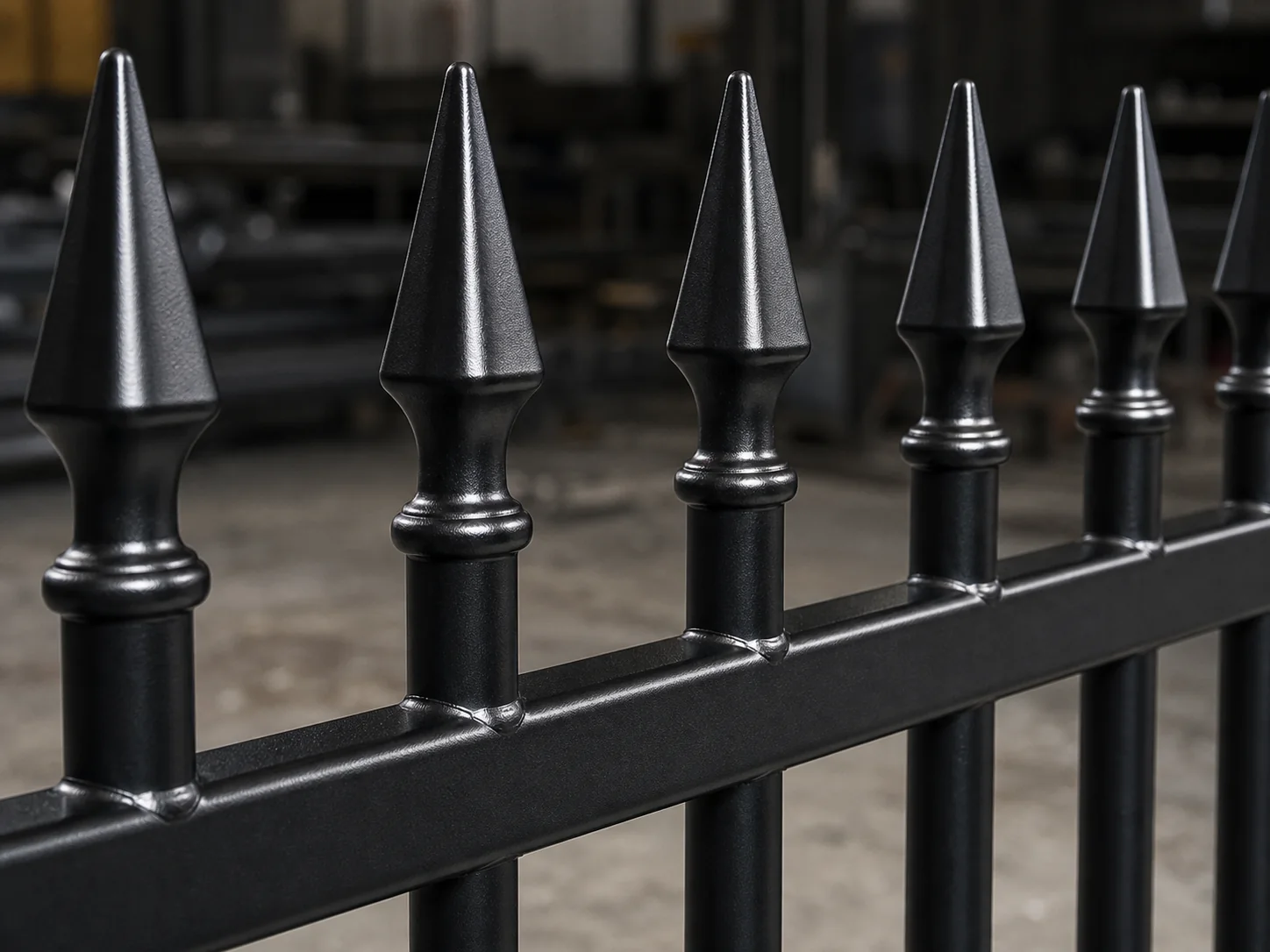

| Vertical picket | 12 mm, 16 mm, 19 mm, 20 mm, 25 mm round steel | Square picket or custom tube profile | Picket size changes panel weight, rigidity and price. |
| Spear top | Pressed spear, welded spear or formed top | Custom ornamental top by drawing | Confirm the spear style before sample or mass production. |
| Rail tube | 30 x 30 mm, 40 x 40 mm, 40 x 20 mm | Custom tube size and wall thickness | Rail size controls welding area, bracket choice and panel straightness. |
| Post system | 50 x 50 mm, 60 x 60 mm, 75 x 75 mm square posts | Base plate, embedded post, flange plate or core-drilled post | Gate posts are usually stronger and should be priced separately. |
| Surface treatment | Hot-dip galvanized, zinc primer, powder coated | Black, white, grey or custom RAL colour | Ask for the zinc route and coating requirement before comparing price. |
| Packing | Panel bundles, post bundles, hardware cartons | Labelled packing by gate set, zone or project phase | Export packing should protect the coating and simplify receiving checks. |

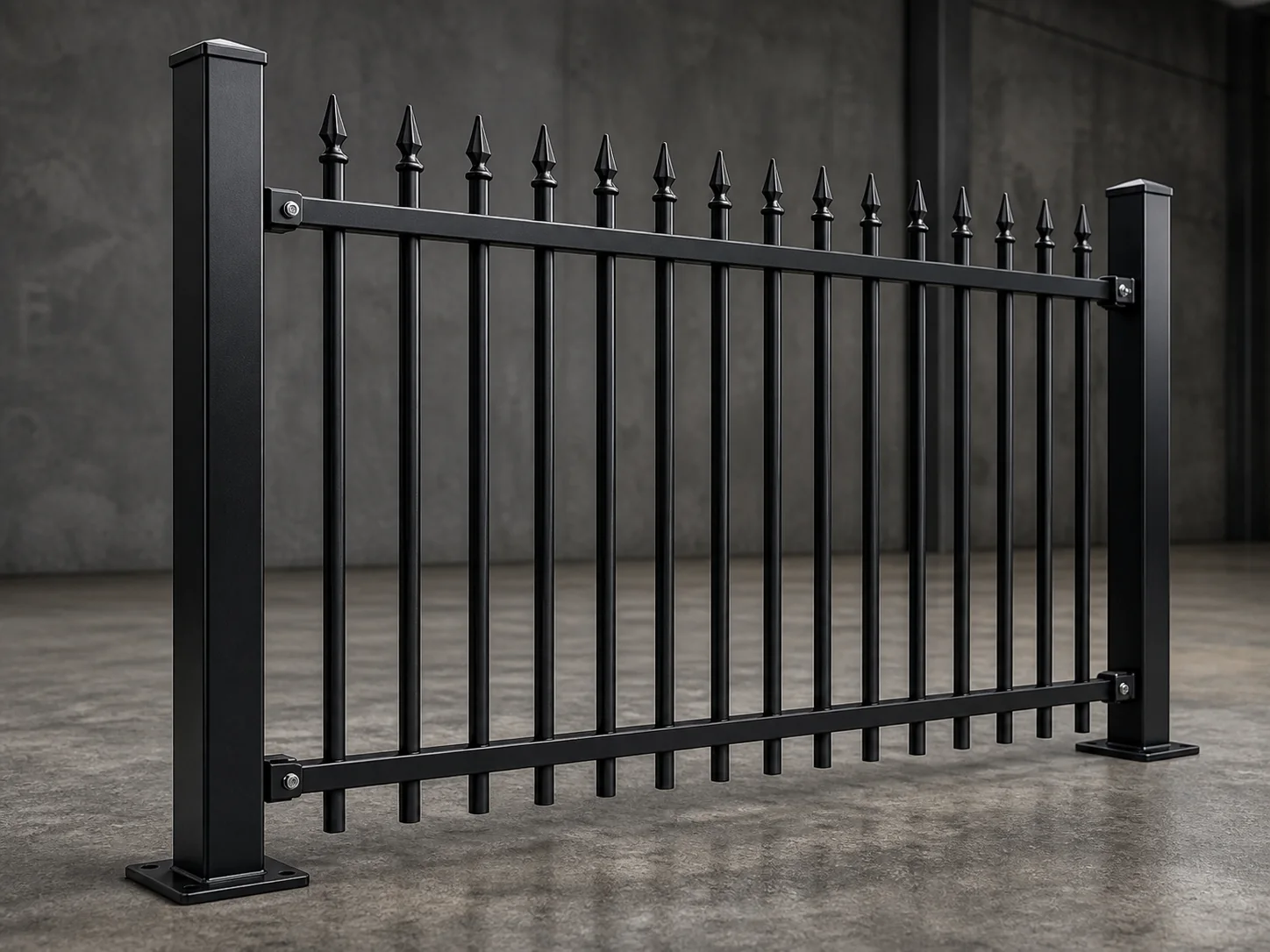

Panel construction
Before comparing price, confirm whether the project wants welded panels, assembled panels, replaceable spear tops or a specific fixing detail. That decision changes production, coating and packing.
Common when the buyer wants strong factory-controlled alignment and fewer site assembly steps.
Used when the design requires replaceable parts, special packing or site-level adjustment.
The spear detail should be confirmed by drawing or reference photo before production.

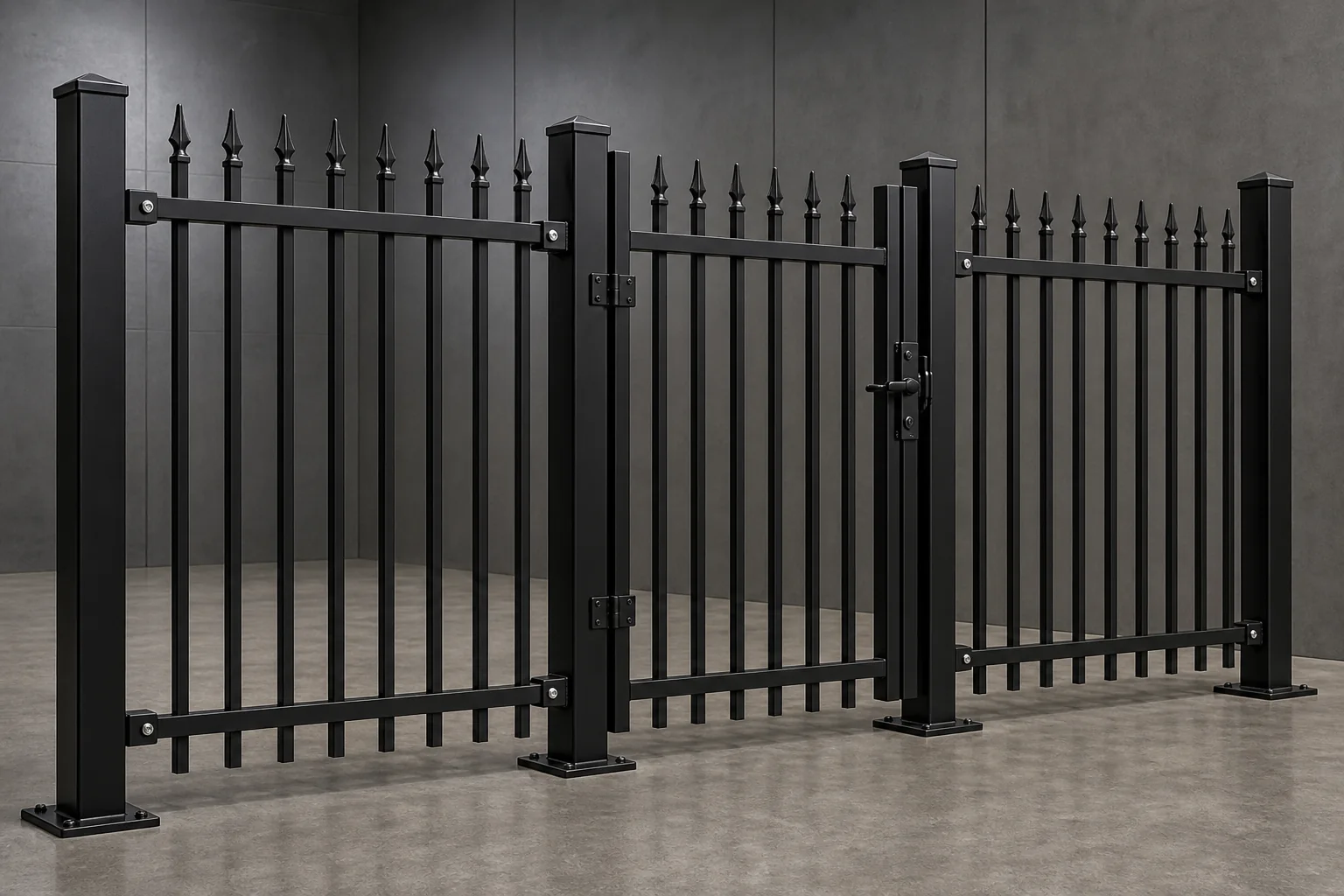

Gate frames need stronger posts, hinge clearances and matching lock details.
Panels, posts, caps and gates should use the same colour target for a clean final line.
Bolts, brackets, caps and small parts should be listed against each fence run or gate set.
Galvanizing, coating and corrosion resistance
Colour is not the coating specification. For outdoor steel spear top fencing, the zinc process, powder coating thickness, colour target and inspection evidence should be agreed before production.
Confirm steel tube, picket profile, wall thickness and material certificate or test document requirement before mass production.

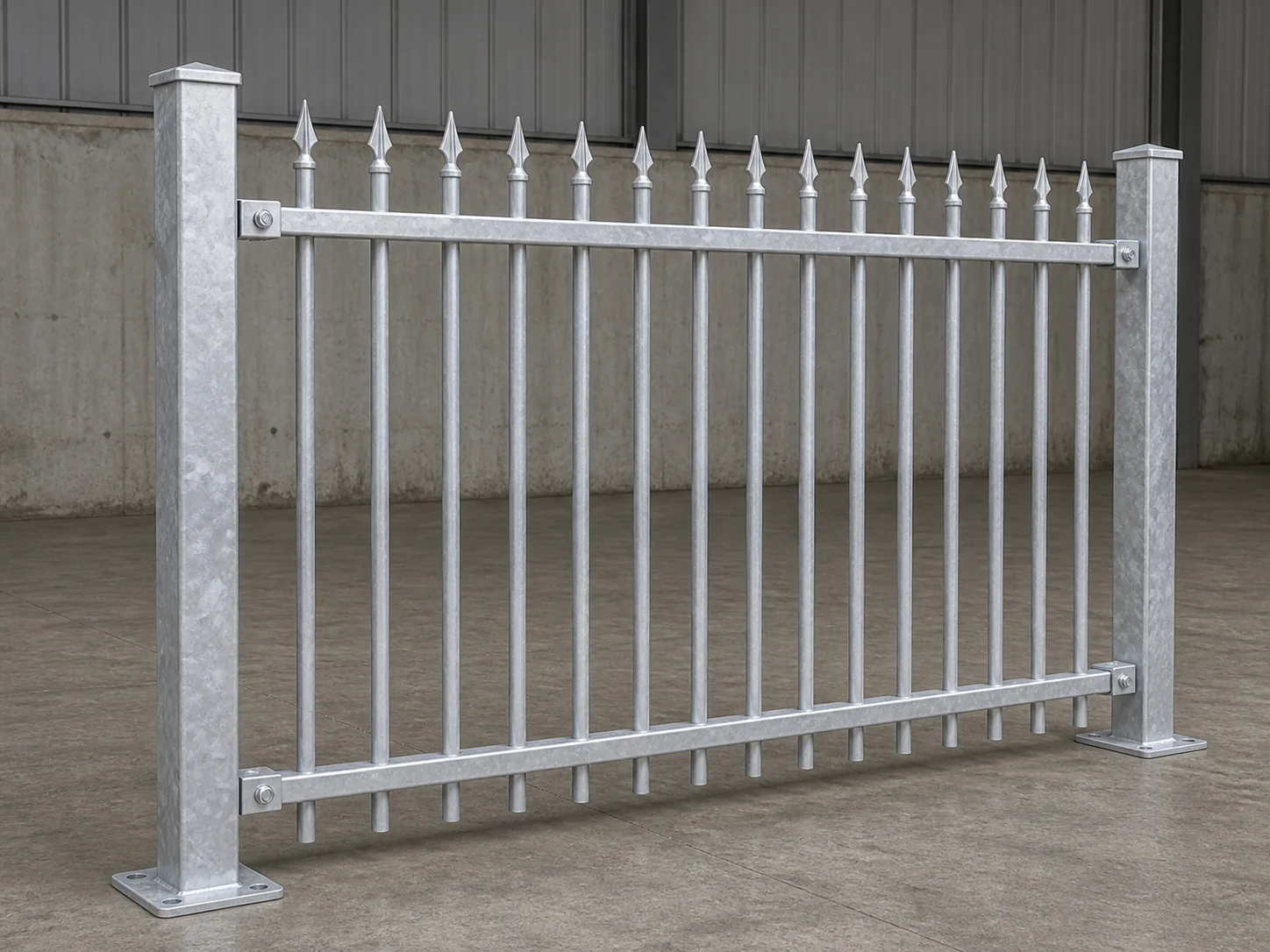

A common route for outdoor spear top panels, combining zinc protection with black, grey or custom colour.

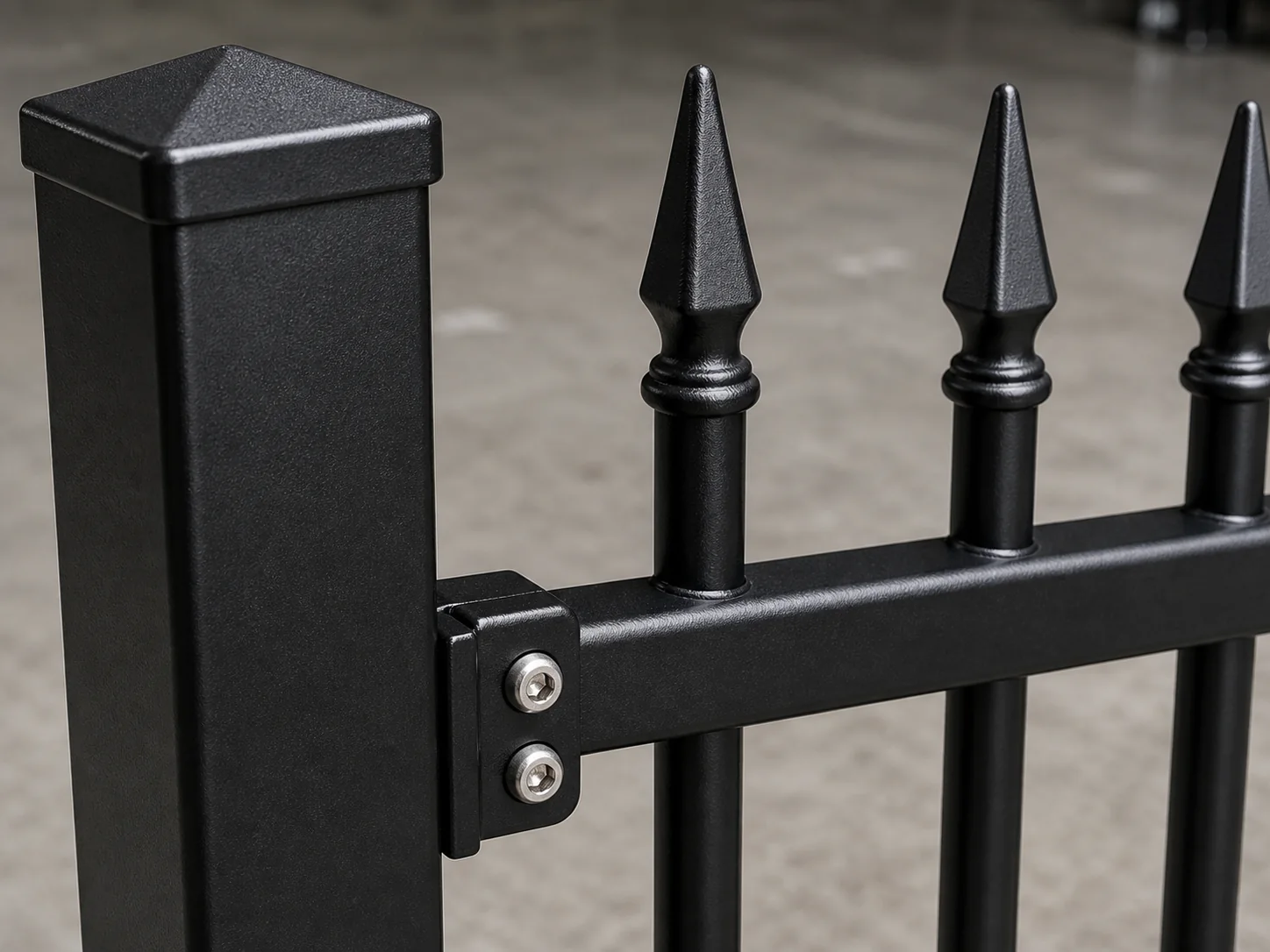

Black powder coating is popular for ornamental security projects where the finished fence must look clean and consistent.
For corrosion resistance evidence, confirm the zinc route, coating thickness target, colour reference, adhesion or salt-spray expectation where applicable, and finished product photos before shipment.

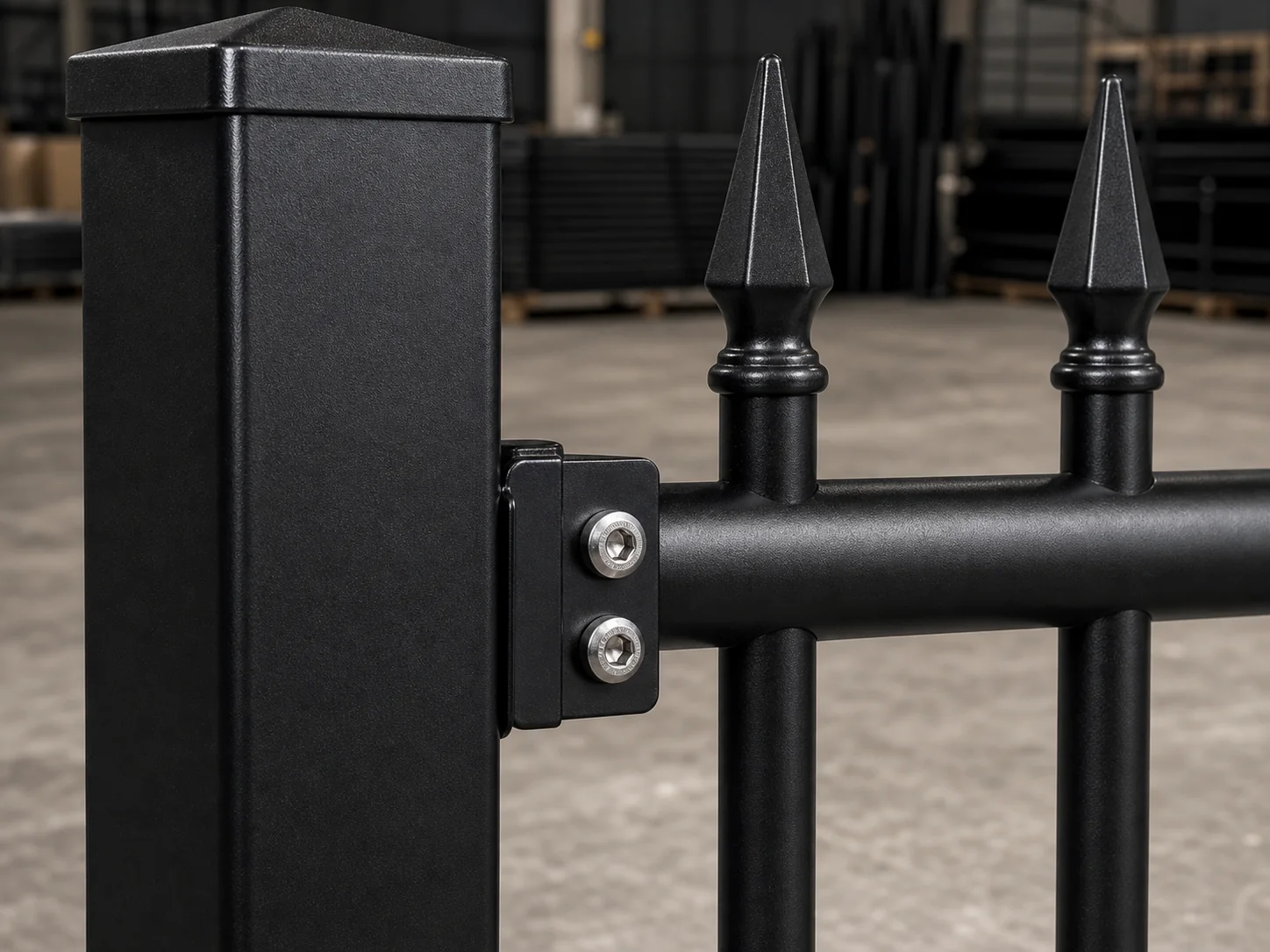

Installation hardware and fittings
The panel is only one part of the fence line. A practical steel spear top fence quote should include posts, brackets, bolts, caps, gate frames, hinges, latch, locks and the fixing method.
Post centres should match the panel width and approved site layout.
Fixing method can use base plates, embedded posts or project-specific anchoring.
Gates and openings need stronger posts, hardware and clear opening dimensions.
Hardware packing should be labelled by panel run or gate set for faster installation.
Application scenarios
Spear top fencing is selected when the project needs a stronger security appearance than flat top panels, while still keeping an open decorative metal fence line.

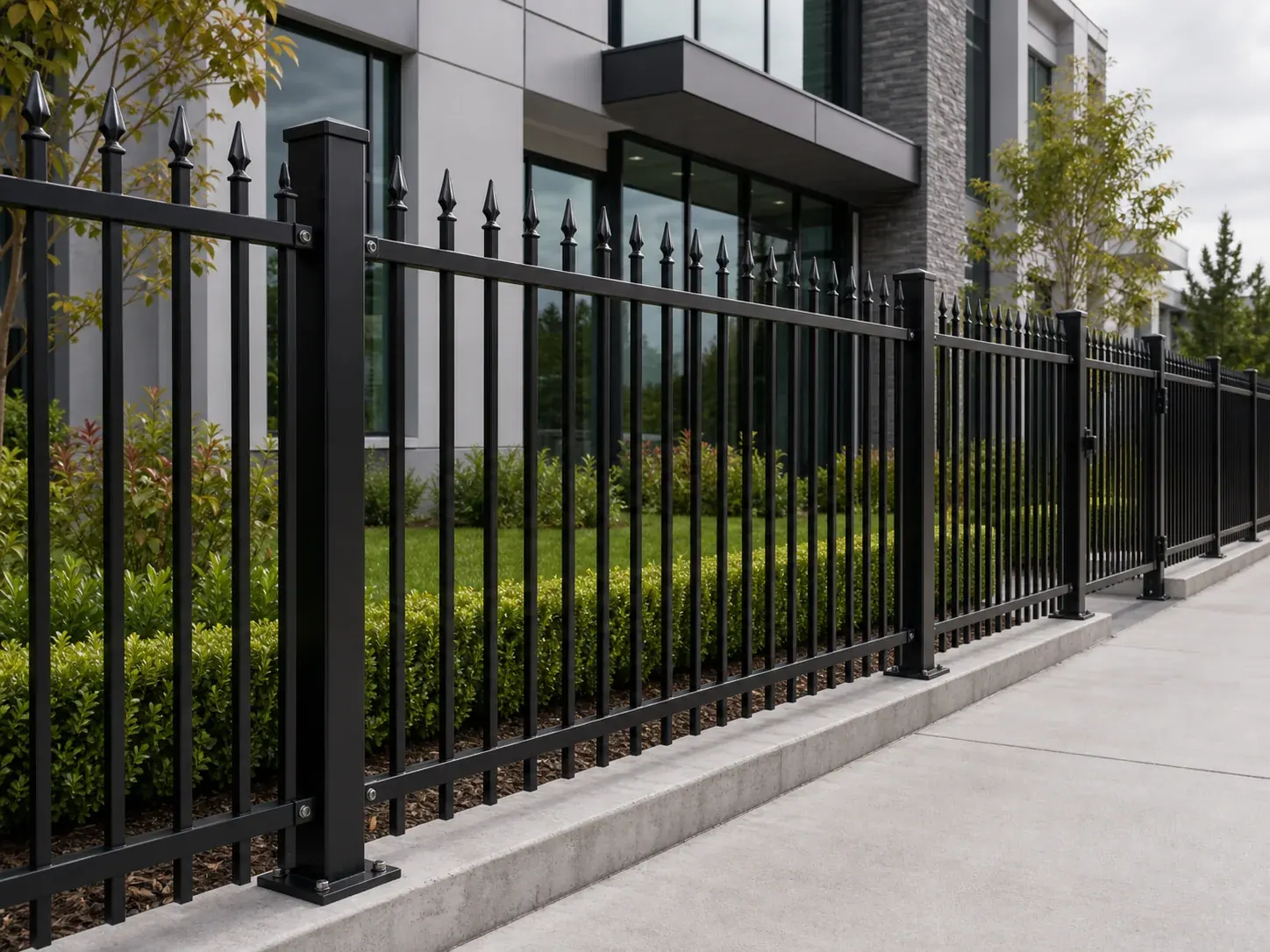

Black spear top fencing gives offices, shops, business parks and public-facing properties a clean security line.

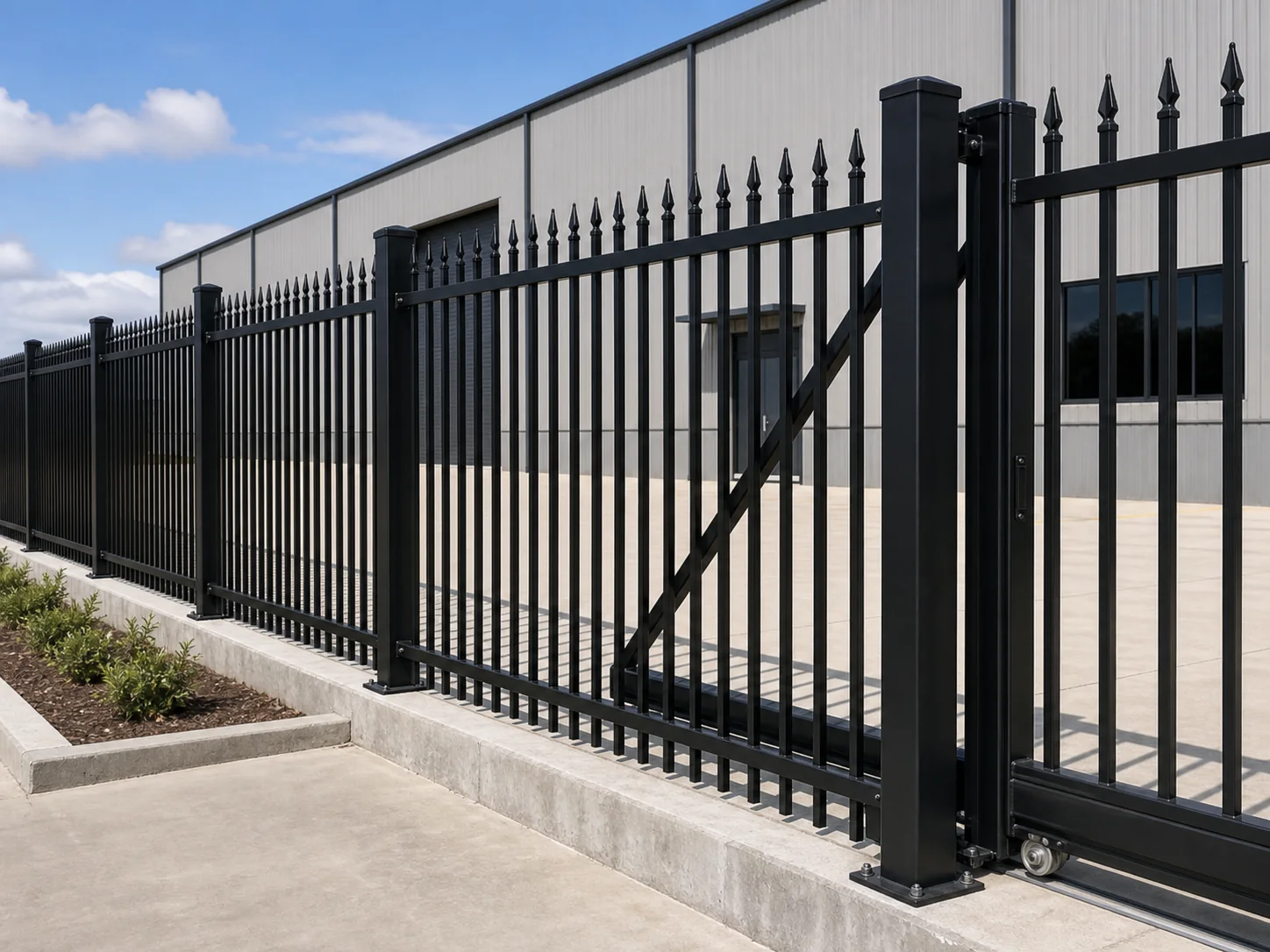

Heavier pickets, stronger posts and matching gates can be specified for work yards and warehouse edges.
Wrought iron-style spear top fence panels are used when buyers want a traditional decorative metal look.

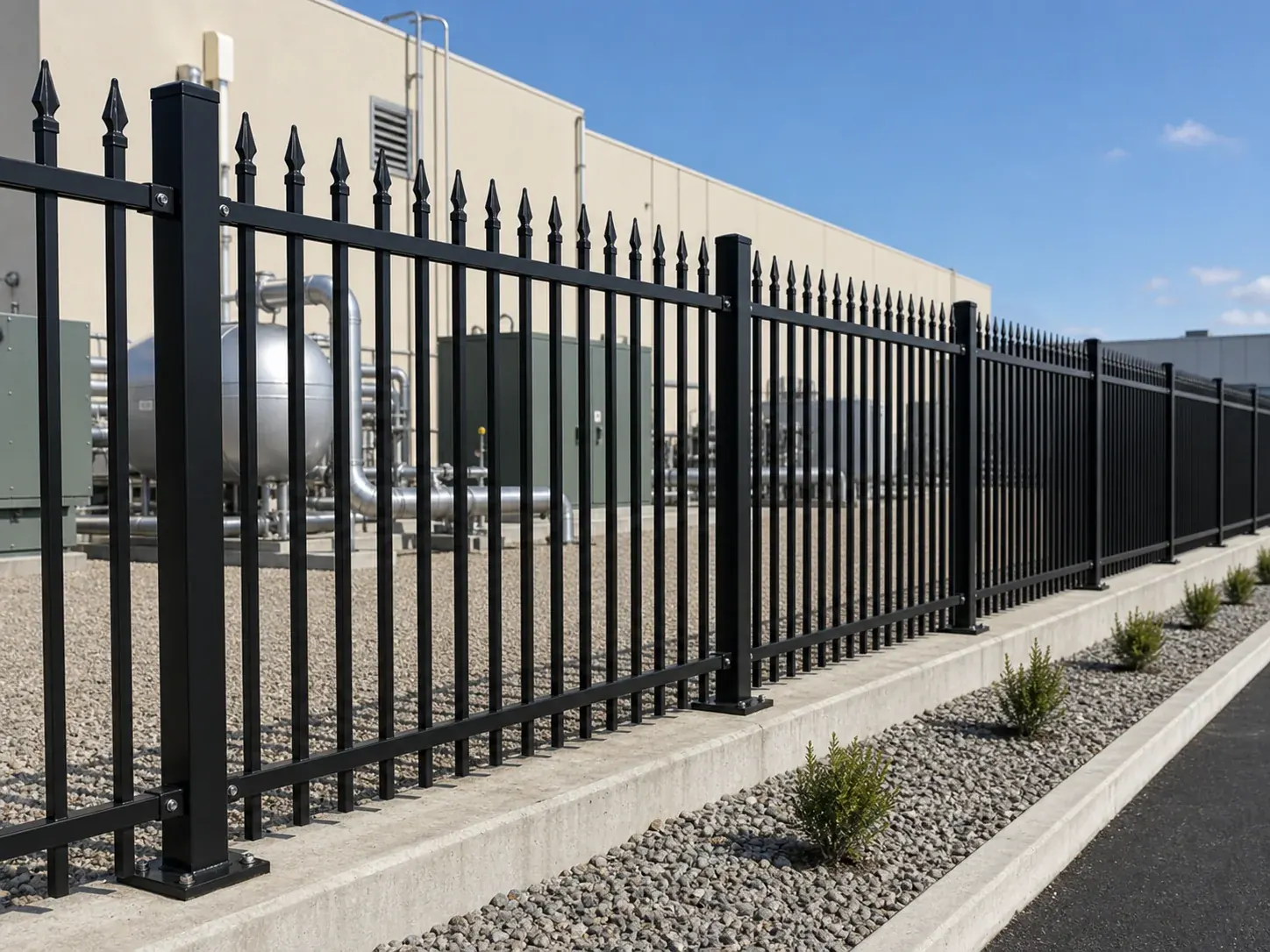

Spear top steel fence panels create a visible deterrent where the site does not require dense anti-climb mesh.
Required evidence for project buyers
For B2B fence buyers, evidence matters. We can prepare product photos, dimension checks, coating notes, material certificate or test document, packing records and loading photos when the requirement is confirmed.
Check height, width, picket size, spear style, rail tube, post section and gate openings.
Confirm steel grade, tube wall thickness and available certificate or test document requirement before production.
Check visible coating coverage on pickets, spear tops, rails, welded areas, posts, caps and gate frames.
Share salt-spray, adhesion or colour requirement early if the project needs a specific document.
Use separators, bundles, labels and hardware cartons to protect the coated surface during export shipment.
Product, packing and loading photos help distributors and contractors verify shipment records before arrival.
Specification drawing
Panel height, picket size, rail tube, post section and gate opening should be visible in the drawing or order sheet.
Material certificate or test document
Confirm which document is required before order confirmation so the correct evidence can be planned.

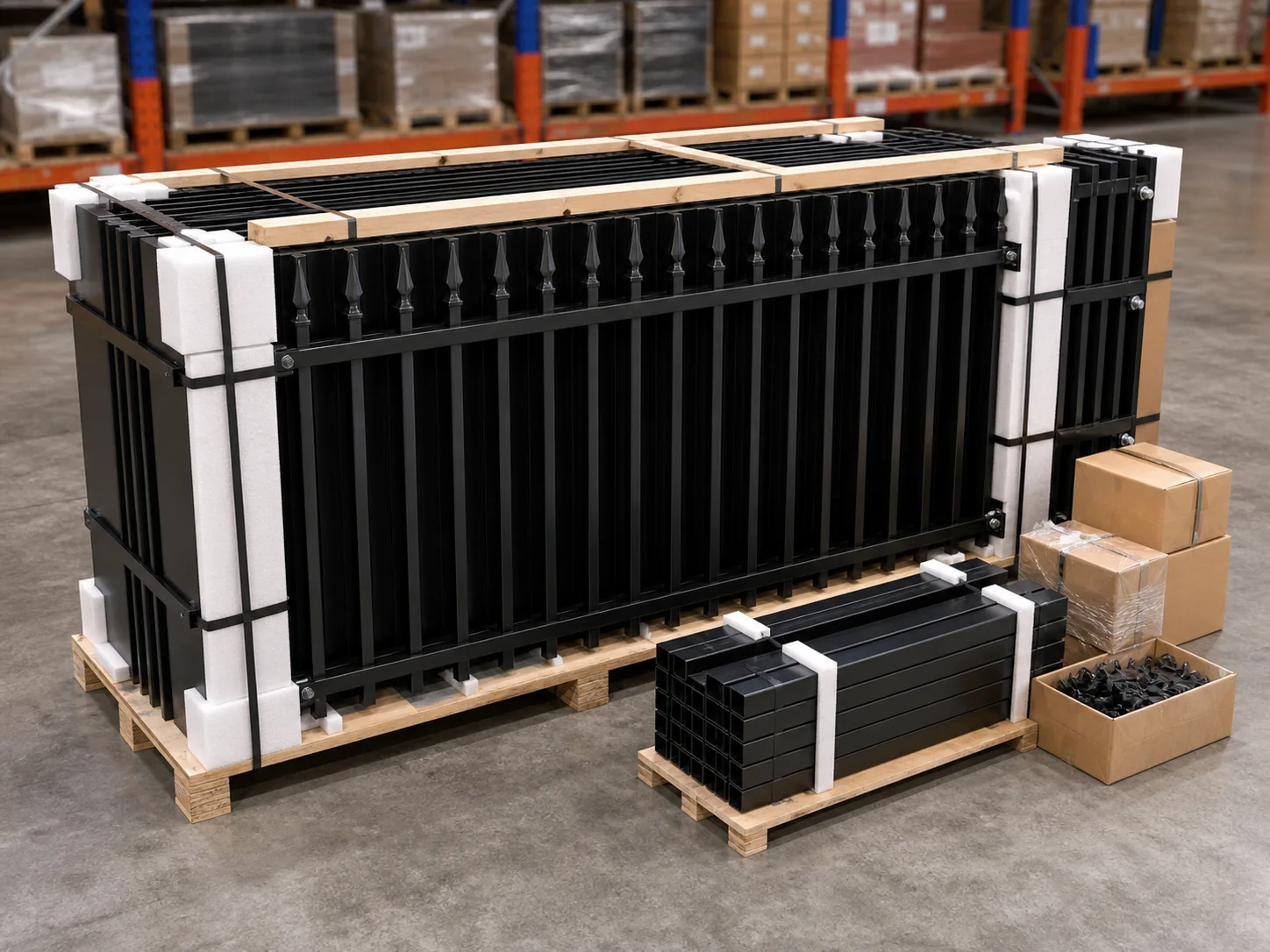

Packing photo
Panel bundles, post bundles, hardware cartons and loading photos help overseas buyers check receiving records.
Project photo
Real installation or project reference photos make the page more useful than catalogue text alone.
Cost factors and quote checklist
A useful first quote needs more than the phrase steel spear top fencing. Send the structure details so the factory can price the real panel instead of guessing.
Round steel, square picket, tube profile and spacing change material weight, safety and appearance.
Pressed spear, welded spear, cast spear or custom top detail should be confirmed by drawing.
Line posts, corner posts, gate posts, base plates and embedded posts should be counted separately.
Galvanized, powder coated and galvanized plus powder coated options carry different cost and protection levels.
Pedestrian gates, swing gates, sliding gates, hinges, locks, brackets and caps add real cost.
Order volume, labelled packing, container plan and destination port affect the final quotation.
FAQ
Short answers for buyers comparing spear top steel fence, spear top metal fence and wrought iron spear top fence panels.
A spear top steel fence is a metal fence panel made with vertical steel pickets ending in pointed spear tops. It is used when the project needs ornamental appearance and a stronger security signal.
Many buyers use wrought iron spear top fence as a market name for ornamental metal fencing. For export production, the panel is often quoted with steel tubes, steel pickets, welded or assembled rails, posts and coating details.
Confirm panel height, panel width, picket size, picket spacing, spear style, rail tube, post section, wall thickness, gate size, finish and fixing method.
Yes. Black powder coating over galvanized or zinc-treated steel is common for outdoor spear top fencing. The colour reference and coating route should be confirmed before production.
Both options can be discussed. Welded panels are common for strong factory alignment, while assembled designs may be used when the buyer needs special packing, replaceable parts or site adjustment.
Ask for the specification drawing, material certificate or test document, coating notes, finished product photos, packing photos and loading photos when the project requires evidence.
Request a quote
Share the panel size, picket size, spear style, rail tube, post type, gates, coating, quantity, packing and destination. We will reply with a practical factory quotation.
