Galvanized metal rod fencing manufacturer
We manufacture steel rod fence panels with vertical steel rods, welded or assembled rails, matching posts, gates and surface finishes for residential, garden, pool perimeter, commercial and security fencing projects.
Product overview
We help you confirm whether the panel structure, rod spacing, coating and post system fit your project. Send us the drawing or target dimensions, not only the product name.
Core style
Flat top rods
We manufacture clean vertical rod panels with top and bottom rails for housing, garden, pool perimeter and commercial boundary projects.
Security appearance
We make spear top rod panels for frontages, commercial sites and property boundaries where appearance and deterrence both matter.
Complete access
We quote steel rods for fencing as a complete system: panels, posts, brackets, hinges, latch, lock and gate frames.
Core specification table
We use these items as the quotation base. Final dimensions follow your project drawing, local safety requirement and confirmed installation method.
| Parameter | Common options | Custom options | Quotation note |
|---|---|---|---|
| Product name | Steel rod fence panels, metal rod fence panels | Steel rod fencing, steel fencing rods, steel fence rods | Send a photo or drawing if your market uses a different name. |
| Panel height | 1.2 m, 1.5 m, 1.8 m, 2.0 m, 2.4 m | Custom height by drawing | Height affects post section, fixing method and gate frame design. |
| Panel width | 2.0 m, 2.4 m, 2.5 m, 3.0 m | Custom width for post centres | Panel width should match the approved post spacing and loading plan. |
| Steel rod diameter | 12 mm, 16 mm, 19 mm, 20 mm, 25 mm | Round rod, square picket or custom profile | Rod size changes panel weight, rigidity and price. |

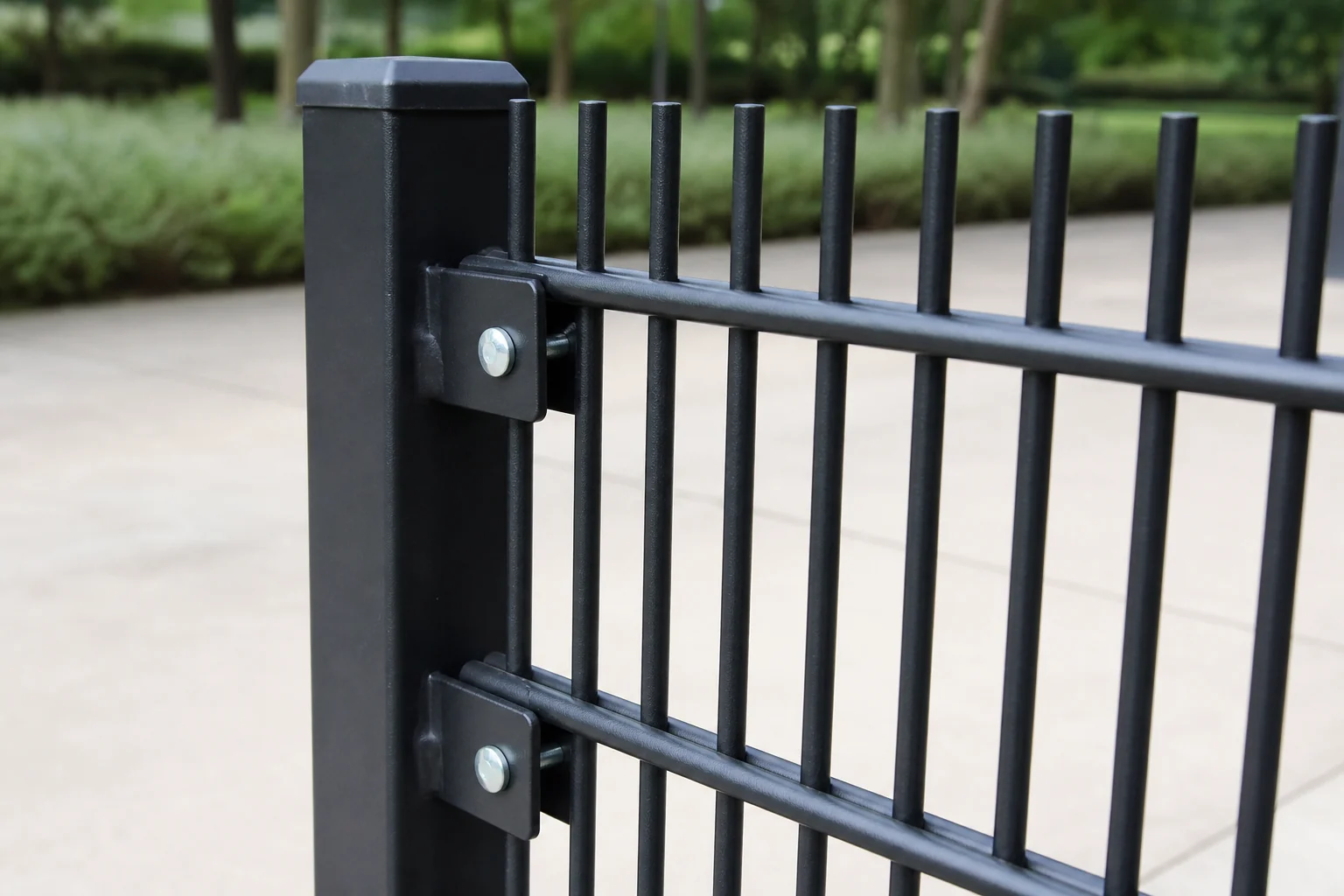

| Rod spacing | 75 mm, 90 mm, 100 mm, 110 mm, 120 mm | Project-specific spacing | Spacing should be checked for safety, visibility and local code needs. |
| Rail size | 30 x 30 mm, 40 x 40 mm, 40 x 20 mm | Custom tube and wall thickness | Rail size controls weld area, bracket choice and panel straightness. |
| Post system | 50 x 50 mm, 60 x 60 mm, 75 x 75 mm square posts | Base plate, embedded post, flange plate or core-drilled post | Gate posts are usually stronger and should be priced separately. |
| Surface treatment | Galvanized, powder coated, galvanized plus powder coated | Black, white, grey or custom RAL colour | Ask for the zinc route and coating requirement before comparing price. |
| Packing | Panel bundles, post bundles, hardware cartons | Labelled packing by zone, gate set or project phase | Export packing should protect the coating and simplify receiving checks. |
Panel styles and finishes
We confirm panel style and finish together. A residential frontage, pool perimeter, garden boundary and commercial security line may use similar rods but need different height, spacing and coating details.
We make clean vertical steel rods for housing, garden, pool perimeter and modern commercial boundaries.
We produce decorative metal rod fence styles with a stronger security appearance for visible frontage.
We use round rods when the project needs a more traditional rod fencing appearance.
We use square pickets when the project needs a sharper, modern steel fencing rods appearance.
We commonly quote black, white, grey, green and project colours by RAL code.
We match posts, brackets, caps, screws and gate hardware with the panel finish.
Surface treatment comparison
We do not quote outdoor steel rod fence panels by colour alone. We confirm the zinc process, powder coating thickness, colour target and inspection evidence before production.
We recommend galvanized steel when corrosion resistance matters or the project needs a zinc base before final finishing.
We often use this route for outdoor metal rod fencing, combining zinc protection with black, white, grey or custom colour.

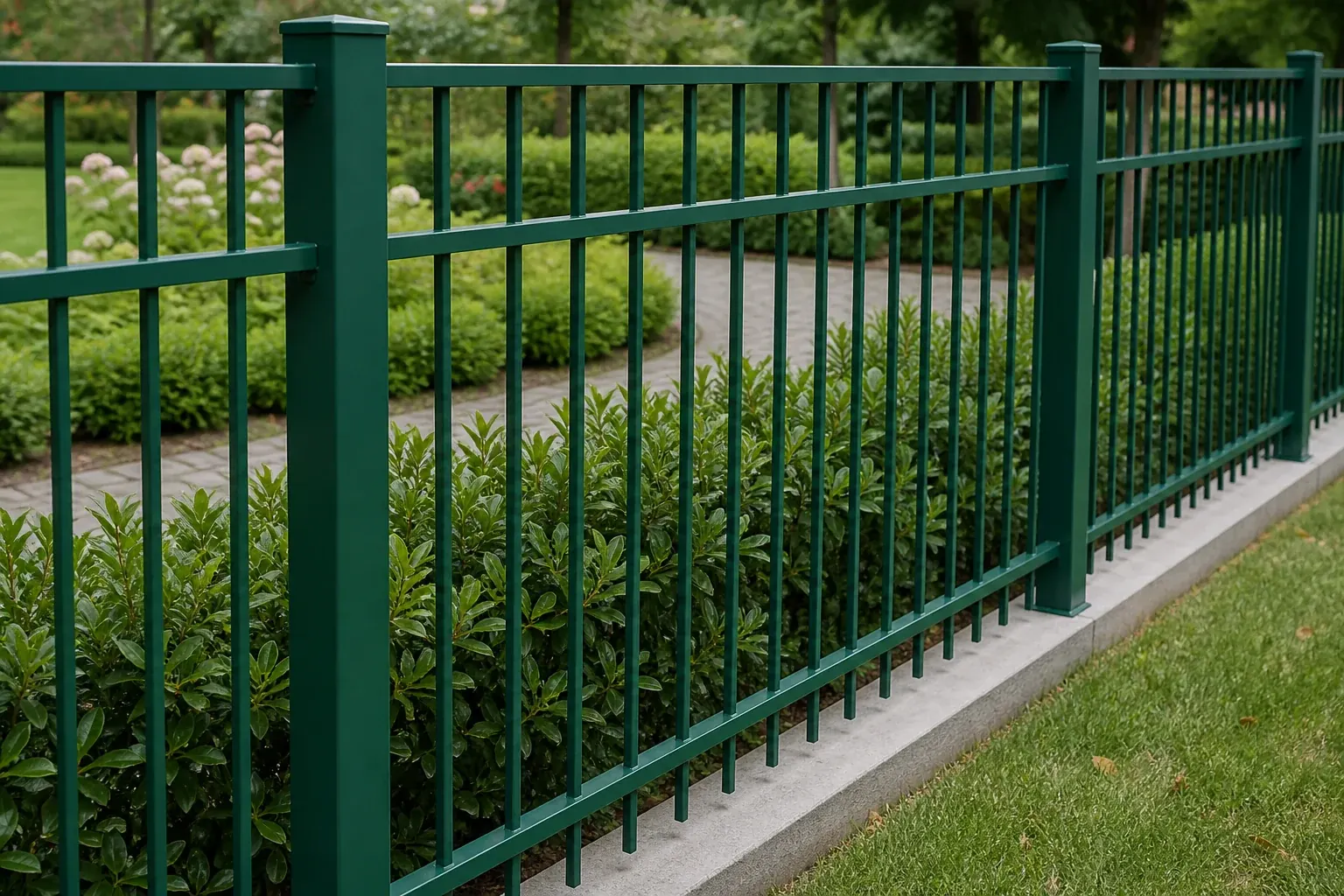

We supply black, green and custom powder coated finishes for residential and commercial steel rod fence projects.
For anti-corrosion evidence, we can confirm the zinc route, coating thickness target, colour reference, adhesion or salt-spray expectation where applicable, and finished product photos before shipment.
Installation with posts and gates
We quote the fence line as a system, not only as loose panels. A practical steel rod fence quote includes posts, brackets, screws, caps, gate frames, hinges, latch, locks and the fixing method.
Post centres are checked against the panel width and approved site layout.
Fixing method can be made for base plates, embedded posts or project-specific anchoring.
Gates and openings are quoted with stronger posts, hardware and clear opening dimensions.
Hardware packing is labelled by panel run or gate set for faster installation.
Application scenarios
We recommend steel rod fencing when the project needs a stronger metal boundary than light garden mesh, while keeping visibility, airflow and a clean architectural line.
We supply flat top steel rod fence panels for housing, villas, gardens and pool perimeters that need a clear visible boundary.
We make black metal rod fence panels for offices, shops and business parks that need a clean security line.
We can specify heavier rods, stronger posts and matching gates for work yards and warehouse edges.

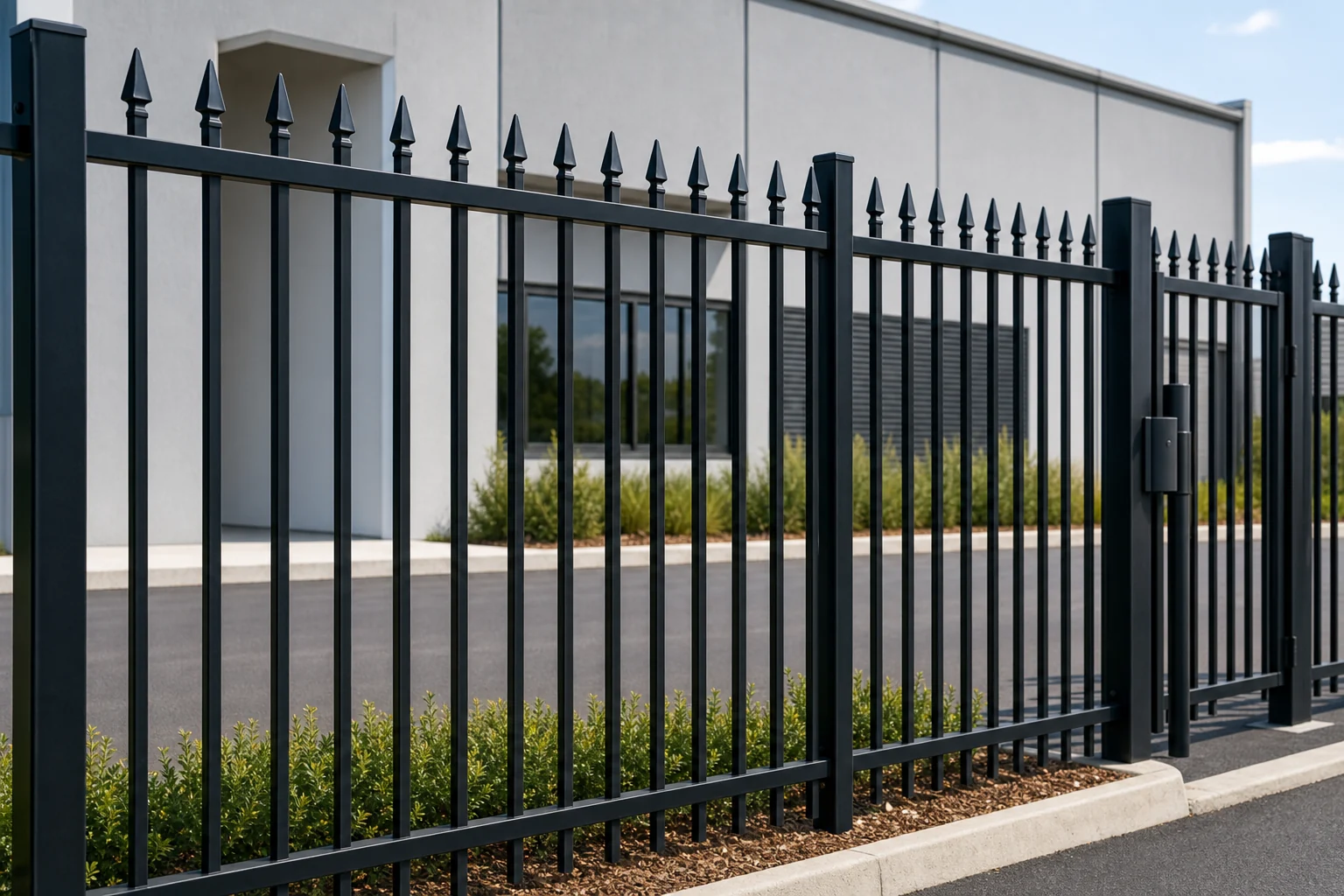

We produce spear top steel rod iron fence panels when the project needs a stronger visible deterrent.
Custom manufacturing and packing
As a fence factory, we prepare product photos, dimension checks, coating notes, packing records and loading photos for steel rod fence panel orders after the requirement is confirmed.
We check height, width, rod diameter, rod spacing, rail size, post section and gate openings.
We review rod alignment, rail straightness, bracket holes and post connection before finishing.
We check visible coating coverage on rods, rails, welded areas, posts, caps and gate frames.
We plan available documents or third-party checks when you share the required test target before order confirmation.

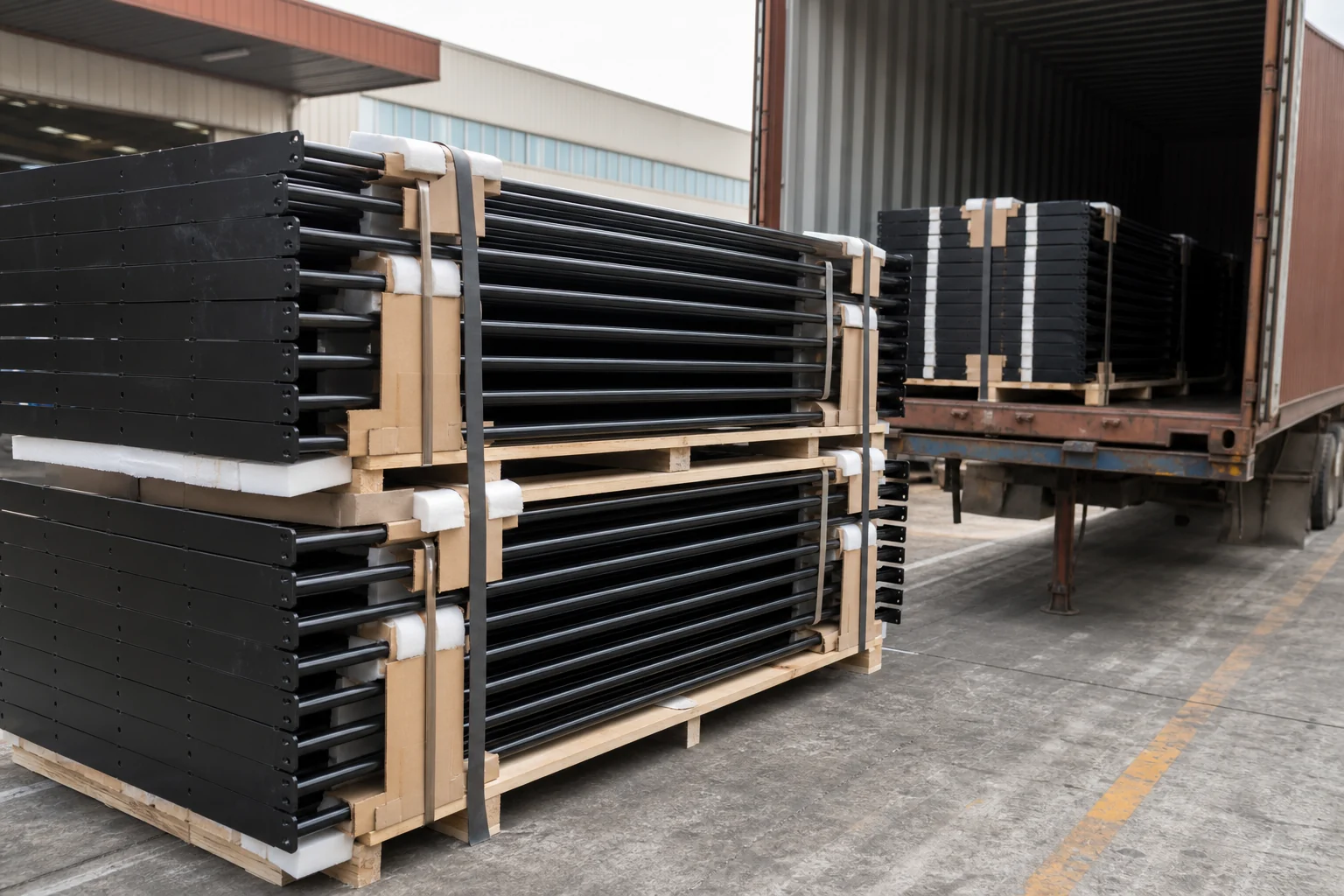

We use separators, bundles, labels and hardware cartons to protect the coated surface during export shipment.
We provide container loading photos so distributors and contractors can verify shipment records before arrival.
Real product detailsWe show panel, rod, rail, post, gate and hardware details instead of relying on catalogue text alone.
Dimension recordsWe confirm height, width, rod diameter and spacing in the order sheet or drawing.
Coating proofWe confirm galvanizing, powder coating, colour and test expectations before production.
Shipment evidenceWe provide packing and container photos so overseas buyers can check the delivery before unloading.
Cost factors and quote checklist
For the first quote, we need more than the phrase steel rod fence. Send us the structure details so we can price the real panel instead of guessing.
We calculate material weight, safety and appearance from the steel rod diameter, picket profile and spacing.
We check custom sizes against post centres, packing size and container loading efficiency.
We count line posts, corner posts, gate posts, base plates and embedded posts separately.
We quote galvanized, powder coated and galvanized plus powder coated options by cost and protection level.
We include pedestrian gates, swing gates, sliding gates, hinges, locks, brackets and caps in the real cost.
We calculate the final quotation from order volume, labelled packing, container plan and destination port.
FAQ
We answer the common questions buyers ask when comparing steel rod fence panels, steel fence rods and other metal fencing systems.
We manufacture steel rod fence as a metal panel system with vertical steel rods or pickets fixed between horizontal rails and installed with posts. Buyers use it for residential, garden, pool perimeter, commercial and security boundaries.
We commonly quote 12 mm, 16 mm, 19 mm, 20 mm and 25 mm rods, with 75 mm, 90 mm, 100 mm, 110 mm and 120 mm spacing. Final spacing follows your drawing and local requirement.
Yes. We supply steel rod fence panels galvanized, powder coated, or galvanized plus powder coated. We confirm the zinc route, colour and coating evidence before production.
Yes. We can quote panels, line posts, corner posts, gate posts, brackets, screws, caps, hinges, latches, locks and matching gates as a complete fence system.
We can supply them for pool perimeter projects when the height, rod spacing, gate hardware and local safety rules are confirmed by the buyer or project engineer.
Send us panel height, width, rod diameter, rod spacing, rail size, post type, finish, gate openings, quantity, packing preference and destination port.
Request a quote
Share the panel size, steel rod diameter, rod spacing, posts, gates, coating, quantity, packing and destination. We will reply with a practical quotation from the factory side.
