PVC Coated Chain Link Fence Specifications

Introduction

When buyers compare pvc coated chain link fence specifications, small differences in wire diameter, mesh opening, roll height, coating thickness, color and packing can affect the final product quality and project suitability. For importers, contractors, wholesalers and project buyers, confirming the right specification before production is more important than simply comparing a product name.

A PVC coated chain link fence is widely used for perimeter fencing, sports fields, industrial facilities, farms, warehouses, schools and general security projects. However, not every PVC coated fence roll is the same. Buyers should check the core wire diameter, finished outside diameter, mesh size, roll height, roll length, coating type, roll weight, color, packing method and quality references before confirming an export order.

For B2B procurement, a clear specification sheet, comparison table, coating close-up image, packing diagram and RFQ checklist can help reduce misunderstandings and improve production accuracy.

What Specifications Buyers Need

Before production, buyers should confirm the complete pvc coated chain link fence specifications, not only the roll size or color. A complete specification usually includes the following items:

• Core wire diameter before PVC coating
• Finished outside diameter after PVC coating
• Mesh opening
• Roll height
• Roll length
• Selvage type
• PVC coating type
• Color
• Roll weight
• Packing method
• Quality or standard reference
• Quantity tolerance
• Loading and container information

These details help both buyer and manufacturer understand the same product standard. For example, a buyer may request a 2.5mm wire, but the supplier needs to know whether this means 2.5mm galvanized core wire or 2.5mm finished PVC coated wire. The difference can affect strength, weight, coating thickness and final application.

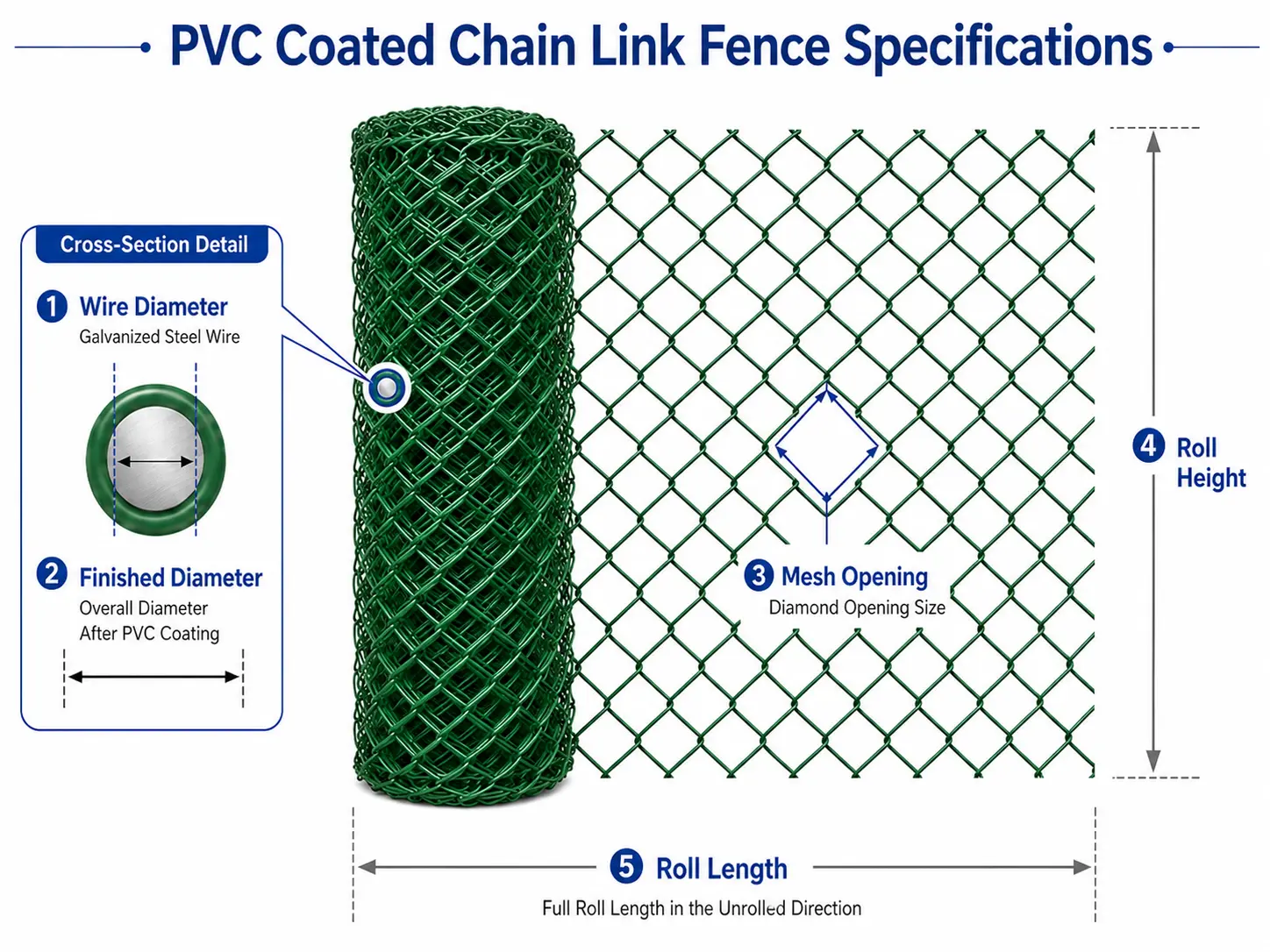

A good specification sheet should also include drawings or diagrams. A mesh diagram can show the diamond opening, wire diameter, roll height, roll length and edge finish. For export orders, a packing diagram is also useful because it shows how rolls are compressed, wrapped, labeled, bundled or loaded.

Wire Gauge and Finished Diameter

One of the most important points in PVC coated chain link fence procurement is the difference between core wire diameter and finished outside diameter.

The core wire diameter refers to the steel wire before PVC coating. In most cases, the core wire is galvanized steel wire. The finished diameter refers to the total outside diameter after the PVC layer is applied over the base wire.

For example, these descriptions may look similar, but they are not always the same:

• 3.0mm core wire with PVC coating
• 3.5mm finished diameter
• 4.0mm PVC coated chain link fence
• 4.0mm pvc coated chain link fence

A 3.0mm core wire with PVC coating may produce a finished diameter of around 4.0mm, depending on coating thickness. However, if the buyer only writes "4.0mm wire," the manufacturer must confirm whether the buyer means 4.0mm core wire or 4.0mm finished outside diameter.

This is especially important for security projects, sports field fencing, industrial perimeter fencing and long-distance export orders. If the diameter is misunderstood, the final product may be lighter, heavier, softer or more rigid than expected.

Mesh Opening and Roll Height

Mesh opening is another key specification for PVC coated chain link fence fabric. Common mesh openings include 40mm, 50mm, 60mm and 75mm. The right mesh opening depends on the project requirement.

A smaller mesh opening provides a tighter fence fabric and may be preferred for higher security, sports areas, animal enclosures or sites where better containment is needed. A larger mesh opening improves visibility and may reduce the overall material weight, depending on the wire diameter and roll size.

Common mesh openings include:

• 40mm mesh opening
• 50mm mesh opening
• 60mm mesh opening
• 75mm mesh opening

Common roll heights include 1.0m, 1.2m, 1.5m, 1.8m, 2.0m, 2.4m and 3.0m. Common roll lengths include 10m, 15m, 20m, 25m and 30m.

A pvc coated chain link fence roll is usually supplied in compact rolls for easy handling, storage and shipment. For B2B orders, the buyer should confirm whether the roll length is measured before or after compression, and whether tolerance is acceptable for the project.

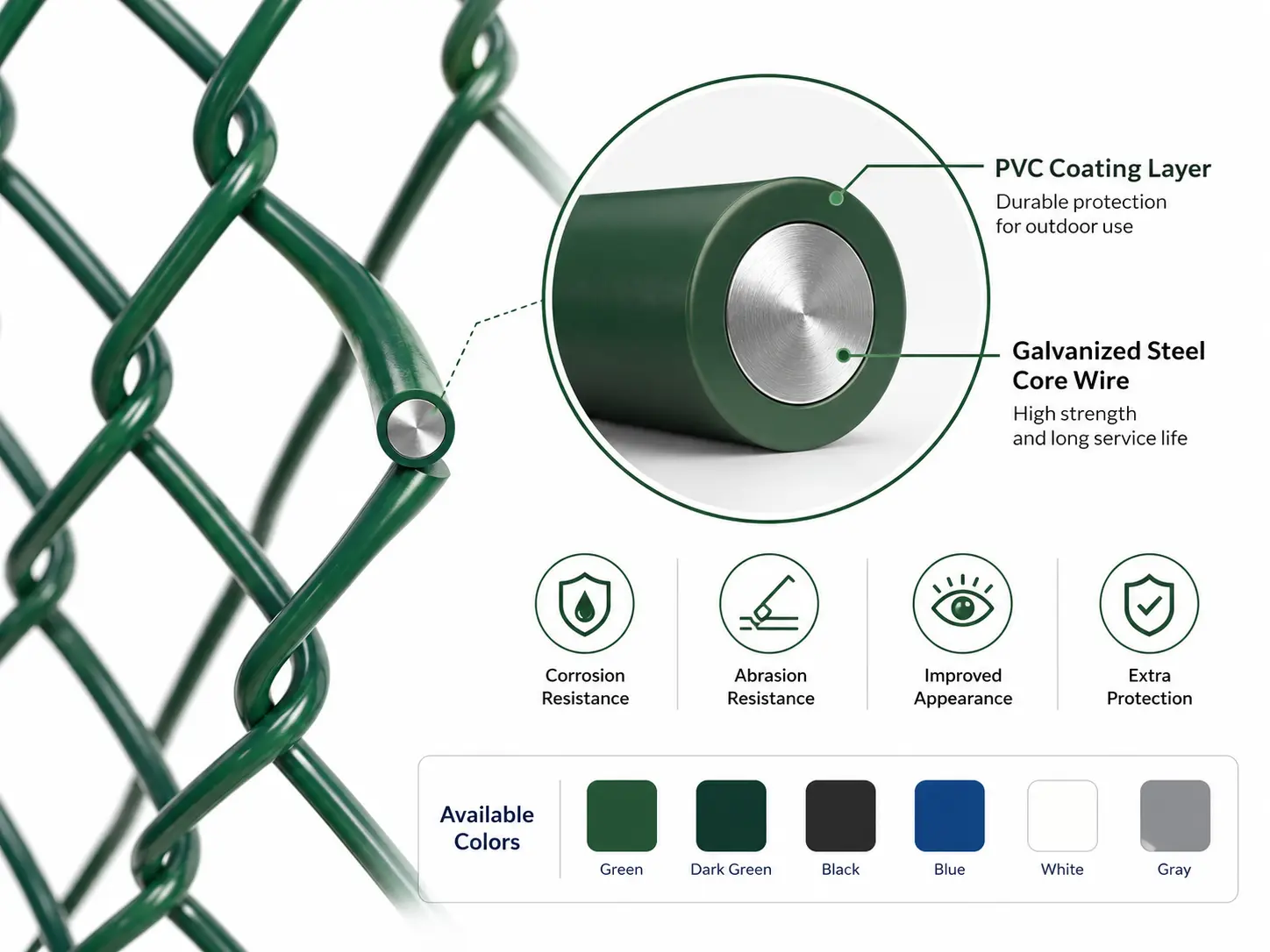

PVC Coating and Color Options

PVC coating is applied to improve the outdoor performance and appearance of chain link fence fabric. It provides an extra protective layer over the base wire and helps the fence resist weather exposure, moisture and surface damage during normal outdoor use.

The main purposes of PVC coating include:

• Corrosion resistance
• Better outdoor durability
• Improved appearance
• Extra protection over galvanized wire
• Easier matching with project design

Common pvc coated chain link fence colors include green, black, dark green, blue, white, grey and custom colors based on buyer requirements.

Green and dark green are popular for gardens, sports fields, schools, parks and residential boundaries. Black is often used for commercial properties, industrial fencing and modern landscape projects. Blue, white and grey may be selected for special project designs or brand color matching.

When color accuracy matters, buyers should confirm the RAL number or approve a physical sample before mass production. Photos can be affected by lighting, screen settings and surface reflection, so a real sample or approved color card is more reliable for large orders.

Weight and Packing

PVC coated chain link fence weight depends on several specification factors. Buyers should not compare weight unless the full specification is the same.

Main factors that affect weight include wire diameter, mesh opening, roll height, roll length, coating thickness, selvage type and compression level during packing.

For example, a 2.5mm core wire with a 3.5mm finished diameter will not have the same weight as a 3.0mm core wire with a 4.0mm finished diameter. A 50mm mesh opening also uses more wire than a larger mesh opening under the same roll height and length. Roll height and roll length directly affect total roll weight.

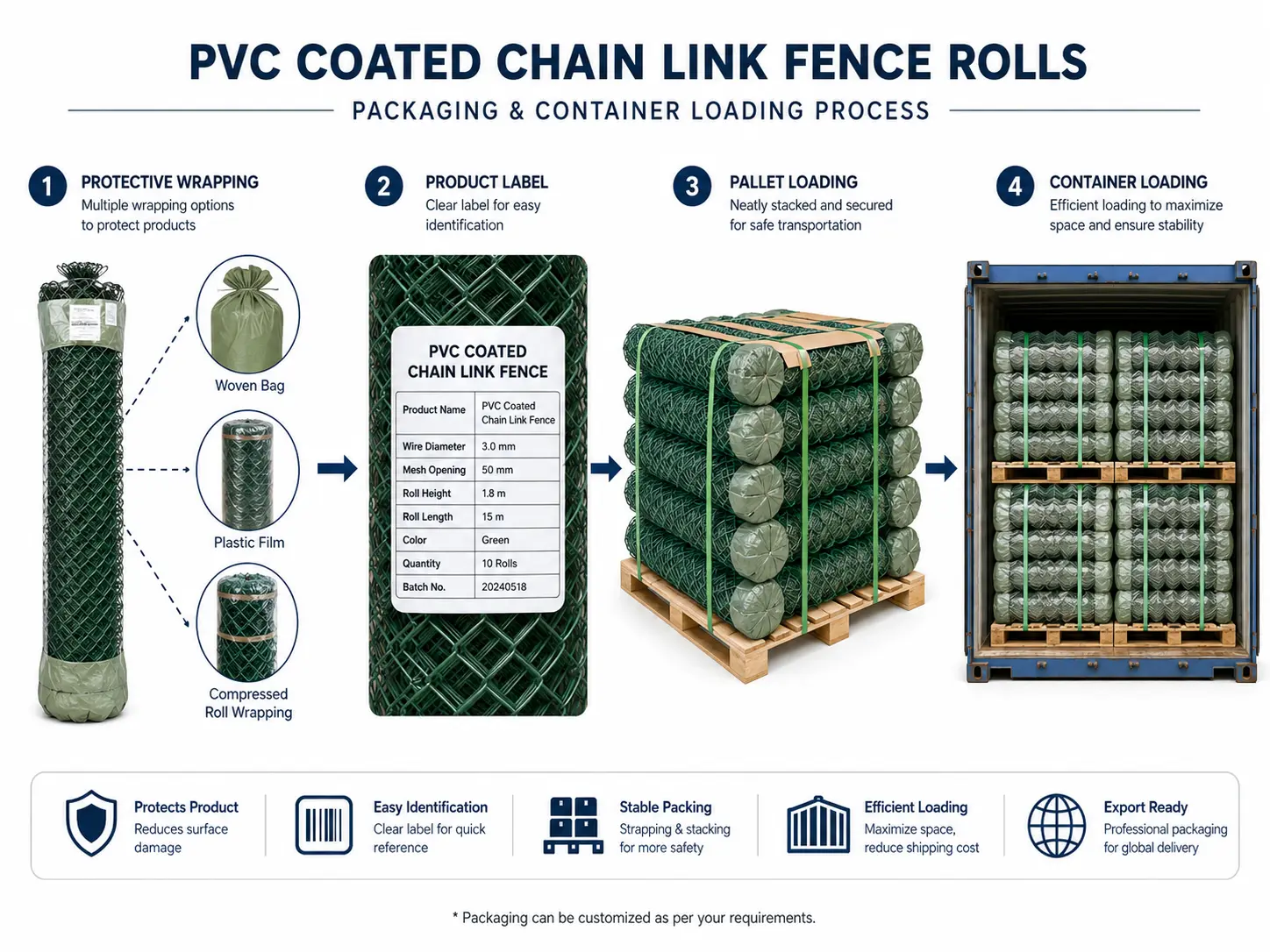

Common packing methods include:

• Compact rolls
• Woven bag wrapping
• Plastic film wrapping
• Pallet packing
• Bundle packing
• Labeling with size, color, quantity and batch number

Proper packing helps reduce PVC coating scratches, roll deformation, loading problems and handling damage during export shipment. For container loading, buyers should confirm roll diameter after compression, number of rolls per bundle, pallet size if used and labeling requirements.

A packing label should include product name, wire diameter, mesh opening, roll height, roll length, color, quantity, batch number and buyer reference if required.

ASTM and Quality References

For some projects or markets, buyers may refer to relevant chain link fence and PVC coated fencing standards, such as ASTM references, when applicable. These references should be used carefully. A manufacturer should not claim compliance with a standard unless the product, testing, documentation and production process actually meet the required conditions.

For PVC coated chain link fence fabric, buyers may request quality references related to polymer-coated chain link fabric, coating adhesion, coating thickness, wire diameter, mesh size and surface condition. However, the exact standard requirement should be confirmed according to the project specification, tender document or market requirement.

Common inspection items include:

• Wire diameter check
• Mesh size tolerance
• Coating adhesion
• Coating thickness
• Color consistency
• Roll height and length
• Edge finish
• Packing condition
• Surface defects
• Zinc coating or base wire condition if applicable

Quality inspection should be performed before packing whenever possible. For export orders, buyers may request production photos, finished roll photos, packing photos and loading photos. If third-party inspection is required, the inspection checklist should be agreed before production.

Comparison Table for Common Sizes

The table below shows common PVC coated chain link fence specifications for B2B reference. Final specifications should always be confirmed according to project requirements.

This comparison table can be used together with a downloadable spec sheet and RFQ checklist to help procurement teams compare options clearly.

How to Write an RFQ

A clear RFQ should focus on technical specification confirmation. For pvc coated chain link fence fabric, buyers should provide enough details for the manufacturer to calculate material usage, production method, packing plan and loading arrangement accurately.

Buyers should also mention whether the order is for a new project, repeat order, tender supply, wholesale stock or OEM/ODM packaging. This helps the manufacturer recommend suitable labeling, tolerance, packing and documentation.

Downloadable Spec Sheet

A downloadable PVC coated chain link fence specification sheet is useful for both buyer approval and factory production control. It should be simple, visual and easy to check.

A good spec sheet should contain product drawing, mesh diagram, wire diameter, finished diameter, mesh opening, roll height, roll length, color, coating type, packing, tolerance, inspection checklist and buyer approval signature area.

The spec sheet can also include photos of approved samples, coating close-up images, packing diagrams and roll labels. For repeat orders, the approved spec sheet helps maintain consistency across different shipments.

For large B2B orders, buyers should keep the signed specification sheet together with the purchase documents, inspection records and loading photos.

FAQ

1. What is the difference between core wire diameter and finished PVC coated diameter?

Core wire diameter is the steel wire size before PVC coating. Finished PVC coated diameter is the outside diameter after the PVC layer is added. Buyers should confirm both values before production.

2. What mesh size is common for PVC coated chain link fence?

Common mesh openings include 40mm, 50mm, 60mm and 75mm. The right mesh size depends on security level, visibility, application and roll weight requirements.

3. What colors are available for PVC coated chain link fence?

Common colors include green, black, dark green, blue, white and grey. Custom colors can be produced based on buyer requirements. For accurate color matching, confirm the RAL number or approved sample.

4. How do I calculate PVC coated chain link fence weight?

Weight is affected by wire diameter, finished diameter, mesh opening, roll height, roll length, coating thickness, selvage type and packing compression. Buyers should compare weight only when the full specification is the same.

5. What information should I provide before ordering chain link fence fabric?

You should provide product name, core wire diameter, finished diameter, mesh opening, roll height, roll length, color, selvage type, quantity, packing method, quality requirement, destination port and required documents.

6. Is 4.0mm PVC coated chain link fence suitable for security projects?

A 4.0mm PVC coated chain link fence can be suitable for many security and perimeter projects when the core wire, mesh opening, roll height, posts, fittings and installation design match the project requirement. Buyers should confirm whether 4.0mm means finished diameter or core wire diameter.

7. How should PVC coated chain link fence rolls be packed for export?

Export rolls are commonly packed in compact rolls with woven bags, plastic film, bundle packing, pallet packing and clear labels. Proper packing helps reduce coating scratches, deformation and loading issues during shipment.

Conclusion

PVC coated chain link fence procurement should start with clear technical confirmation. Buyers should check the core wire diameter, finished outside diameter, mesh opening, roll height, roll length, coating type, color, roll weight, packing method, quality references and documentation before production.

For importers, wholesalers, contractors and project buyers, complete pvc coated chain link fence specifications help reduce communication errors, improve inspection accuracy and support smoother export shipment. A downloadable spec sheet, comparison table, coating close-up image, packing diagram and RFQ checklist can make the buying process more reliable and easier to manage.
