PVC coated chain link fence manufacturer

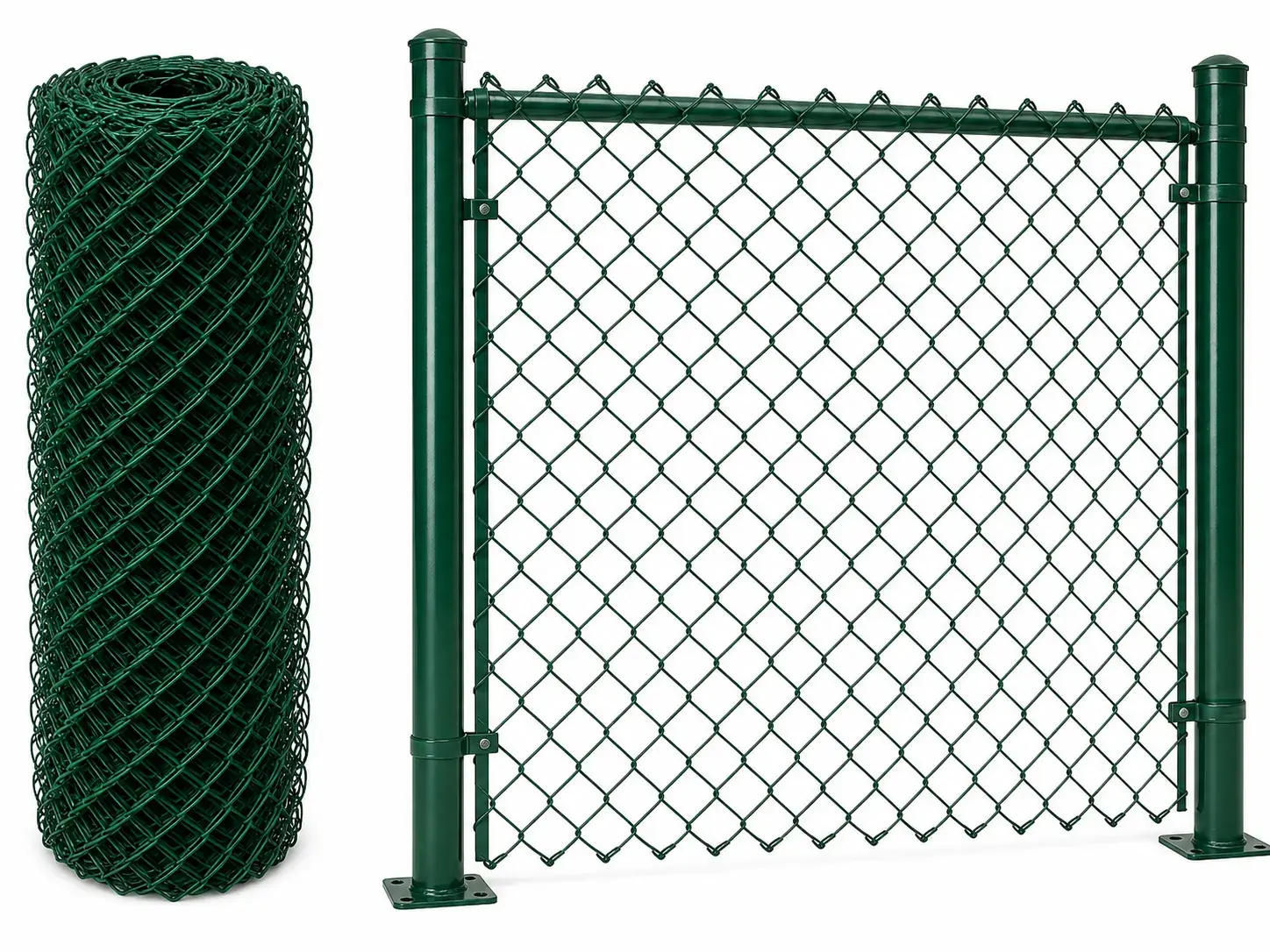

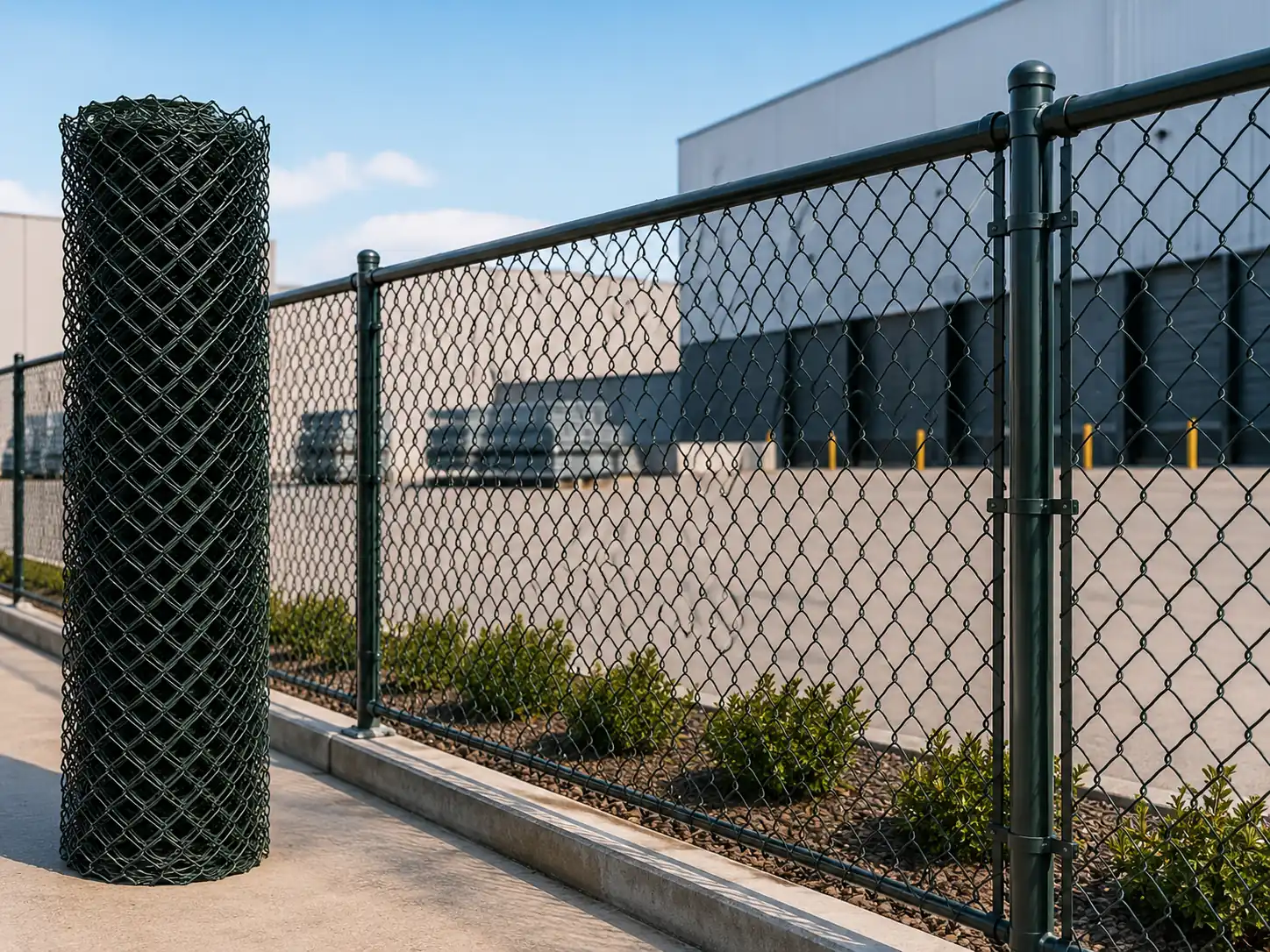

PVC coated chain link fence is a flexible diamond mesh roll made from galvanized steel wire and covered with a black, green or custom vinyl coating. TOPSFENCE supplies rolls for importers, contractors and distributors who need clear wire gauge, mesh, height, coating and packing details before placing an order.
Product overview
Tell us the roll size, wire diameter, coating color and packing you need. If you already have a sample, label or old order sheet, send a photo and we can match the PVC coated chain link fence rolls before quoting.
Most requested
Distributor stock

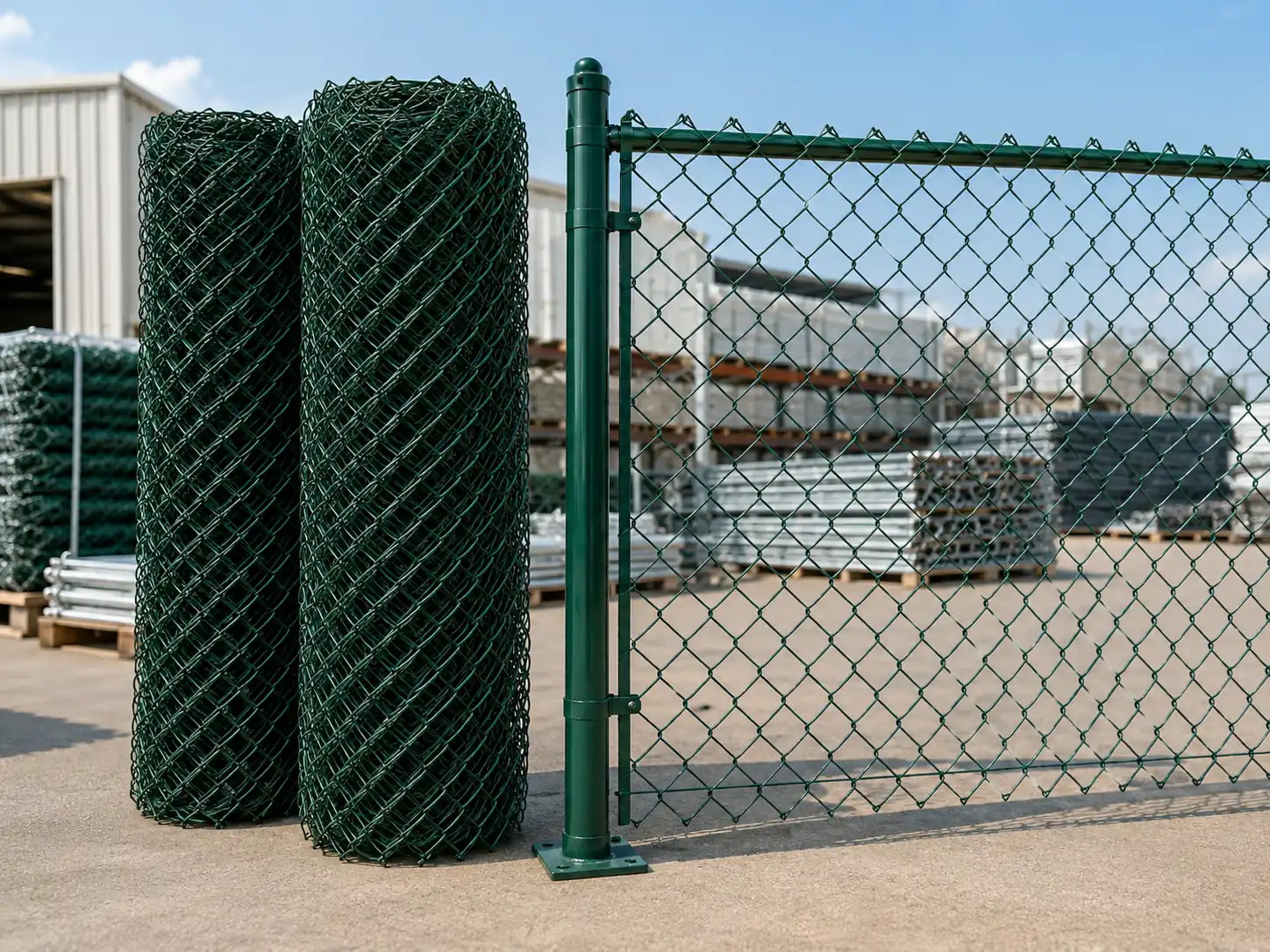

Common roll sizes for distributors and contractors who need repeatable stock items.
Custom order
Galvanized iron wire with a PVC coating layer for buyers who need corrosion protection, color and a flexible roll format.
Project supply
Rolls, posts, rails, stretcher bars, line wire, caps, bolts and gates can be counted from your fence layout.

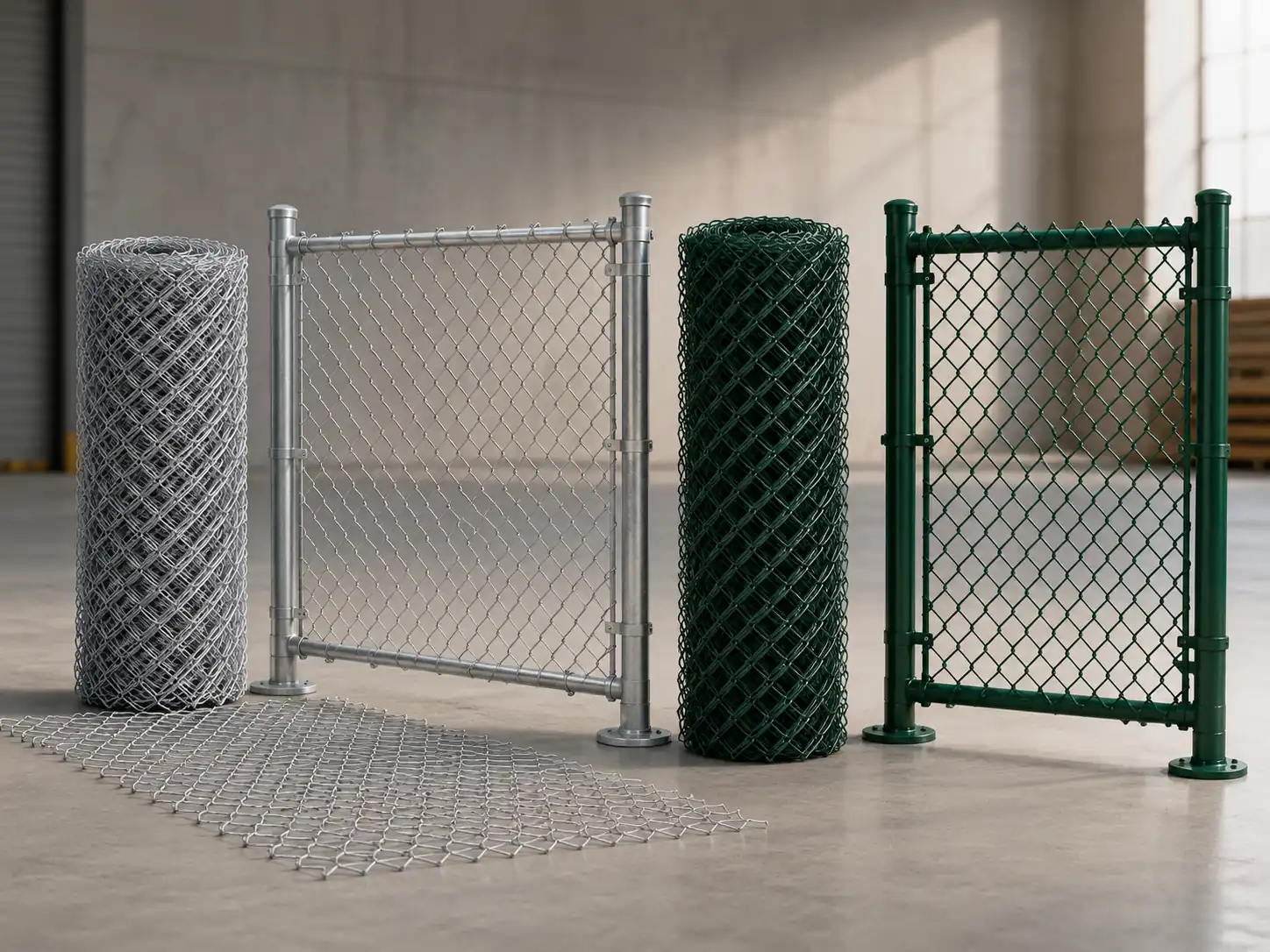

Roll and fabric options
Two rolls can look almost the same in a photo but price very differently. Confirm the steel wire, coating thickness, mesh opening, edge finish and roll length before you compare offers.
Use a current sample photo, roll label or warehouse spec as the reference. We can then match the fabric and list any differences before production.
40 x 40 mm and 50 x 50 mm are common. Larger openings can reduce weight when the project does not need a tighter mesh.
Gauge should be tied back to core wire, finished diameter and roll weight so the price is not hiding a lighter wire.
0.9 m, 1.2 m, 1.5 m, 1.8 m, 2.0 m and 2.4 m cover most stock and project orders.
10 m, 15 m, 20 m and 25 m rolls are selected around unloading, storage and installation speed.
Knuckled or twisted edges change handling, appearance and the way the fabric is tensioned on site.
Posts, rails, stretcher bars, caps, bolts, line wire and gates can be counted with the fabric.

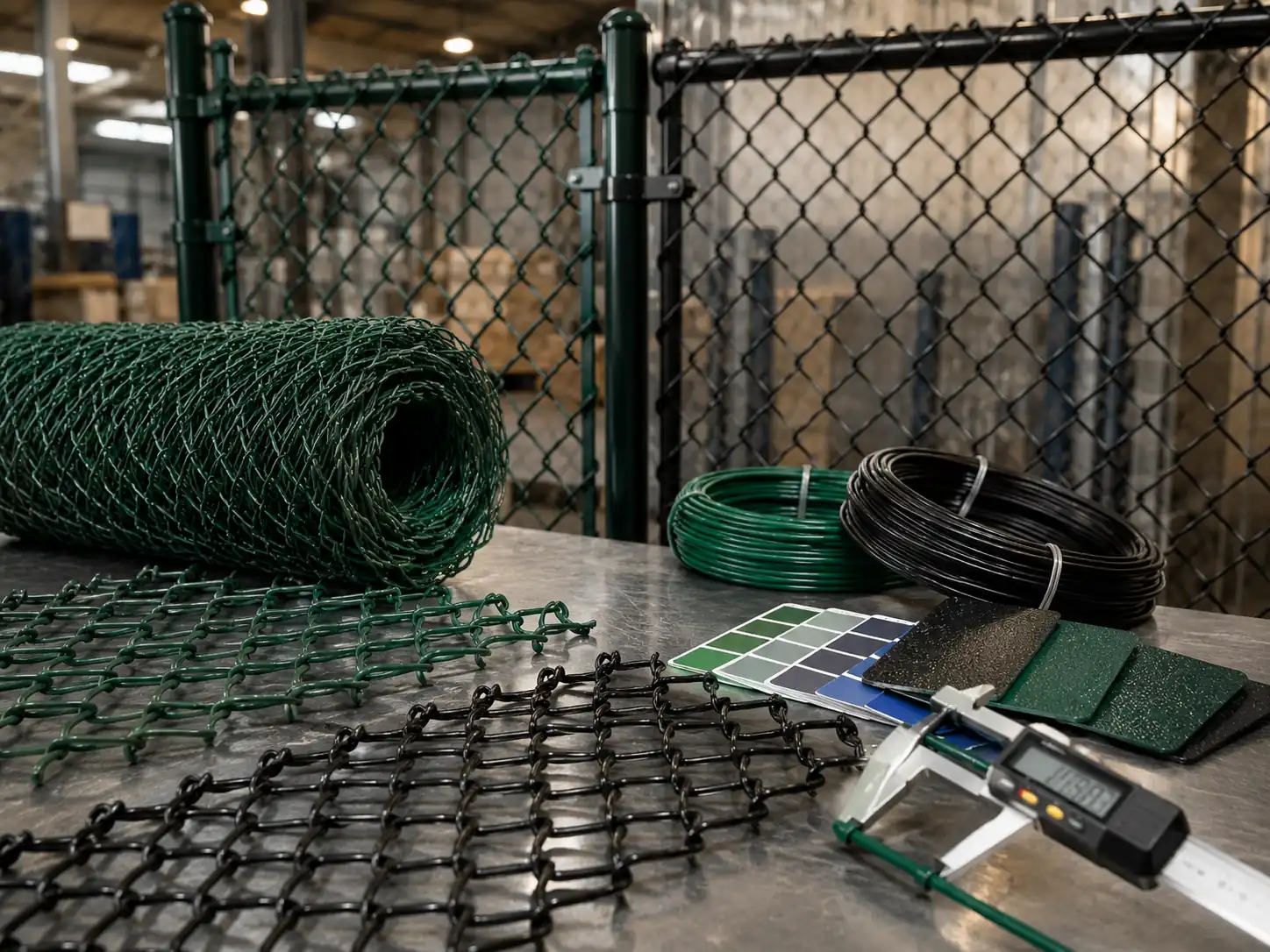

Black and green PVC coating
Color is part of the buying decision, but the coating construction matters more. Confirm whether the offer is galvanized wire plus PVC coating, and ask for both core and finished diameters.

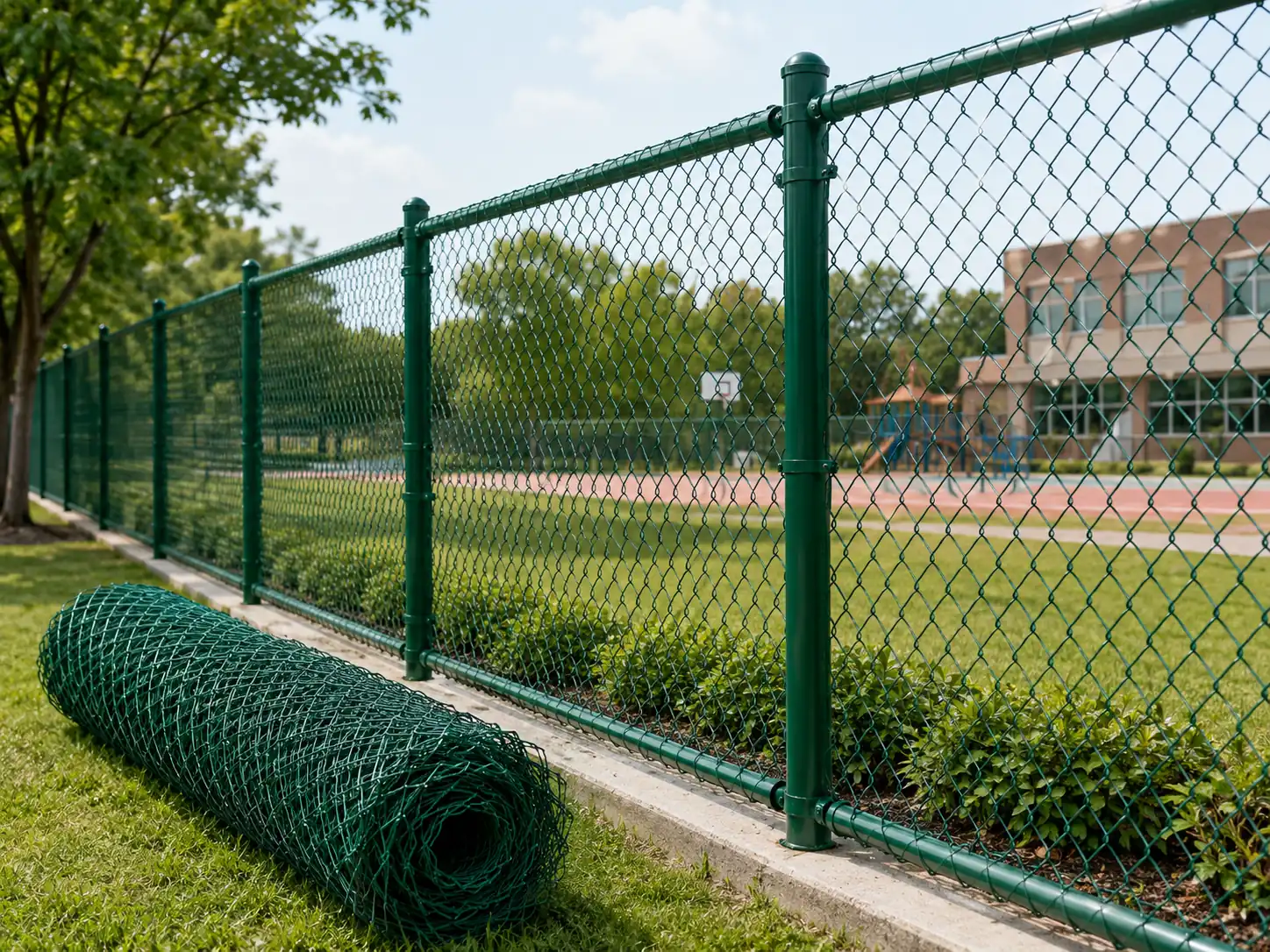

A common outdoor finish for gardens, parks, schools, sports boundaries and general perimeter projects.

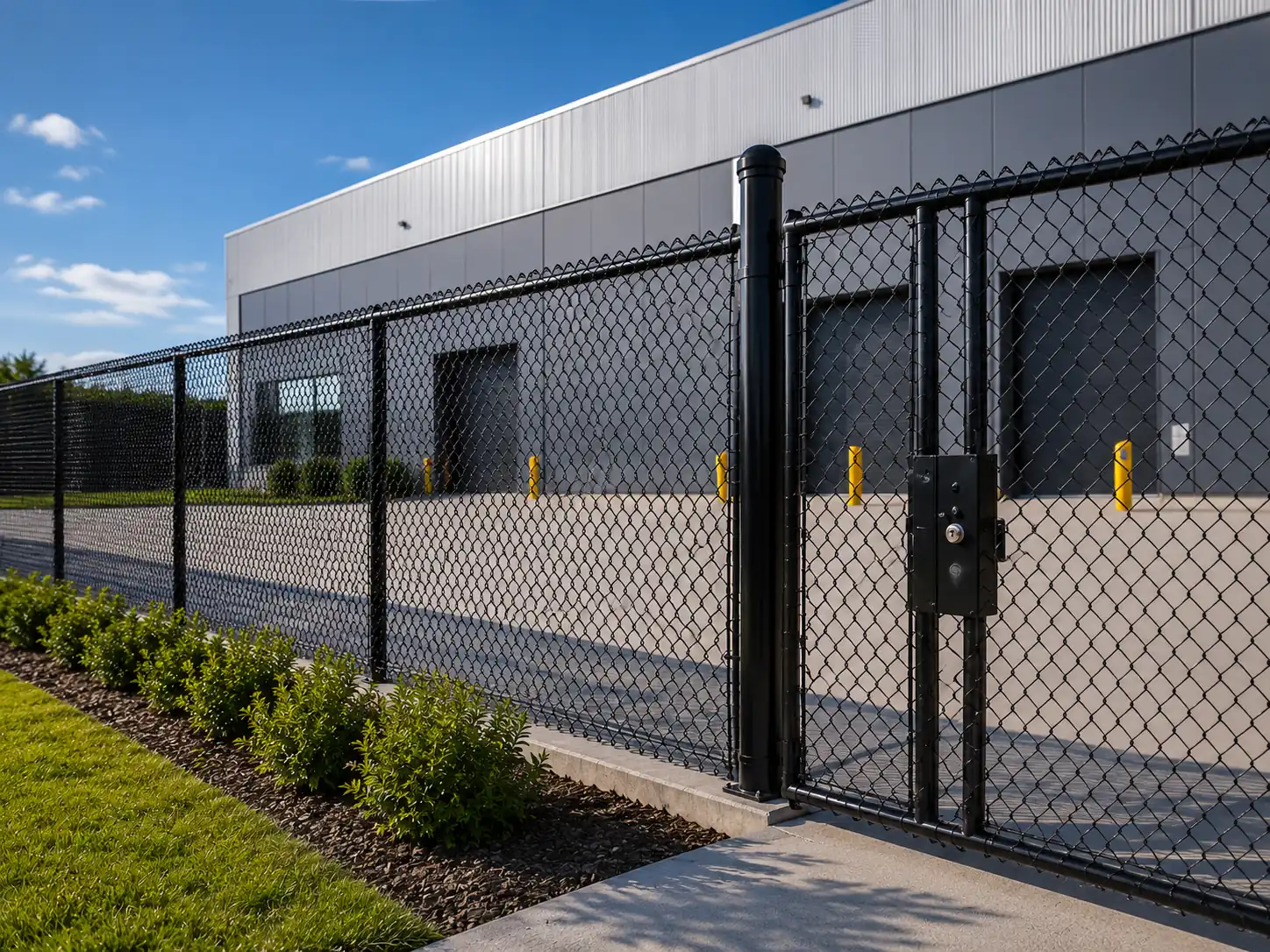

A quieter visual finish for commercial sites, residential boundaries and projects where a dark perimeter is preferred.
Send the target color, coating thickness requirement, sample photo or project standard so the quote can be written clearly.
Technical reference
Use this table to compare a chain link fence pvc coated quotation against your drawing, distributor standard or current warehouse product.
| Specification | Common options | Quotation note |
|---|---|---|
| Mesh opening | 40 x 40 mm 50 x 50 mm, 55 x 55 mm, 60 x 60 mm |
Opening changes roll weight, visibility, rigidity and price. |
| Core wire | 2.0 mm, 2.5 mm, 3.0 mm, 3.5 mm or custom | Core wire is the galvanized steel before the PVC layer is added. |
| Finished diameter | 2.5 mm, 3.0 mm, 3.5 mm, 4.0 mm or custom | Finished outside diameter includes the coating and affects visible thickness. |
| Roll height | 0.9, 1.2, 1.5, 1.8, 2.0, 2.4 m | Height should match post length, top rail and installation method. |
| Roll length | 10, 15, 20, 25 m or custom | Longer rolls reduce joins but change handling and pallet planning. |
| Coating color | Black, green or custom color | Color can be coordinated with posts, rails and gate frames. |
| Edge finish | Knuckle-knuckle, twist-twist or knuckle-twist | Edge style follows safety, security and buyer preference. |
| Packing | Wrapped rolls, pallets, cartons and labels | Confirm warehouse handling, roll quantity and labeling requirement. |
Applications
PVC coated chain link fencing is selected when a project needs flexible rolls, open visibility, a cleaner color finish and practical installation over long runs.

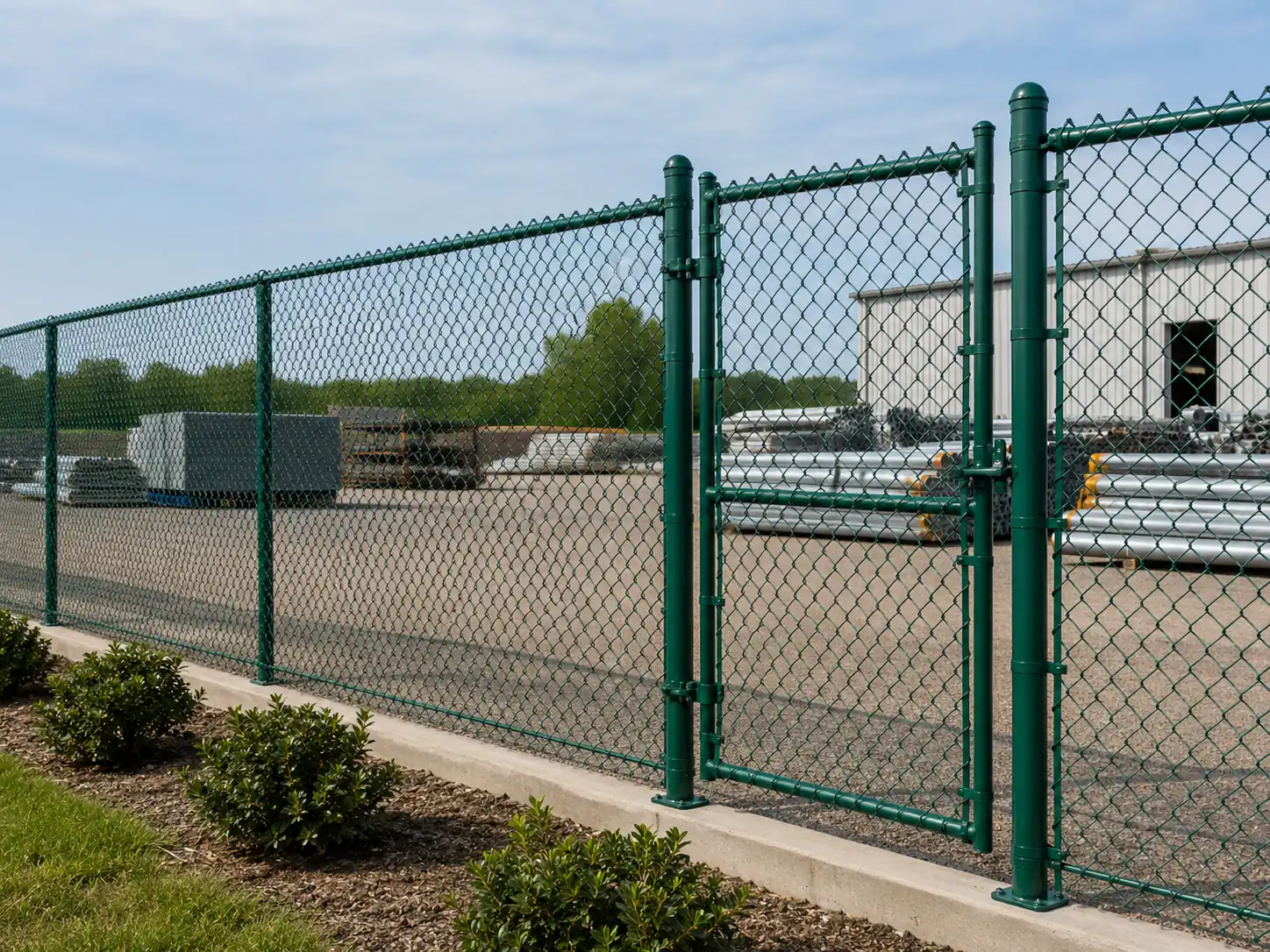

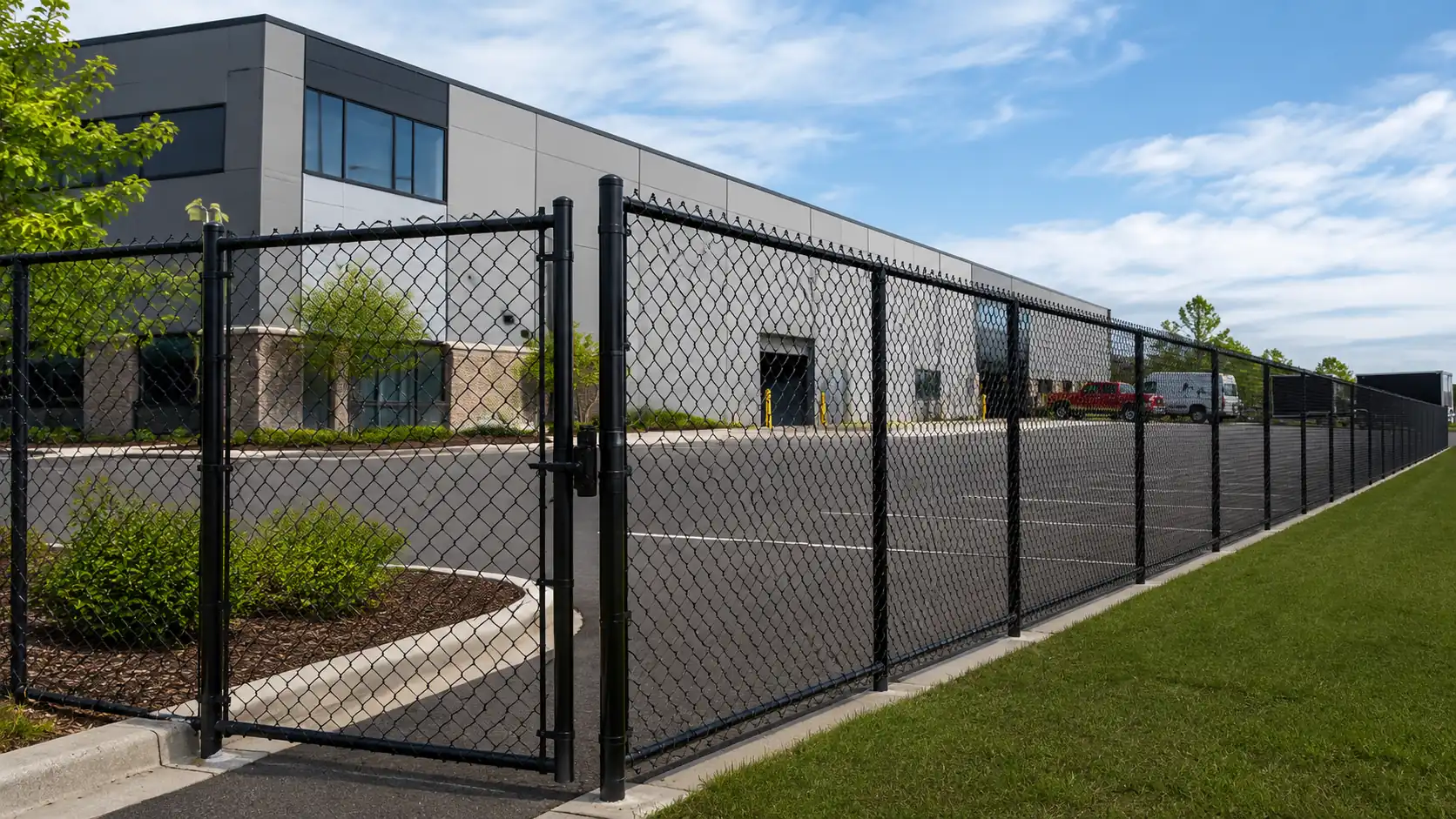

Open mesh boundaries for sites that need visibility, controlled access and a tidy black or green finish.

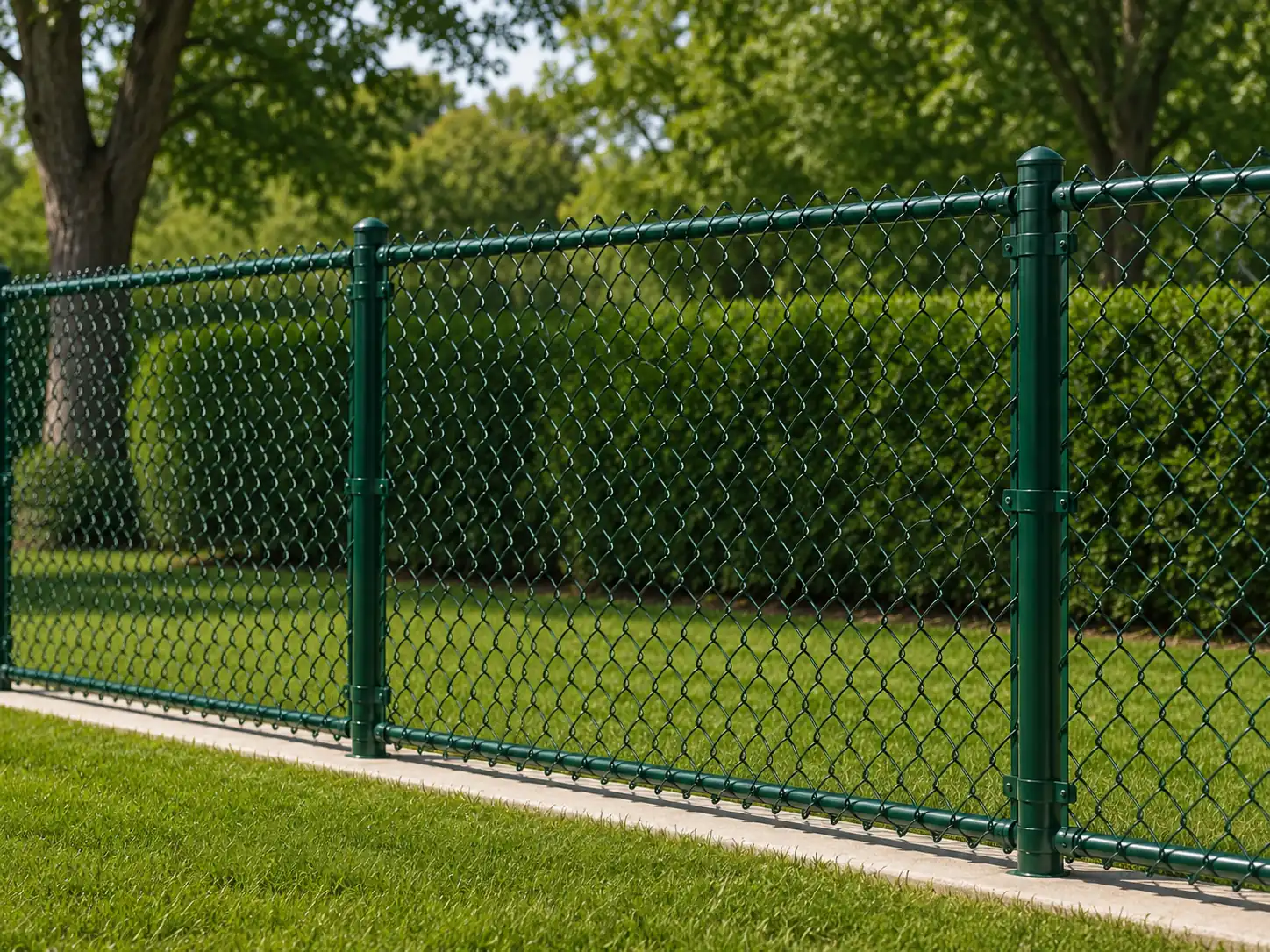

Green and black rolls blend into planting, yards and general outdoor fencing projects.
Flexible mesh rolls help installers follow uneven ground and long perimeter lines.
Practical perimeter control when the buyer wants coated mesh instead of plain galvanized fabric.

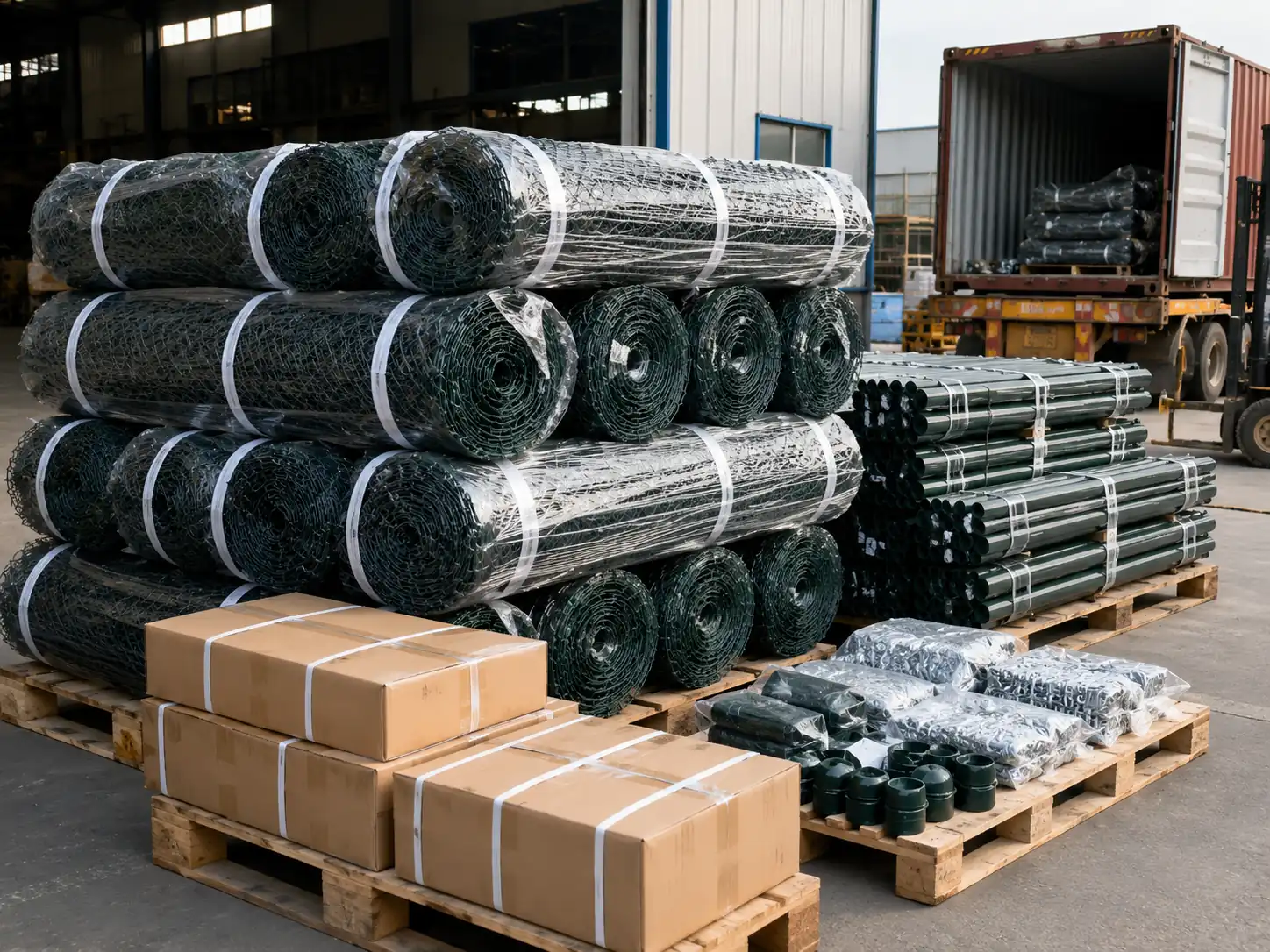

Packing and loading
Good packing is not decoration. It protects the roll shape, keeps hardware cartons countable and helps the receiving team identify which goods belong together.
Wrapped mesh rolls protected with film, woven bag or pallet packing according to order size.
Post bundles grouped by line, corner and gate post type where framework is included.
Hardware cartons packed and labeled for caps, bolts, stretcher bars, line wire and gate parts.
Loading record with roll condition, carton count and container-loading photos when required.

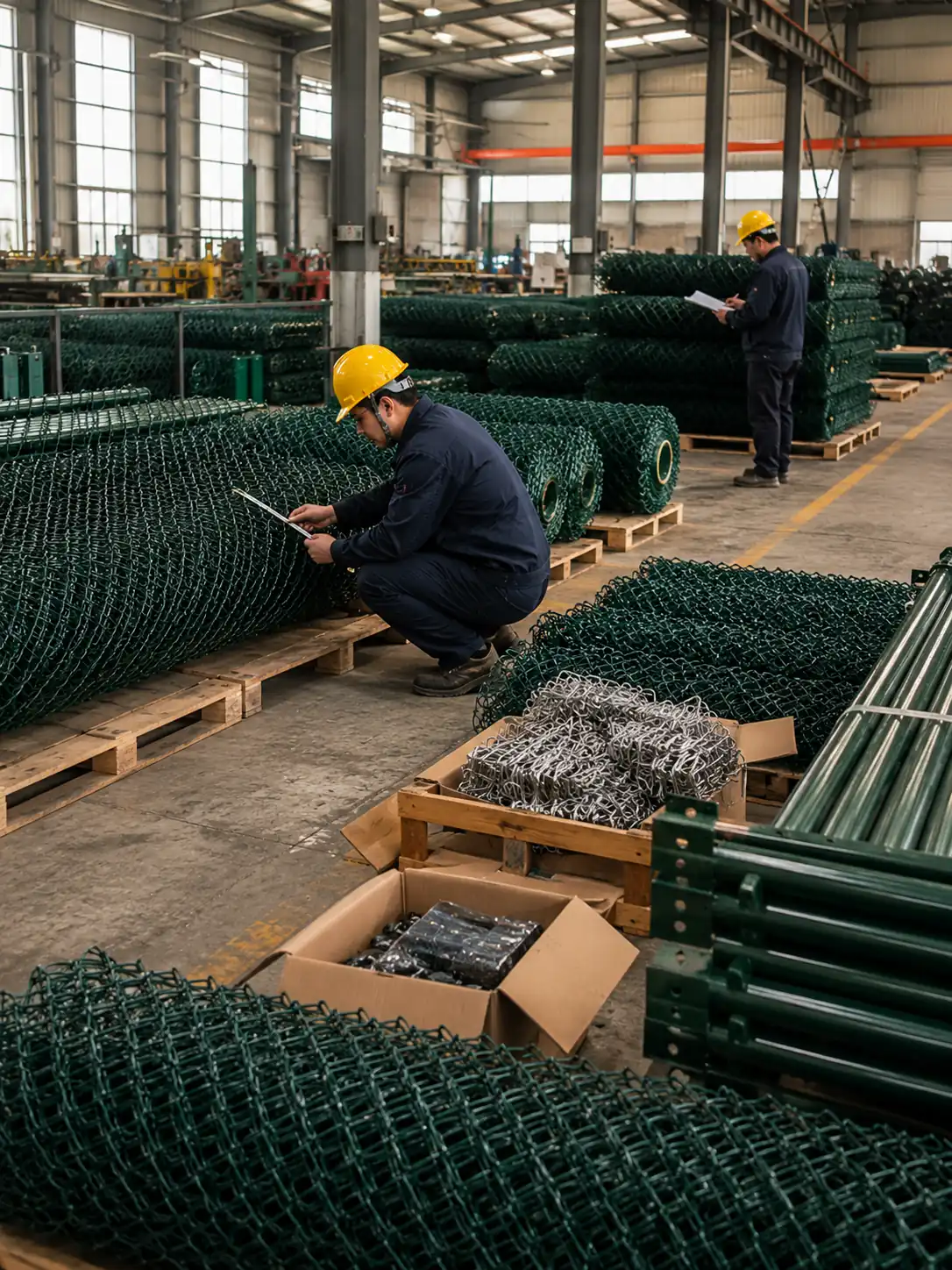

Quality control and standards
Before shipment, the roll needs to look right and install right. We check the steel wire, coating, roll shape and small parts while everything is still in the factory.
Measure core wire and finished outside diameter against the order sheet.
Confirm diamond mesh size and roll height before packing.
Review color consistency, adhesion, cracks, cuts and exposed steel.
Check that rolls are compact, countable and suitable for planned loading.
Sample posts, rails, stretcher bars, caps, bolts and gates when included.
Match roll labels, hardware cartons and shipment photos to the invoice and packing list.
Get a useful first quote
For this product, the fastest quote comes from a small set of details. Even a current product photo or old packing label can help us match your market standard.
Send 40 x 40 mm, 50 x 50 mm or the exact diamond opening required.
State both numbers if your current product already has a standard.
List warehouse roll sizes, field roll sizes or custom dimensions.
Confirm green, black, black/green mixed order, or custom color requirement.
Tell us whether posts, rails, stretcher bars, line wire, caps, bolts or gates are included.
Provide wrapping, pallet, label and destination port details for a realistic first price.
FAQ
These are the questions buyers usually ask before they send a drawing or old roll label. Clear answers here save several back-and-forth emails.
It is diamond chain link fabric made from galvanized steel wire and covered with a PVC or vinyl coating. The coating adds color and an extra protective surface while the steel core provides the main strength.
Galvanized chain link has a metallic zinc finish. PVC coated chain link fencing has a polymer layer over the wire, usually in green or black, giving the fence a different appearance and another surface barrier.
Compare both. Core wire tells you the metal content. Finished wire diameter tells you the outside coated size. A lower core wire with thicker coating is not the same as a heavier steel wire.
Yes. Black and green rolls can be produced as separate line items, with labels and packing arranged so the receiving team can identify each color clearly.
It normally means galvanized iron wire chain link fabric with a PVC coating layer. For a clear quote, specify the galvanized core wire, finished diameter, mesh opening, roll size and coating color.

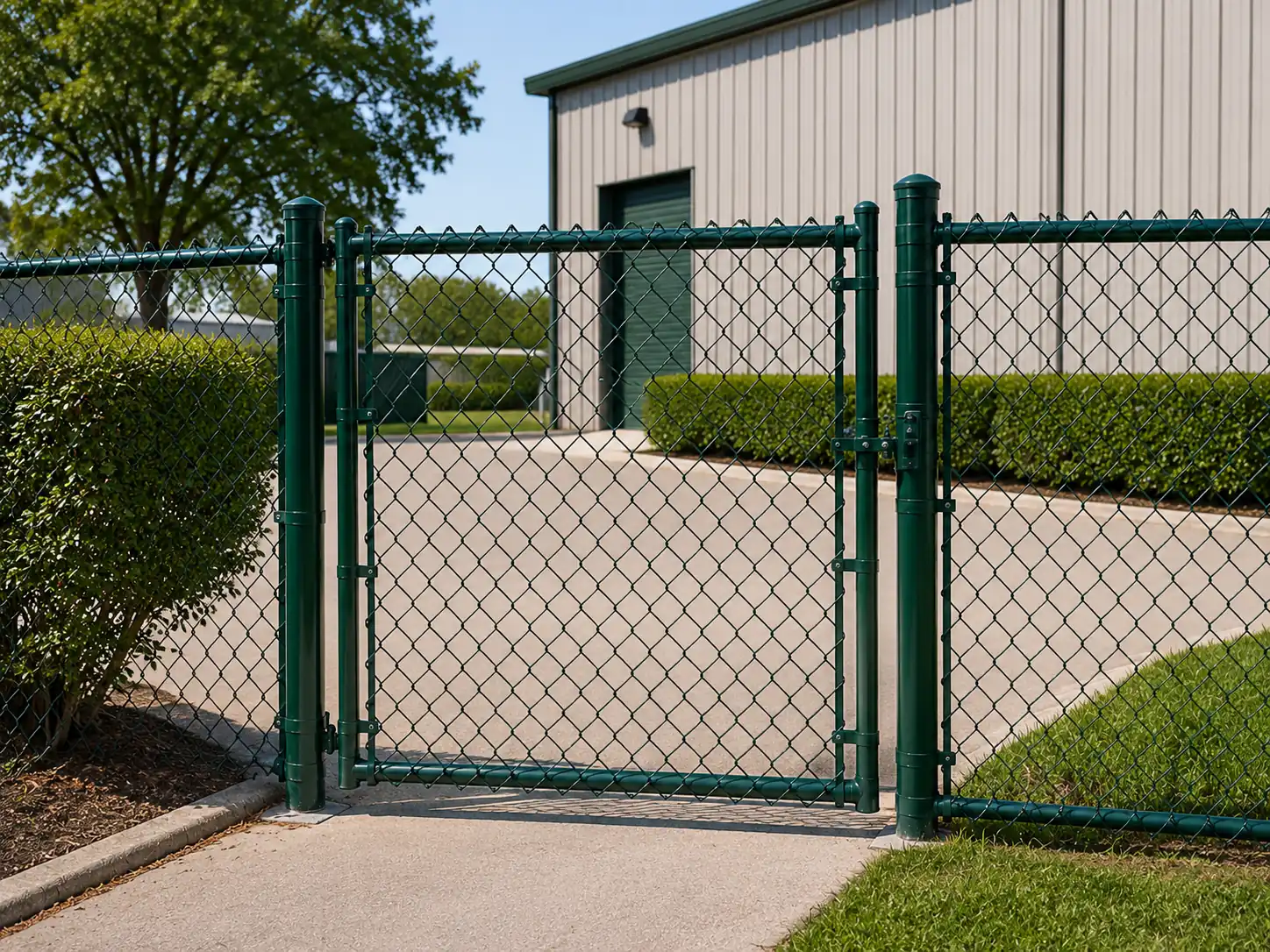

Yes. Rolls can be quoted alone or with line posts, end posts, corner posts, rails, stretcher bars, caps, bolts, line wire and matching pedestrian or vehicle gates.
Request a quote
Send mesh opening, core wire, finished diameter, roll height, roll length, color, edge finish, quantity, packing and destination. We will reply with a practical factory quotation.
