As a 3D wire mesh fence factory, we know that 3d wire mesh fence price is not a fixed number. The final cost depends on panel size, wire diameter, mesh opening, V-bending design, surface treatment, post type, accessories, packing method, order quantity and shipping destination.
When importers, wholesalers, contractors and project buyers ask us for a 3d wire mesh fence quote, we do not calculate only by "price per meter." We check the full fence system, including panels, posts, clips, bolts, gates, packing and container loading. This helps buyers compare the real cost more accurately and avoid missing items in the quotation.

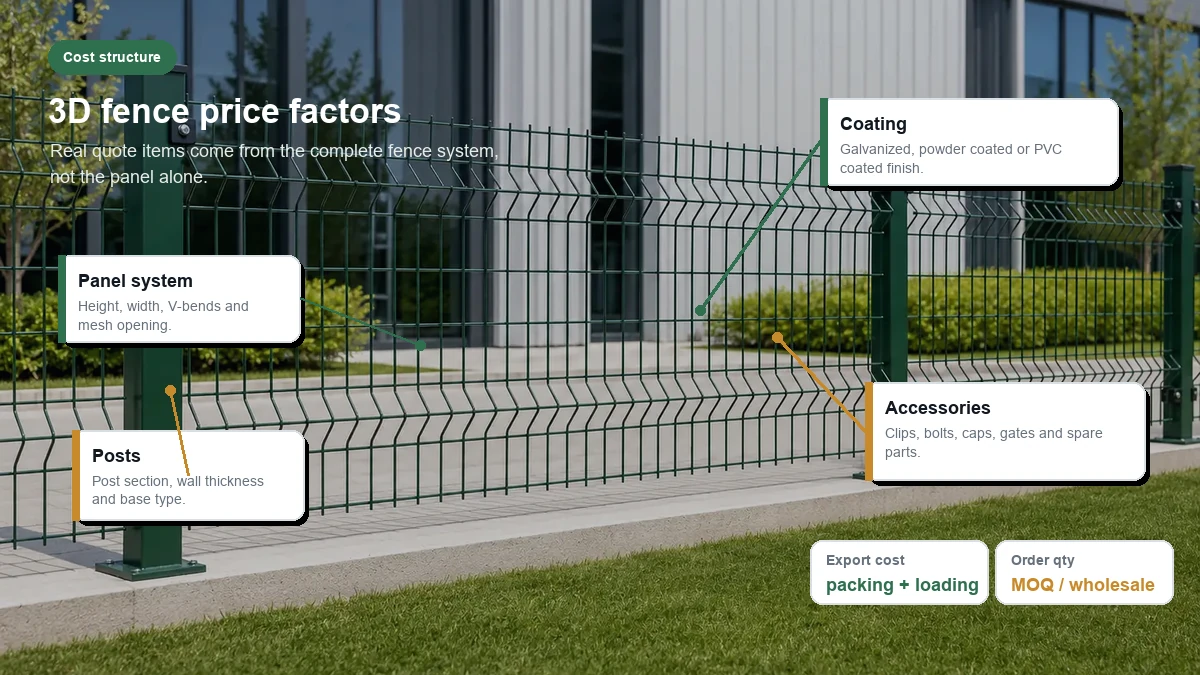

What Affects 3D Wire Mesh Fence Price?
From our factory quotation experience, the main cost factors include steel wire material, panel height and width, wire diameter, mesh opening, number of V bends, surface treatment, post type, accessories, MOQ, packing method, freight and container loading quantity.
A reliable factory quote should be based on full technical details instead of only a simple "price per meter." The same fence length can have different costs if wire diameter, coating, post thickness, accessories and packing are different.
Panel Size and Fence Height
Panel size is one of the first details we check when calculating 3d wire mesh fence cost. Taller panels use more steel wire and usually require stronger posts, more clips and better export packing support.
Common panel heights we produce include 1.0 m, 1.2 m, 1.5 m, 1.8 m, 2.0 m and 2.4 m. Common panel widths include 2.0 m, 2.5 m and 3.0 m. For example, a 2.4 m high fence panel normally costs more than a 1.8 m high panel because it uses more wire and may require heavier posts.
A wider panel can reduce the number of posts needed for a long fence line, but it also needs enough rigidity and safe loading. For wholesale and project orders, we usually suggest choosing panel size according to application, security level, installation method and container loading efficiency.

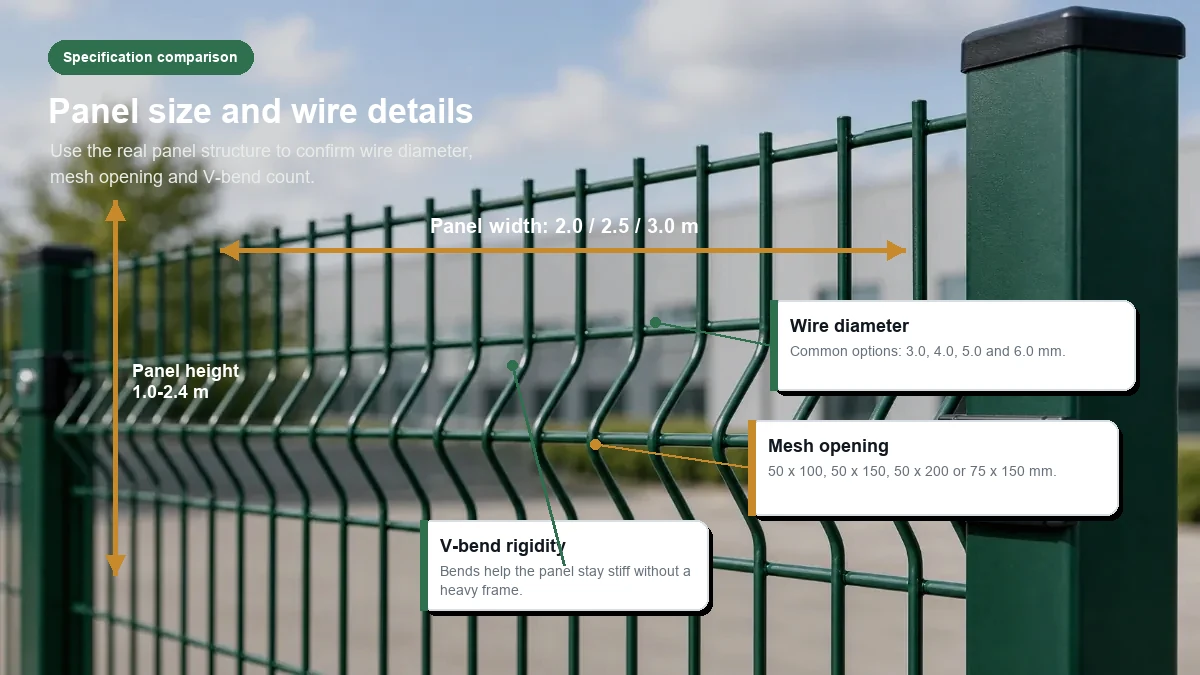

Wire Diameter and Mesh Opening
Wire diameter has a direct impact on strength, panel weight and price. In our production, common wire diameters include 3.0 mm, 4.0 mm, 5.0 mm and 6.0 mm. Thicker wire improves rigidity and impact resistance, but it also increases steel weight and coating consumption.
Common mesh openings include 50 x 100 mm, 50 x 150 mm, 50 x 200 mm and 75 x 150 mm. Smaller mesh openings usually need more wire and more welding points, so the material cost and production time can increase. Larger mesh openings are often used for general perimeter fencing, gardens, property boundaries, industrial parks and wholesale 3d wire mesh fence supply.

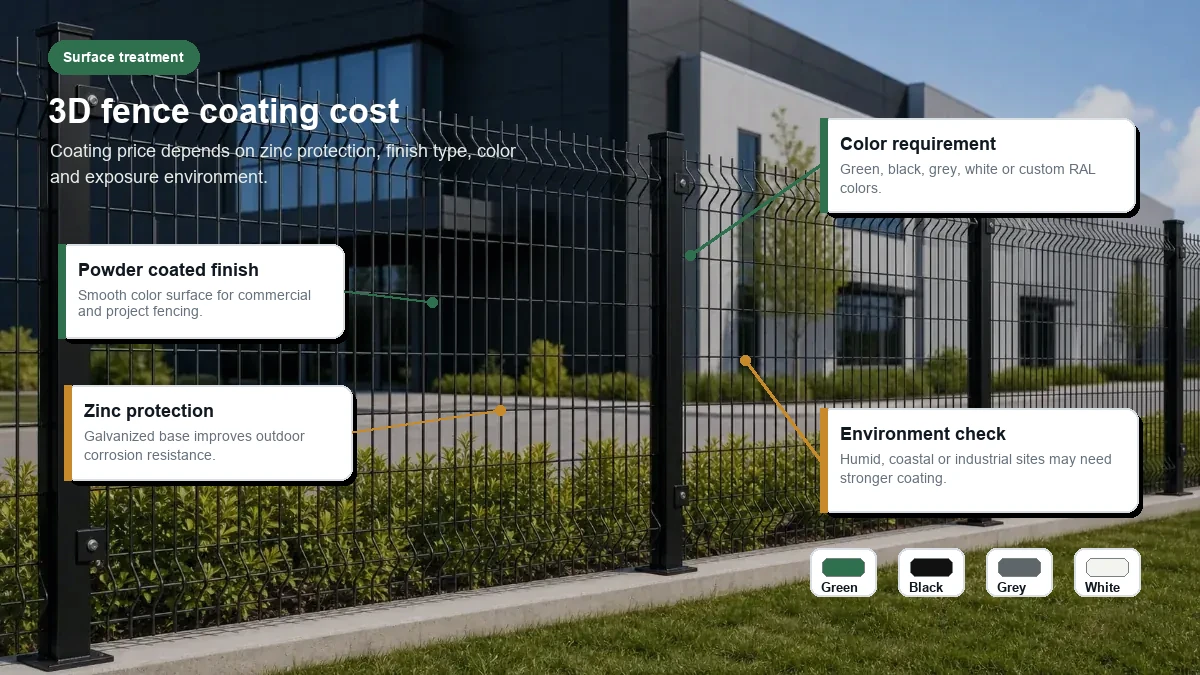

Surface Treatment and Coating Cost
Surface treatment is a key part of 3D wire mesh fence pricing because it affects corrosion resistance, appearance and outdoor service life. Our common options include hot-dip galvanized, galvanized then powder coated, galvanized then PVC coated and electro-galvanized then powder coated.
Hot-dip galvanized fencing is often selected for outdoor and industrial projects where corrosion resistance is important. Galvanized then powder coated fencing provides both zinc protection and a clean colored finish. PVC coated fencing has a thicker plastic layer and is often used for gardens, parks, residential boundaries and public areas.
Common colors include green, black, white, grey and custom RAL colors. The final coating cost depends on zinc layer, powder quality, PVC thickness, coating thickness and color requirement. For coastal, humid or industrial environments, we usually recommend better anti-corrosion treatment instead of choosing only the lowest coating cost.
Posts, Clips, and Accessories
When we calculate 3D wire mesh fence price, we do not look at panels alone. A complete fence system also includes posts, clips, bolts, nuts, caps, gates and other accessories.
Common post types include square post, peach post, round post, H post and flanged base plate post. Accessories may include clips, bolts and nuts, plastic caps, base plates, gates, corner posts and end posts.
A low panel price may not represent the real system cost if posts and accessories are not included. When buyers compare quotations from different suppliers, we suggest checking whether the quote includes all necessary installation parts. For project orders, we can calculate the required post quantity, corner posts, end posts, gates and spare accessories according to the fence layout or BOQ.
MOQ and Wholesale 3D Wire Mesh Fence Orders
Order quantity affects the unit price. For wholesale 3d wire mesh fence orders, the unit cost is usually more competitive because production setup, welding adjustment, coating preparation, export packing and documentation costs are shared across more panels.
MOQ may depend on whether the order uses standard size or custom size, stock color or custom RAL color, one full container or mixed container, OEM packaging requirements and special coating requirements. For standard sizes and common colors, production is usually easier to arrange. For custom panel dimensions, special colors, heavy coating or private-label packaging, we need to check material preparation and production scheduling before confirming MOQ.
For importers and distributors, full-container orders can often improve cost control because container space is used more efficiently.

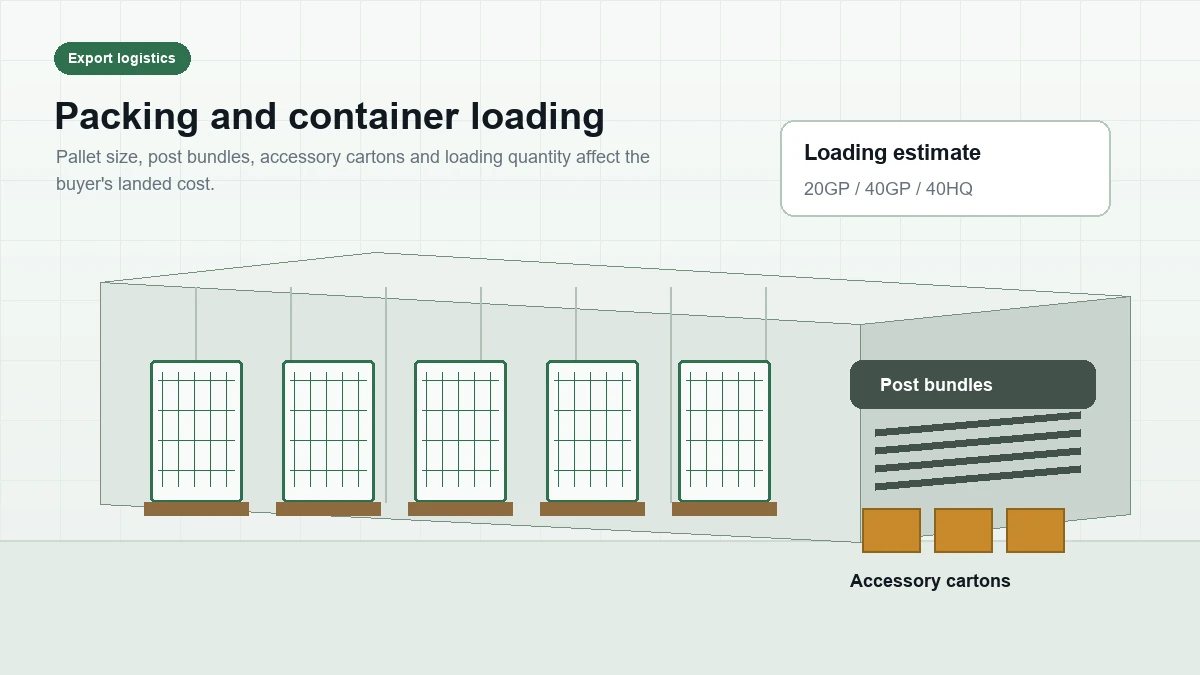

Packing, Container Loading, and Freight
Export packing and freight are important parts of the total landed cost. A fence with a lower factory price is not always the most economical choice if the packing is weak or the container loading quantity is low.
Our common export packing methods include steel pallet packing, plastic film protection, cardboard edge protection, panel stacking, post bundling, accessory cartons, shipping marks and labels. Panels are usually packed on steel pallets to protect the coating and improve loading efficiency. Posts are bundled separately. Clips, bolts, nuts, caps and small fittings are packed in cartons and clearly marked.
Before shipment, we can estimate container loading quantity according to panel size, post length, pallet size, gross weight and order mix.
Container Loading Estimate Section
For export orders, we recommend asking for a container loading estimate before confirming the final order. This helps buyers understand the approximate landed cost and compare specifications more realistically.
A container loading estimate can include container type, panel quantity per container, post quantity per container, pallet quantity and dimensions, total gross weight, accessory carton quantity, gate loading arrangement and estimated volume usage.
For example, a 2.4 m high heavy-duty fence system will usually load fewer sets than a 1.5 m standard fence system. If the buyer changes panel width, post thickness, coating type or packing method, the loading quantity may also change.
Cheap 3D Wire Mesh Fence: What Should Buyers Check?
Some buyers ask us for a cheap 3d wire mesh fence, but in factory supply, "cheap" should not mean poor welding, thin coating, weak material or missing accessories. We prefer to explain it as an economical, cost-effective and specification-matched fence solution.
Before choosing a budget-conscious fence, buyers should check actual wire diameter, finished diameter after coating, panel weight, zinc coating level, powder or PVC coating thickness, welding strength, post thickness, packing quality, whether accessories are included and the quality inspection process.
A very low price may come from reduced wire diameter, thinner posts, lower zinc coating, fewer accessories or weak packing. These details can create problems during installation, transportation or long-term outdoor use. Our approach is to help buyers choose the right specification for the project, not simply remove quality from the product.
How We Calculate an Accurate 3D Wire Mesh Fence Quote
To prepare an accurate 3d wire mesh fence quote, our quotation team needs complete product and shipping information. The table below shows the key parameters we usually request.
| Parameter | Example | Why It Affects Price |
|---|---|---|
| Panel height | 1.8 m | Taller panels use more wire and may need stronger posts |
| Panel width | 2.5 m | Affects panel quantity, post spacing and loading |
| Wire diameter | 4.0 mm or 5.0 mm | Thicker wire increases strength, weight and cost |
| Mesh opening | 50 x 200 mm | Smaller mesh may use more wire and welding points |
| Number of bends | 2, 3 or 4 bends | More bends improve rigidity but add processing requirements |
| Surface treatment | Galvanized then powder coated | Different coatings have different material and process costs |
| Color | Green RAL 6005 | Standard or custom colors may affect MOQ and price |
| Post type | Square post | Different post designs have different weight and accessories |
| Post size and thickness | 60 x 60 x 1.5 mm | Heavier posts increase system cost |
| Installation method | Buried post or base plate | Base plates and anchors add cost |
| Quantity | 2,000 panels | Larger orders usually improve unit pricing |
| Gate requirement | Single gate or double gate | Gates require frames, hinges, locks and extra packing |
| Packing method | Steel pallet | Strong export packing affects cost and protection |
| Destination port | Jebel Ali, Rotterdam, Sydney | Needed for freight estimate |
| Required documents | Invoice, packing list, CO, test report | Documentation requirements may affect order handling |

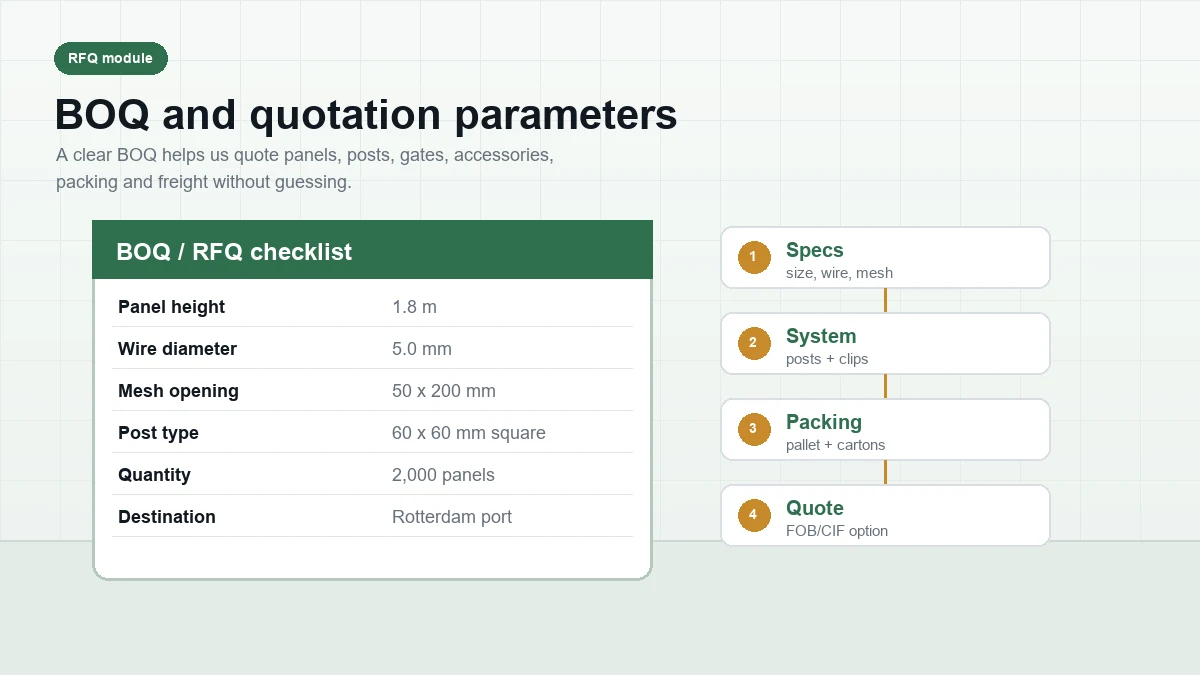

BOQ Upload Section
For project orders, buyers can send us a BOQ, drawing, layout or technical specification. This helps our factory calculate the full fence system instead of only quoting panel price.
Send Your BOQ, Drawing or Fence Layout
Upload or email the project file when you request a quote. We will check the total fence length, posts, corners, gates, accessories, spare parts, coating requirement, packing requirement and delivery terms.
- Total fence length and panel quantity
- Post quantity, corner posts and end posts
- Gate quantity and opening size
- Clips, bolts, nuts, caps and spare parts
- Coating, color and packing requirements
- Destination port and delivery terms
Sample BOQ Information for 3D Wire Mesh Fence
For a typical project inquiry, buyers can prepare fence length, panel size, wire diameter, mesh opening, bend quantity, post specification, surface treatment, color, gate details, packing request, trade term and destination port.
If the project has corners, slopes, gates, different fence heights or special installation conditions, drawings are very helpful. With clear BOQ information, our factory can calculate panels, posts, accessories, packing and shipment details more accurately.
FAQ About 3D Wire Mesh Fence Price
What is the main factor affecting 3D wire mesh fence price?
The main factors are wire diameter, panel size, surface treatment, post type, accessories, quantity and freight. As a factory, we calculate the full fence system instead of only checking the panel.
Is 3D wire mesh fence cheaper than 358 anti-climb fence?
In many projects, 3D wire mesh fence is usually more economical because it uses a larger mesh opening and is designed for general perimeter fencing. A 358 fence is a high-security anti-climb system. The final cost depends on the exact specifications.
Can I get a wholesale 3D wire mesh fence price?
Yes. Wholesale orders usually allow better unit pricing because production, coating, packing and export costs are spread across larger quantities. Full-container orders may also reduce freight cost per panel.
Why do different suppliers give different prices?
Prices may differ because of wire diameter, coating quality, post thickness, accessory inclusion, packing method, production standards and freight terms. We suggest comparing full specifications, not only the unit price.
What information should I provide for a factory quote?
Please provide panel size, wire diameter, mesh opening, coating, color, post type, quantity, packing requirement, destination port and any drawings or BOQ.
Conclusion
The 3d wire mesh fence price depends on the full fence system, not only the panel. As a factory, we calculate the quotation according to panel specifications, posts, accessories, coating, packing, quantity and destination port.
Send us your panel size, wire diameter, mesh opening, coating requirement, quantity and destination port. Our team will help calculate a suitable 3D wire mesh fence quote for your project.
