A successful aluminium pool fencing installation starts with careful planning, accurate set-out, and the right fixing method for the surface. Whether you are considering diy aluminium pool fencing or preparing installation instructions for buyers and contractors, the process should always be guided by local pool safety regulations. Fence height, gate operation, latch position, gaps, and climbable zones can vary by region, so do not assume one standard applies everywhere.
Powder-coated aluminium pool fencing is popular because it is corrosion resistant, low maintenance, lightweight, and suitable for residential and commercial pool areas. However, correct installation is essential for safety, durability, and compliance.
Before You Start
Before installing, check the project requirements and site conditions.
Key points to confirm:
- Local pool safety regulations and inspection requirements
- Required fence height and allowable ground clearance
- Gate swing direction, usually away from the pool area where required
- Latch height and latch accessibility rules
- Non-climbable zones around trees, walls, steps, furniture, or raised surfaces
- Boundary layout and ownership lines
- Underground services such as water, power, irrigation, or drainage
- Soil condition, concrete thickness, or paver stability
- Whether engineer-approved details are required
For DIY users, installation is usually suitable when the site is level, access is clear, and the fixing surface is structurally sound. A professional installer or engineer should be used when the site has steep slopes, retaining walls, loose pavers, questionable concrete, unusual gate requirements, or strict compliance documentation needs.
Tools and Materials Checklist
| Tools / Materials | Purpose |
|---|---|
| Tape measure and string line | Marking fence line and post positions |
| Spirit level or laser level | Checking alignment and height |
| Marker spray or pencil | Set-out marks |
| Drill or rotary hammer | Fixing posts to concrete or pavers |
| Post hole digger | Soil installation |
| Concrete mix | Setting in-ground posts |
| Anchors or bolts | Base plate fixing |
| Brackets and screws | Securing panels |
| Gate hinges and latch | Pool gate setup |
| Rubber mallet and clamps | Adjusting panels without damage |
| Touch-up paint | Protecting powder-coated finish |

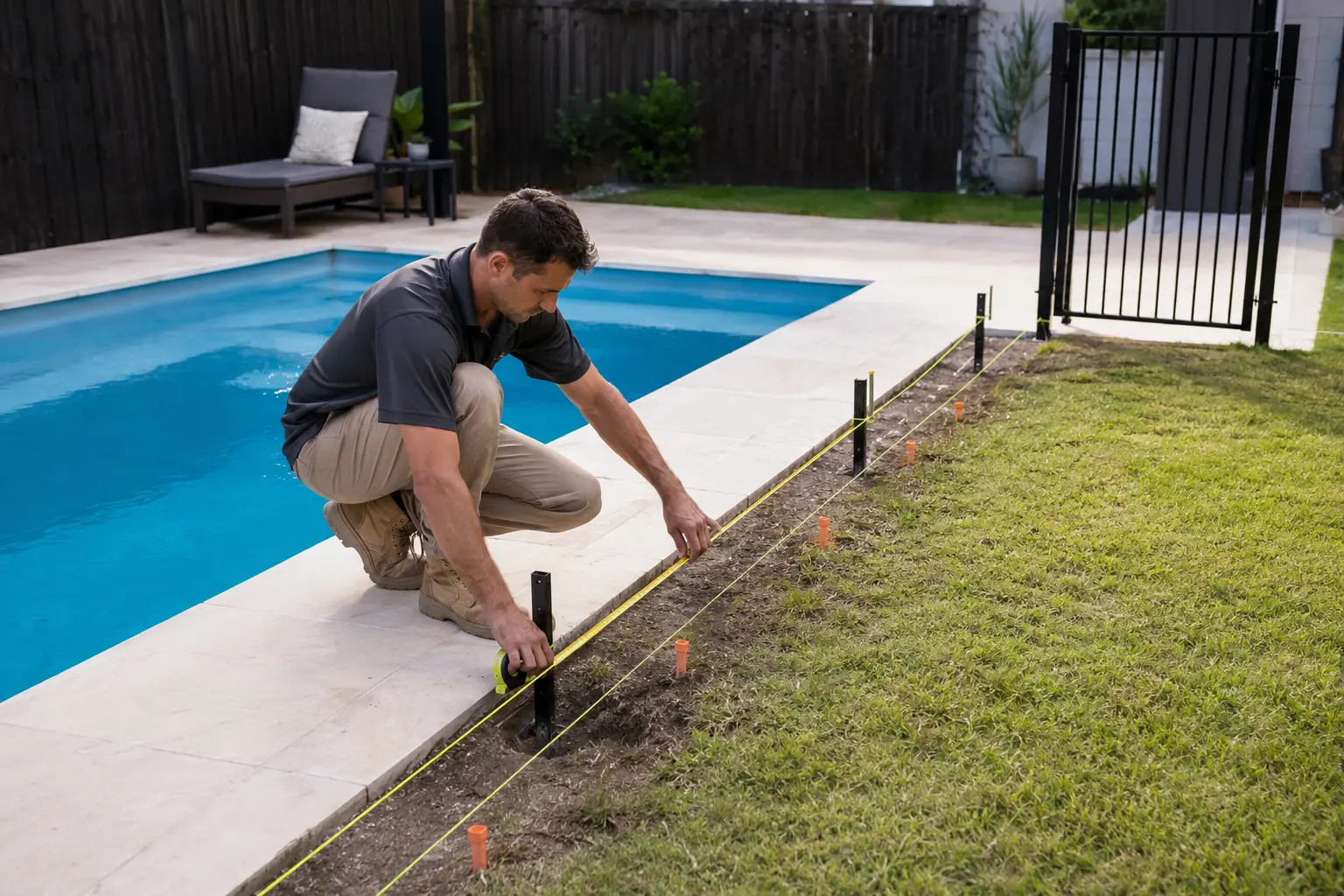

Site Measurement
Accurate measurement is the foundation of aluminium pool fencing installation. Start by measuring the total pool area and deciding the fence line. Use a string line to mark straight runs and identify corners, gates, and changes in level.
Plan the panel layout before drilling or digging. Standard aluminium fence panels may need to be trimmed or adjusted depending on the supplier's system. Avoid placing very short panel sections beside gates if possible, as this can affect strength and appearance.
Check:
- Total fence length
- Panel width
- Post spacing
- Corner locations
- Gate opening width
- Finished ground level
- Slopes or uneven surfaces
- Clearance around pool equipment and landscaping
If the ground slopes, decide whether the fence will step down between panels or follow the slope. Stepped installation is common for flat-top aluminium panels, but large gaps under panels must be avoided.

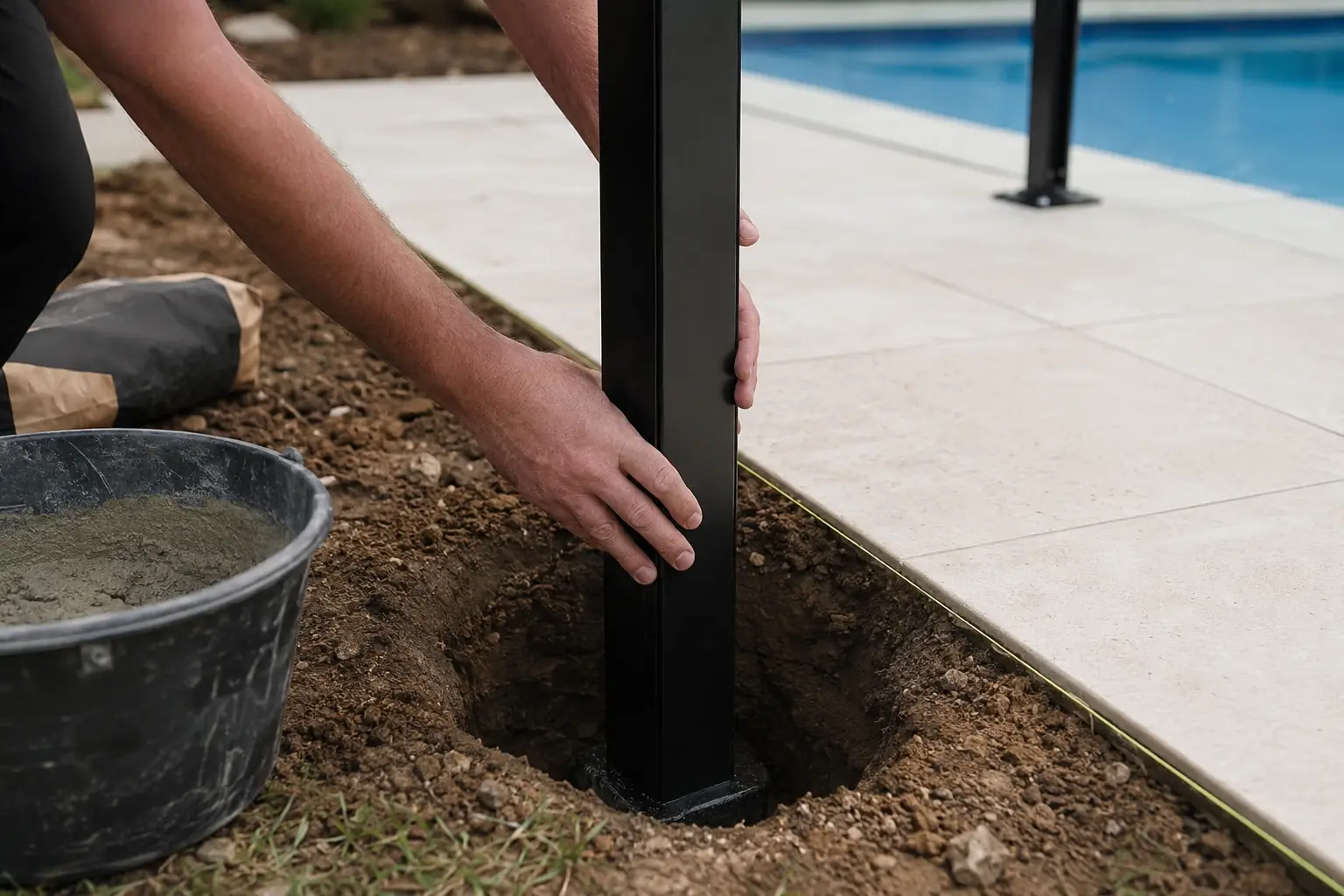

Posts and Footings
Posts carry the load of the fence, so they must be straight, secure, and correctly spaced. For in-ground installation, mark each post hole according to the panel width and bracket system. Dig holes to the depth recommended by the supplier or engineer. Depth depends on soil condition, post height, wind exposure, and project requirements.
Set posts in concrete and check each one for plumb in both directions. Use temporary bracing if needed. Keep the tops aligned with a string line or laser level. Allow concrete to cure before installing panels or hanging gates. Rushing this step can cause post movement and poor gate operation.
For commercial projects, elevated areas, retaining walls, or high-wind locations, engineer-approved footing details may be required.

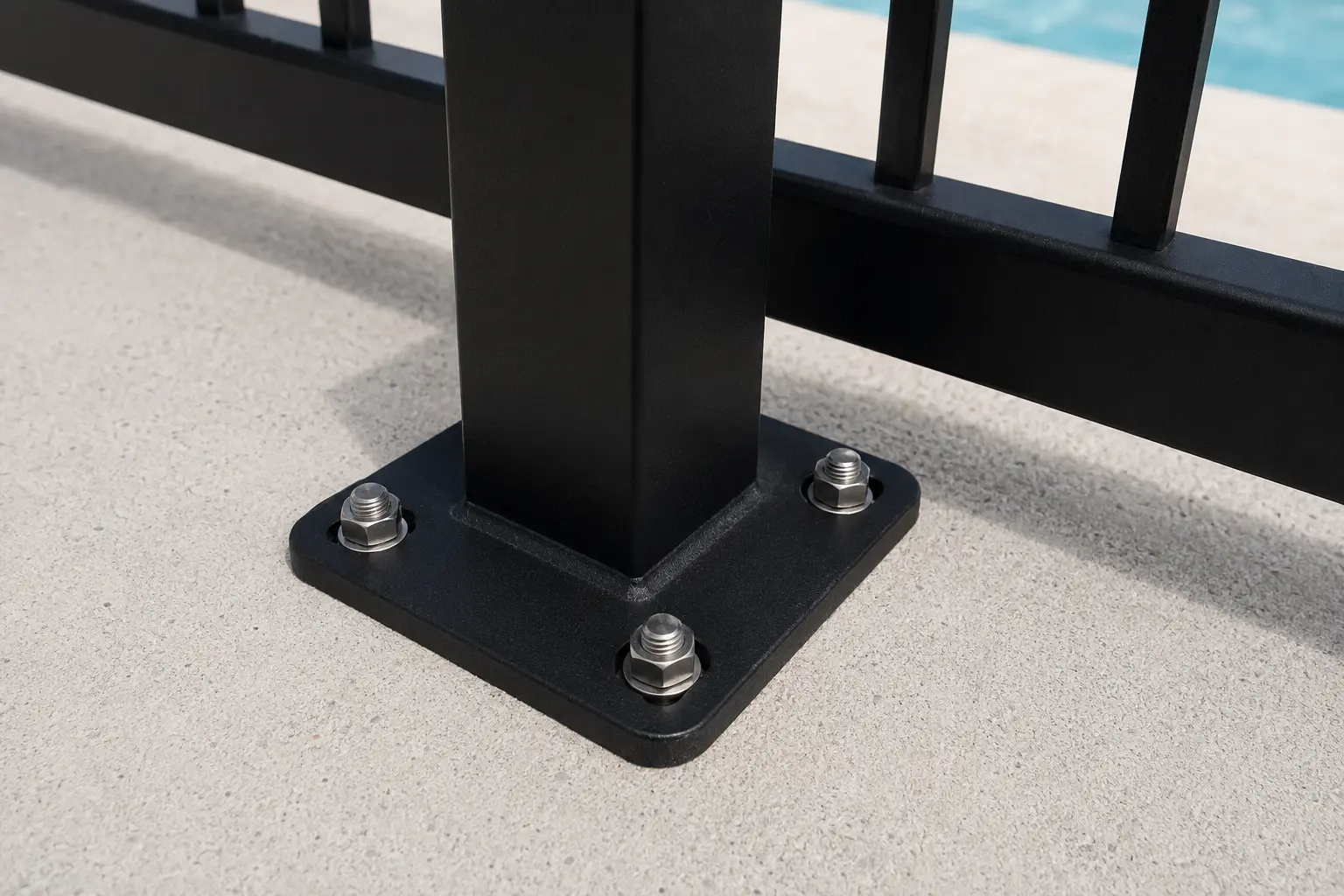

Fixing to Concrete
When learning how to install aluminium pool fence on concrete, the key issue is fixing strength. Posts are usually mounted with base plates and mechanical or chemical anchors. The concrete slab must be thick, stable, and free from cracks around fixing points.
Installation steps:
- Mark post locations using a string line.
- Position the base plate and mark anchor holes.
- Drill holes to the correct diameter and depth.
- Clean dust from the holes.
- Insert anchors according to the manufacturer's instructions.
- Level the post with packing shims if needed.
- Tighten fixings evenly.
- Recheck alignment before installing panels.
Keep enough edge distance from the slab edge to reduce cracking risk. If the concrete is thin, cracked, or close to a pool edge, seek professional advice before drilling.

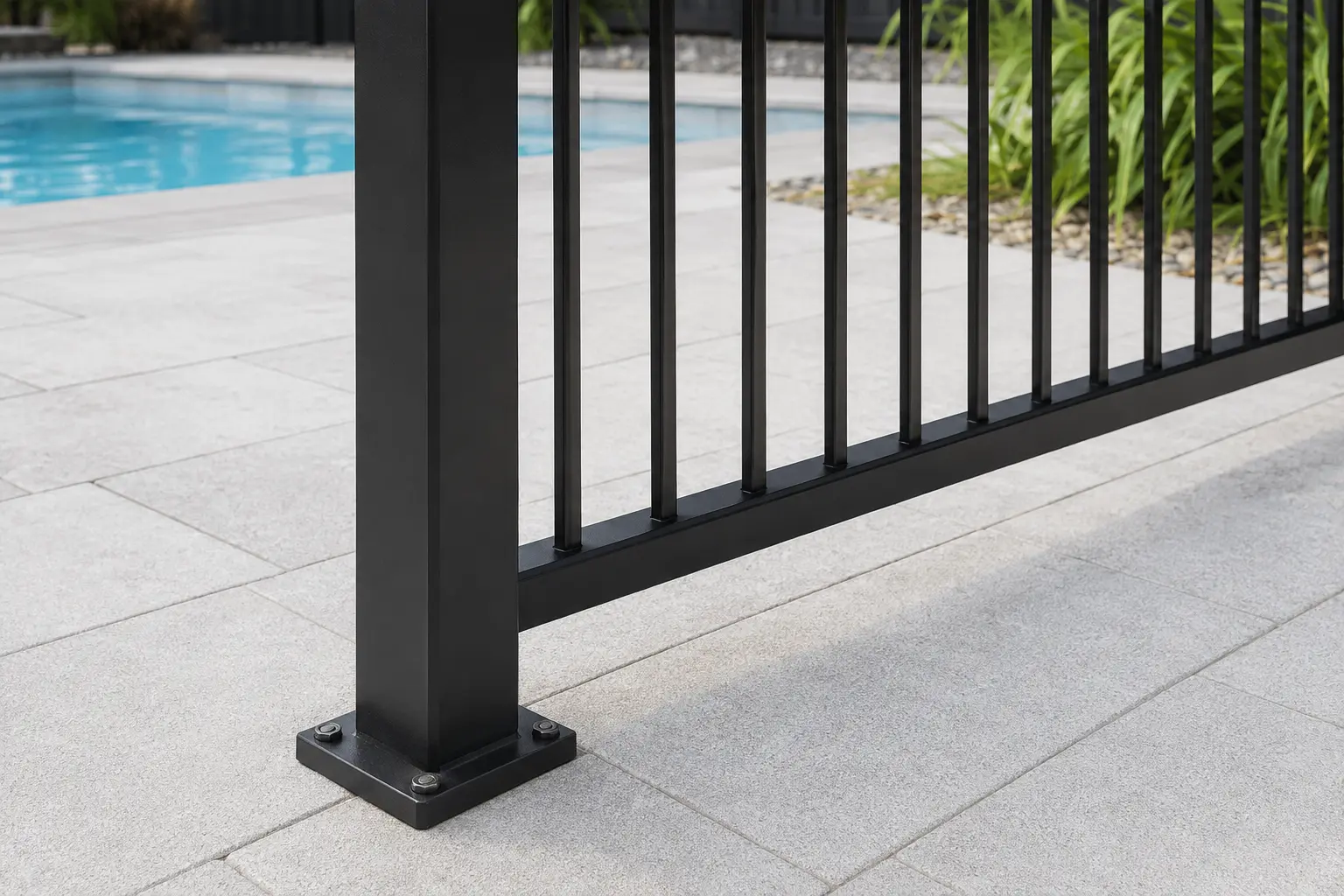

Installing on Pavers
You can install on concrete or pavers, but pavers need extra care. A paver is not always a structural fixing surface. Loose, thin, or poorly bedded pavers can move over time, causing posts to loosen and gates to misalign.
Before fixing into pavers, check what is underneath. If there is a solid concrete slab below, longer anchors may be able to pass through the paver and fix into the slab. If the pavers are laid on sand or a weak base, surface fixing is usually not reliable.
Options may include:
- Core drilling through pavers into concrete
- Removing pavers and setting posts into concrete footings
- Using engineered base plates
- Adding structural support below the paver surface
Avoid fixing pool fence posts only into weak or loose pavers.

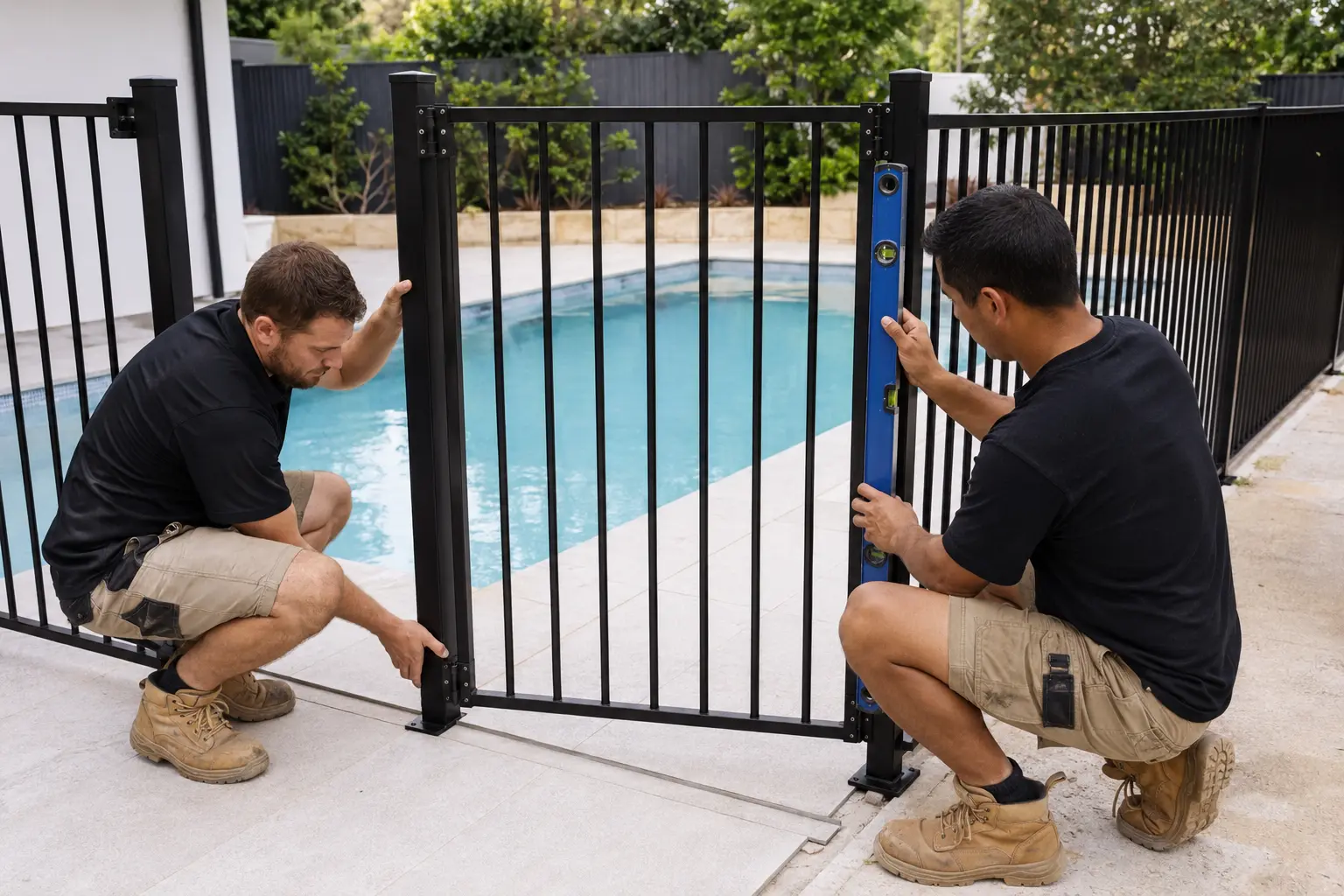

Installing Panels
Once posts are secure, fit the aluminium panels between them. Use the supplier's brackets and screws, and follow the correct installation instructions for panel orientation and spacing.
Check that:
- Panels are level
- Vertical picket gaps are consistent
- Bottom clearance meets local rules
- Brackets are fixed tightly
- Corners are aligned
- Powder-coated surfaces are protected during handling
Use clamps or packers to hold panels in position before fastening. Avoid dragging panels across concrete or pavers, as this can scratch the powder coating. If the coating is damaged, use approved touch-up paint to reduce corrosion risk.

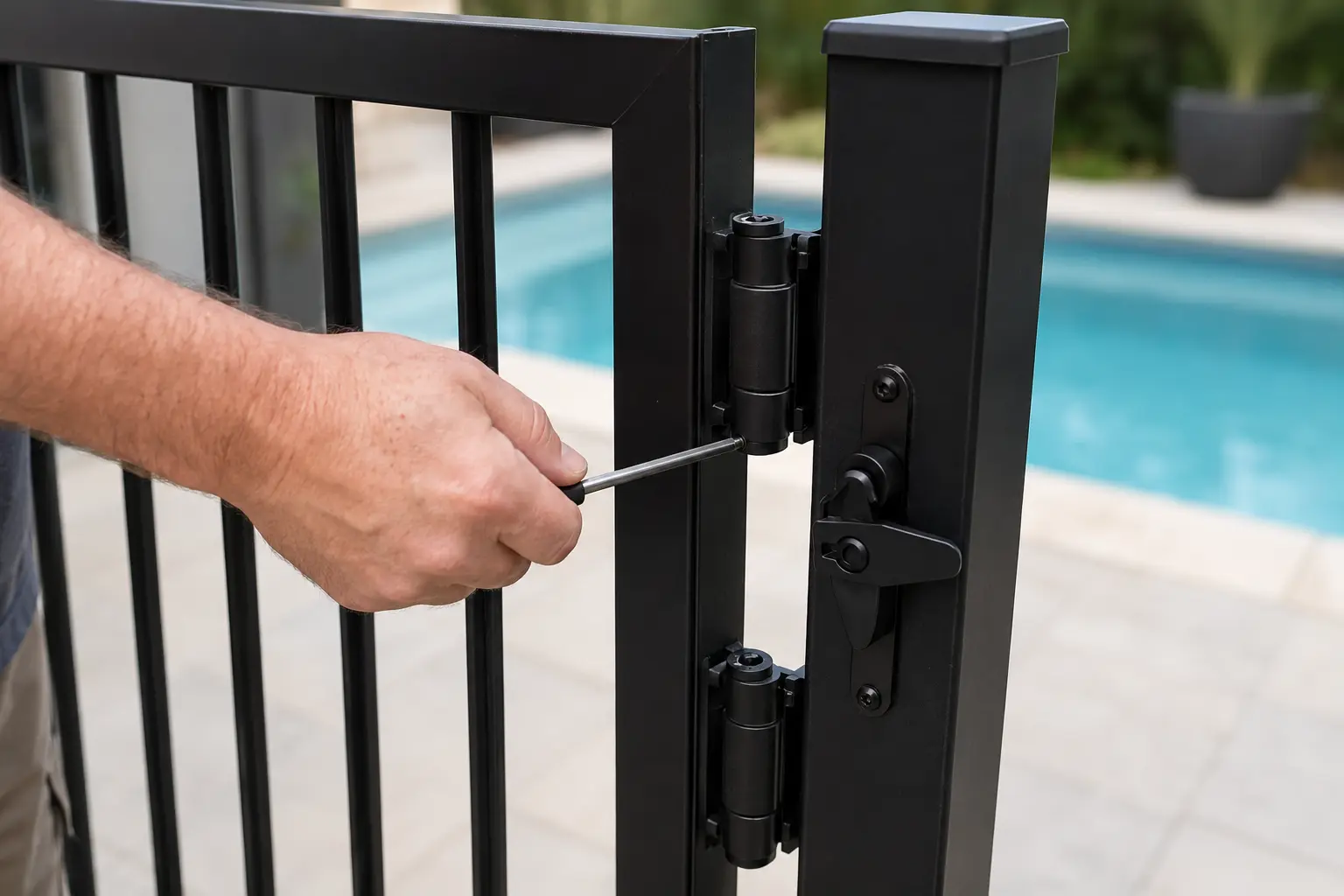

Gate Setup
The gate is the most important moving part of the pool fence. Install the gate post securely and make sure it cannot twist under load. Fit hinges according to the supplier's instructions, then install the self-closing mechanism and latch.
Check:
- Gate swings in the required direction
- Gate opens and closes smoothly
- Self-closing function works from different open positions
- Latch engages every time
- Gaps around the gate are controlled
- Hinges are adjusted correctly
- Latch position follows local requirements
Do not rely on one quick test. Open the gate fully, halfway, and only slightly, then confirm it self-closes and latches each time.

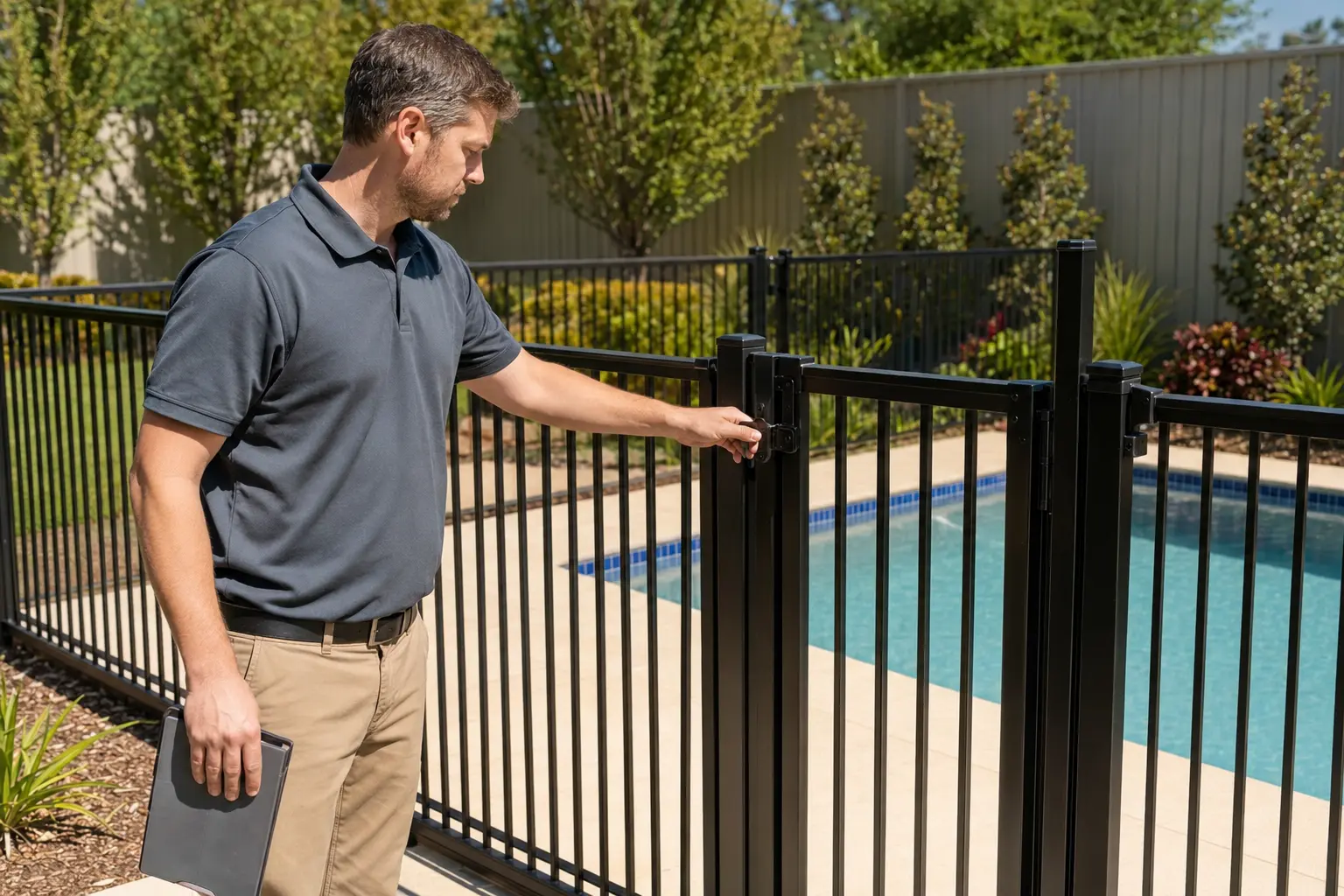

Final Compliance Checks
After installation, inspect the entire fence before use. Do not promise compliance without a proper inspection, because pool safety rules vary by location.
Check:
- Fence height
- Ground clearance
- Panel and gate gaps
- Gate self-closing performance
- Latch operation
- Post stability
- Climbable objects near the fence
- Sharp edges or exposed fixings
- Loose pavers or unstable surfaces
- Alignment and overall strength
If the project requires certification, arrange inspection by the relevant local authority, building certifier, or qualified pool safety inspector.
Common Mistakes
Common installation errors include:
- Measuring after materials arrive instead of before ordering
- Ignoring slope or uneven ground
- Setting posts out of alignment
- Fixing posts into weak pavers
- Using incorrect anchors
- Placing the gate in the wrong position
- Installing the gate to swing the wrong way
- Leaving excessive gaps under panels
- Setting latch height incorrectly
- Scratching powder-coated aluminium during installation
- Skipping final compliance checks
Most problems are easier to prevent during set-out than to fix after drilling or concreting.
Installation Surface Comparison
| Surface | Common Method | Key Risk | Best Practice |
|---|---|---|---|
| Soil / ground | Posts set into concrete footings | Poor footing depth or movement | Use correct hole depth, concrete strength, and curing time |
| Concrete | Base plates with anchors | Cracking, weak edge distance, thin slab | Check slab condition and use suitable anchors |
| Pavers | Core drilling or fixing into slab below | Loose pavers and weak substrate | Confirm structural support before fixing |
Frequently Asked Questions
Can I install aluminium pool fencing myself?
Yes, DIY installation may be suitable for level sites with simple layouts and clear supplier instructions. However, local pool safety regulations must still be checked, and inspection may be required.
How do I install aluminium pool fence on concrete?
Mark the post positions, drill anchor holes, clean the holes, install suitable anchors, level each base plate post, and tighten fixings securely. Always check slab strength and edge distance.
Can aluminium pool fencing be installed on pavers?
Yes, but only if the fixing method is structurally sound. Do not rely on loose pavers. In many cases, posts need to be fixed into concrete below or supported with engineered details.
How deep should pool fence posts be?
Post depth depends on fence height, soil type, wind exposure, and local requirements. Follow supplier drawings or engineer-approved footing details where applicable.
How do I make sure the gate self-closes properly?
Install the hinges correctly, adjust spring tension, check gate gaps, and test closing from fully open, half open, and slightly open positions. The latch should engage every time.
Do I need professional installation?
Use a professional installer when the site is sloped, the surface is weak, the gate layout is complex, or compliance documentation is required.
What tools are needed for diy aluminium pool fencing?
Common tools include a tape measure, string line, level, drill, post hole digger, concrete mix, anchors, brackets, screws, clamps, and safety equipment.
Conclusion
Aluminium pool fencing is durable, low maintenance, and well suited to pool areas, but the final result depends on careful planning and correct installation. Measure the site accurately, choose the right fixing method, protect the powder-coated finish, and test the gate thoroughly. Most importantly, always check local pool safety regulations before and after your aluminium pool fencing installation.
