One supplier recommends a 2.4-metre panel. Another sells a 3-metre version. Some products are described as “pool safe”, while others mention a specific standard. Then there is the choice between aluminium and glass—and the question most buyers eventually ask: how much will the complete fence actually cost?
This guide explains the practical details you should understand before buying aluminium pool fence panels. In the United States, the material is normally spelled “aluminum”; in Australia and many other markets, it is spelled “aluminium”. The product is essentially the same, but local sizes and safety requirements can be very different.
Why choose aluminium pool fencing?
Aluminium has become a popular pool fencing material because it offers a useful balance between safety, appearance, maintenance and cost.
Unlike untreated steel, aluminium does not rust in the usual way when exposed to rain, humidity or splashing pool water. Most quality pool fencing also has a powder-coated finish that provides additional protection and creates a smooth, consistent colour.
Other practical advantages include:
- Lightweight panels that are easier to transport and handle
- Lower maintenance requirements than timber
- A wide choice of colours and panel styles
- Compatibility with gates, posts and modular hardware
- Options for flat, sloping and uneven sites
- A less obstructed appearance than solid privacy fencing
- Generally lower costs than frameless glass fencing
Aluminium is not perfect, however. Standard vertical picket panels provide less privacy than solid fencing. They also create a more visible barrier than glass. Thin, poorly welded panels may bend or become loose, and damaged powder coating can affect the appearance over time.
Most importantly, being made from aluminium does not automatically make a panel pool compliant. Its height, openings, horizontal rails, gate hardware and installation all matter.

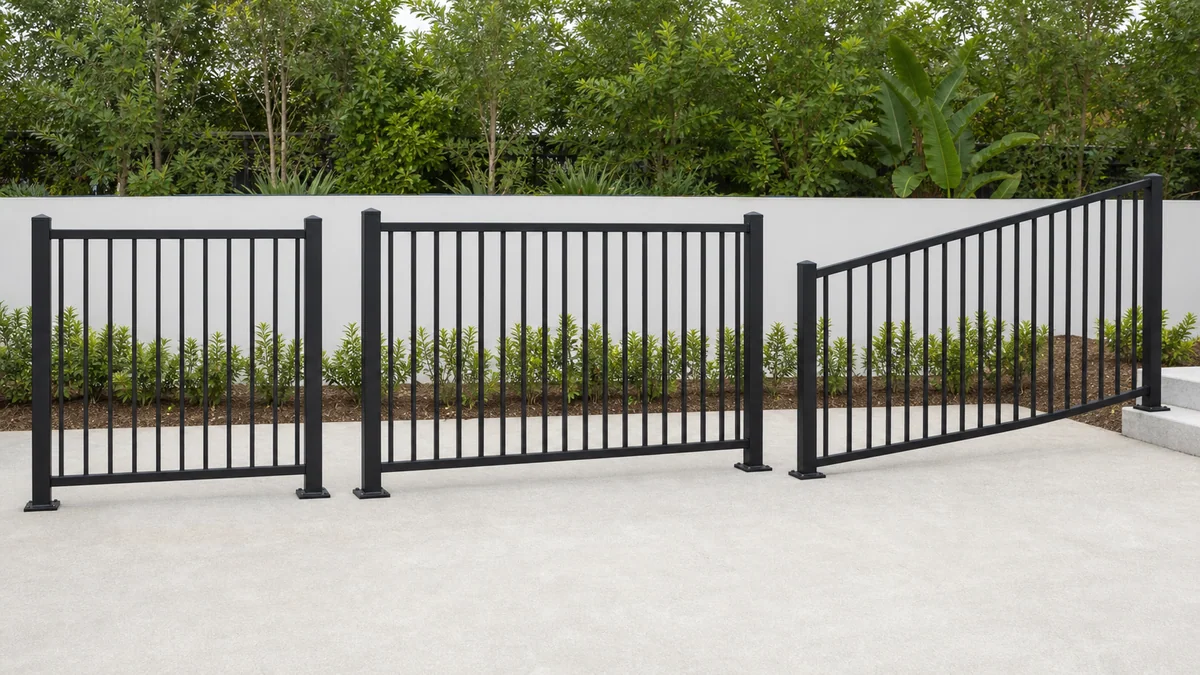

Common pool fence panel sizes
Panel dimensions vary by country and manufacturer, so check the actual measurements rather than relying on a product photograph.
Common Australian sizes
Australian suppliers commonly offer panels such as:
| Panel type | Typical dimensions |
|---|---|
| Standard flat-top panel | 1200 × 2400mm |
| Wider panel | 1200 × 2450mm |
| Extra-wide panel | 1200 × 3000mm |
| Standard gate | Approximately 970 × 1200mm |
| Raked panel | Dimensions vary by slope |
The 1200mm height is common because many Australian pool barrier rules require an effective barrier height of at least 1.2 metres. That does not mean every 1200mm product will comply after installation. Raised soil, garden beds, nearby furniture or incorrect ground clearance can reduce the effective height or create a climbing risk.
Common United States sizes
American aluminium fence panels are commonly described in feet and inches. Typical options include:
- 48-inch-high pool fence panels
- 54-inch-high panels
- Six-foot-wide sections
- Eight-foot-wide sections
The U.S. Consumer Product Safety Commission recommends that residential pool barriers be at least 48 inches high. Some states and municipalities require taller barriers, so local codes must take priority over general guidance.
When do you need a raked panel?
Standard panels work best on level ground. On a sloping site, forcing a horizontal panel into place can create excessive gaps underneath the fence.
Raked or rackable panels allow the pickets to remain vertical while the rails follow the slope. Before ordering, measure both the horizontal distance and the change in elevation. A supplier should be able to confirm whether a standard rackable panel is sufficient or whether a custom panel is required.
What components do you need?
A common mistake is calculating the cost of panels without including the rest of the fencing system.
A complete installation may require:
- Fence panels
- Line, corner and end posts
- In-ground or base-plated posts
- One or more pool gates
- Self-closing hinges
- A self-latching pool gate latch
- Panel brackets and screws
- Post caps and cover plates
- Concrete or suitable anchors
- Touch-up coating
- Freight or local delivery
The right post depends on the installation surface. In-ground posts are normally set into excavated holes with concrete. Base-plated posts can be anchored to a suitable concrete surface.
Do not assume that an existing slab is automatically strong enough. Its thickness, condition, edge distance and reinforcement can affect whether a base-plated installation is appropriate.
How much does aluminium pool fencing cost?
There is no honest universal price per metre. Panel width, coating quality, location, hardware, gates and labour can change the final figure substantially.
A better way to estimate the project is:
Total cost = panels + posts + gates + hardware + delivery + installation
The gate is often one of the more expensive sections because it needs hinges, a compliant latch and careful alignment. Corners, slopes and unusual layouts can also increase the number of posts or require customised components.
When comparing quotations, check whether each price includes:
- GST or applicable sales tax
- Posts and panel brackets
- Gate hinges and latch
- Concrete or anchors
- Delivery
- Installation labour
- Site preparation
- Removal of an old fence
- Inspection or certification
The cheapest panel is not necessarily the lowest-cost option over the life of the fence. Compare aluminium thickness, weld quality, powder-coating system, warranty and availability of replacement parts.
For an accurate estimate, provide the supplier with a simple plan showing the total fence length, corners, gate positions, surface type and any changes in ground level.

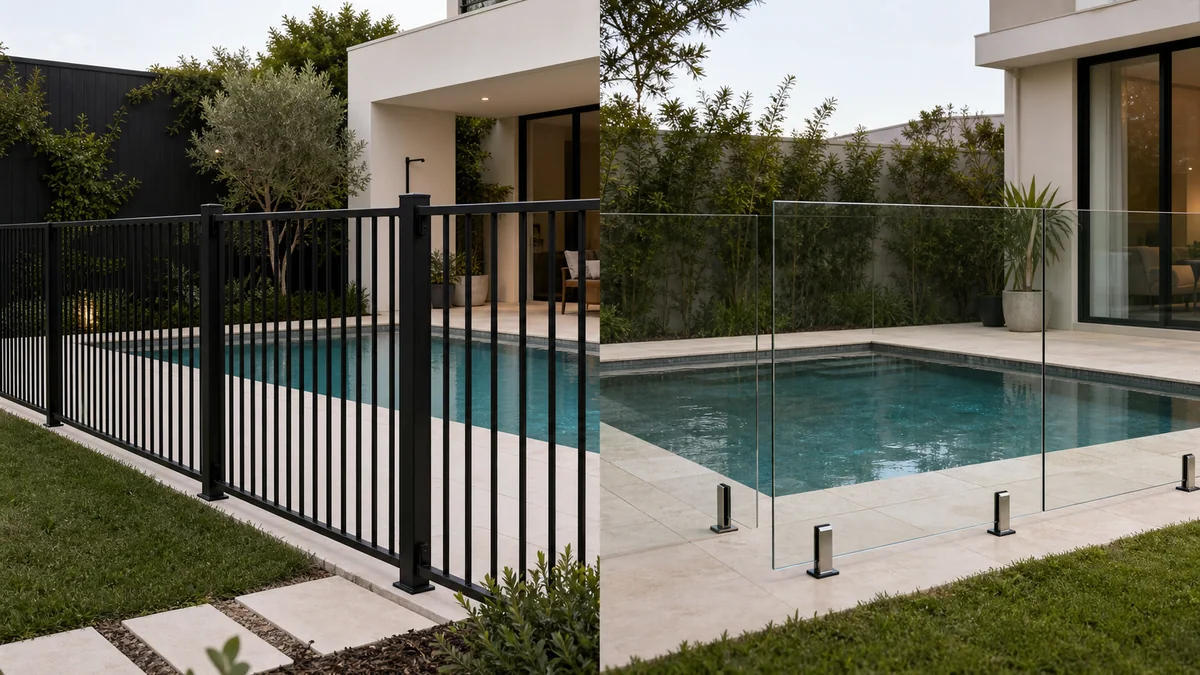

Aluminium versus glass pool fencing
Both materials can create an effective pool barrier when correctly designed and installed. The better choice depends on the property, budget and desired appearance.
| Factor | Aluminium | Glass |
|---|---|---|
| Initial cost | Usually lower | Usually higher |
| Pool visibility | Partially obstructed | Clearer views |
| Cleaning | Relatively simple | Water spots and marks are visible |
| Weight | Lightweight | Heavy |
| DIY suitability | Generally easier | Often requires more specialised handling |
| Style | Traditional to contemporary | Premium, modern appearance |
| Repair | Individual panels are replaceable | Glass panels and fittings may cost more |
| Privacy | Available in specialised styles | Very limited |
Choose aluminium if budget, low maintenance and straightforward installation are priorities.
Choose glass if uninterrupted views are central to the design and you are comfortable with the additional cleaning and potential installation costs.
Some properties combine the two—using glass where the view matters most and aluminium along less visible sides.
For a deeper procurement comparison, see our glass vs aluminium pool fencing guide.
Pool fence safety requirements
Pool fencing is a safety system, not simply a landscape feature. A compliant panel can still fail an inspection if the gate, ground clearance or surrounding area is incorrect.
United States
The U.S. CPSC’s residential pool barrier guidance recommends, among other measures:
- A barrier at least 48 inches high
- Openings small enough to prevent a young child passing through
- Designs that reduce usable handholds and footholds
- Limited clearance underneath the fence
- Self-closing and self-latching pedestrian gates
- Latches positioned where young children cannot easily operate them
These are national safety recommendations rather than a replacement for state and local building codes. Some local authorities require 60-inch barriers or impose additional rules.
Ask your local building department:
- What minimum height applies?
- What maximum picket and ground gaps are permitted?
- Which direction must the gate open?
- Where must the latch be positioned?
- Is a permit or final inspection required?
Australia
Australian requirements depend on the state, pool age and applicable standard. Common requirements encountered in local pool safety guidance include:
- An effective barrier height of at least 1200mm
- Self-closing and self-latching gates
- Gates opening away from the pool
- Restrictions on gaps underneath and between fence components
- A non-climbable area around the barrier
- No furniture, plants or other climbable objects positioned near the fence
Queensland authorities identify common failures such as barriers measuring less than 1200mm, gates that do not close from every position and climbable objects near the fence.
Do not rely solely on a product description saying “AS1926.1 compliant”. Compliance depends on the complete installed barrier and the rules that apply at the property.
How many panels do you need?
Begin by measuring the planned fence line in metres or feet. Then subtract the space occupied by gates before dividing by the usable width of each panel.
A simplified calculation is:
(Total fence length − gate width) ÷ usable panel width = approximate panel quantity
For example, a nominal 2400mm panel may not produce exactly 2400mm of installed coverage once posts and brackets are considered. Use the manufacturer’s recommended post spacing rather than the panel’s advertised width alone.
Your calculation should also account for:
- Corners
- End posts
- Gate and latch posts
- Changes in direction
- Sloping sections
- Panels that need cutting
- Small measurement errors
It is sensible to send your measurements to the supplier before ordering. A short check can prevent an expensive shortage—or a lonely extra panel sitting behind the shed for the next ten years.
DIY installation overview
Aluminium panels are often marketed as DIY friendly, but pool fencing deserves more care than ordinary garden fencing.
A typical installation involves:
- Confirming local pool barrier requirements
- Measuring and marking the complete fence line
- Locating underground services
- Setting or anchoring the posts
- Attaching the panels at the correct height

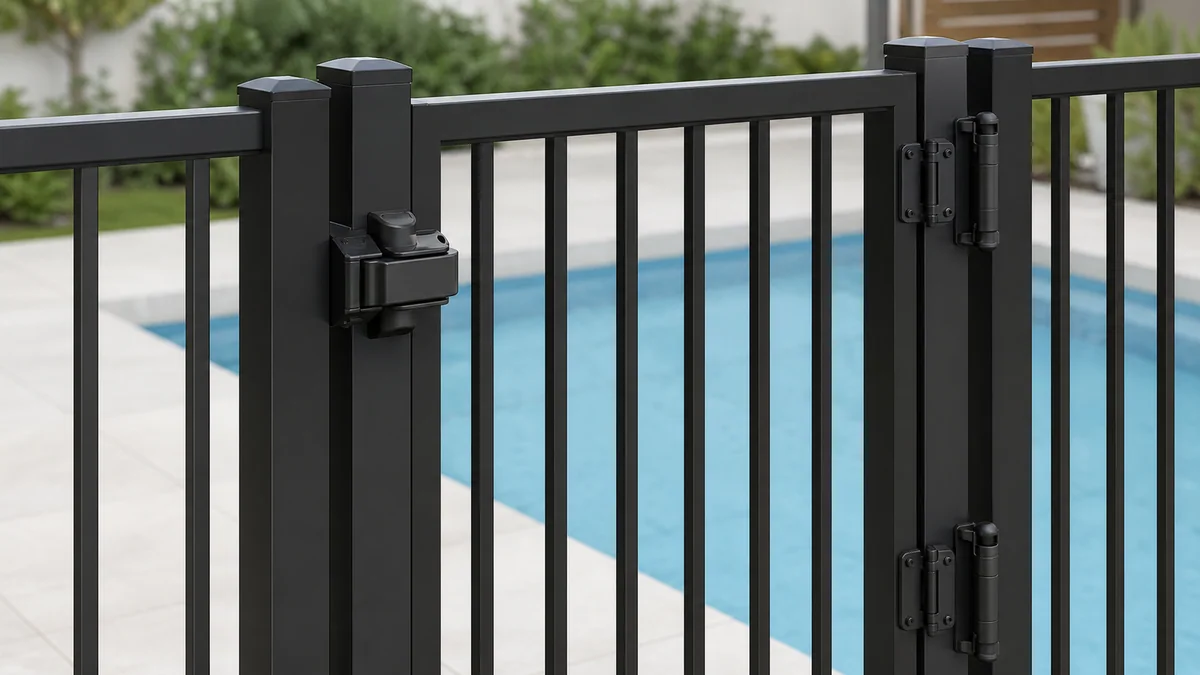

- Installing the gate, hinges and latch
- Checking gaps and potential climbing points
- Testing that the gate closes and latches from every position
- Arranging any required inspection or certification
The posts need to remain straight, correctly spaced and secure. Small alignment errors become more obvious as additional panels are installed.
Gate installation deserves particular attention. A gate that closes correctly on installation day may stop latching if the post moves, hardware loosens or soil shifts. Test and maintain it regularly rather than treating compliance as a one-time event.
If the site contains slopes, retaining walls, steps, unusual surfaces or limited clearances, professional advice is usually worthwhile.
Frequently asked questions
Do aluminium pool fences rust?
Aluminium does not rust like untreated iron or steel, although corrosion and finish damage can still occur in harsh environments. Correct alloy selection, powder coating and maintenance remain important, especially near the coast.
Is aluminium cheaper than glass pool fencing?
Aluminium is generally the more economical option, particularly when material, installation and ongoing cleaning are considered. Actual prices depend on the layout, supplier and location.
Are all 1200mm panels pool compliant?
No. Panel height is only one requirement. Openings, ground clearance, climbable zones, gates, latches and local rules also determine compliance.
Can I install the fence myself?
Many modular aluminium systems are suitable for competent DIY installation. However, the finished barrier still needs to satisfy local safety requirements. When uncertain, use a qualified installer or pool safety inspector.
Can aluminium fencing be installed on a slope?
Yes. Rackable or specially manufactured raked panels can accommodate sloping ground. The allowable slope varies between products.
How often should I inspect the fence?
Check the barrier regularly and whenever landscaping or ground levels change. Pay particular attention to loose panels, gate alignment, hinges, latches, corrosion, damaged coating and climbable objects placed nearby.
Final thoughts
The right aluminium pool fence is not simply the panel that looks best in a product photograph. It must fit the site, work with the correct posts and gate hardware, meet local requirements and remain dependable after years of weather and daily use.
Start with accurate measurements. Confirm the applicable safety rules. Then compare the complete fencing system—not just the panel price.
If you are unsure which panels, posts or gate components suit your project, send Topsfence a sketch with your dimensions, surface type and gate position. Our team can help you prepare a practical component list before you order.
