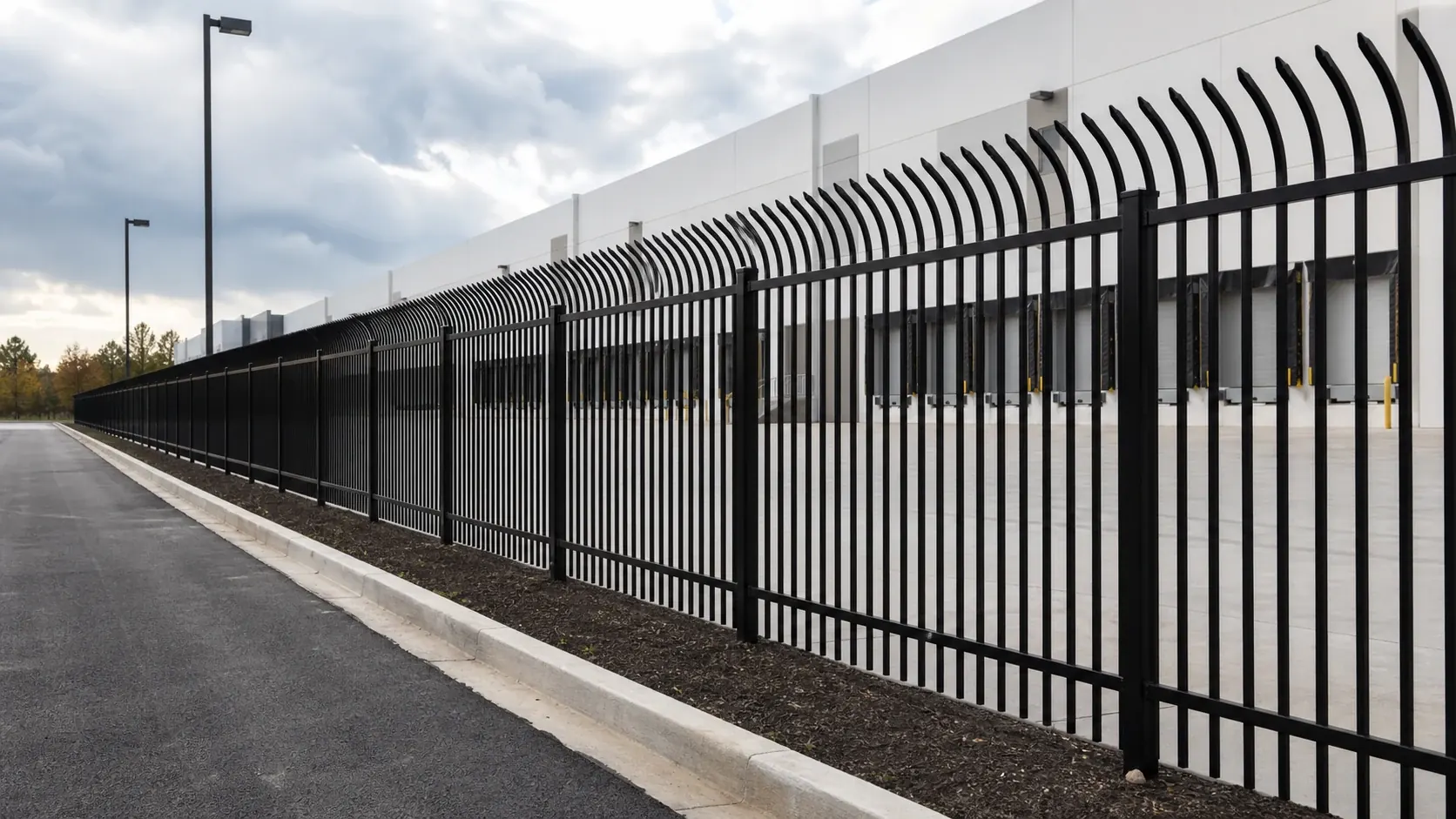

A bent top metal security fence is a steel perimeter fence with a curved or angled upper section. It is often used for perimeter protection, access control and anti-climb security around industrial and infrastructure sites.
For buyers and contractors preparing to install bent top metal security fence, installation quality is as important as panel quality. Foundations, alignment, fittings, gates and coating protection all affect long-term performance.
From the factory side, installation quality starts before the goods leave our workshop. We manufacture the fence system, match posts and fittings, and provide reference drawings when order details are confirmed. Final installation must follow local regulations, project drawings and qualified engineering requirements.
Before Installation: Site Preparation and Material Check
Before digging or fixing, review the fence layout drawing on site. Confirm the fence line, corners, slopes, gate positions, service entrances, drainage areas and access-control points. Check underground utilities before post holes are prepared.

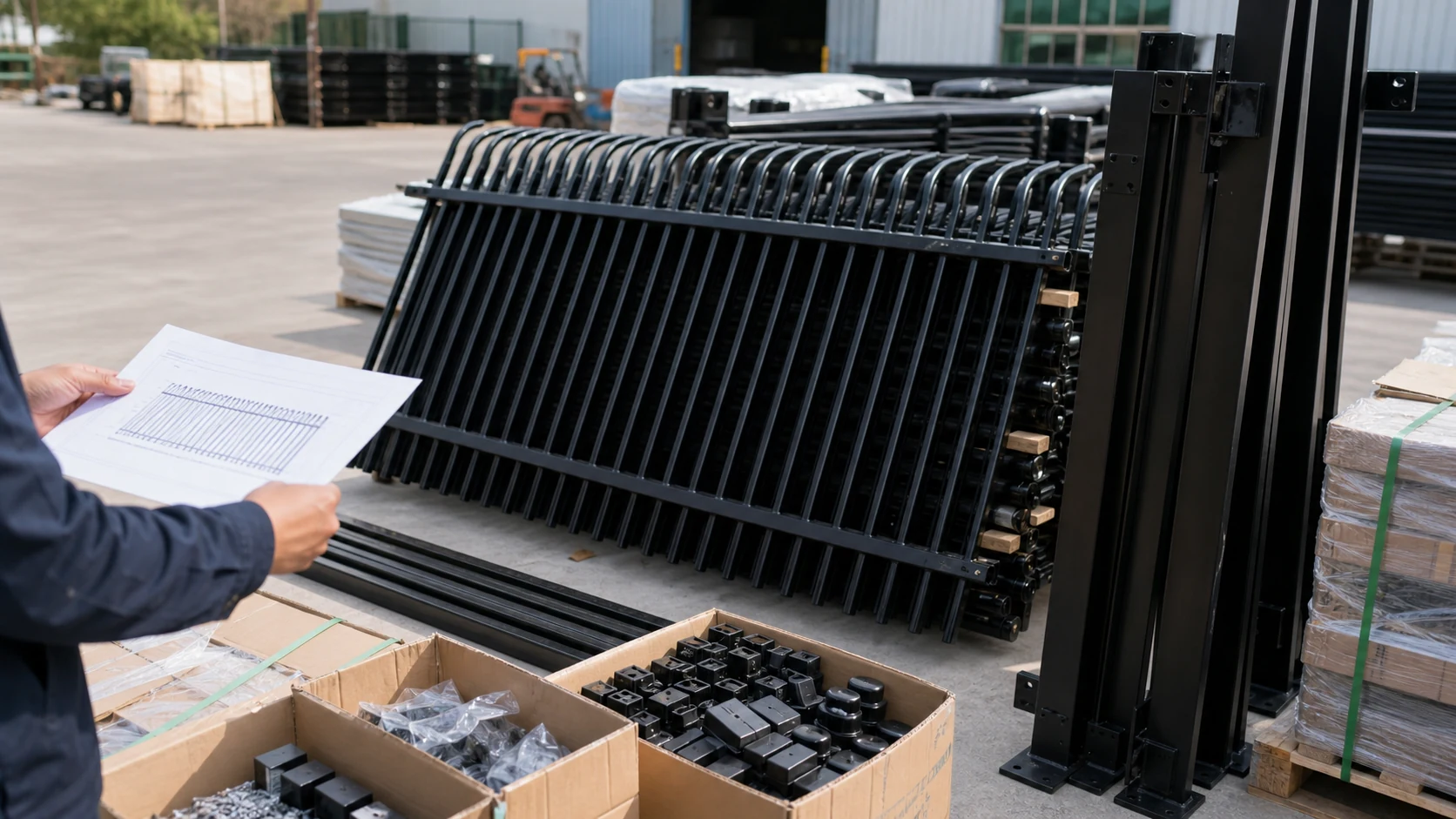

We recommend checking all materials against the factory packing list before installation starts. Confirm panel height, bent top direction, post type, clamps, bolts, gates, hinges, locks, post caps, base plates and accessories. Missing parts are easier to solve before work begins.
| Item | What to Confirm |
|---|---|
| Fence layout drawing | Fence line, corners, slopes and gate openings |
| Panel quantity | Sizes and total panel count |
| Post quantity | Line, corner, end and gate posts |
| Fittings and bolts | Clamps, brackets, washers, nuts and anti-tamper bolts |
| Gate set | Gate leaves, hinges, locks, drop bolts and stops |
| Foundation method | Soil, concrete base, base plate or retaining wall |
| Installation tools | String line, laser level, plumb line, drills and spanners |
| Safety equipment | Gloves, eye protection, helmets and site warning signs |
Step-by-Step Installation Section
Most bent top metal security fence projects follow this sequence:
- Check drawings, packing list and site layout.
- Mark post positions according to the factory panel width.
- Prepare post holes, concrete bases or anchor points.
- Install posts and align them vertically.
- Allow concrete to cure where cast-in foundations are used.
- Fix panels between posts with matched fittings.
- Install gates, hinges, locks, drop bolts and gate stops.
- Check line, height and gaps before final tightening.
- Repair coating scratches and clean the work area.
- Complete the final inspection.
This sequence may change for slopes, retaining walls, heavy gates or special security layouts. Confirm drawing changes before modifying coated panels or posts.

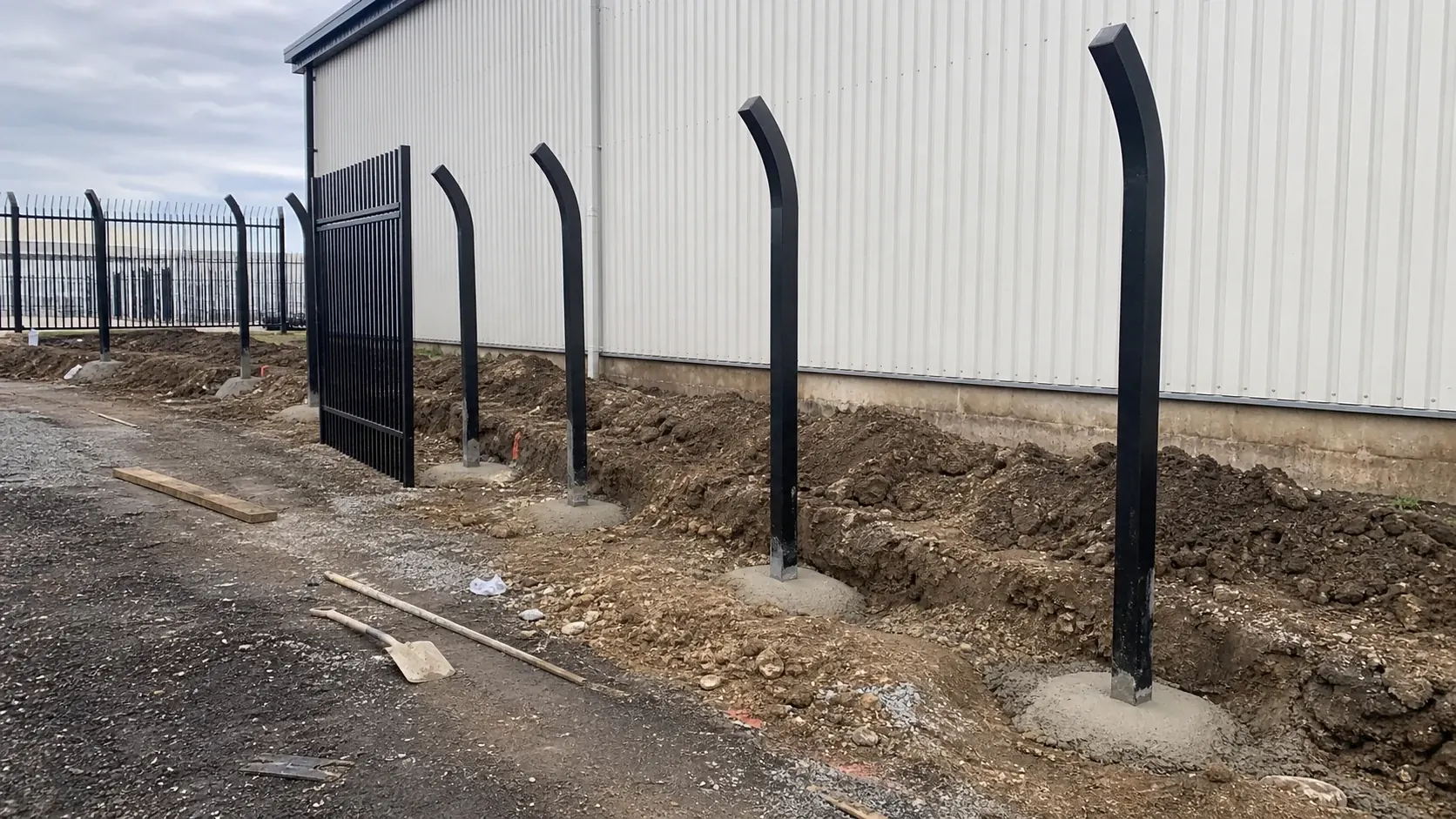

Installing Posts and Foundations
Posts are the structural base of the fence system. If they are weak, leaning or incorrectly spaced, even well-made panels can look uneven or become difficult to fix securely.
The normal process is to mark post positions, prepare holes or base plates, place posts, align them vertically, pour concrete if required and allow curing before panels are fixed. Post spacing should match the factory panel width. Incorrect spacing often causes twisted panels or uneven gaps.
Use a string line, plumb line or laser level to keep the fence line straight and the top height consistent. On sloped ground, confirm whether stepped or raked panels are required before production.
Fence foundations can be installed in soil, on a concrete base or on a retaining wall, but the design is not universal. Foundation size depends on fence height, wind load, soil, post size, wall thickness, base plate design and local engineering requirements. As a factory, we normally confirm these details before production.

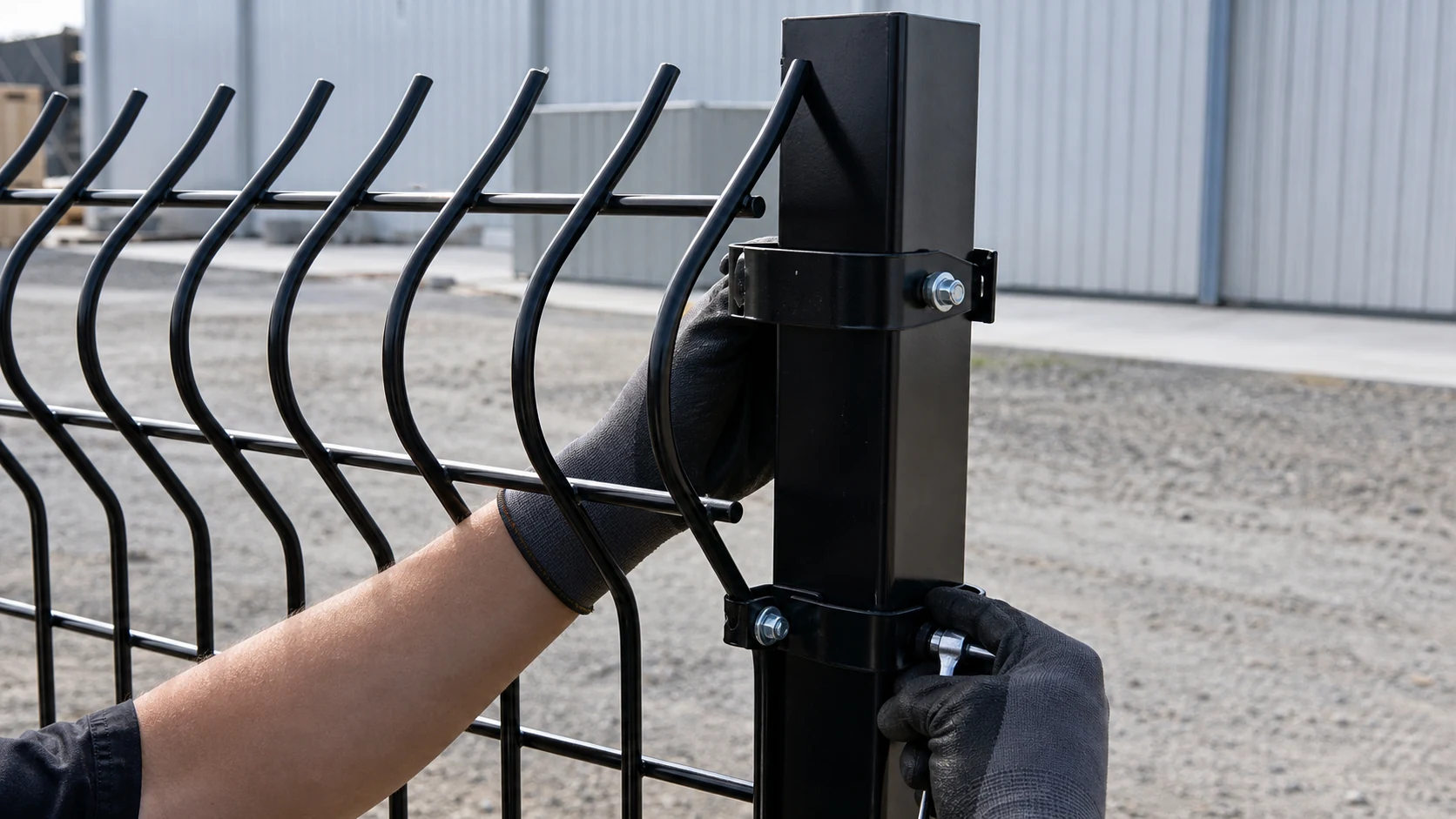

Fixing Bent Top Metal Security Fence Panels
After posts are stable, panels can be positioned between them. The bent top section should face the direction specified in the security design. In many perimeter projects it faces outward, but local safety rules come first.
Panels are usually fixed with clamps, brackets, bolts or anti-tamper fittings matched to the post system. Keep gaps consistent. If a panel does not fit, do not force it into position, because this can twist the frame or damage the coating.
Check alignment, panel height, bottom clearance and the bent top line before final tightening. Avoid cutting or welding coated panels on site. If cutting cannot be avoided, exposed metal must be cleaned and repaired.

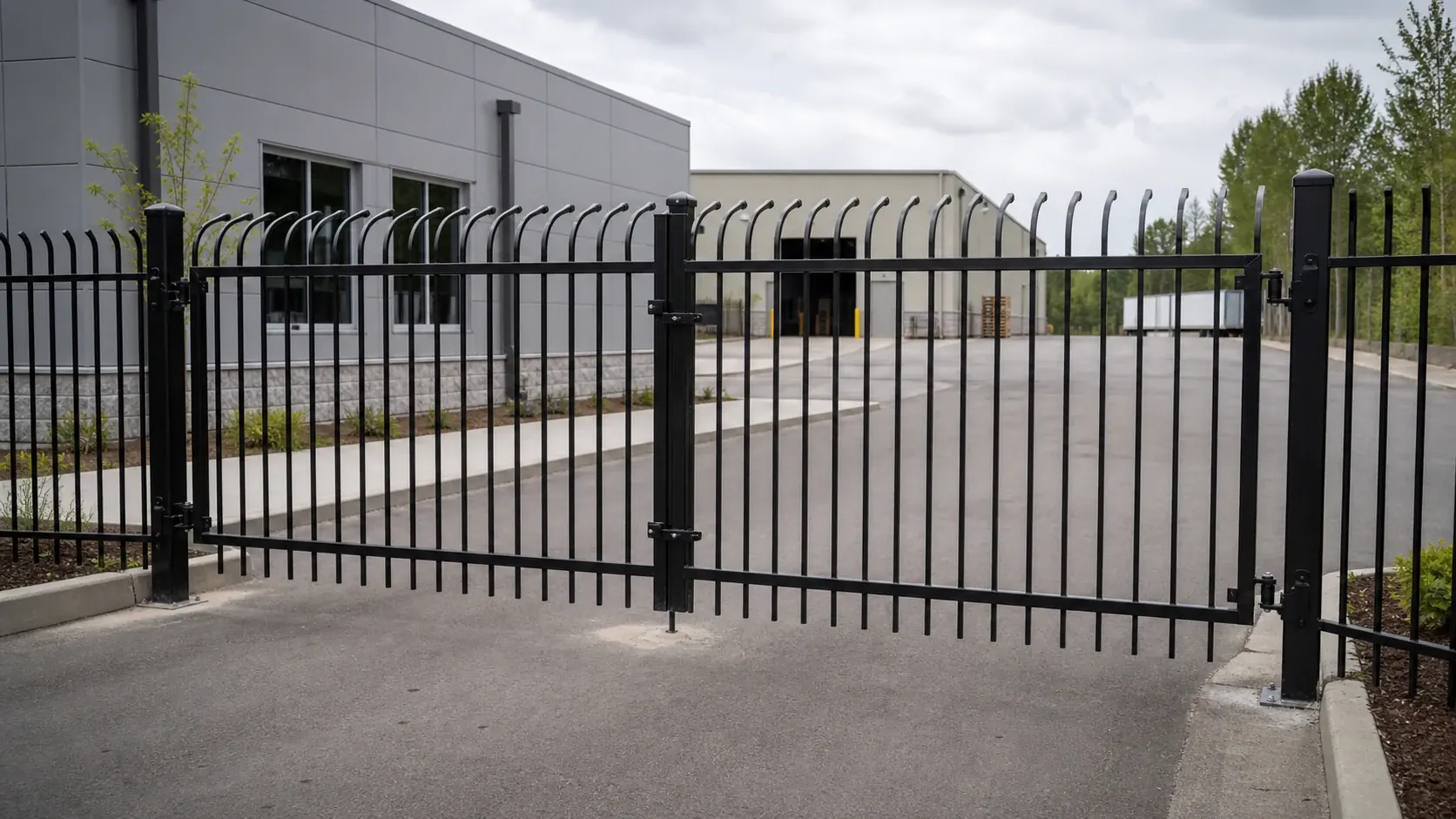

Installing Gates and Accessories
Bent top security fence projects may include pedestrian gates, single swing gates, double leaf gates or sliding gates. Gates need special attention because they move, carry weight and must align with locks or access-control equipment.
Gate post foundations are usually more demanding than standard post foundations. Confirm gate post size, wall thickness, base plate design, anchor layout, hinge type, opening direction, ground clearance, lock, drop bolt and gate stop.

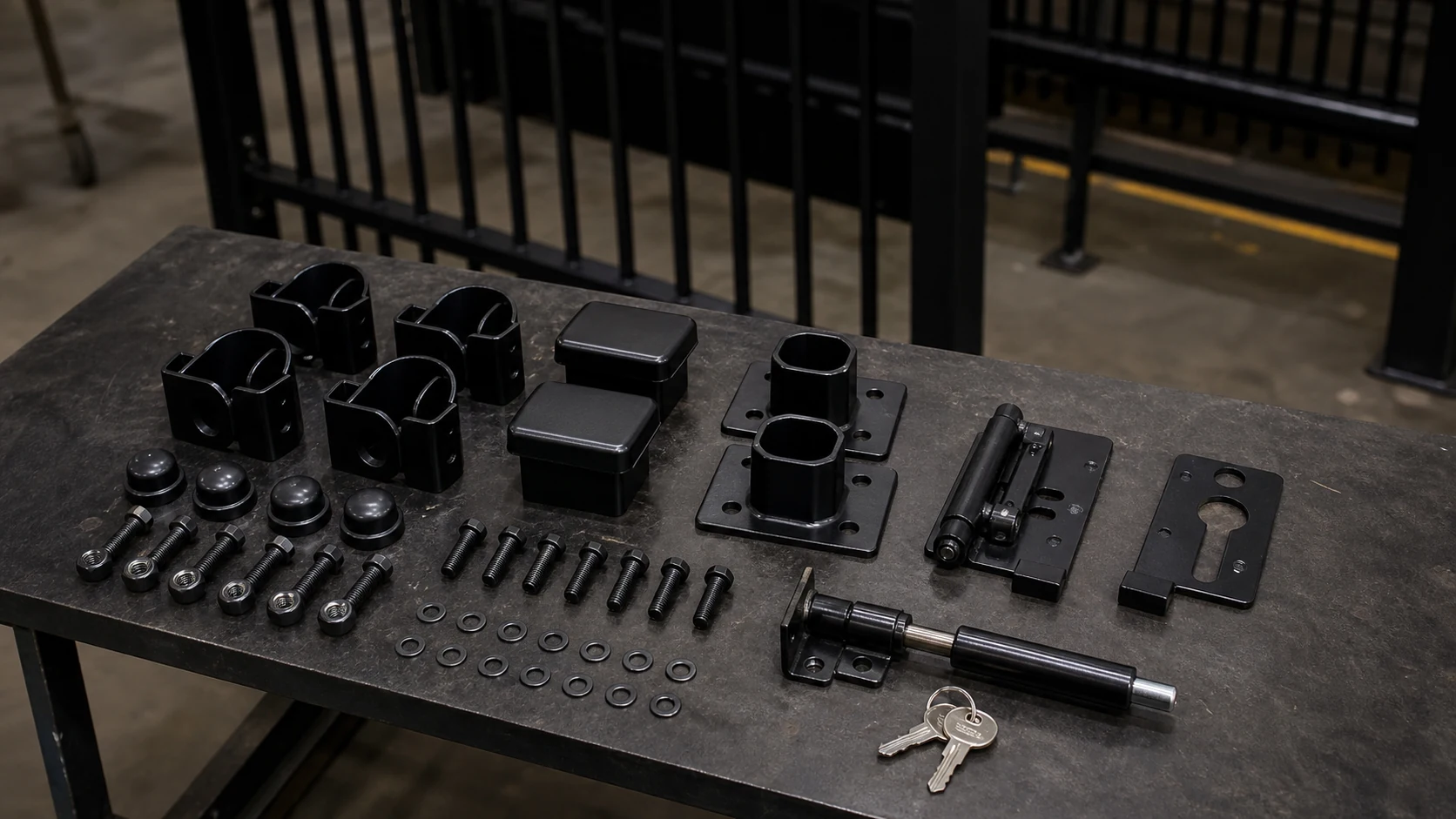

Optional accessories may include barbed wire brackets, razor wire brackets, warning signs, grounding parts, base plates and post caps. Ordering them with the fence system helps hole positions, coatings and fasteners match.
Accessories checklist table
| Accessory | Where It Is Used | Factory Checkpoint |
|---|---|---|
| Clamps or brackets | Panel-to-post fixing | Match post shape and panel frame |
| Anti-tamper bolts | Higher-security fixing points | Confirm bolt head and tool type |
| Post caps | Top of posts | Match post size and coating color |
| Base plates | Concrete or wall fixing | Confirm plate thickness and hole position |
| Anchor bolts | Base plate fixing | Match concrete and engineering design |
| Hinges | Swing gates | Match gate weight and opening direction |
| Locks and drop bolts | Gate closing system | Confirm clearance and access-control needs |
Alignment, Coating Protection, and Site Finishing
After panels and gates are in place, complete a final line check before fully tightening all bolts. The fence should have consistent post spacing, panel gaps, bottom clearance and top height.

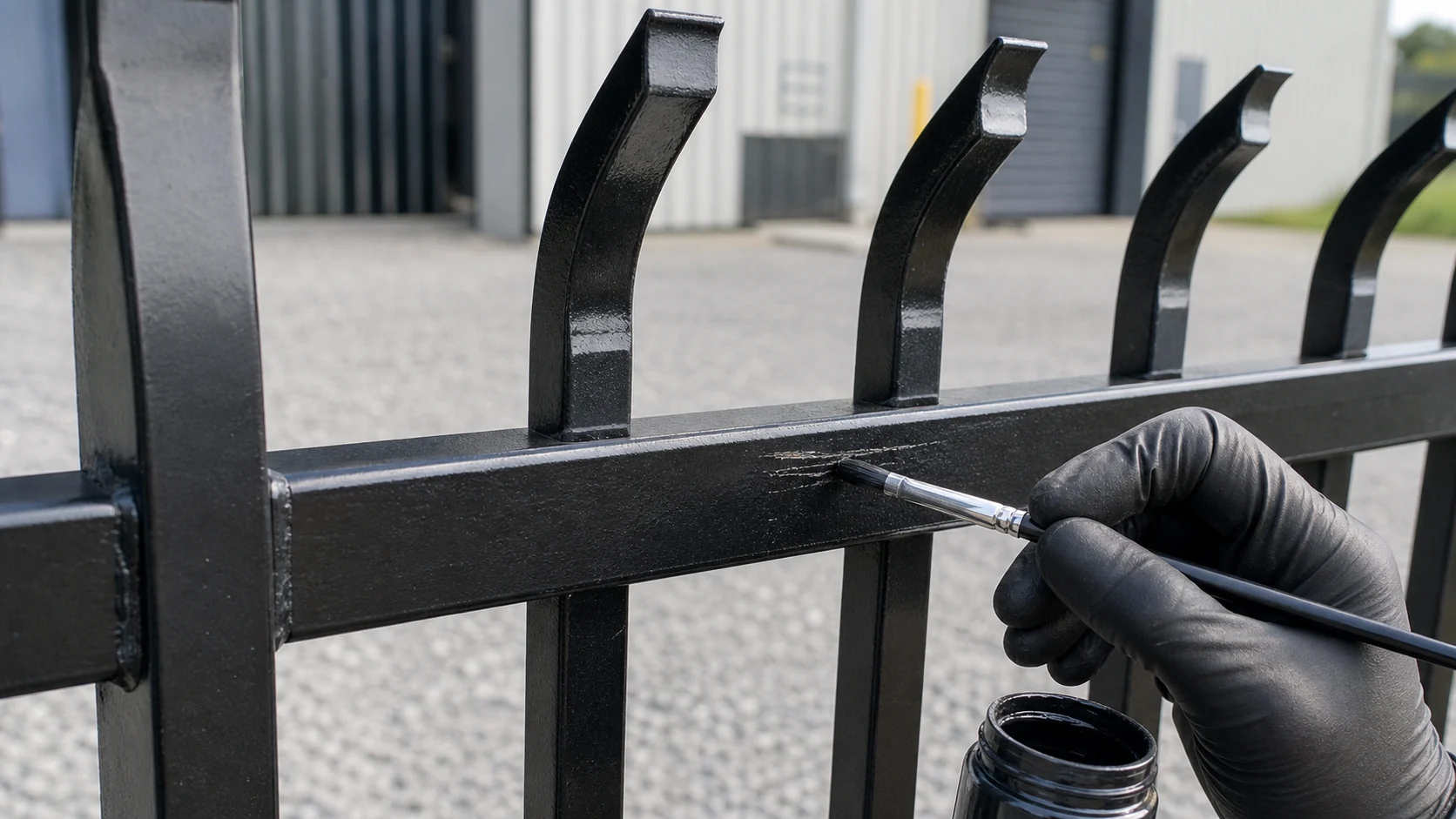

Coating protection is part of installation quality. Clean concrete residue, drilling dust and metal filings from the surface. Repair scratches or exposed metal with suitable touch-up paint or zinc-rich repair material where required.

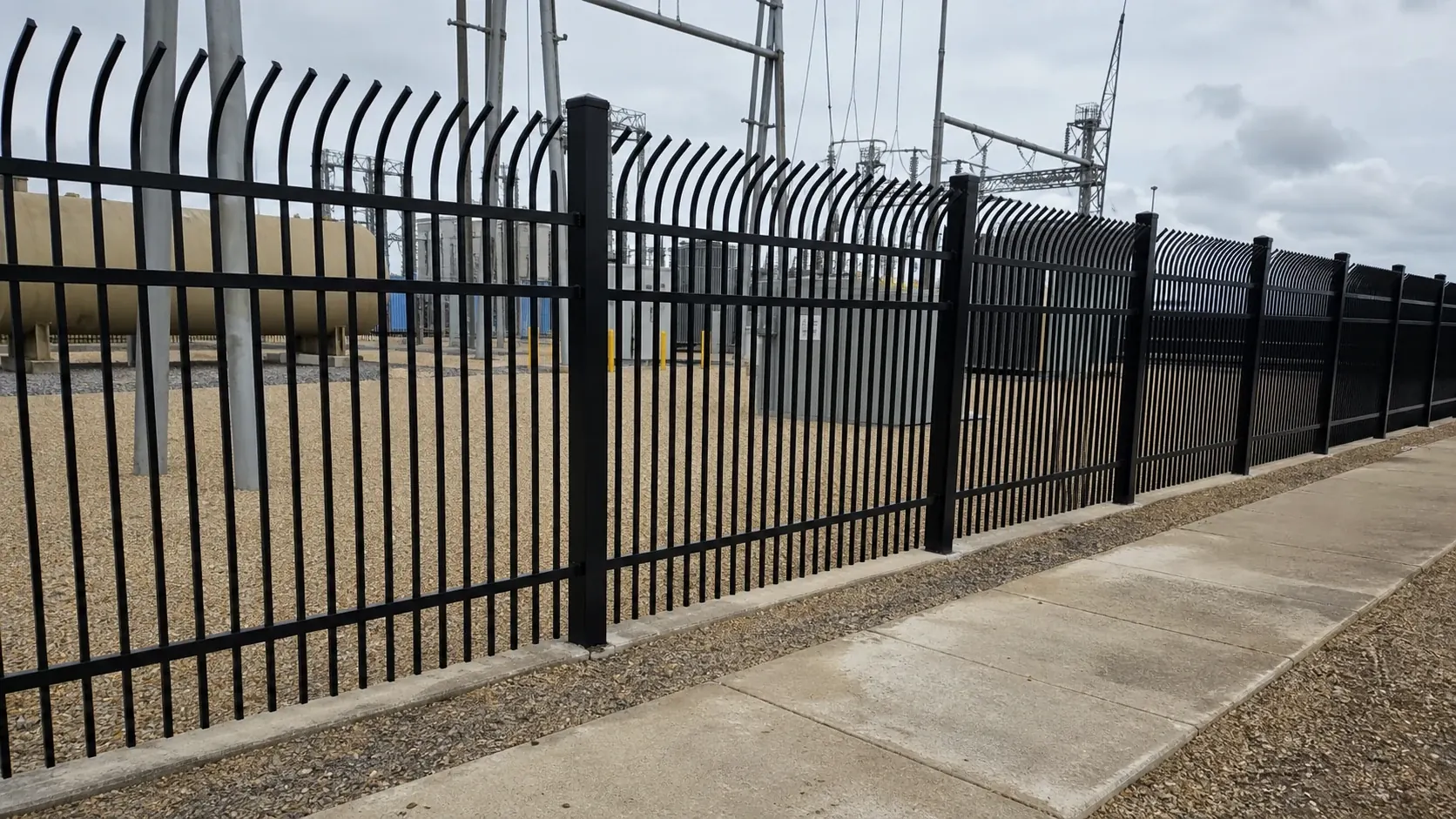

Safety Checks After Installation
The final inspection should confirm that the installed fence matches the project drawing, works properly and has no obvious safety or coating problems.
Final Installation Inspection Checklist
| Inspection Item | What to Check | Why It Matters |
|---|---|---|
| Fence height | Installed height matches the approved drawing | Supports the intended security design |
| Post verticality | Posts are plumb and stable | Prevents leaning panels |
| Panel fixing | Clamps, brackets and bolts are complete | Keeps panels secure |
| Bent top direction | Curved section faces the specified direction | Matches the security layout |
| Bottom clearance | Gap under panels is consistent | Reduces weak points |
| Gate operation | Gate opens, closes, locks and clears the ground | Prevents sagging and rubbing |
| Coating damage | Scratches and cuts are repaired | Reduces corrosion risk |
| Drawing compliance | Fence line, gates and accessories match requirements | Supports project acceptance |
Common Mistakes When Installing Bent Top Metal Security Fence
Common mistakes include wrong post spacing, incorrect bent top direction, unlevel posts, early concrete loading, weak gate posts, missing fittings, wrong bolts, uneven panel height, unprotected cuts, ignored slopes and unchecked safety requirements.
From our factory experience, many of these problems can be avoided before production. Confirm drawings, panel width, post type, gate size, fittings and foundations early.
What We Provide as a Factory
As a factory, we manufacture bent top metal security fence panels according to confirmed project details. We can customize panel height, width, wire diameter, frame size, post size, gate type, color and coating system.
Before manufacturing, we can provide production drawings for confirmation. We also prepare packing lists, fitting details and installation reference drawings.
We match fittings to the post and panel system, including clamps, brackets, bolts, post caps, base plates, hinges, locks and drop bolts. We can also provide production photos, loading photos, project photos and installation guidance when order details are confirmed. Final installation must still follow local regulations and project engineering requirements.
FAQ About Bent Top Metal Security Fence Installation
How deep should posts be for a bent top metal security fence?
It depends on fence height, soil, wind load, post size and engineering requirements. We do not recommend one universal depth.
Can bent top security fence panels be installed on concrete?
Yes. Base plates and anchor bolts can be used when the concrete quality, thickness and load requirements are suitable.
Which direction should the bent top face?
The direction should follow the project security design and local safety requirements.
Can the panels be cut on site?
Avoid cutting where possible because it can damage galvanizing, powder coating or PVC coating. If cutting is unavoidable, exposed metal must be repaired.
How do we install a gate with bent top metal security fencing?
Use stronger gate posts, correct hinges, suitable clearance, a reliable locking system and repeated operation checks.
What accessories are usually needed?
Common accessories include clamps, bolts, brackets, post caps, base plates, anchor bolts, hinges, locks, drop bolts and anti-tamper fittings.
Can your factory provide installation drawings?
Yes. When order details are confirmed, we can provide reference drawings, packing lists, fitting details and project-specific production drawings.
Conclusion
Successful installation depends on correct preparation, strong foundations, accurate panel fixing, reliable gates, coating protection and final inspection. As a manufacturer, we supply panels, posts, gates and fittings that match confirmed project details.
If you plan to install bent top metal security fence for an industrial or infrastructure project, send us your drawings, fence height, panel size, post type, gate quantity, coating requirement and project location. We can prepare a production plan, fitting list, packing reference and installation drawing.
